FILL 10590
Summary
start: May 05, 2025 01:05:45 PM UTC
end: May 06, 2025 12:06:07 AM UTC
duration: 0 days 11:00:21.392875
tags:
-
INTENSITY_RAMPUP
-
OP_DUMP
comments:
-
12 bunches
-
dip of lifetime at start of ramp
-
drop of lifetime to 5 h at start of collisions
-
emittance from emittance scans at H 1.8 um and V 1.6 um
-
phase cogging to move spot in the IPs along z position
-
lumi optimizations in all beta*
-
cross section for PU calculation was set to ppref value so leveling was more aggressive
-
around 60 cm, impact on effective cross section and changes in bunch length
-
xing leveling was made more aggressive to speed up the fill and test the machinery, down to 120. leveling was too aggressive and pileup was higher than what was supposed to

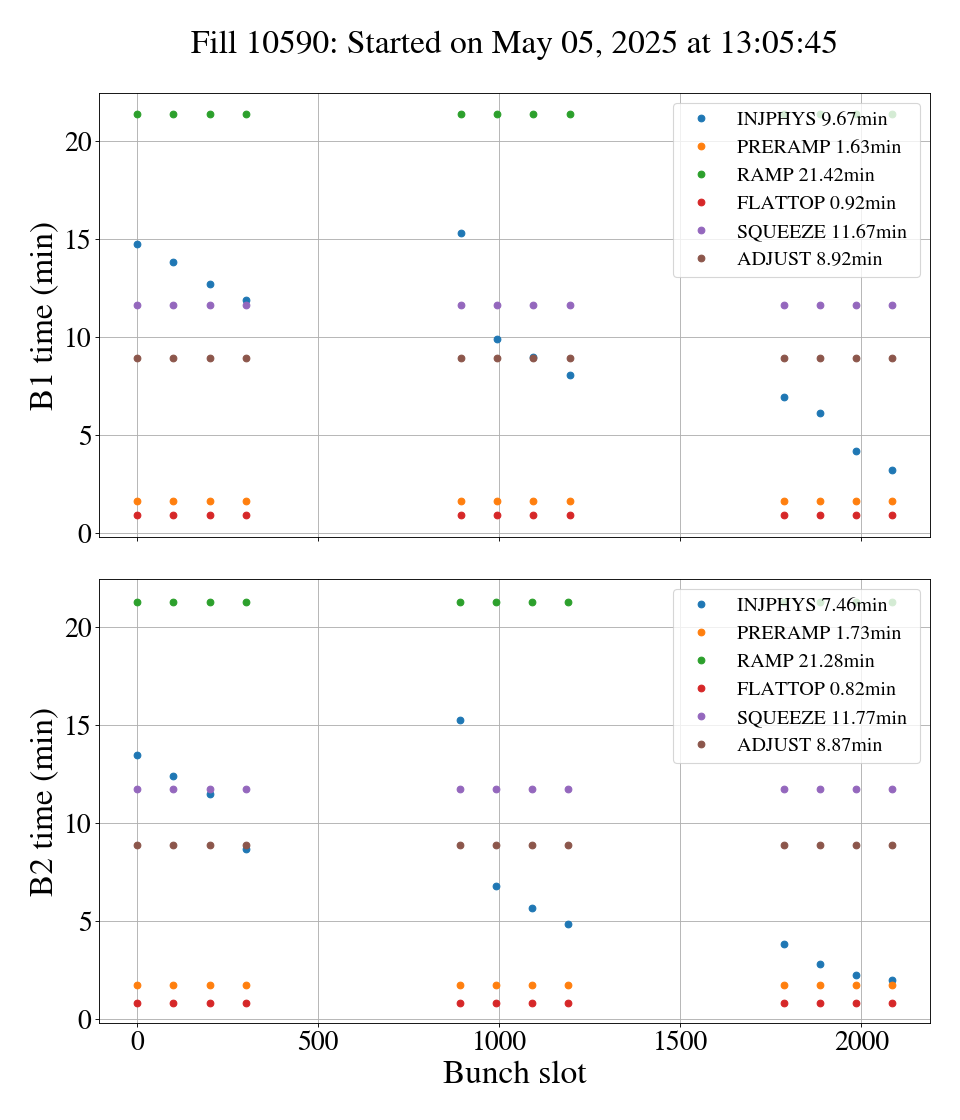

Cycle duration

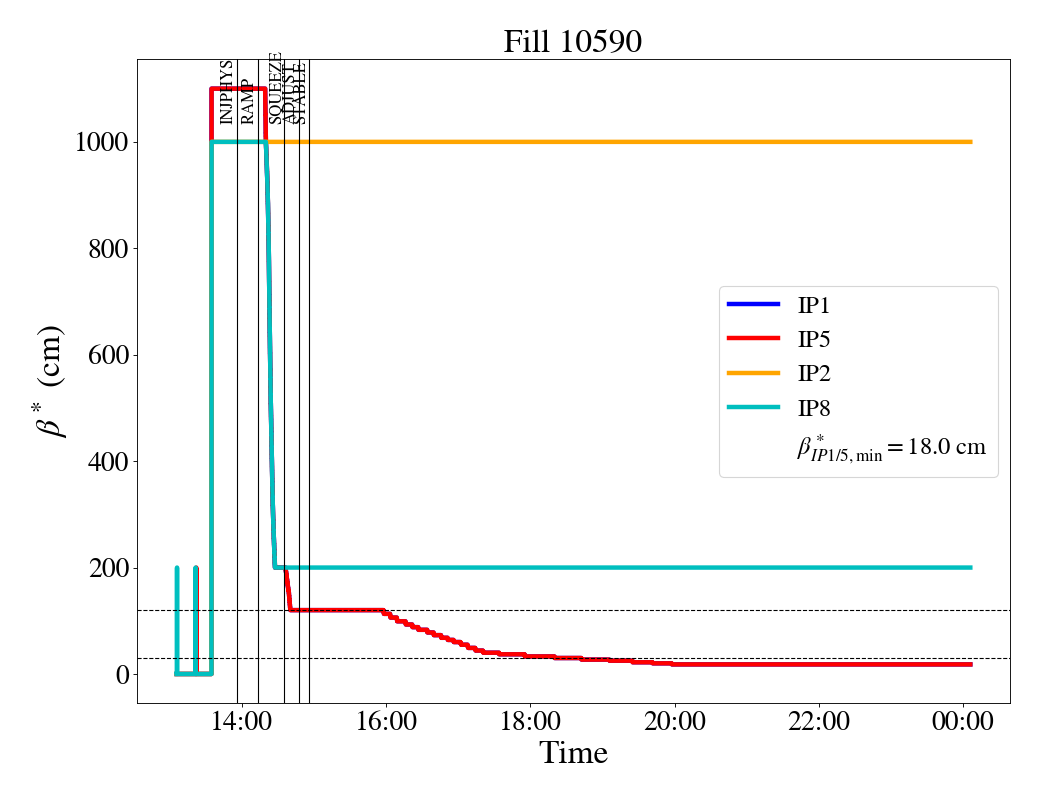

Beta-functions at the IPs

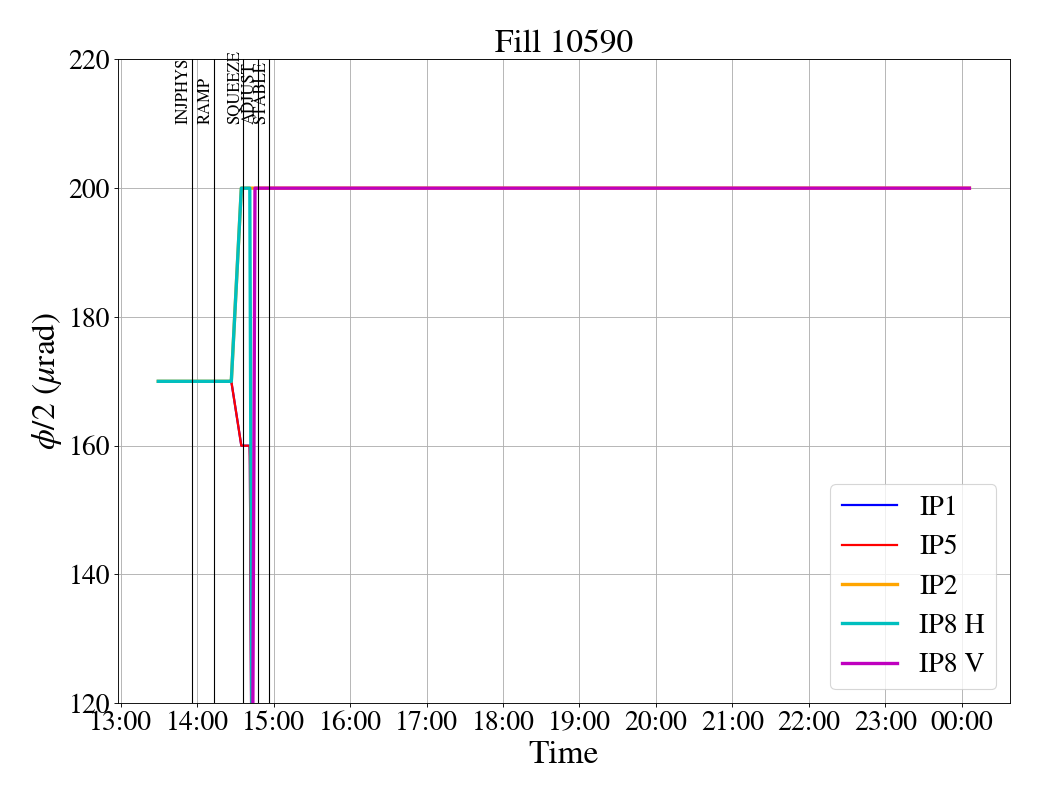

Crossing angles

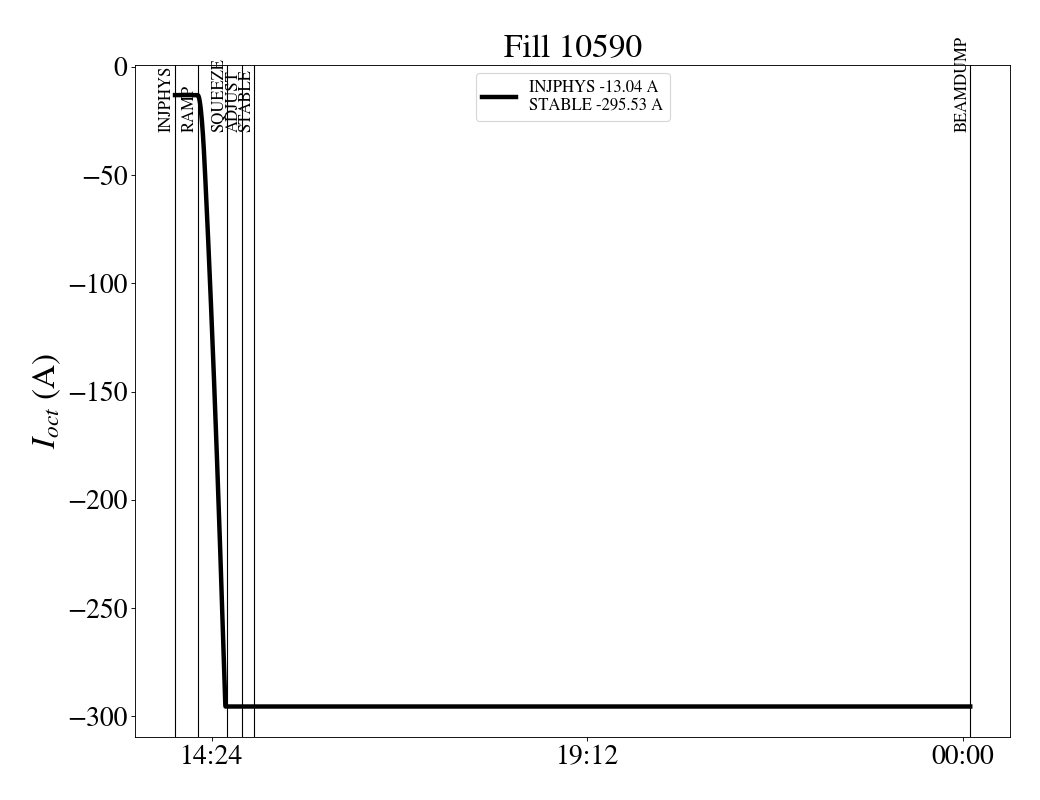

Octupoles
Trims

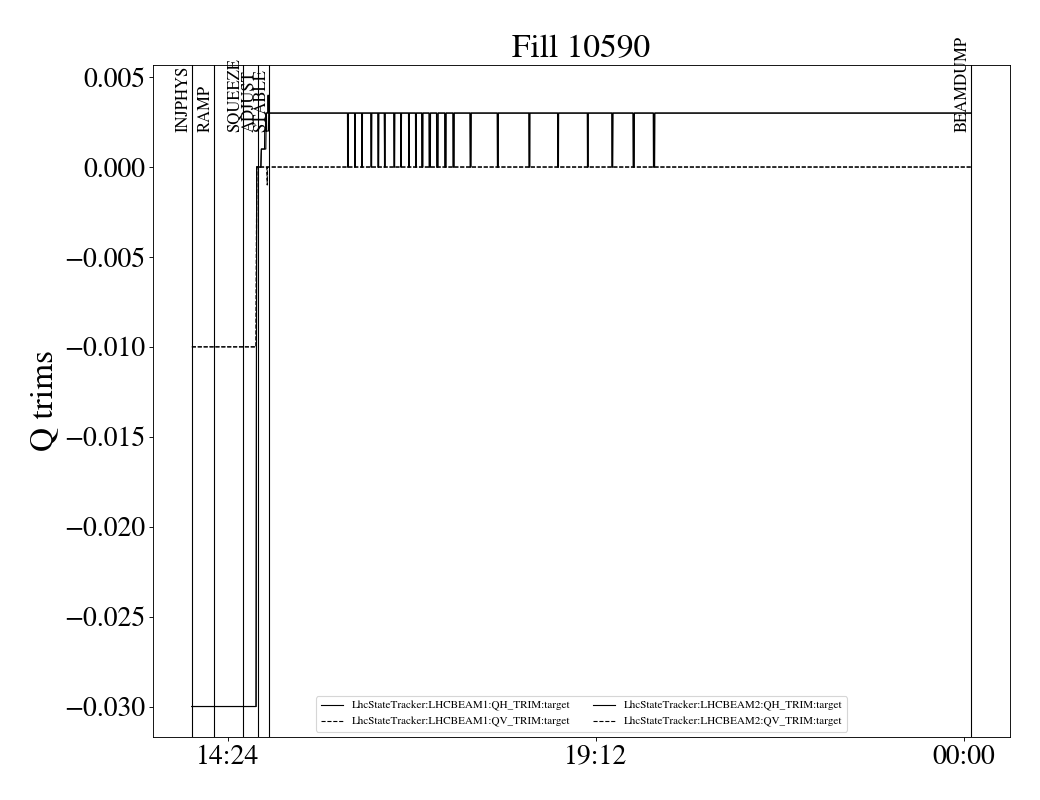

Tune trims

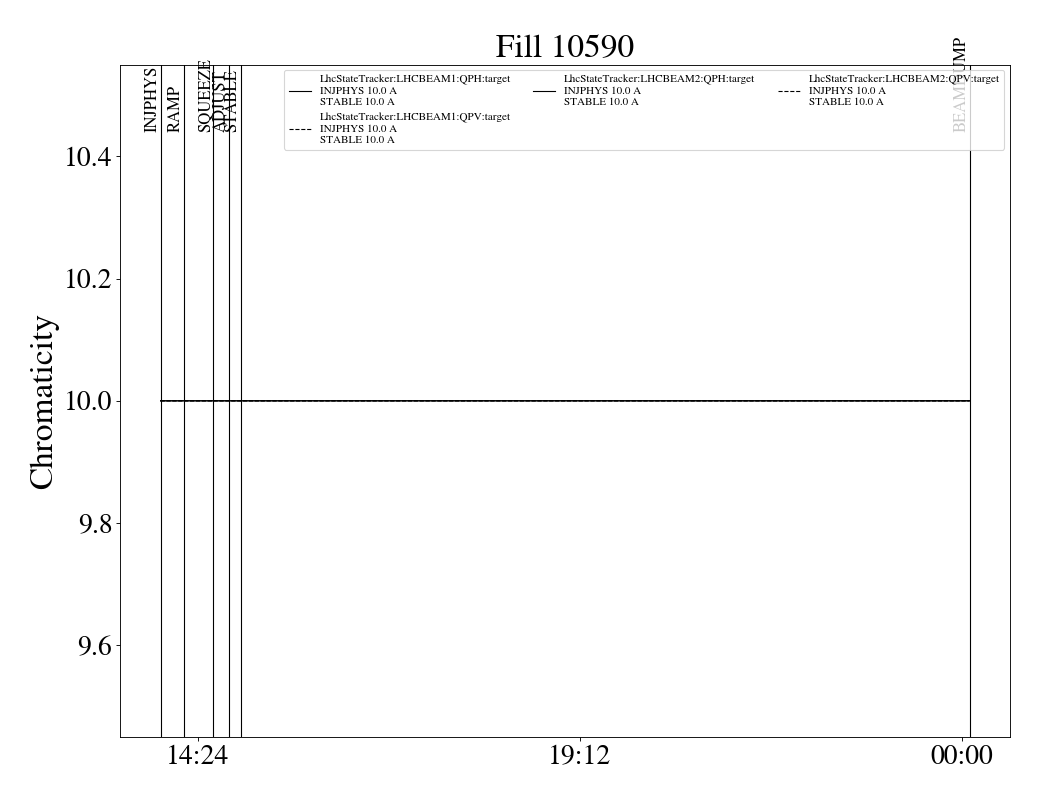

Chromaticity Trims
Intensity

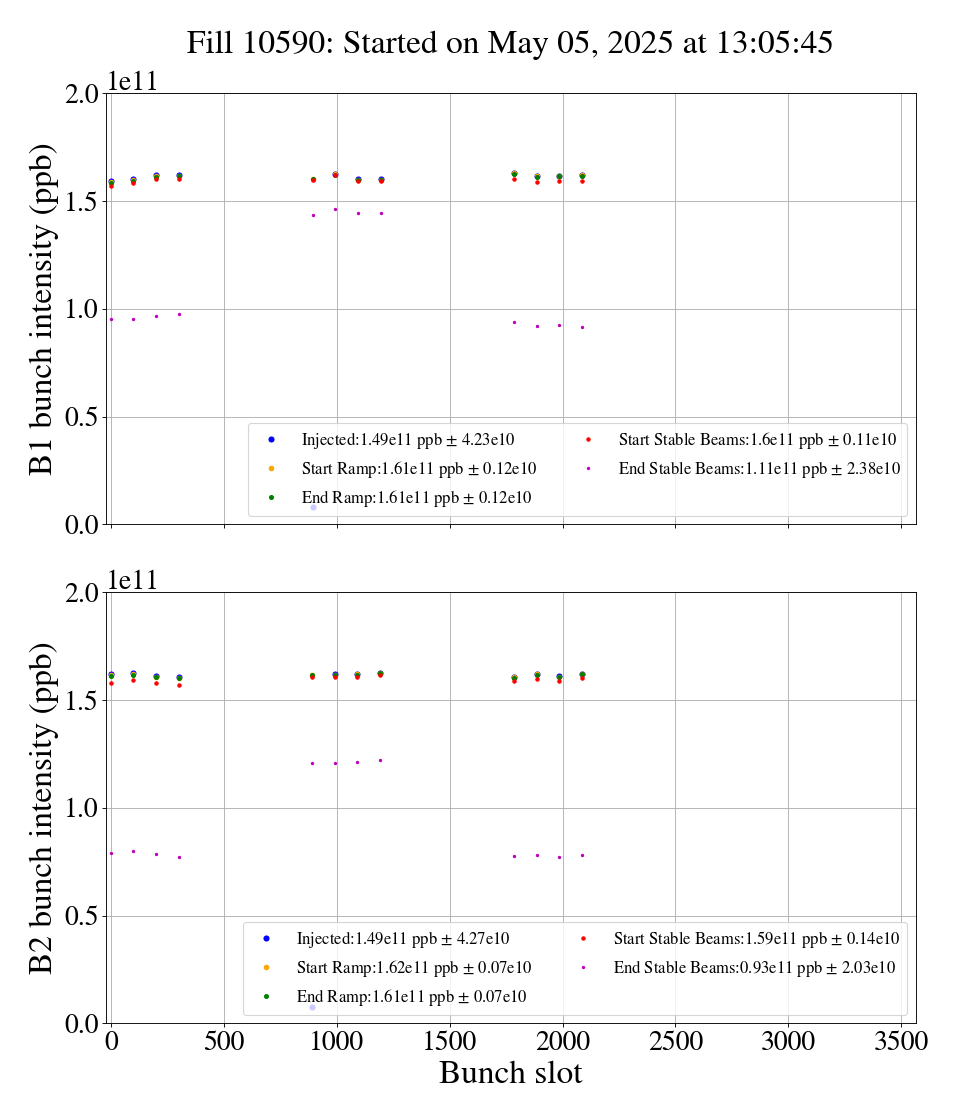

Cycle intensity

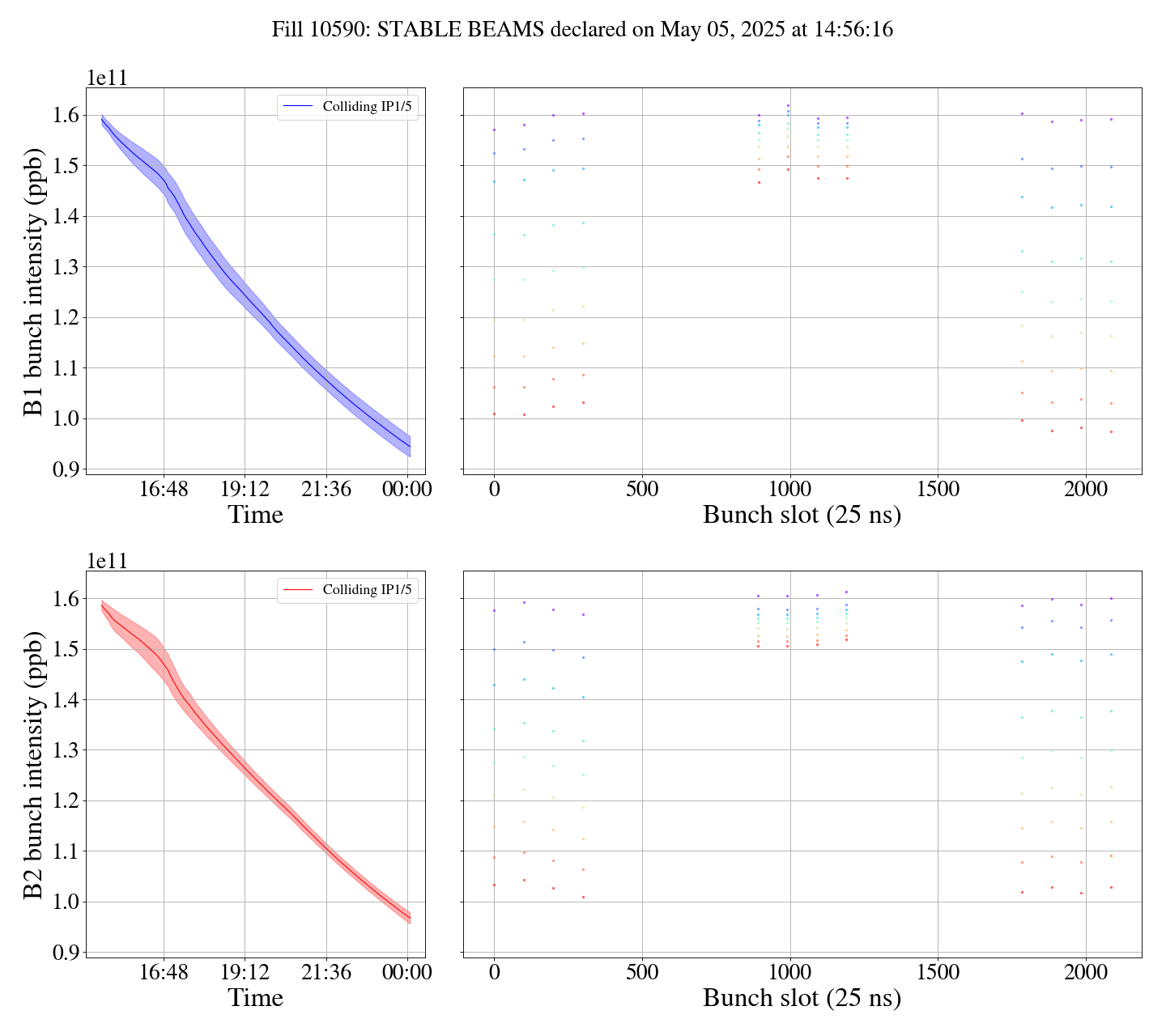

BBB SB intensity
Violin BBB intensity
SB bunch intensity

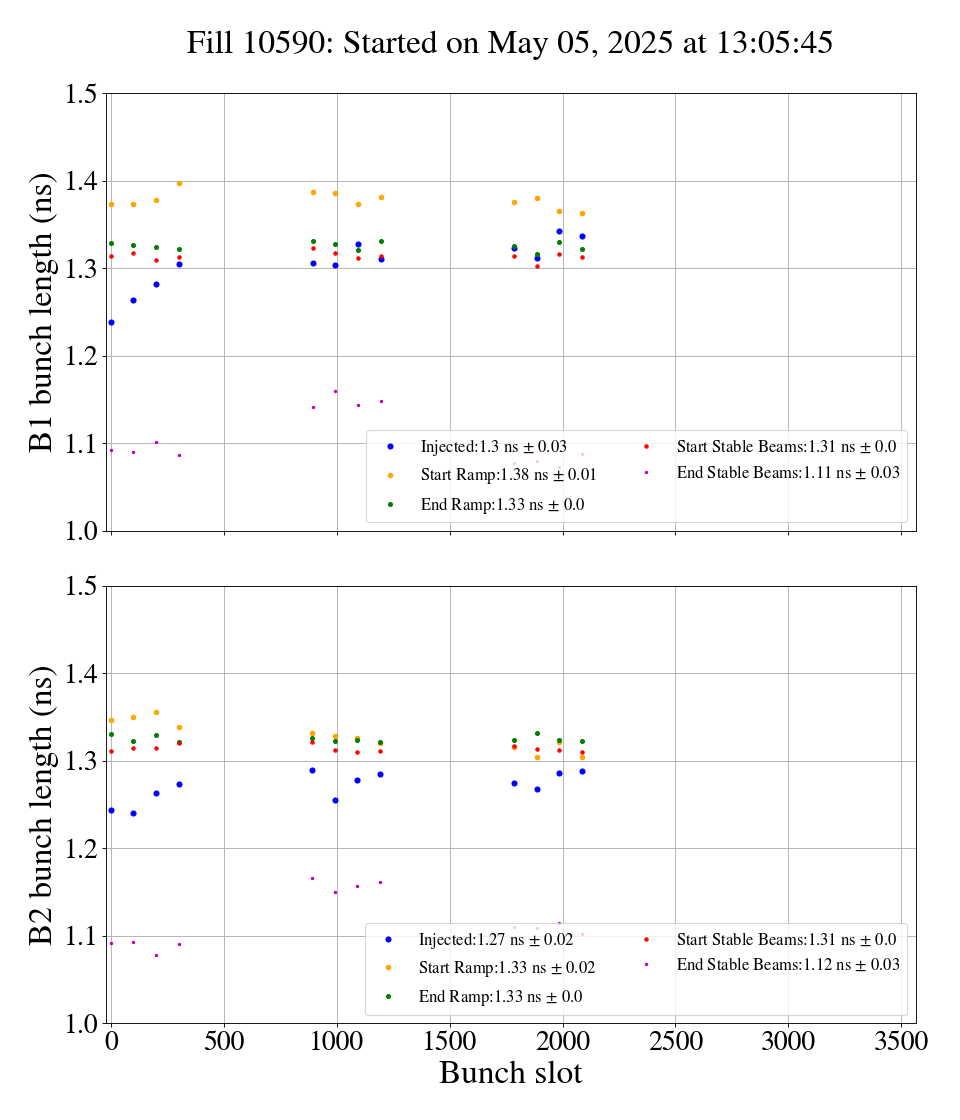

Bunch Length

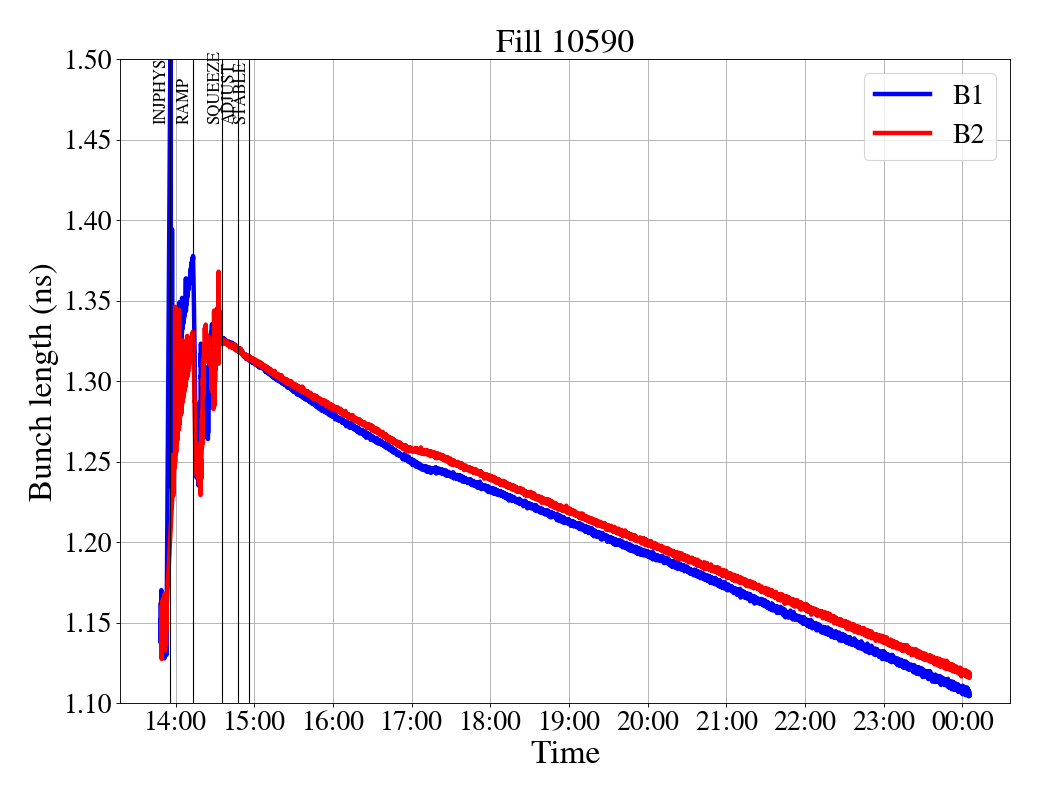

Bunch Length Fill
Emittance

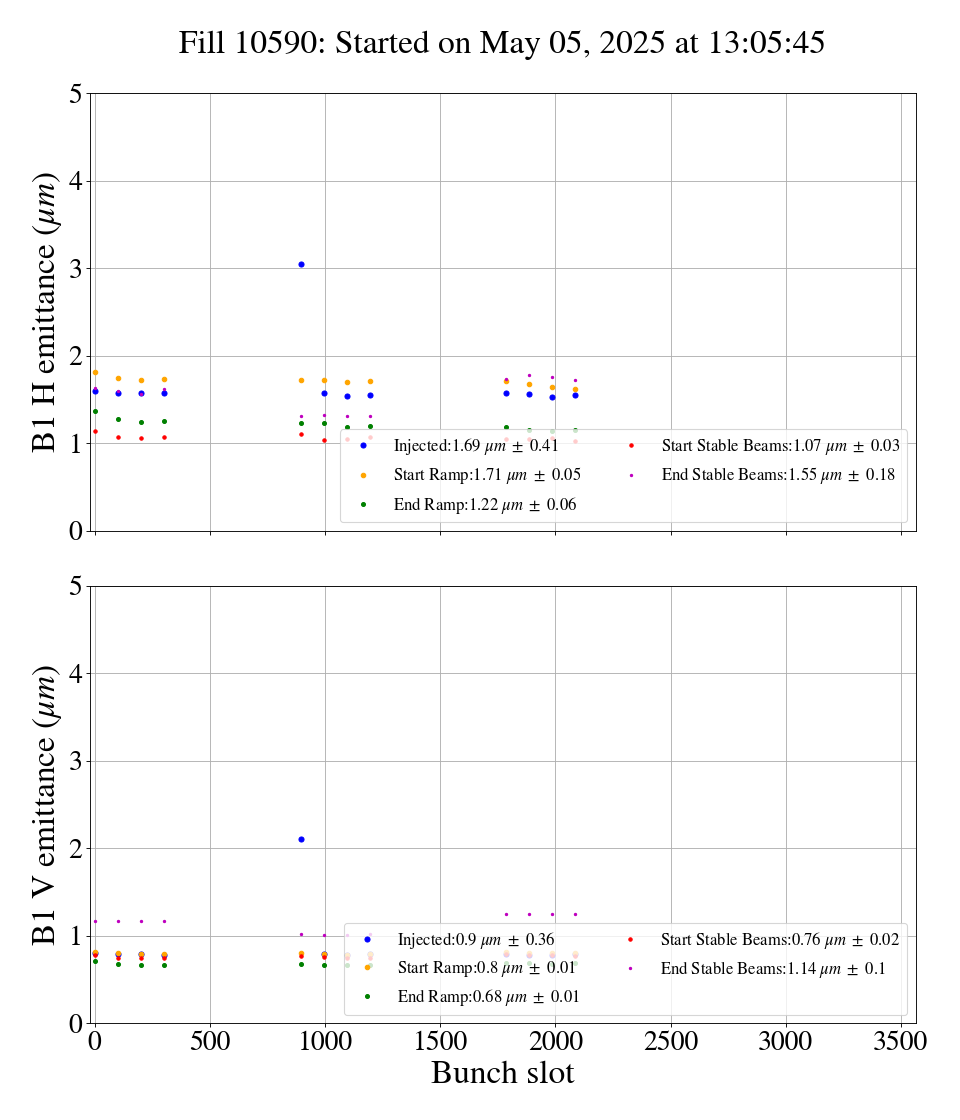

B1 along the cycle

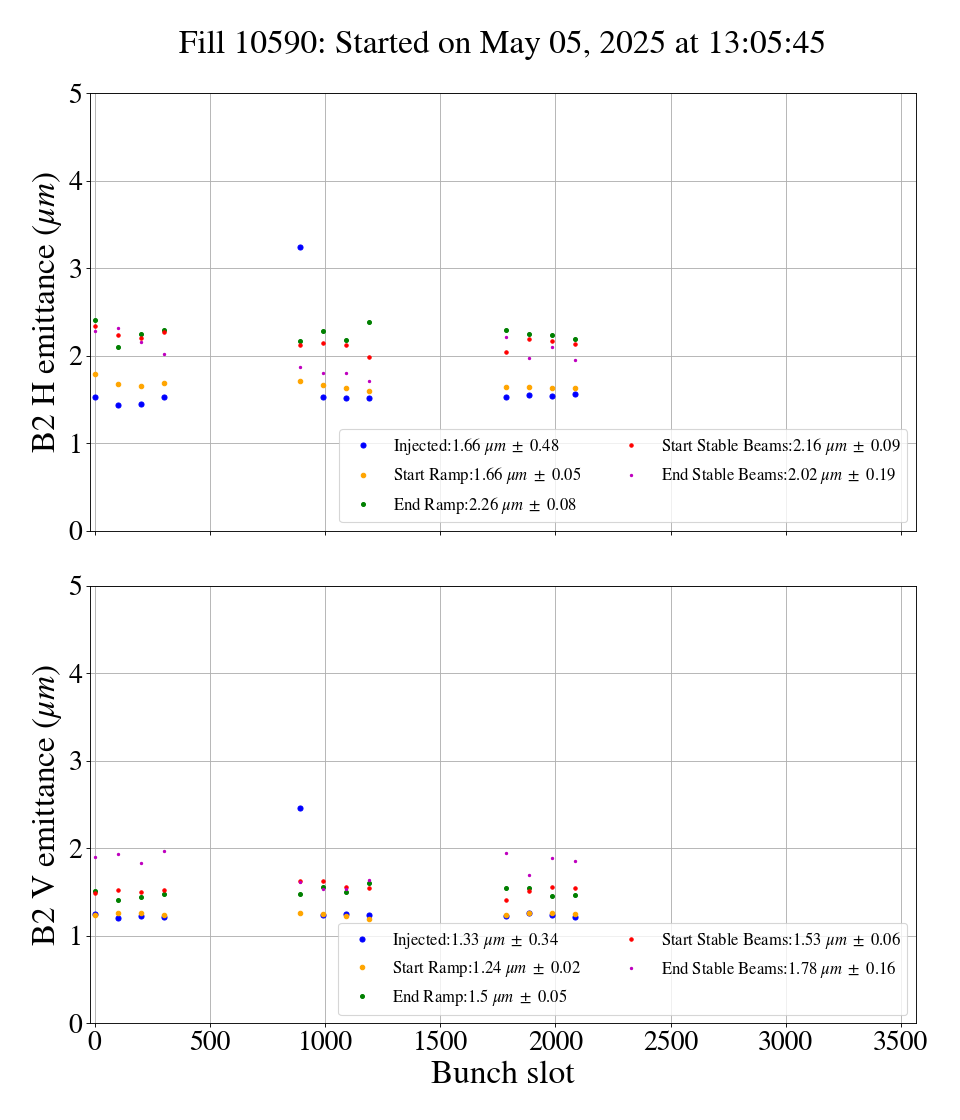

B2 along the cycle

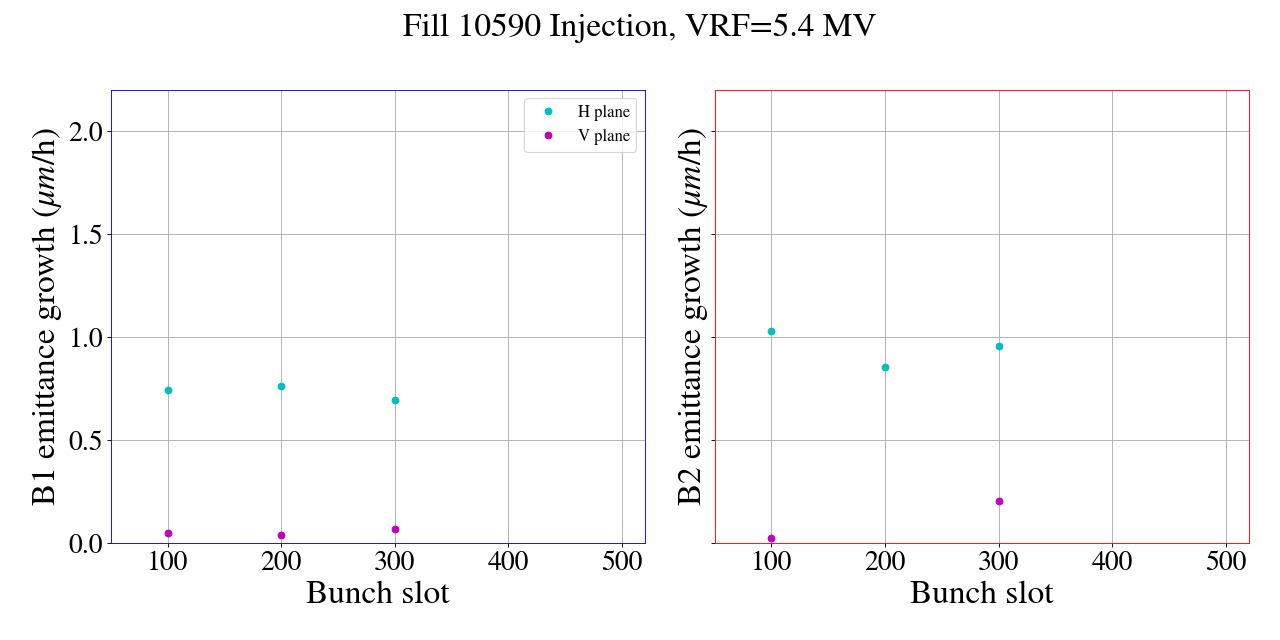

Emittance growth at injection
Summary violin plot

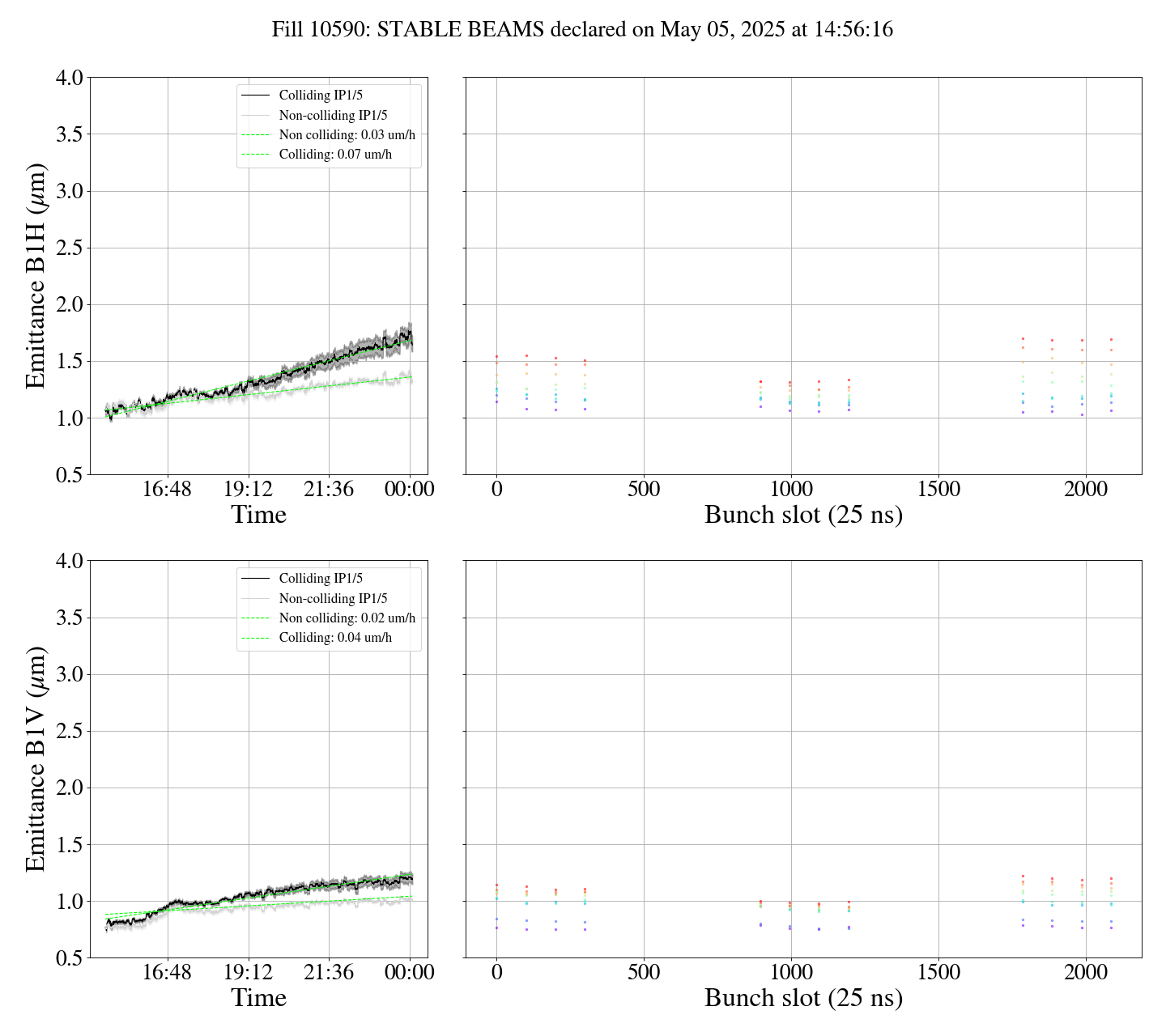

BBB in SB for B1

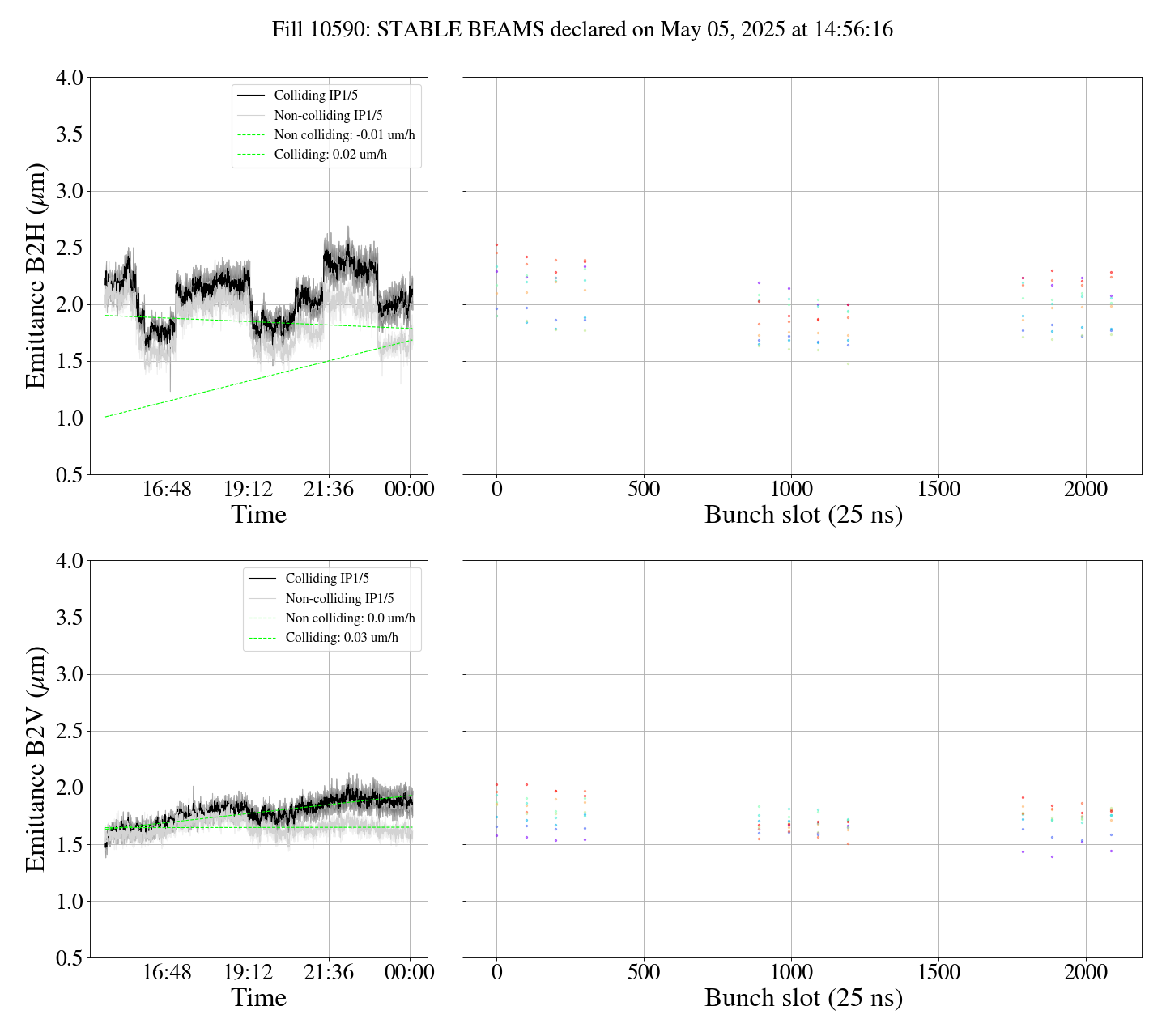

BBB in SB for B2

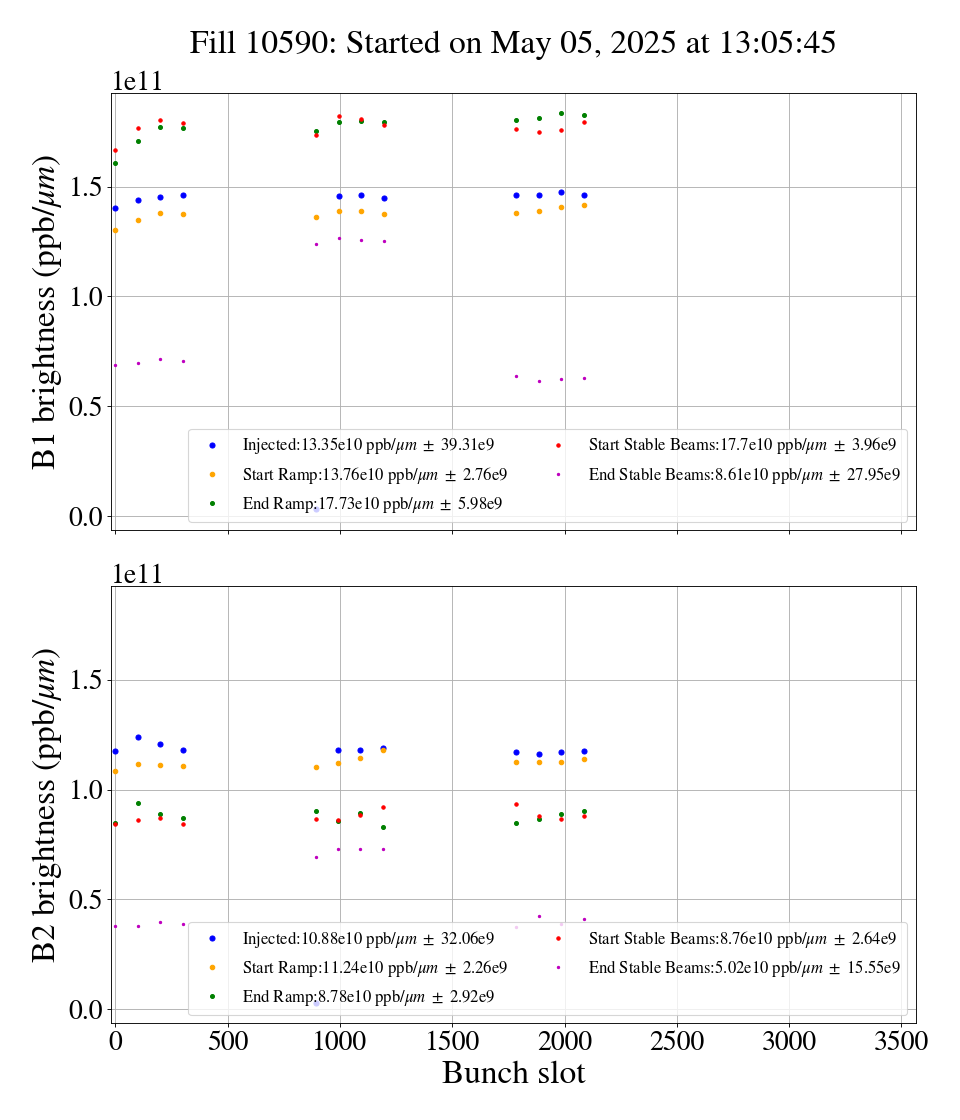

Bunch brightness
Beam properties summary
Luminosity

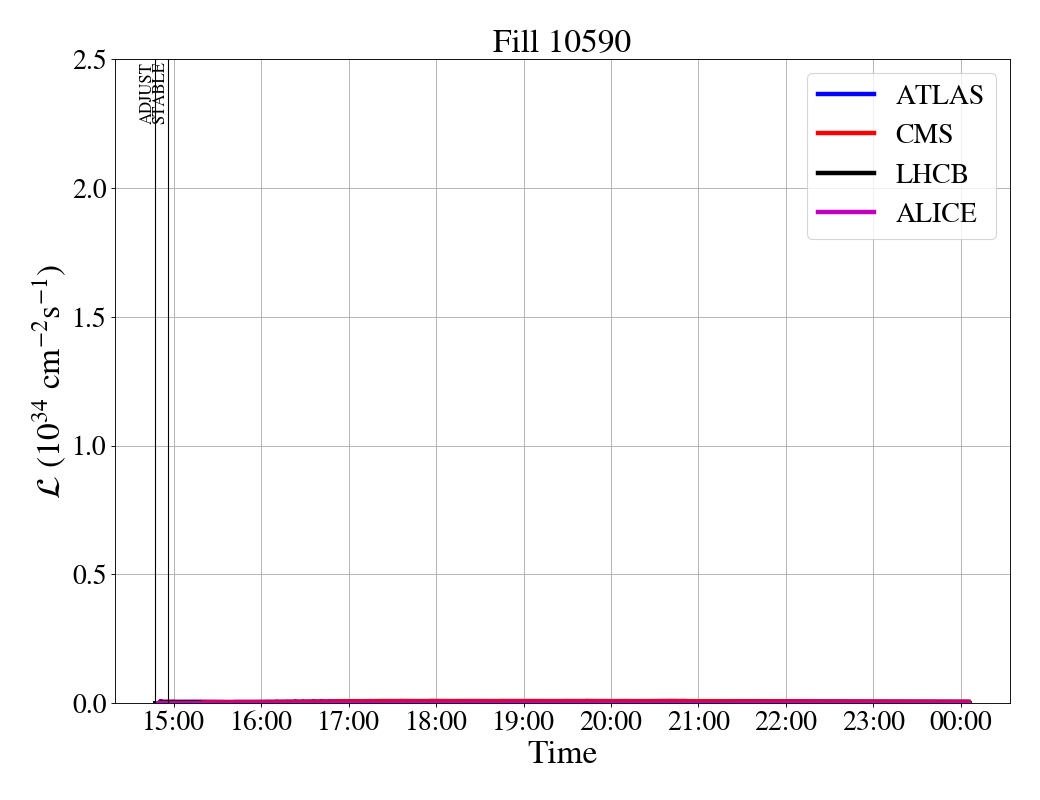

Overview
Luminous Regions

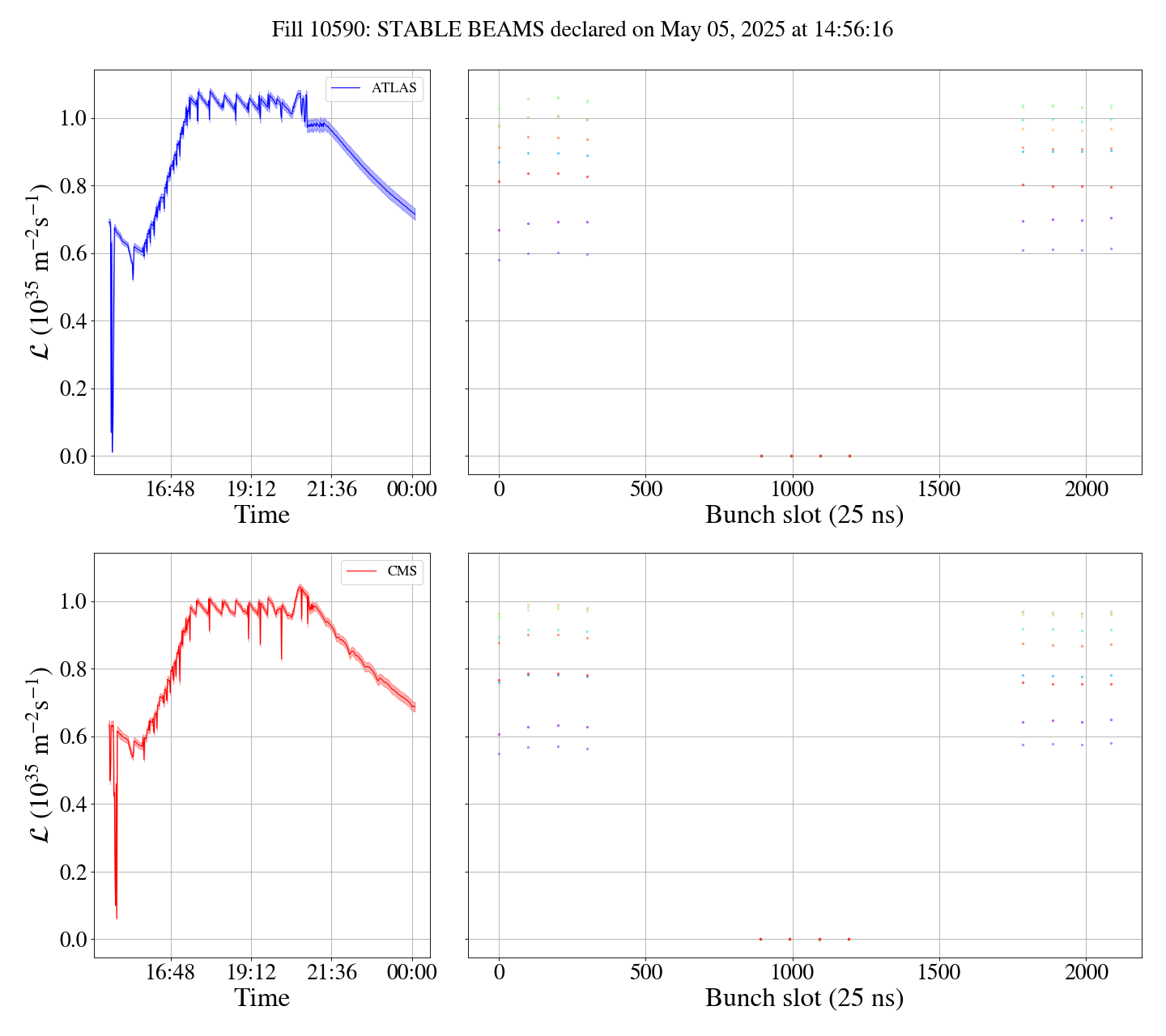

BBB luminosity in SB
Cross-sections

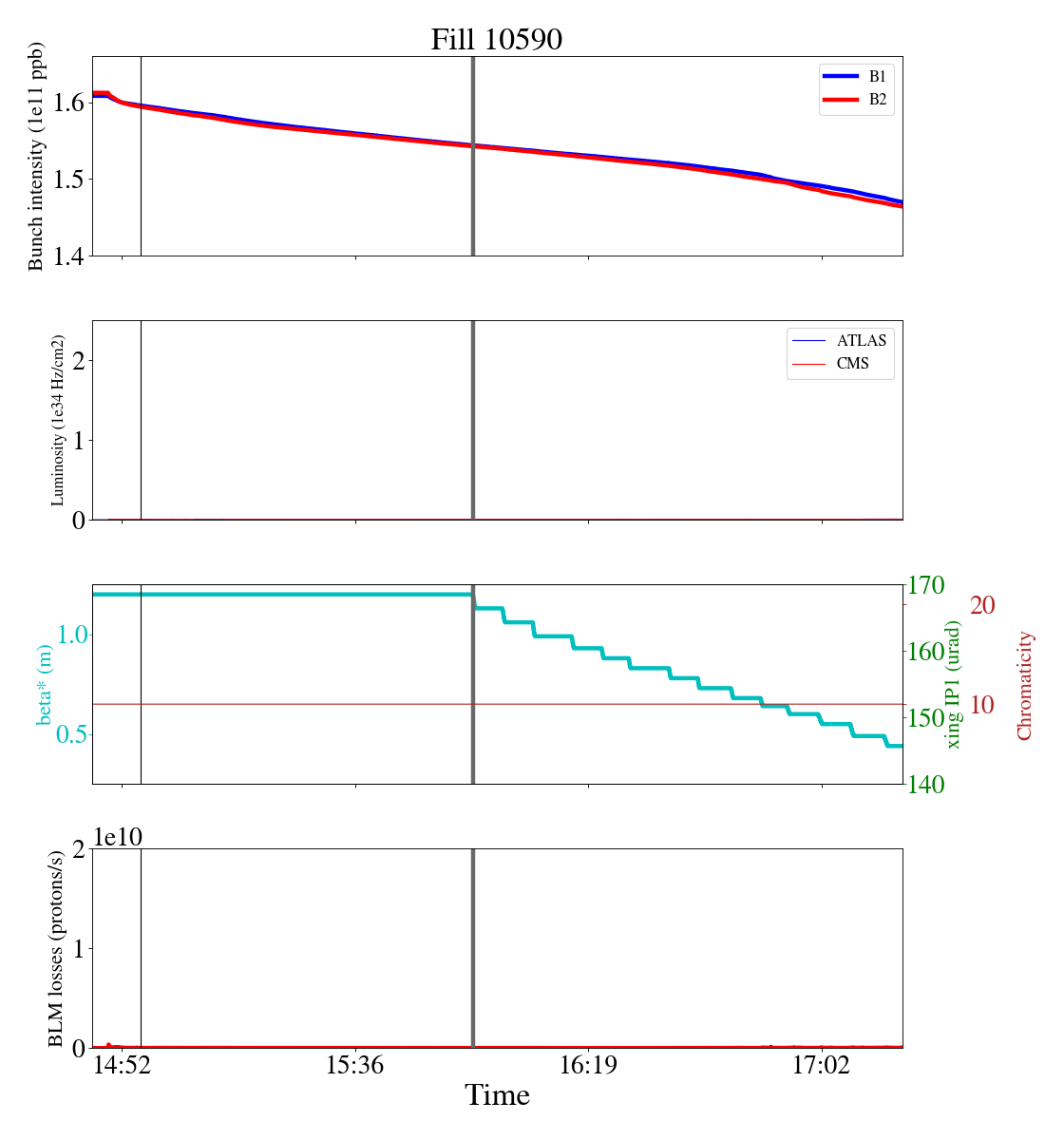

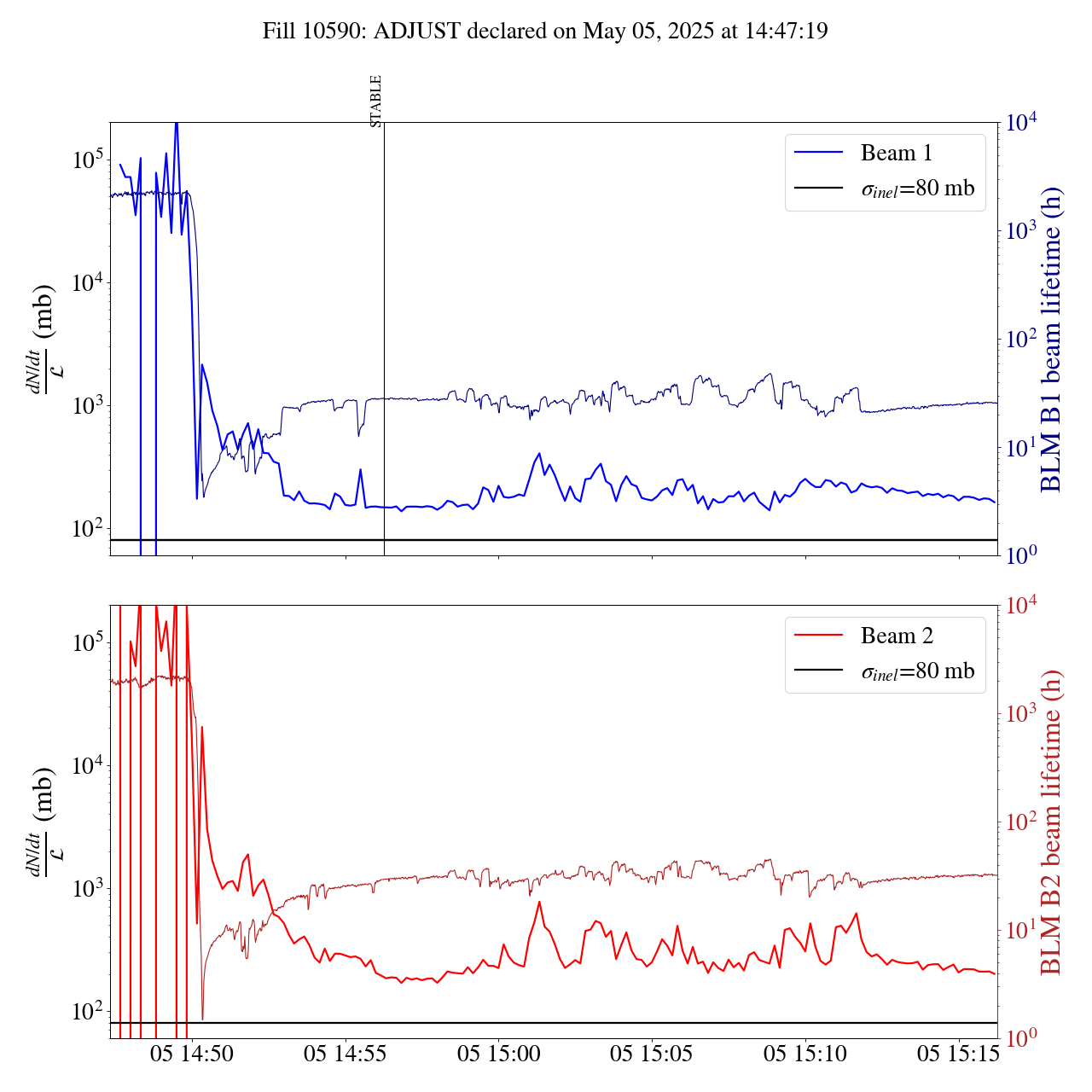

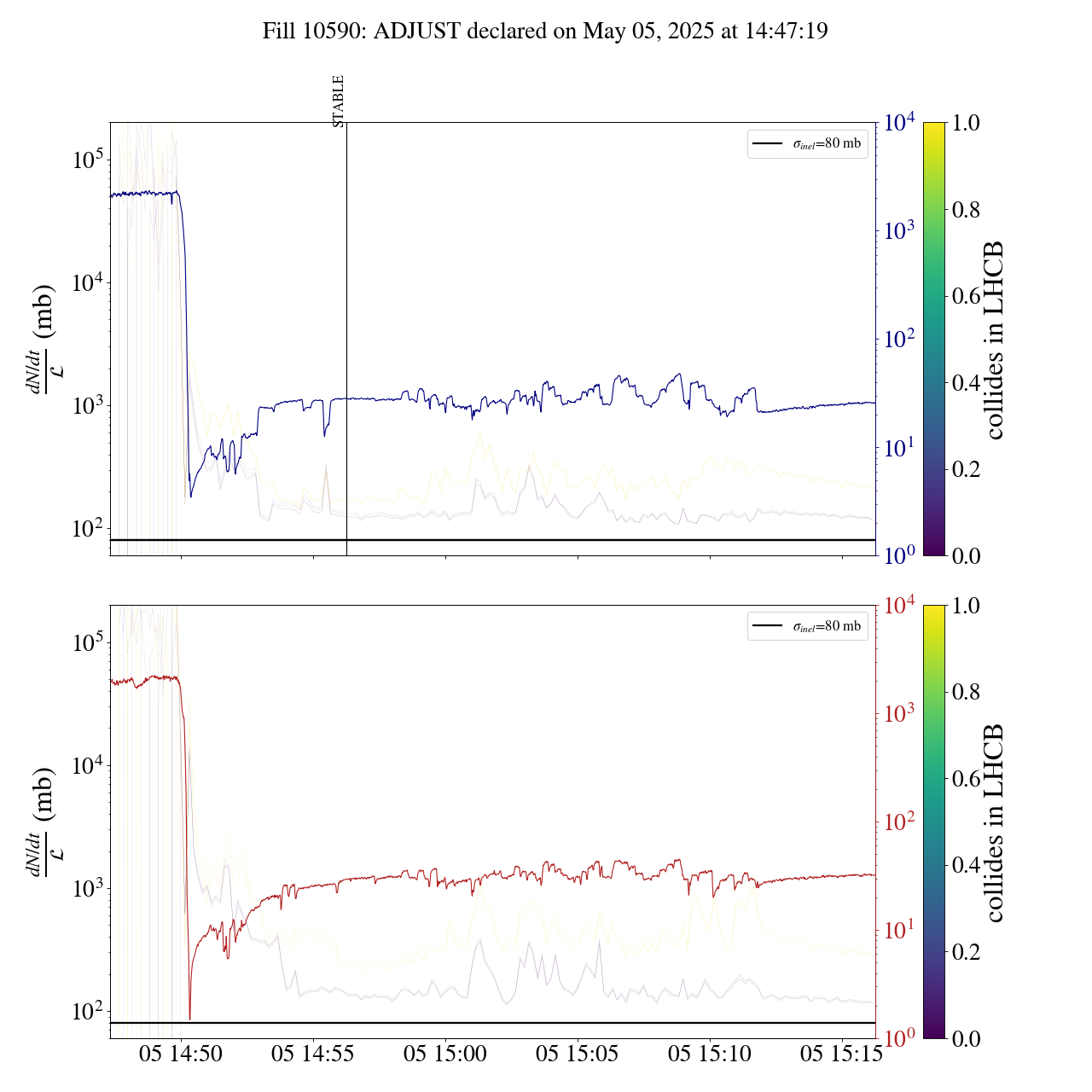

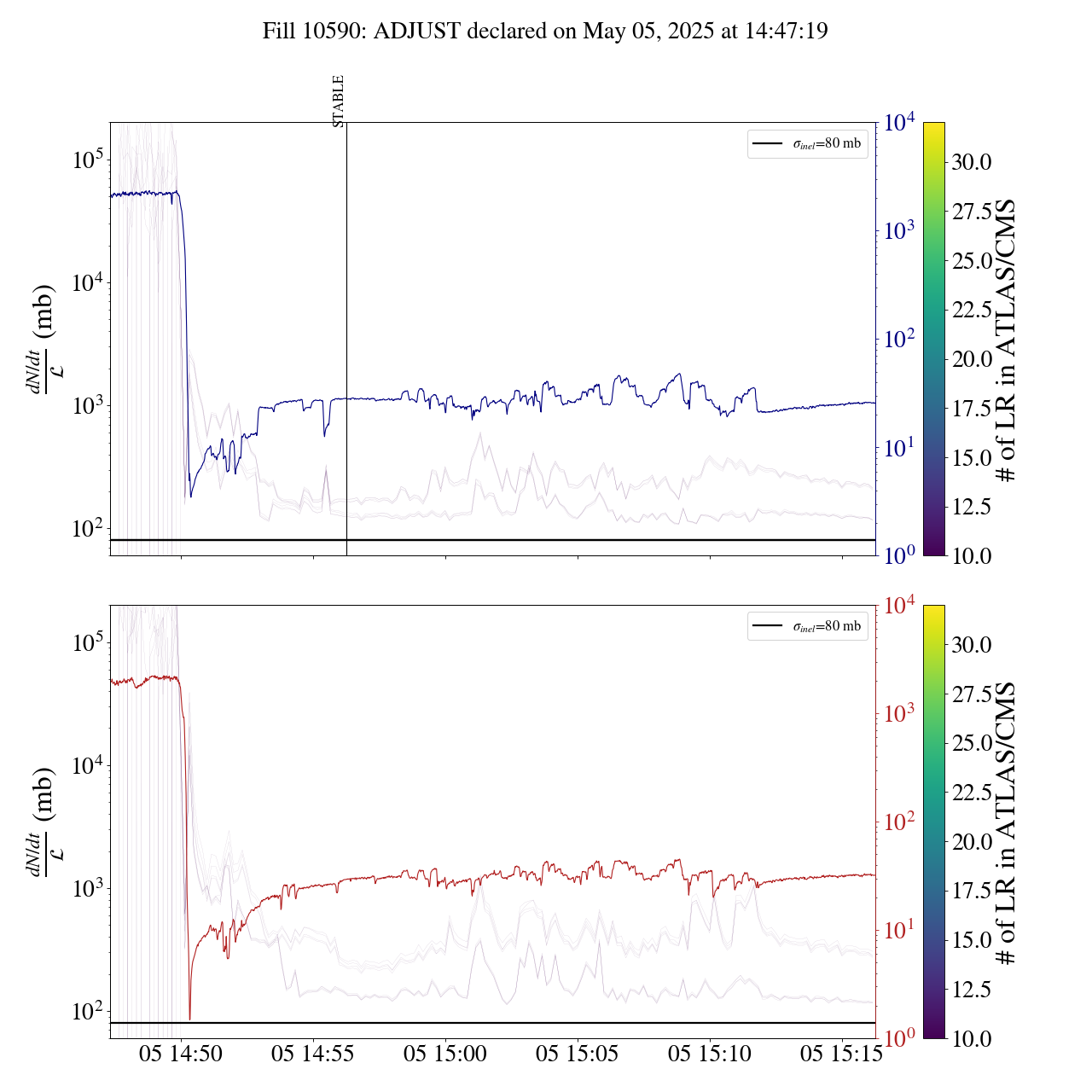

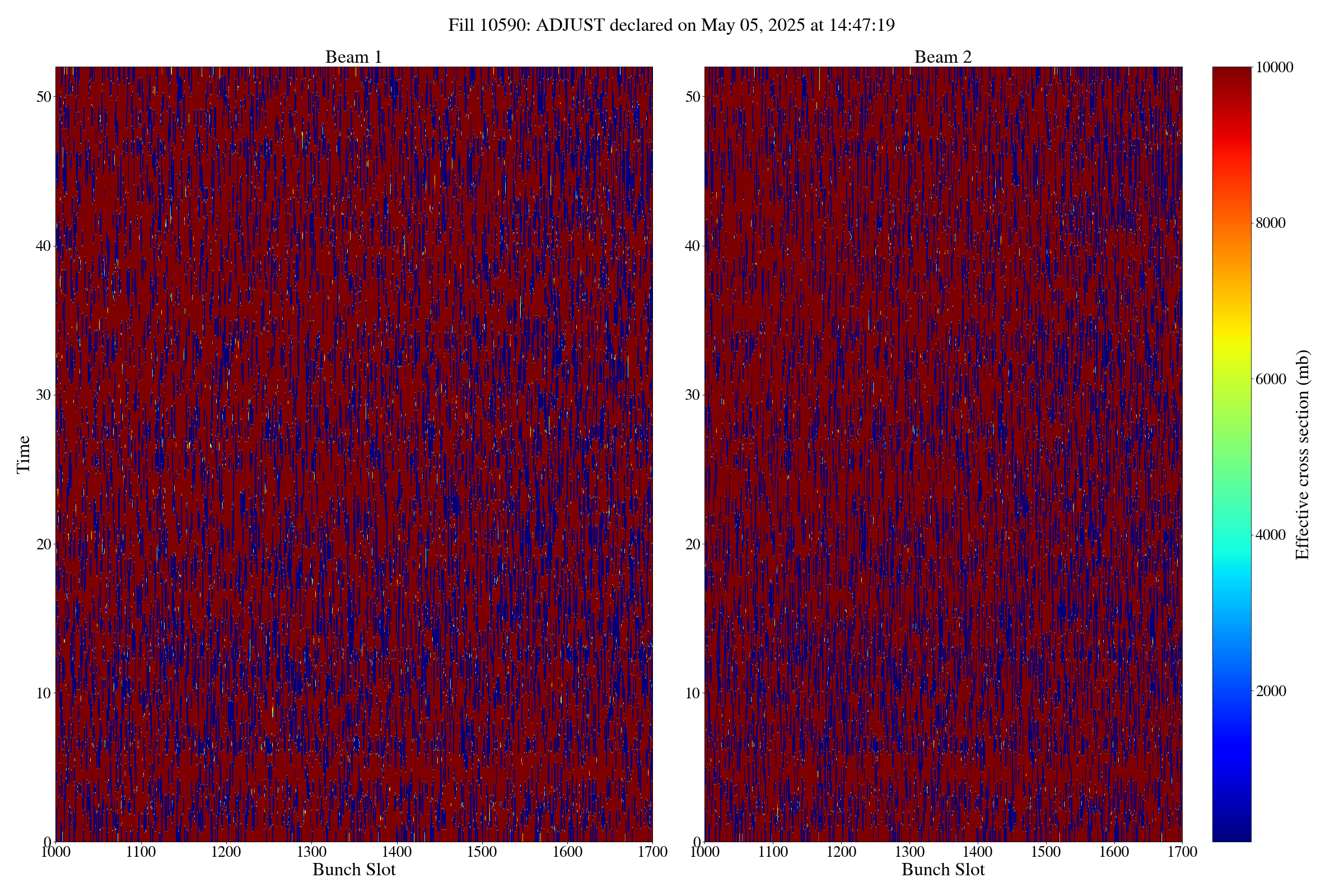

ADJUST

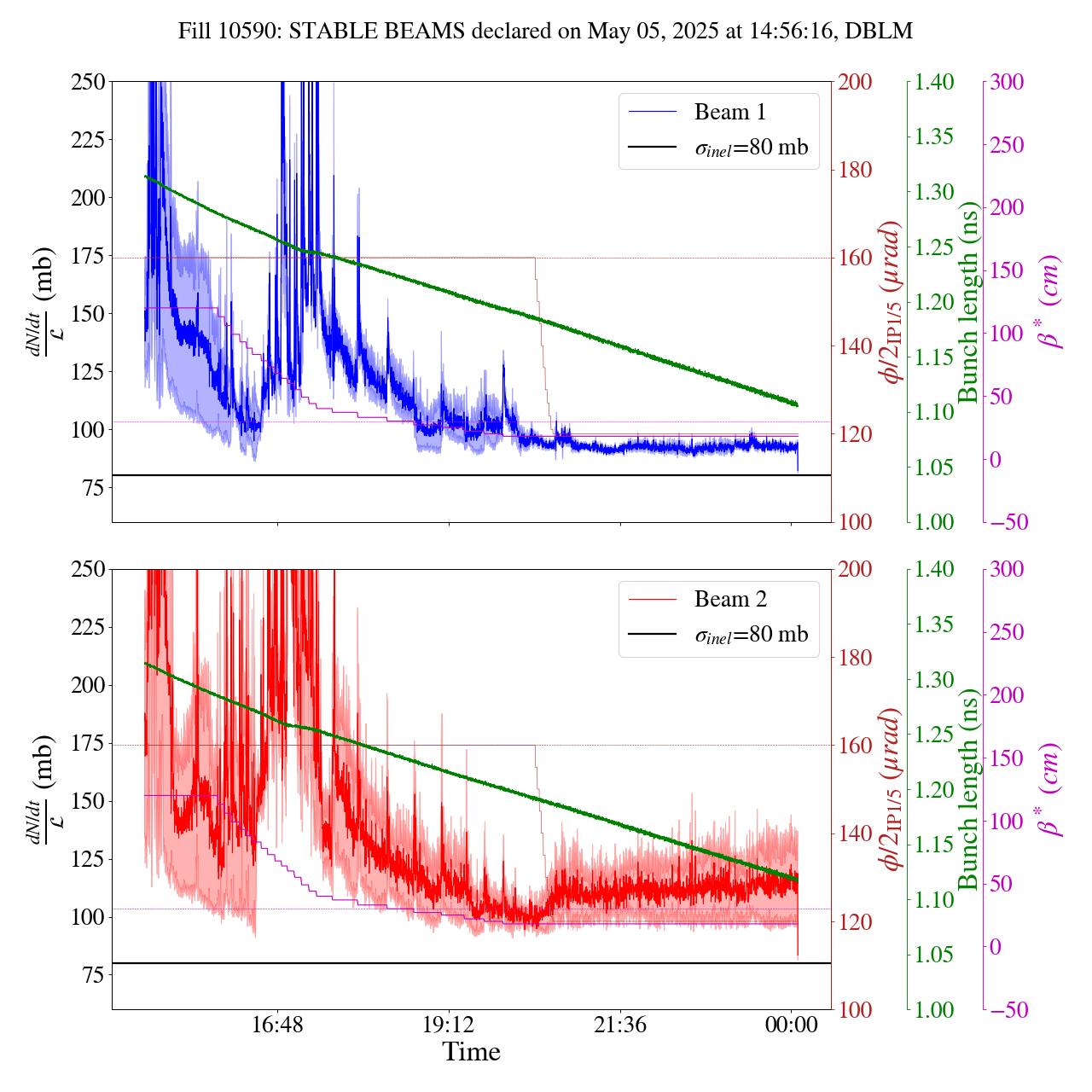

STABLE BEAM
MIM analysis
RAMP B1 H
RAMP B1 V
RAMP B2 H
RAMP B2 V
STABLE BEAM B1 H
STABLE BEAM B1 V
STABLE BEAM B2 H
STABLE BEAM B2 V
q-Gaussian profile analysis
B1 Horizontal
B1 Vertical
B2 Horizontal
B2 Vertical
