FILL 10639

Summary

📓 ✍️ ⬅️ ➡️

start: May 17, 2025 04:16:05 AM UTC

end: May 17, 2025 03:39:04 PM UTC

duration: 0 days 11:22:58.411500

tags:

  • INTENSITY_RAMPUP

  • OP_DUMP

comments:

  • 843b

  • ramp losses correlated with orbit drif in IR7

  • B1 lifetime degrades end of beta* leveling

  • 6h leveling time

Cycle duration

Beta-functions at the IPs

Crossing angles

Octupoles

Trims

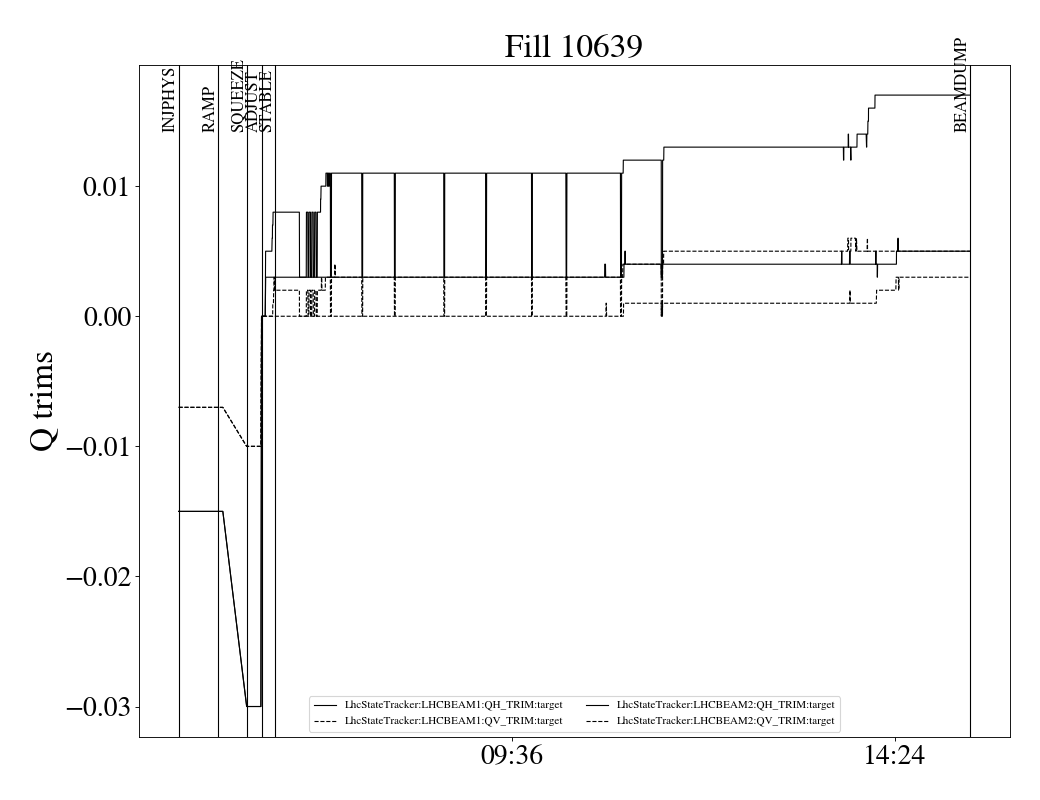

Tune trims

Chromaticity Trims

Intensity

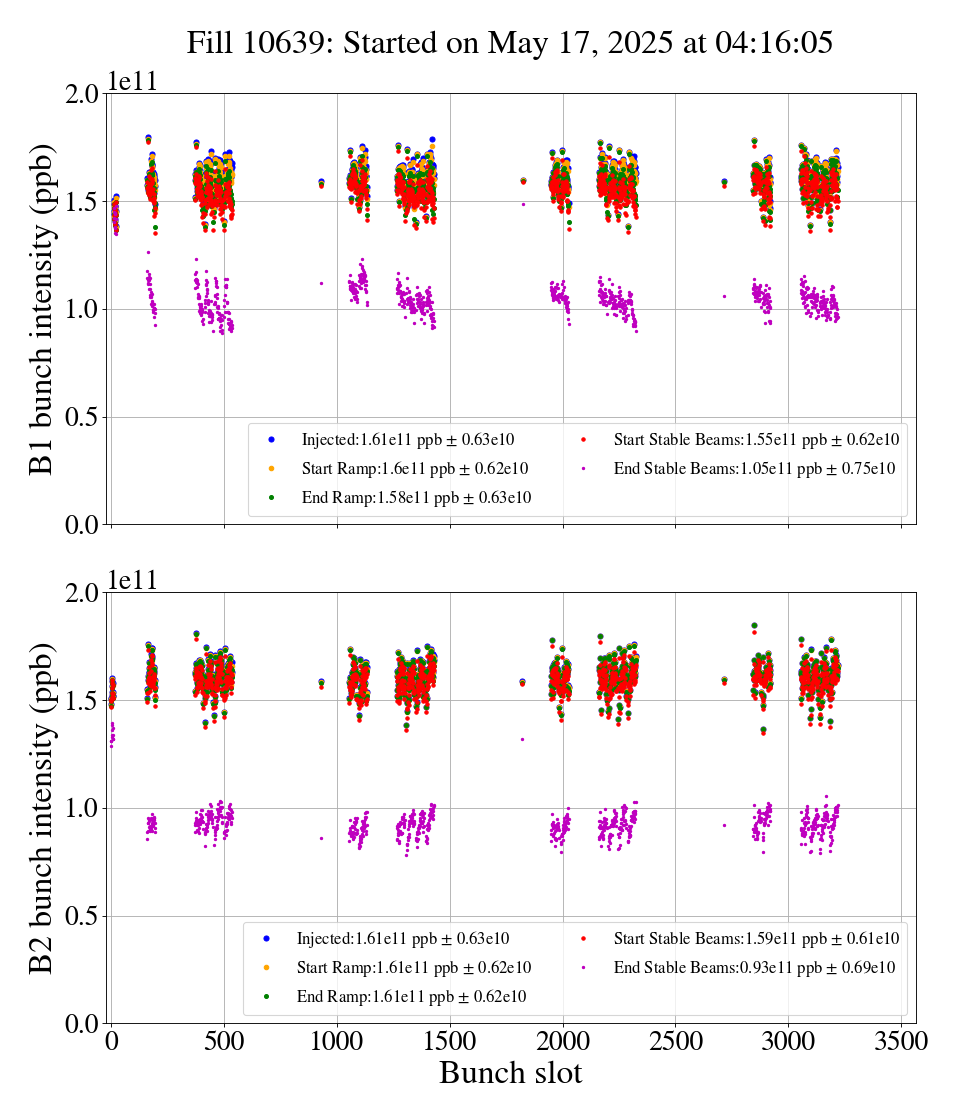

Cycle intensity

BBB SB intensity

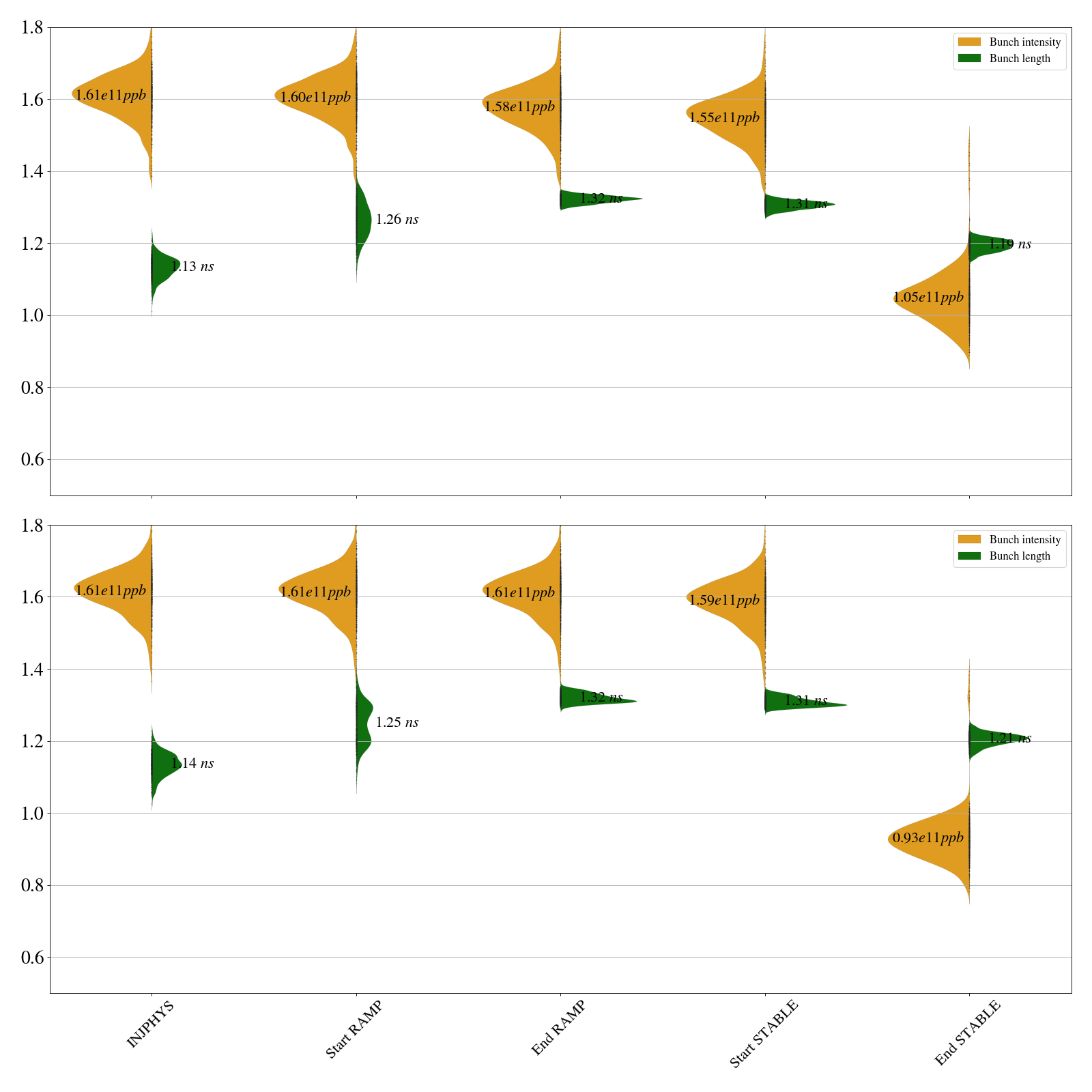

Violin BBB intensity

SB bunch intensity

Bunch Length

Bunch Length Fill

Emittance

B1 along the cycle

B2 along the cycle

Summary violin plot

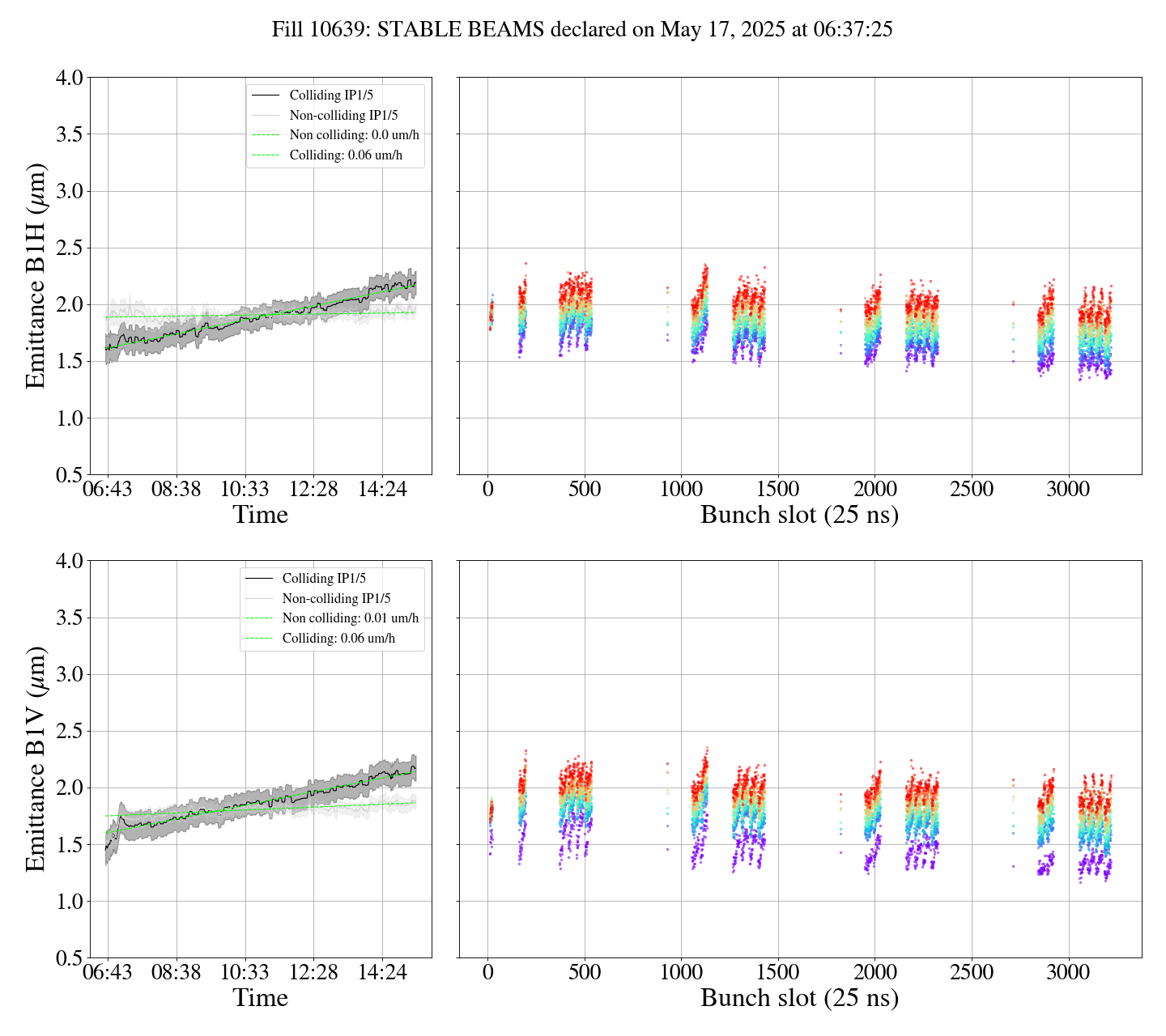

BBB in SB for B1

BBB in SB for B2

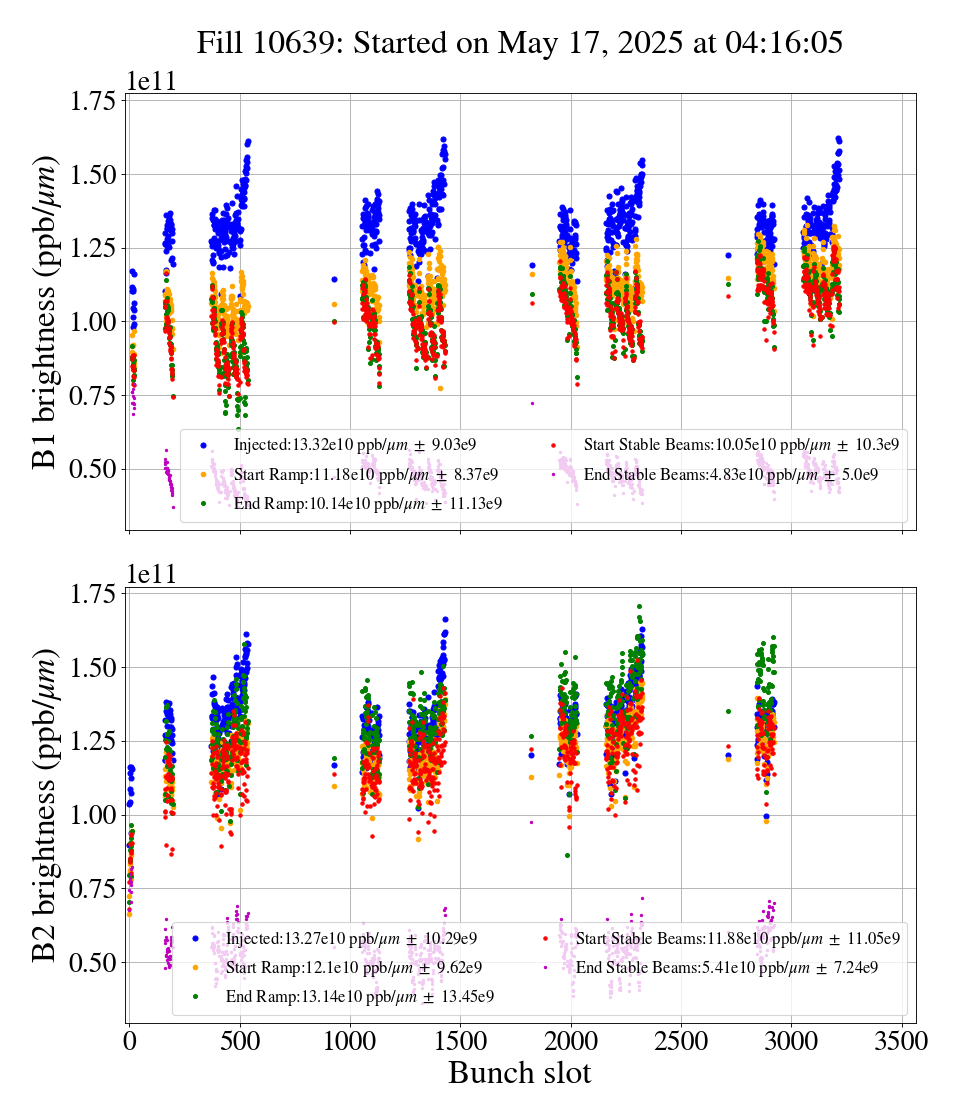

Bunch brightness

Beam properties summary

Luminosity

Overview

Luminous Regions

BBB luminosity in SB

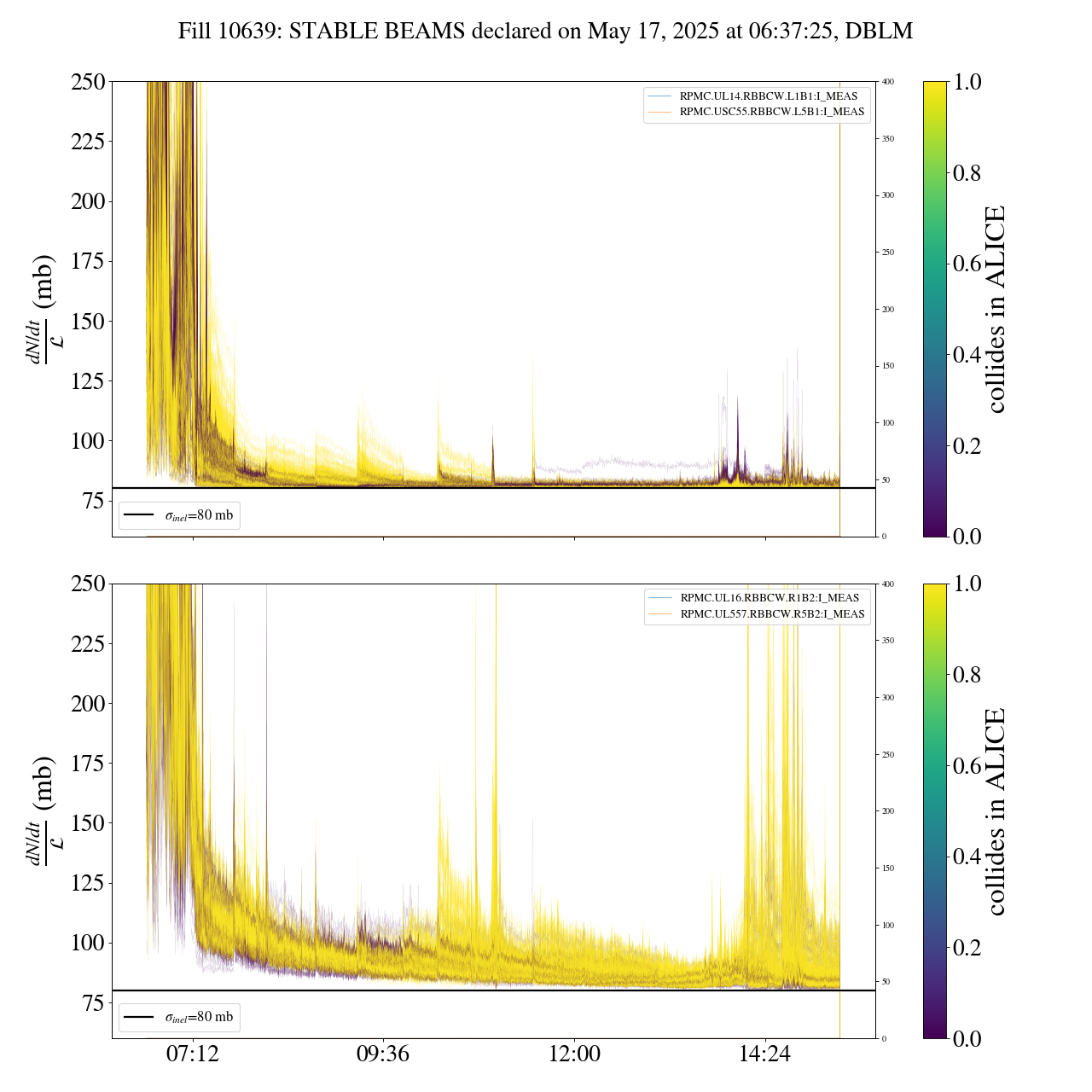

Cross-sections

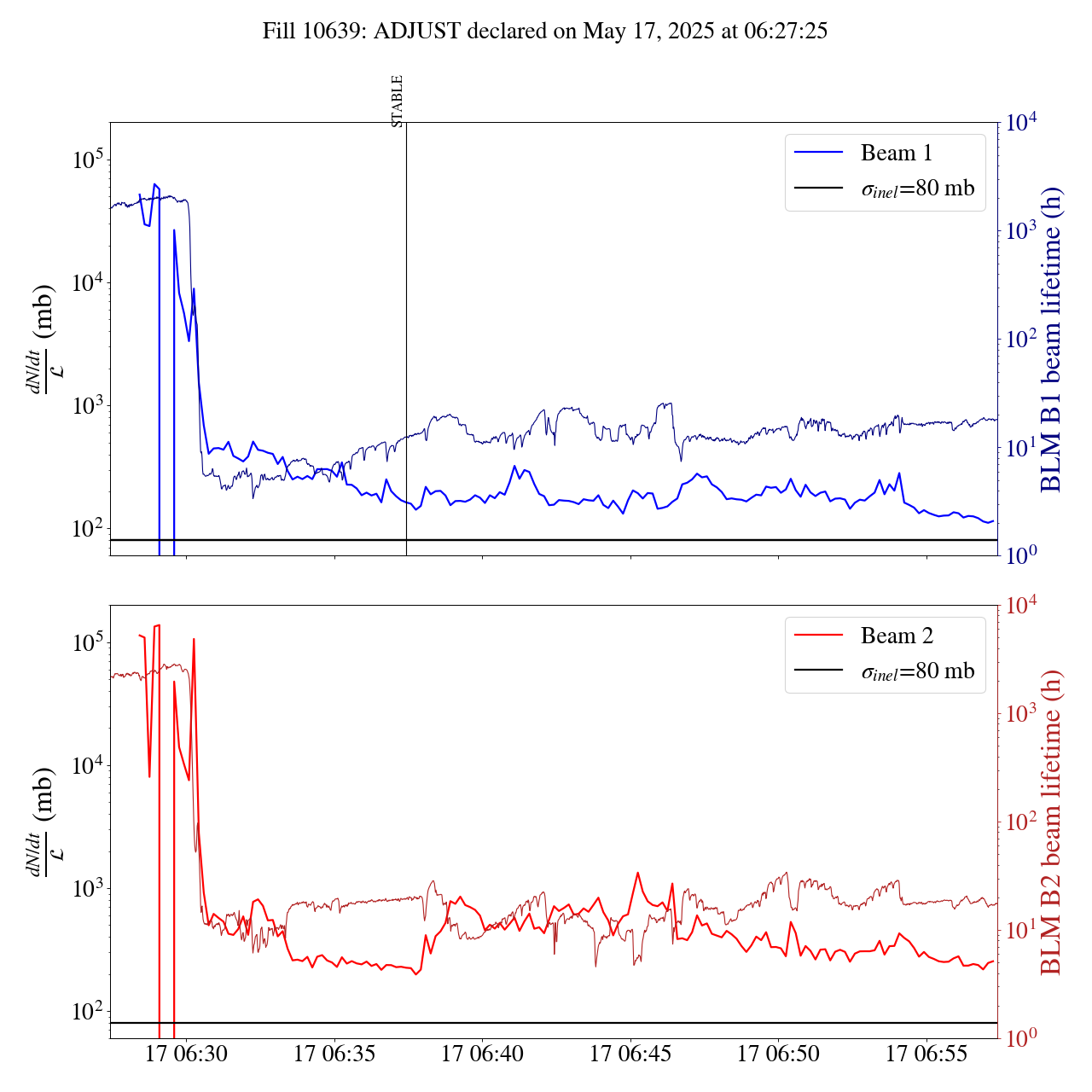

ADJUST

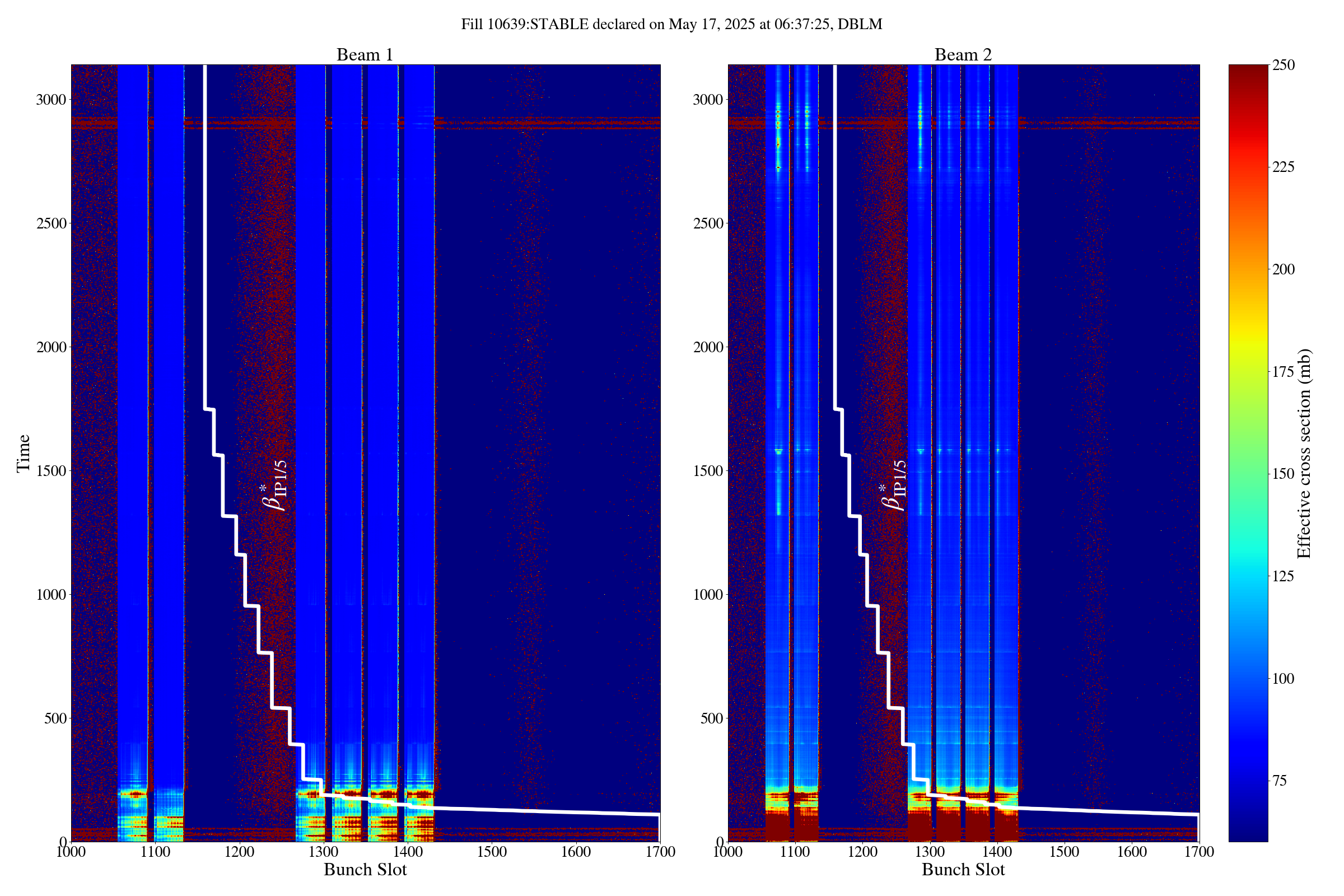

STABLE BEAM
