FILL 10645

Summary

start: May 19, 2025 12:30:46 PM UTC

end: May 20, 2025 02:35:21 AM UTC

duration: 0 days 14:04:35.080750

tags:

• INTENSITY_RAMPUP

• RF_DUMP

comments:

• Second fill with 1200b

• Small Q optimization along b* levelling to recover eventual lifetime drops

• ATLAS had some issues providing lumi, initial optimisation done on BLM, and brought to target once they were able to provide lumi a couple of hours after

• Few issue with the software, during crossing angle anti-levelling

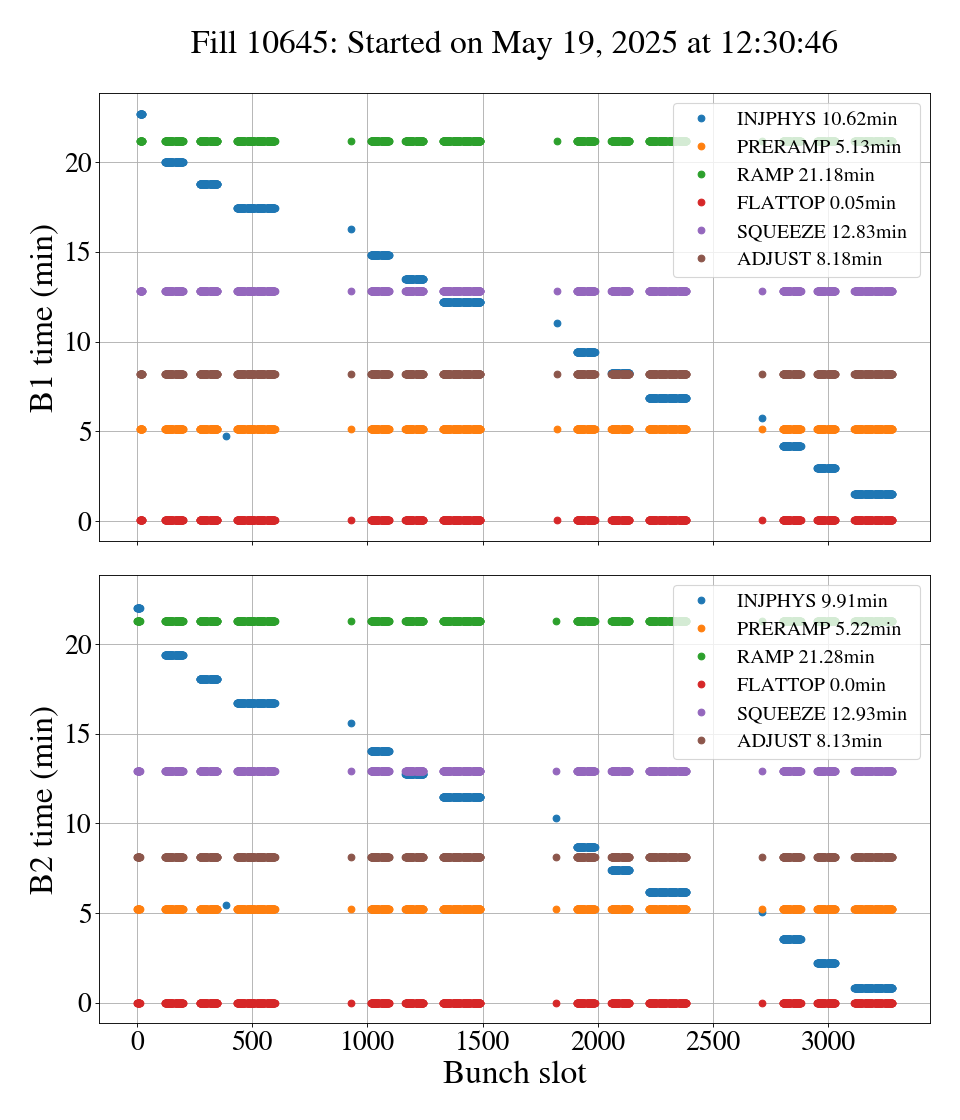

Cycle duration

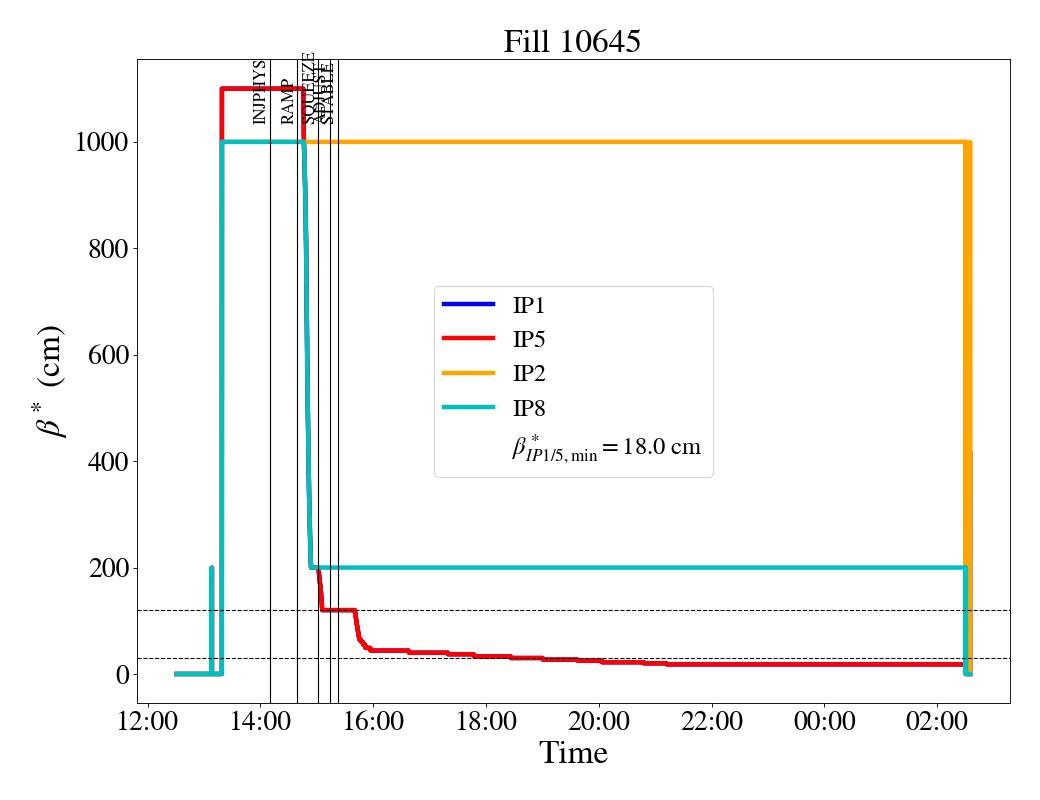

Beta-functions at the IPs

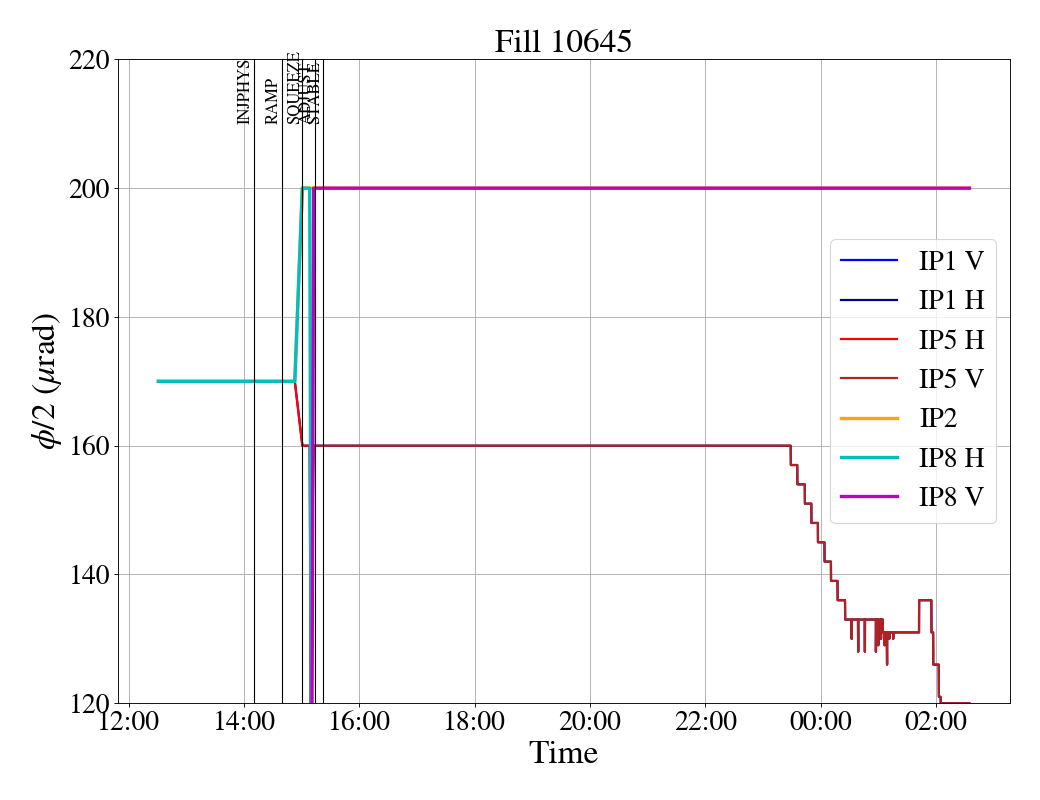

Crossing angles

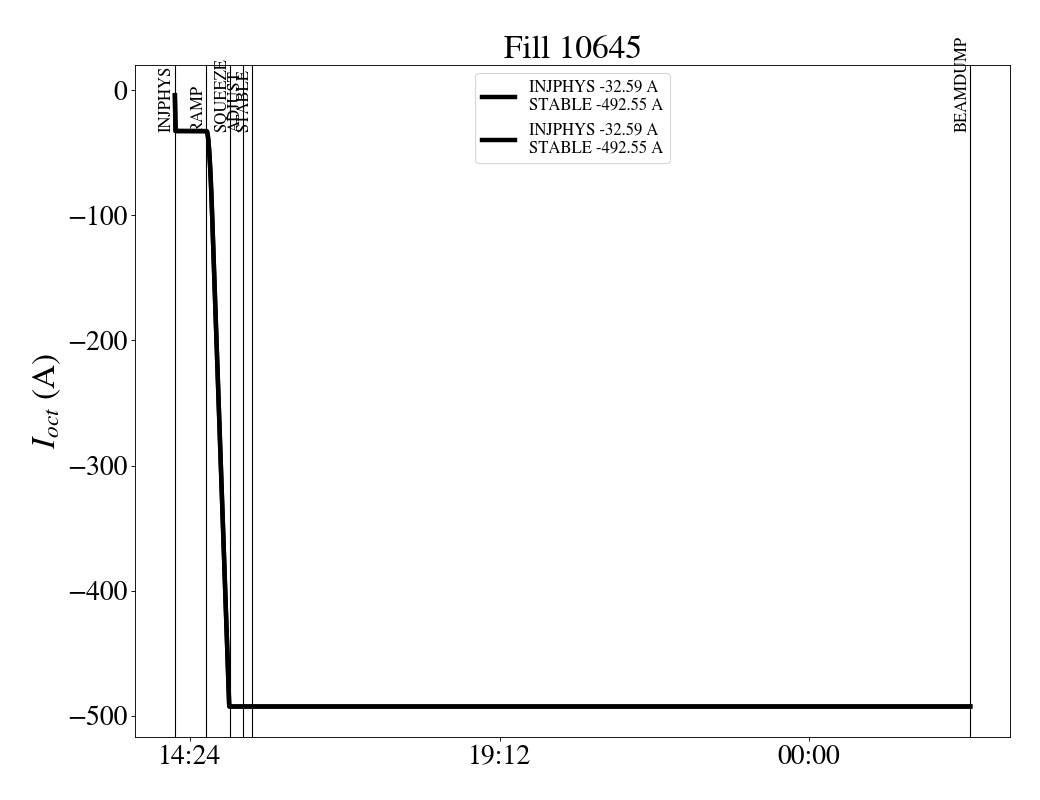

Octupoles

Trims

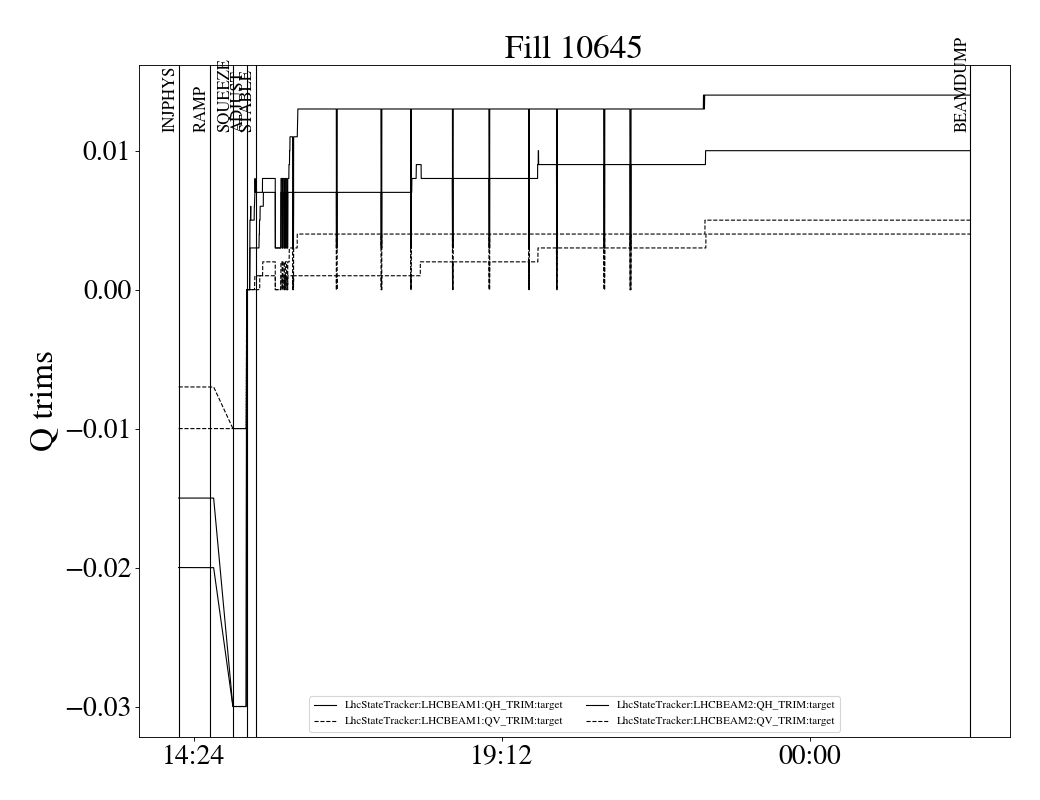

Tune trims

Chromaticity Trims

Intensity

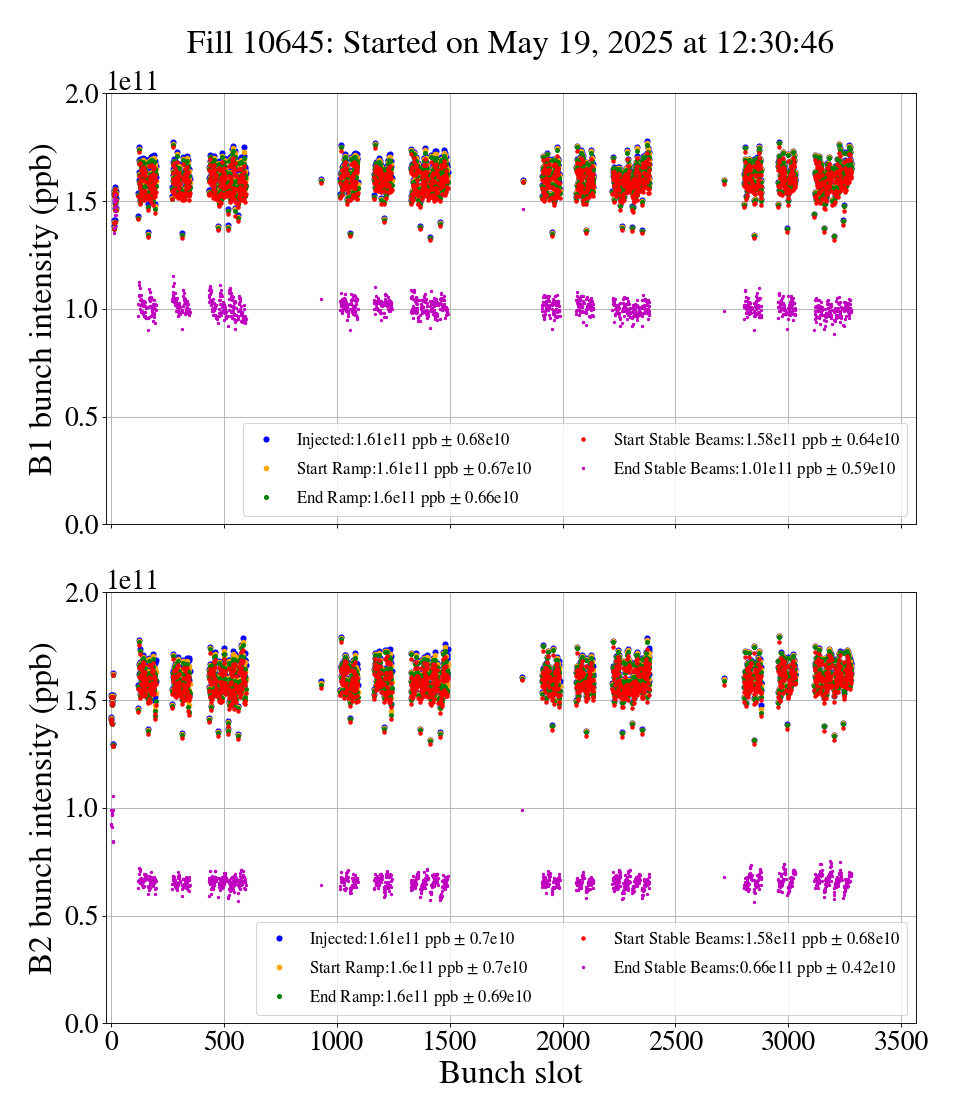

Cycle intensity

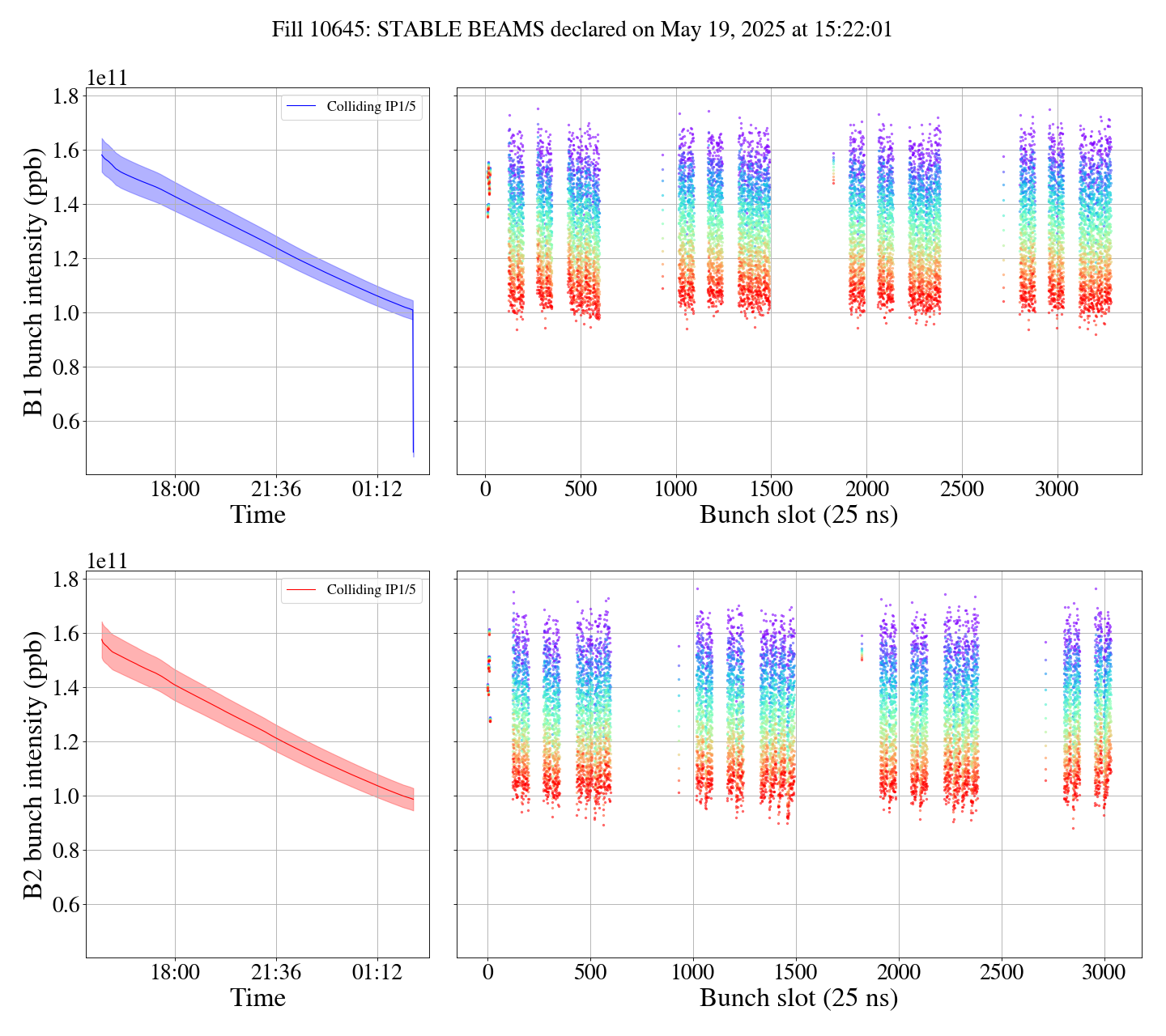

BBB SB intensity

Violin BBB intensity

SB bunch intensity

Bunch Length

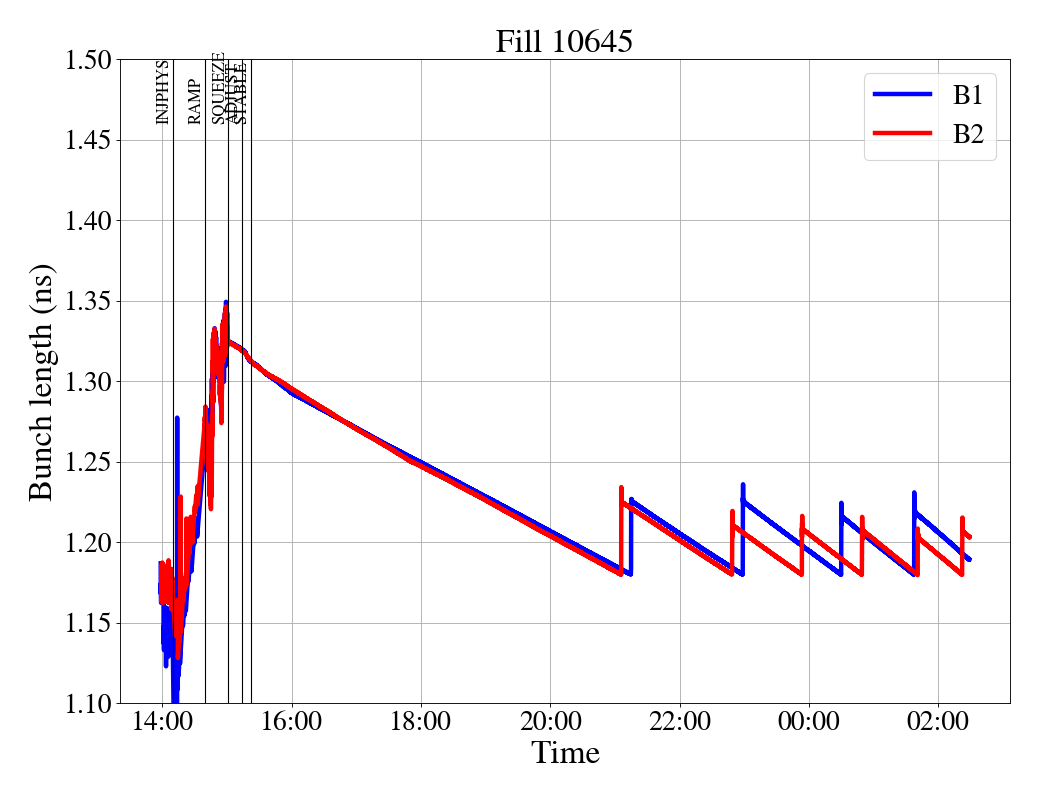

Bunch Length Fill

Emittance

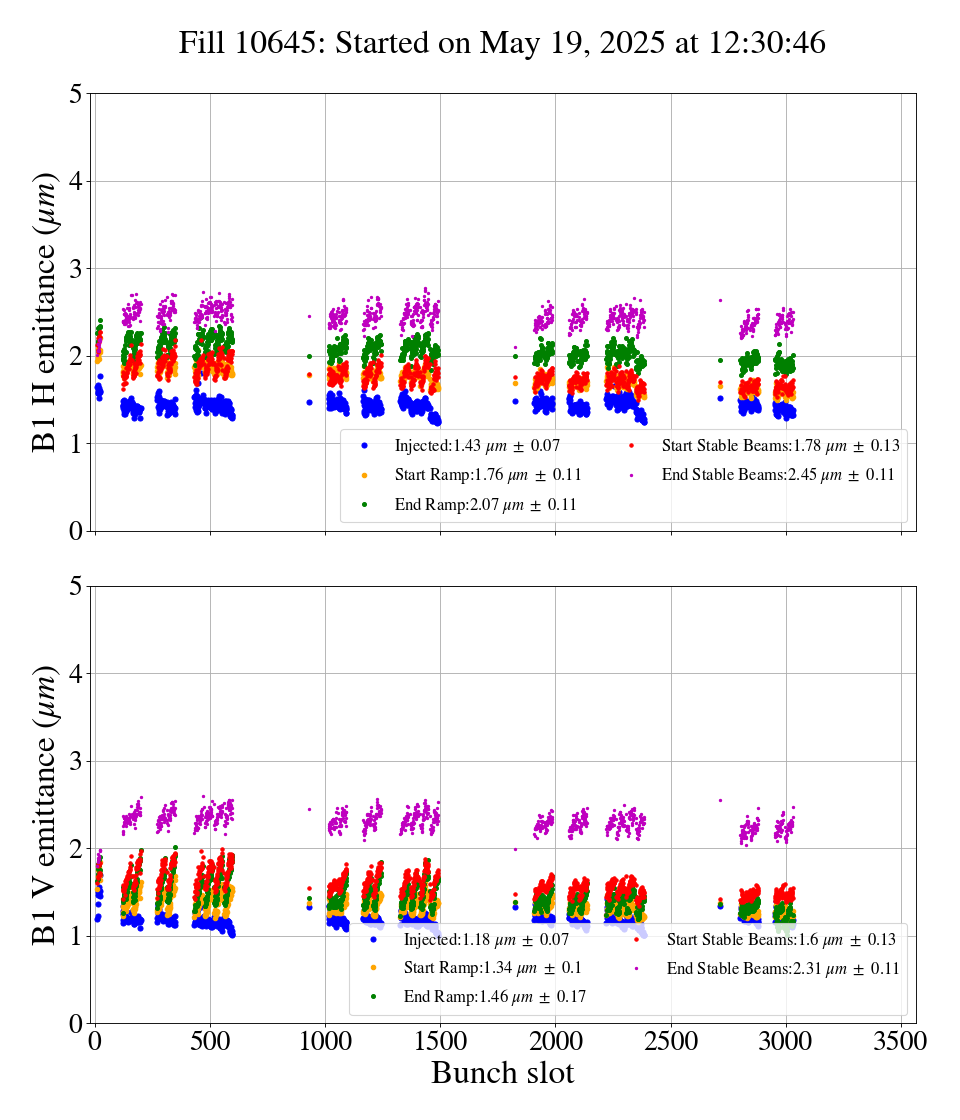

B1 along the cycle

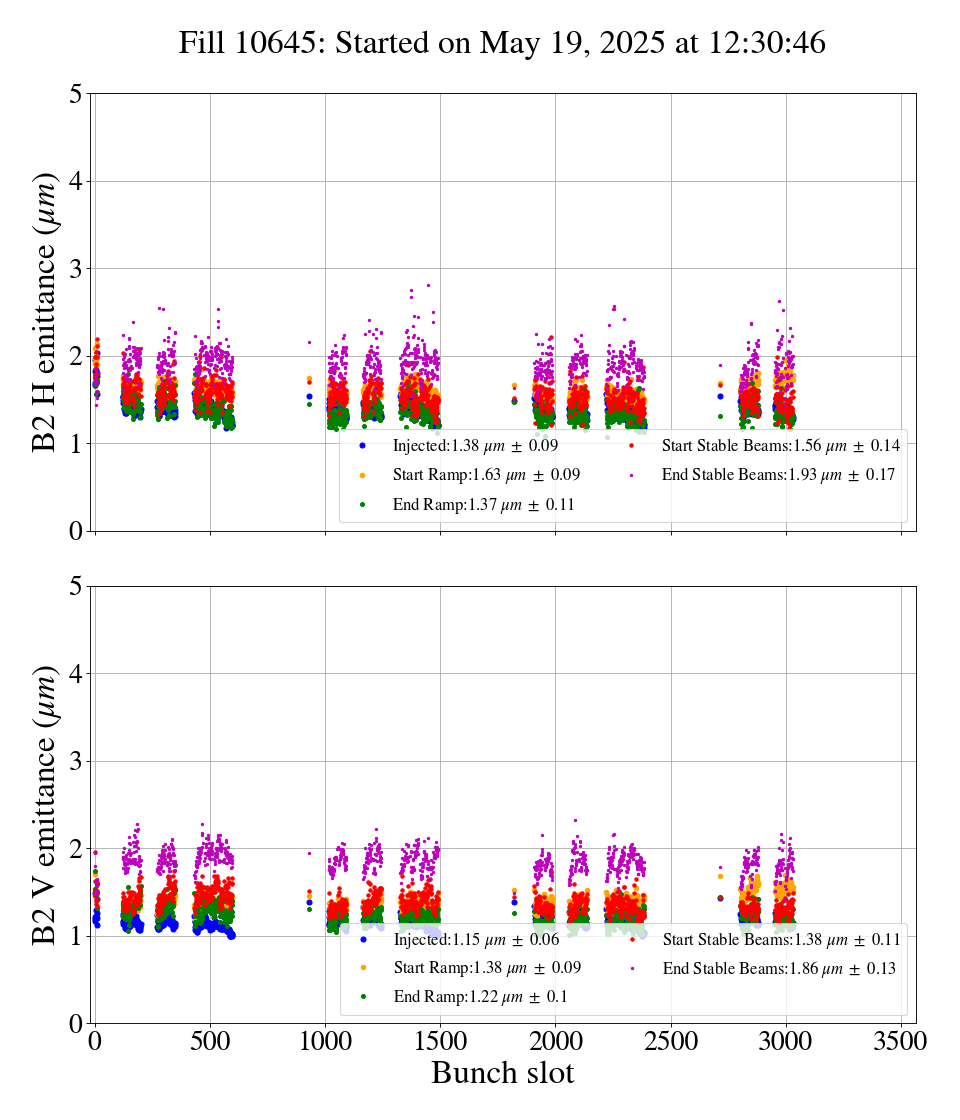

B2 along the cycle

Summary violin plot

BBB in SB for B1

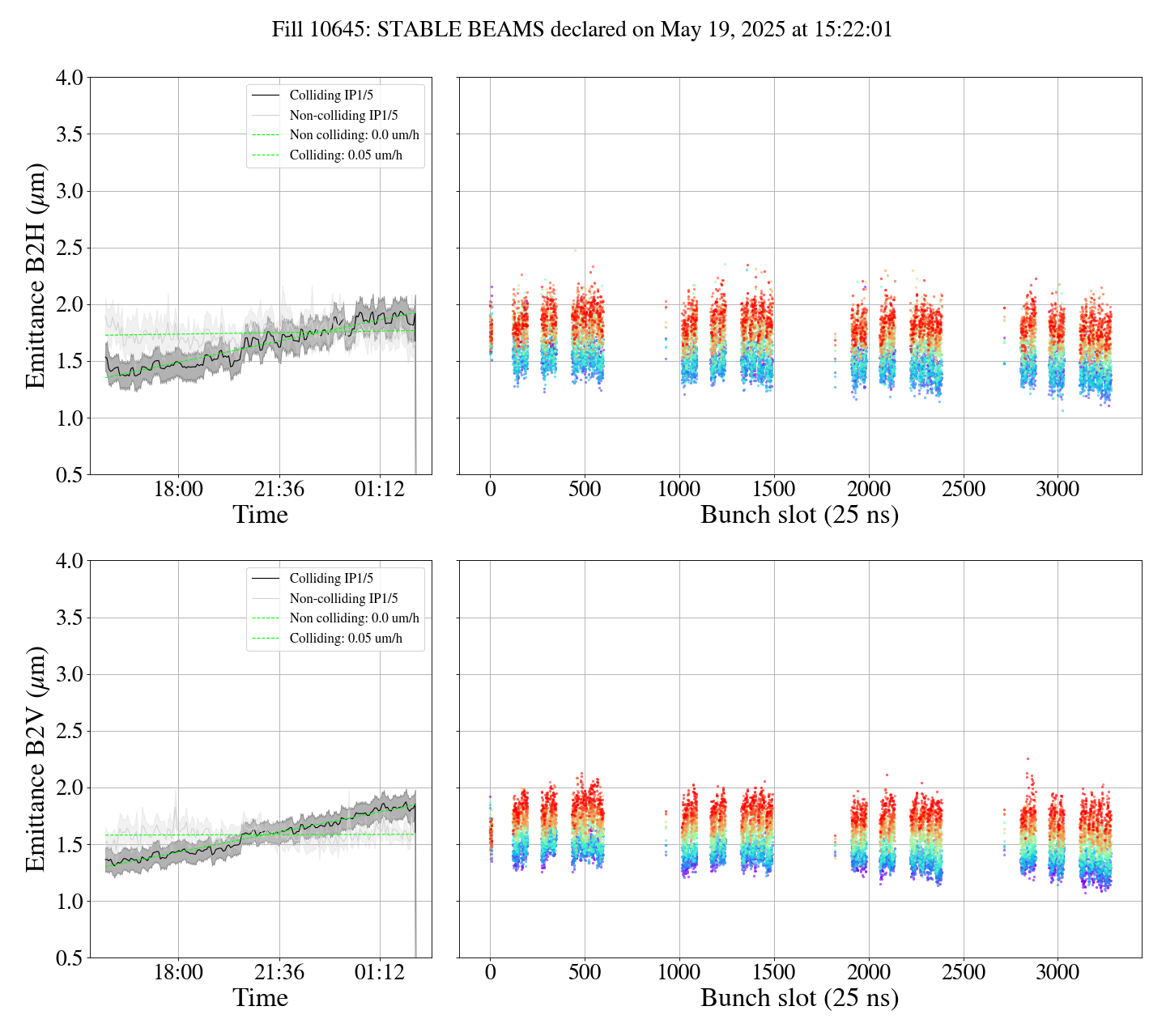

BBB in SB for B2

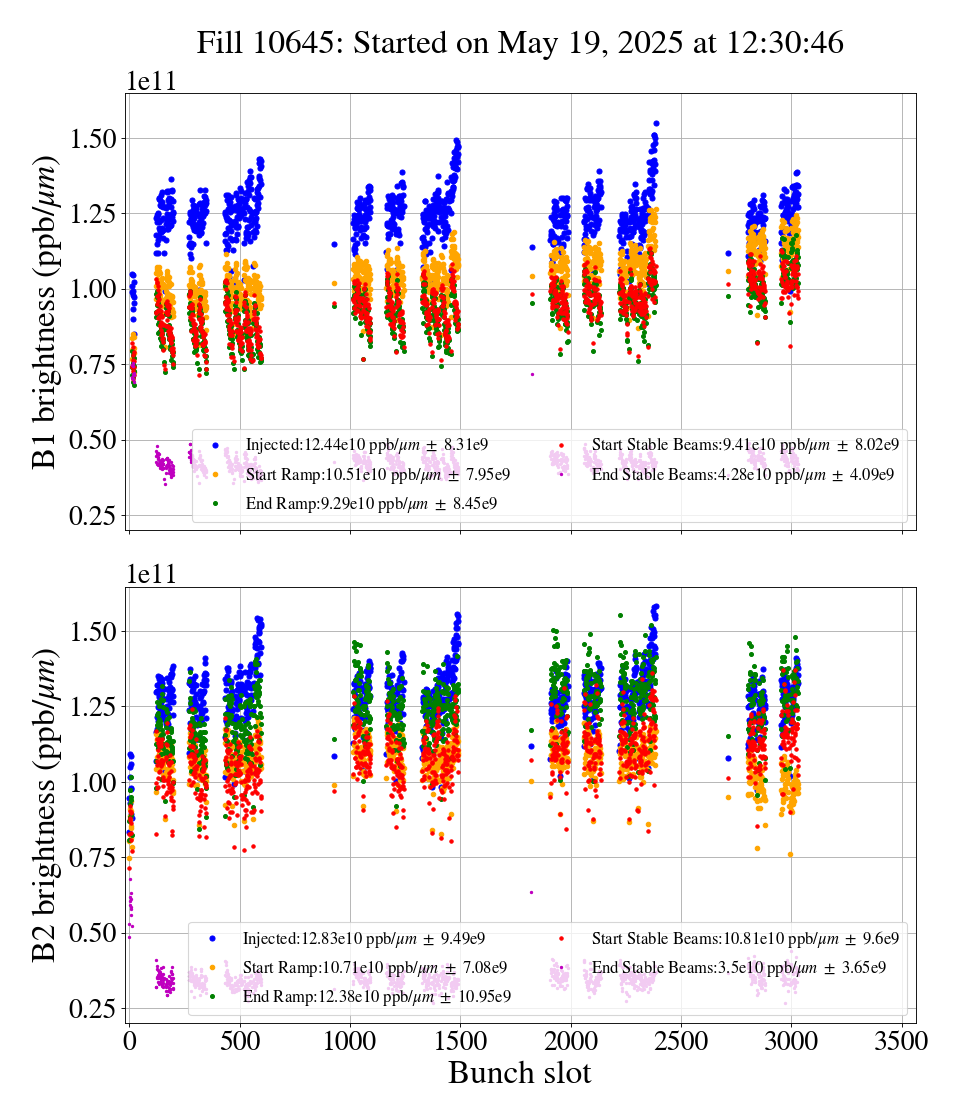

Bunch brightness

Beam properties summary

Luminosity

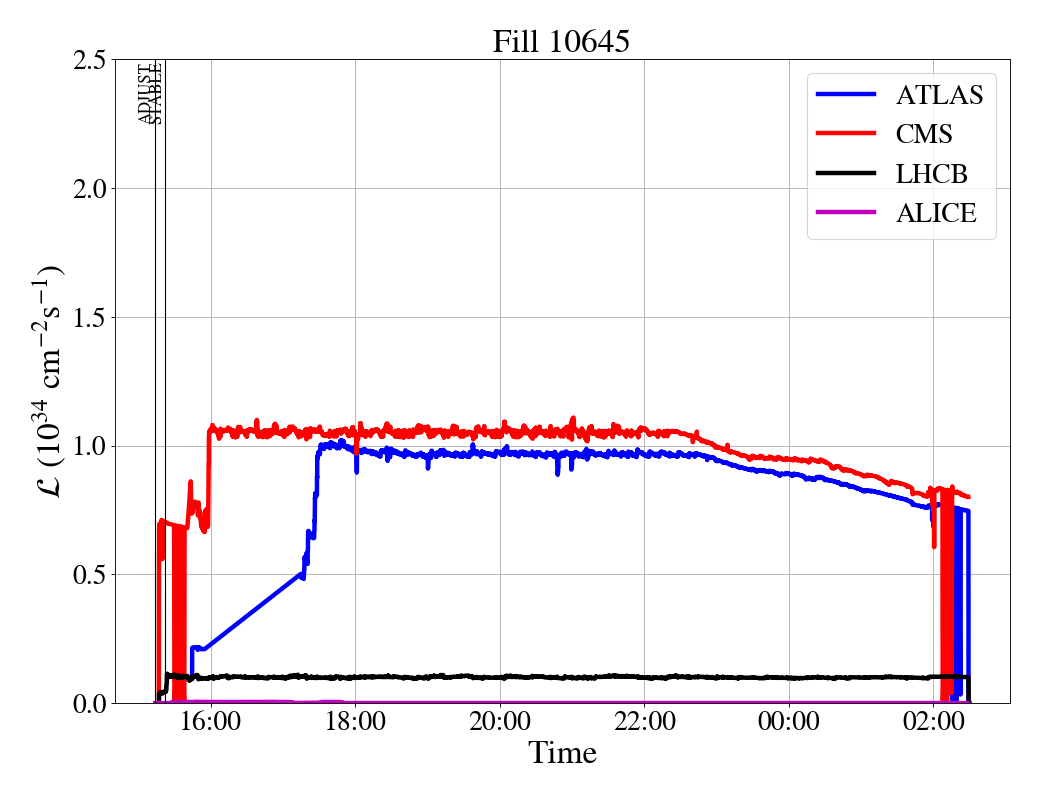

Overview

Luminous Regions

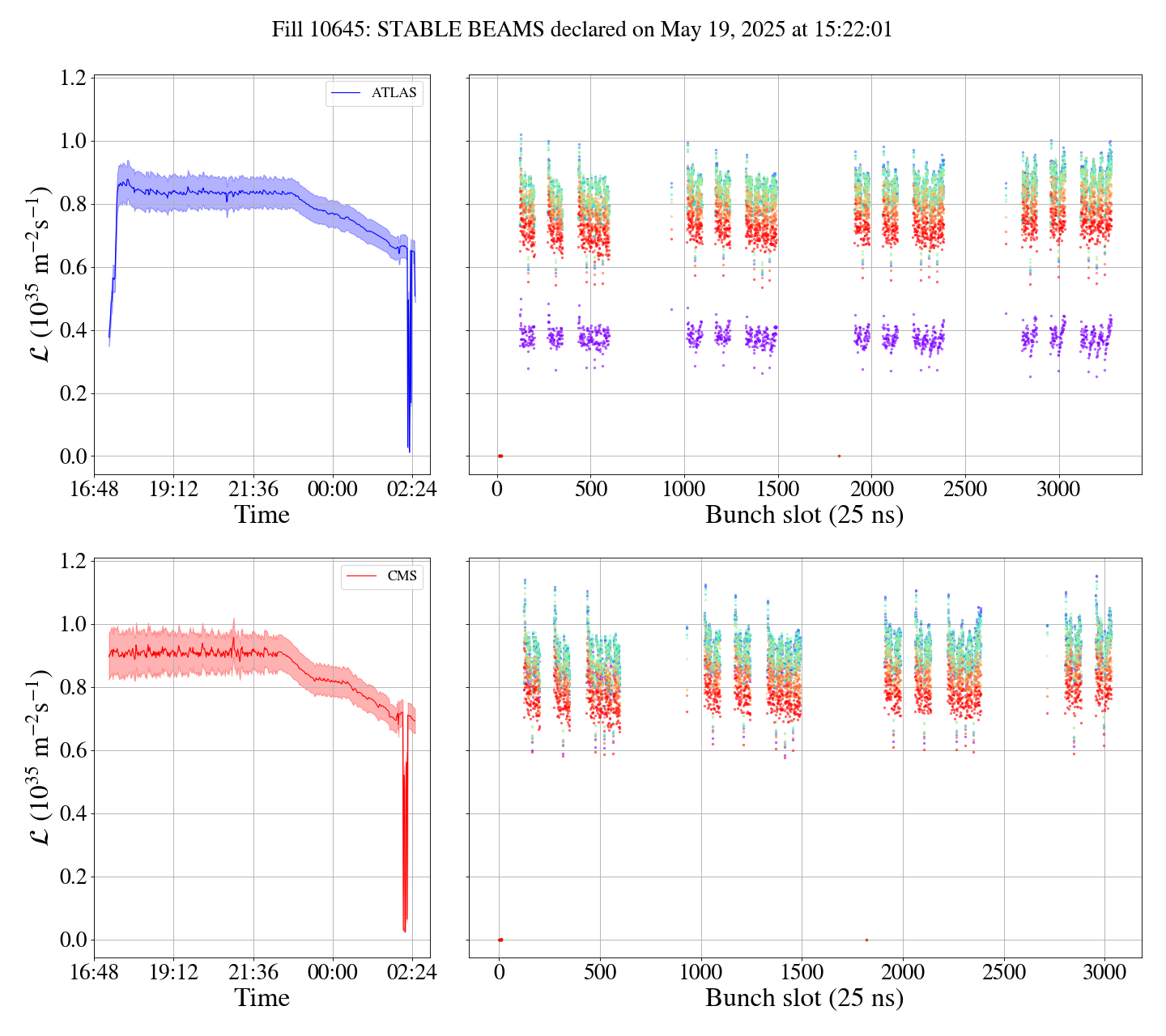

BBB luminosity in SB

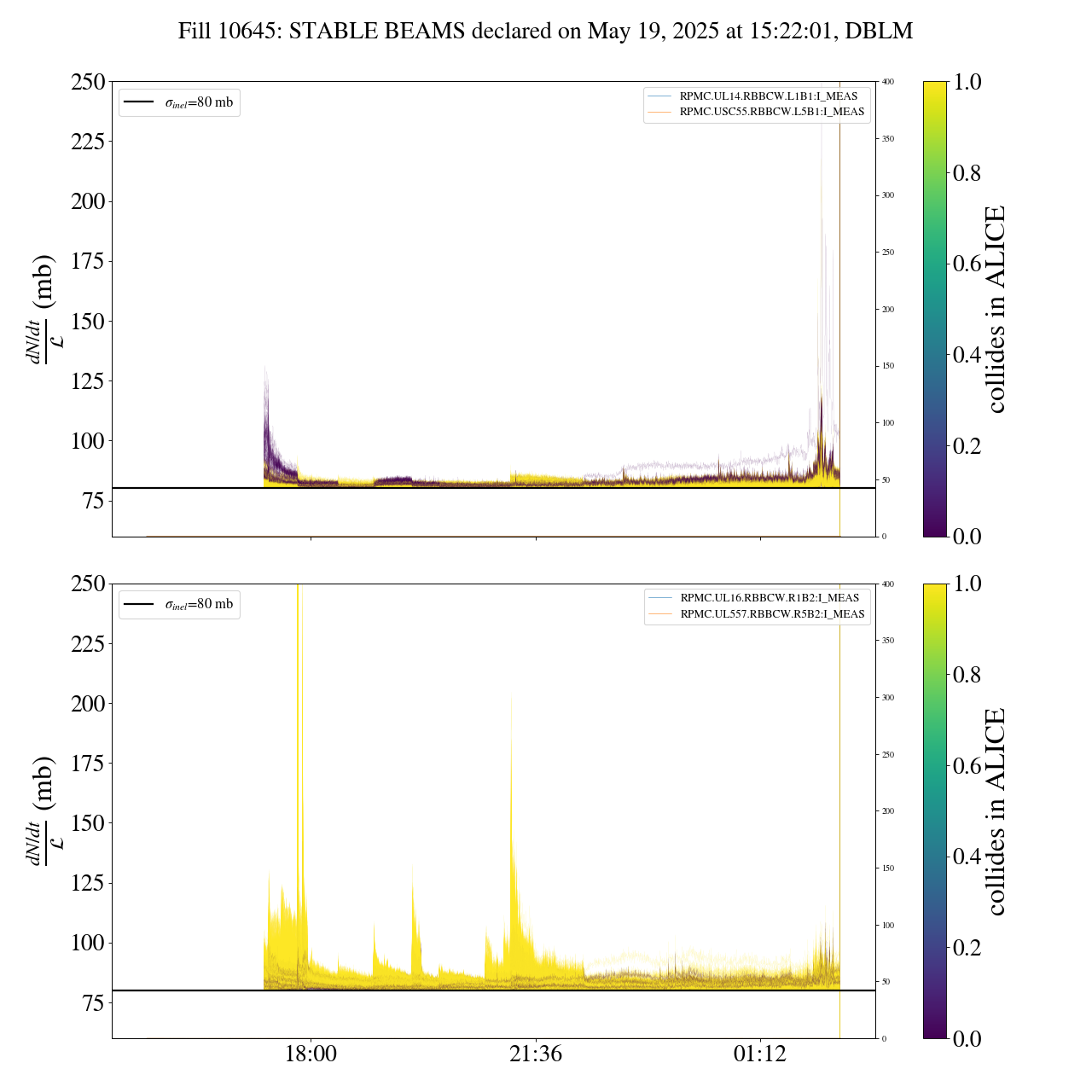

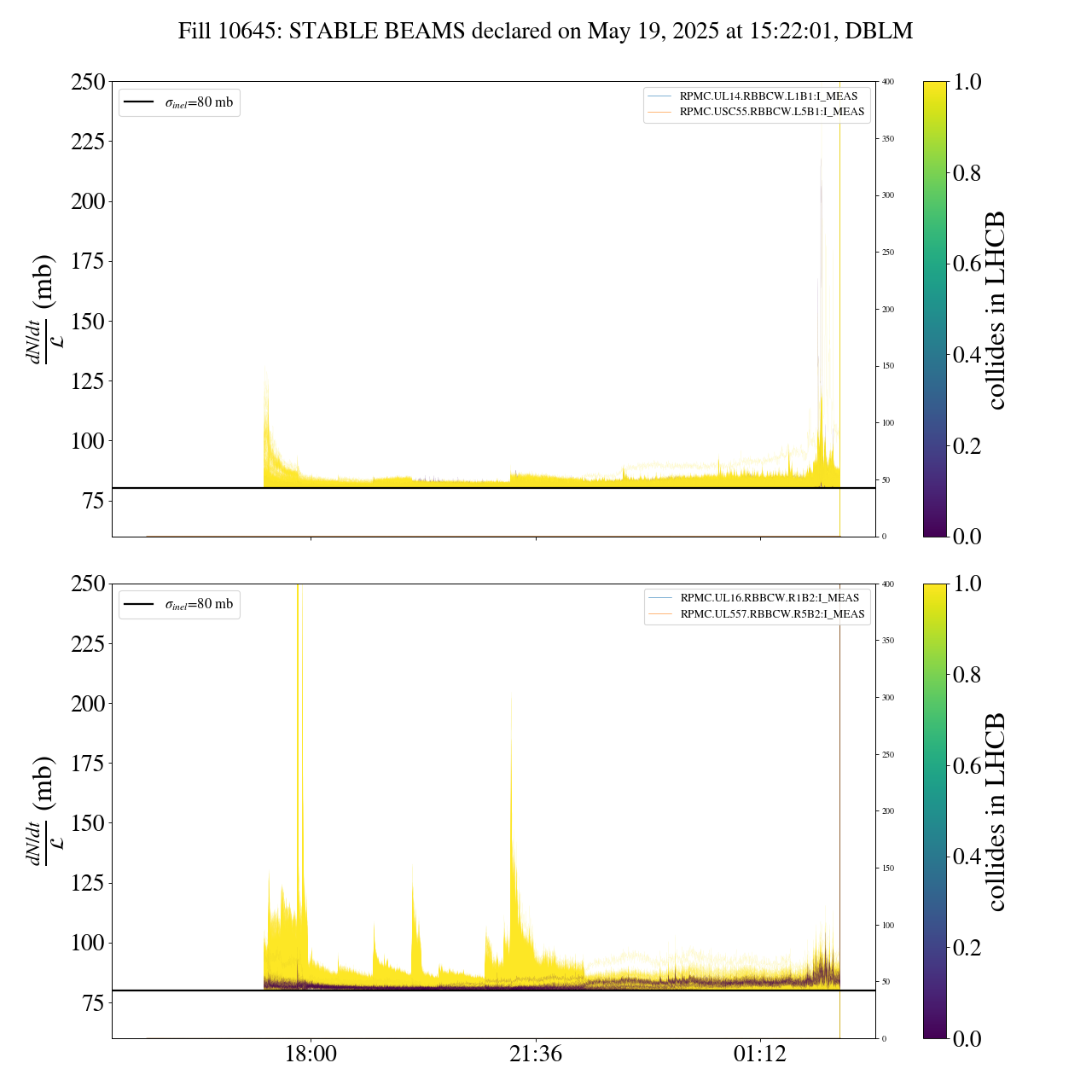

Cross-sections

ADJUST

STABLE BEAM

MIM analysis

RAMP B1 H

RAMP B1 V

RAMP B2 H

RAMP B2 V

STABLE BEAM B1 H

STABLE BEAM B1 V

STABLE BEAM B2 H

STABLE BEAM B2 V

q-Gaussian profile analysis

B1 Horizontal

B1 Vertical

B2 Horizontal

B2 Vertical
