FILL 10653

Summary

start: May 22, 2025 11:06:51 AM UTC

end: May 22, 2025 03:28:34 PM UTC

duration: 0 days 04:21:42.309875

tags:

• INTENSITY_RAMPUP

• CRYO_DUMP

comments:

• Third fill with 1800b

• Some triplet movement after the cryo issue

• Test at injection with the ADT gain for pilots and measured tune from injection oscillations to compare with BBQ readings: discrepancy between BBQ and ADT measurements. The BBQ spectra were very clean.

• B2 suffering more than B1: improved after +2e-3 on QHB2

• Dump due to lost communication with Sector 23.

Cycle duration

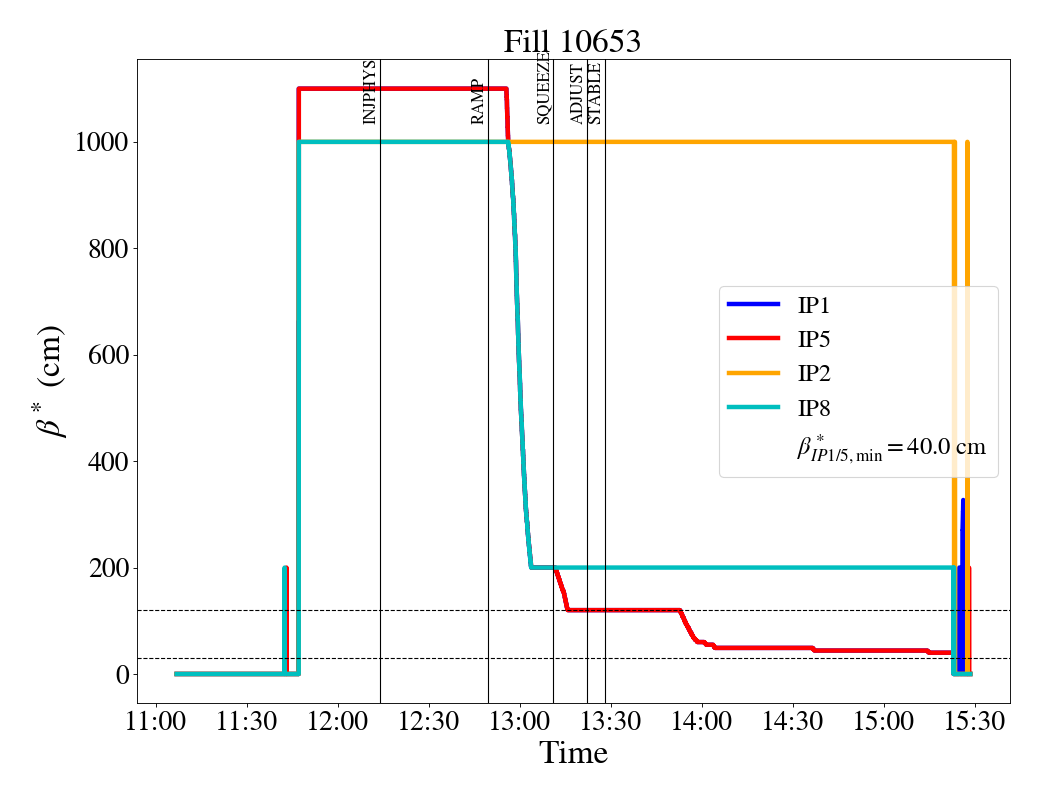

Beta-functions at the IPs

Crossing angles

Octupoles

Trims

Tune trims

Chromaticity Trims

Intensity

Cycle intensity

BBB SB intensity

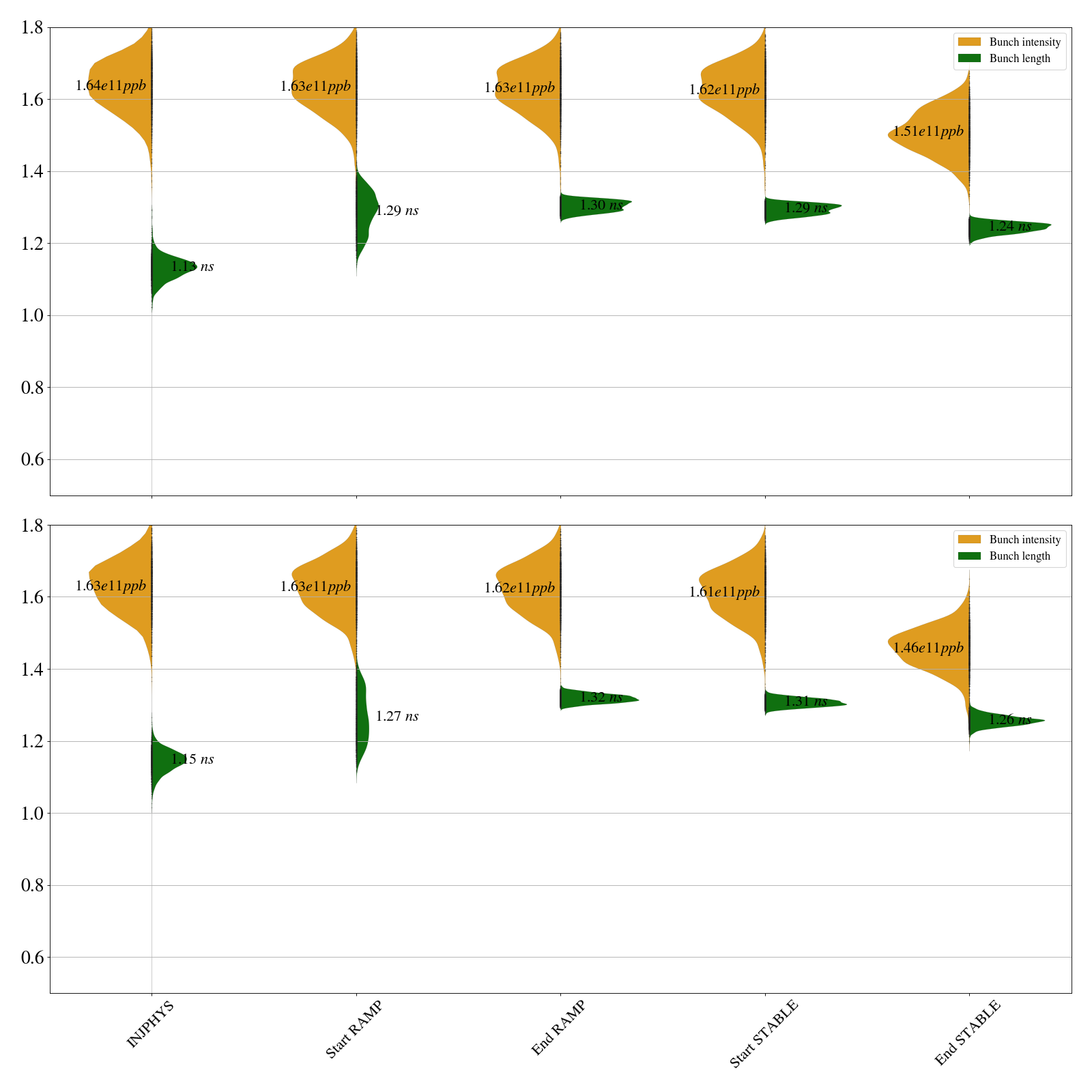

Violin BBB intensity

SB bunch intensity

Bunch Length

Bunch Length Fill

Emittance

B1 along the cycle

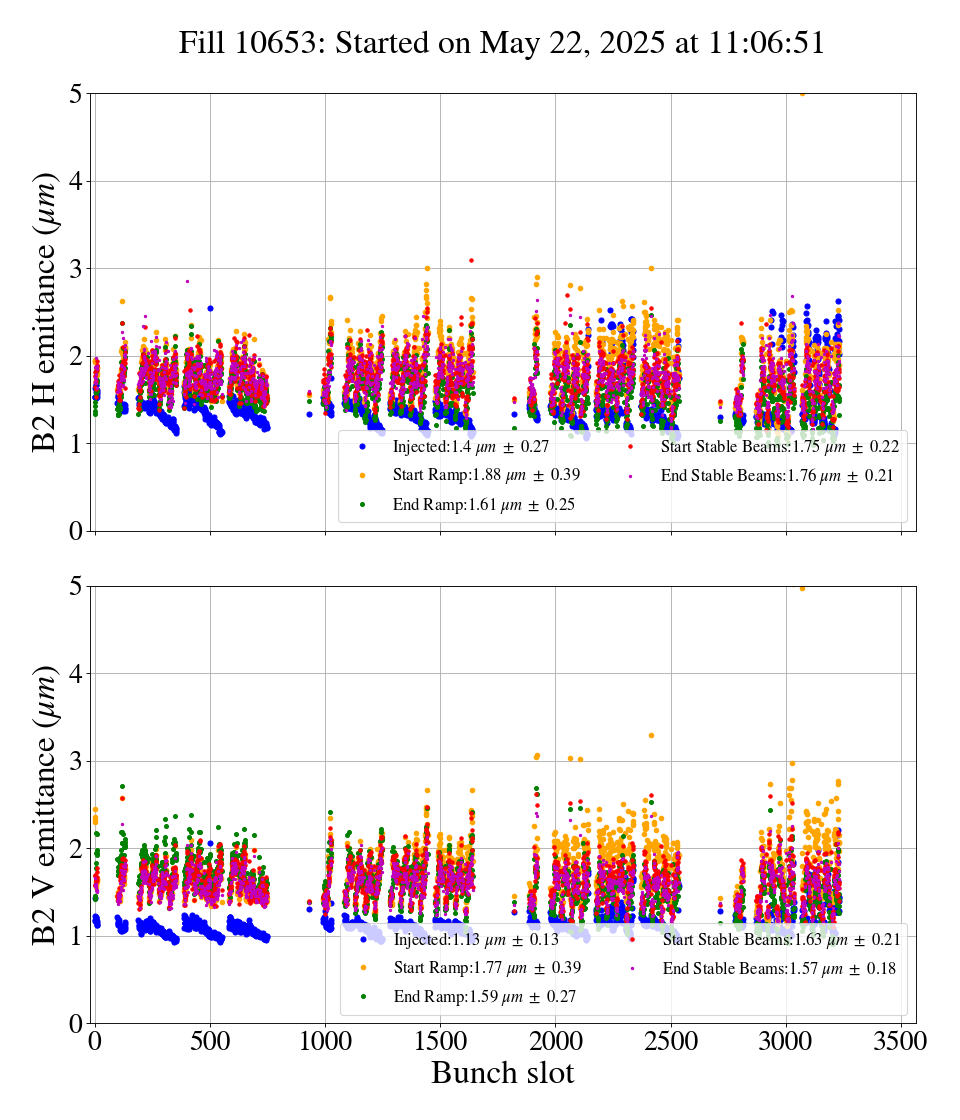

B2 along the cycle

Emittance growth at injection

Summary violin plot

BBB in SB for B1

BBB in SB for B2

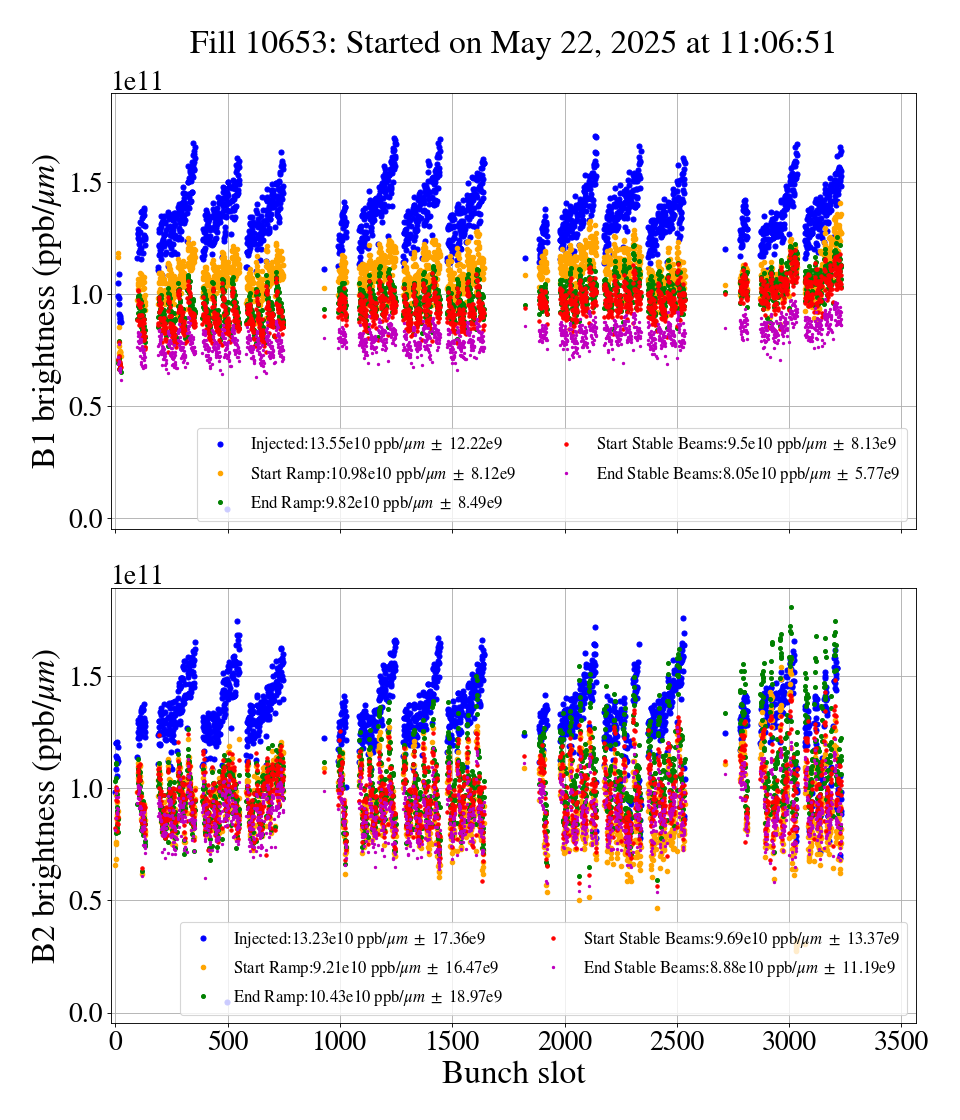

Bunch brightness

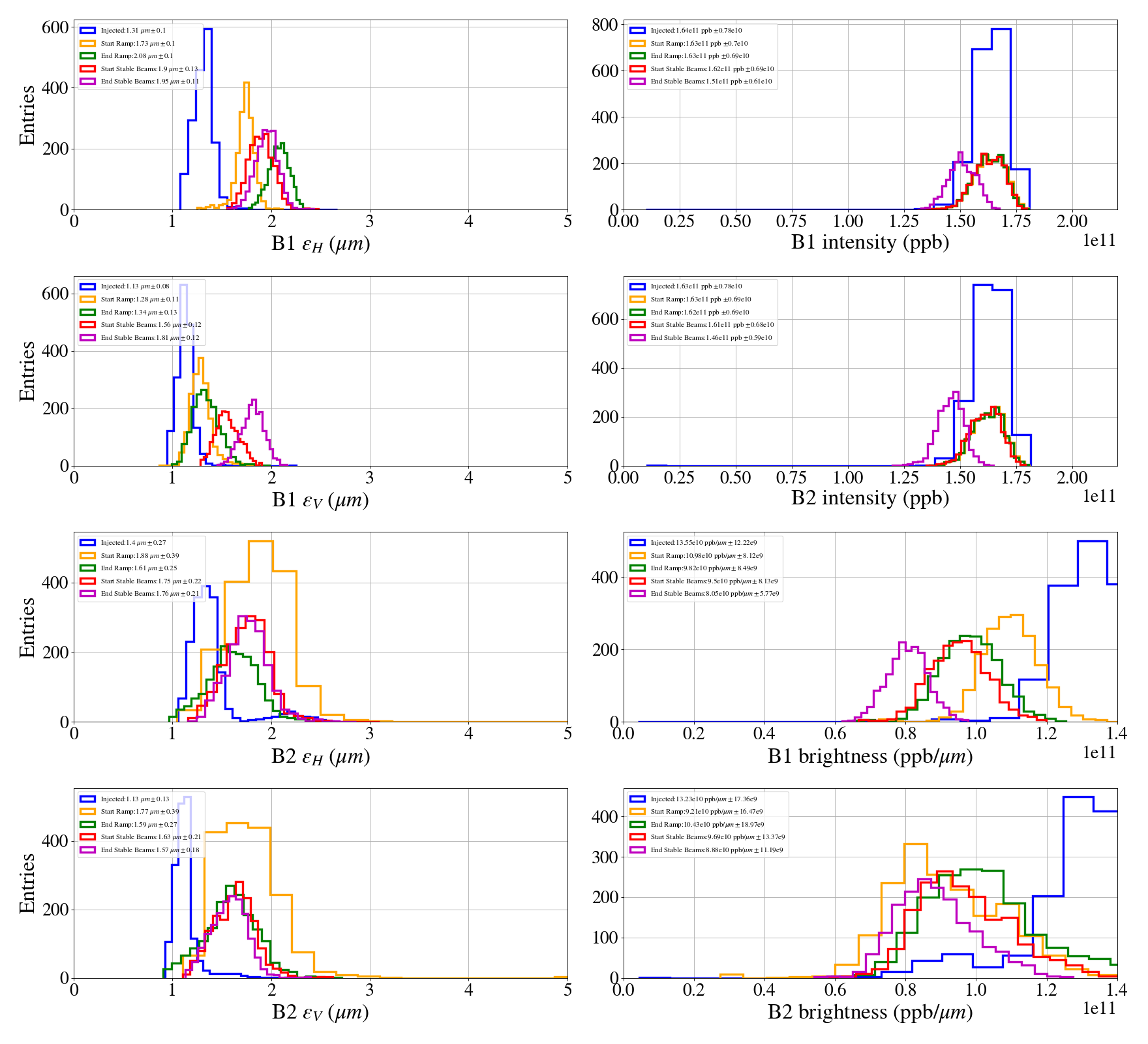

Beam properties summary

Luminosity

Overview

Luminous Regions

BBB luminosity in SB

Cross-sections

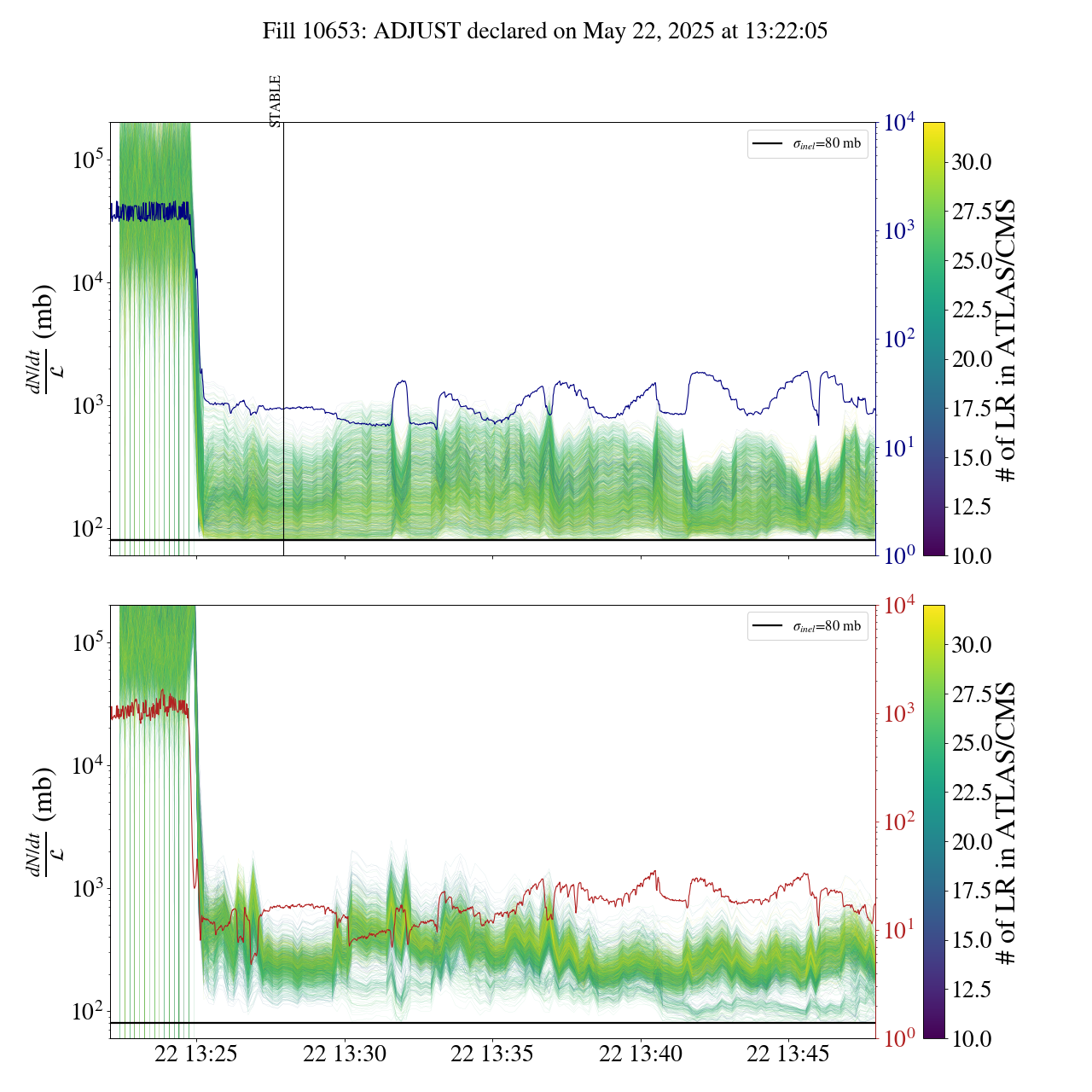

ADJUST

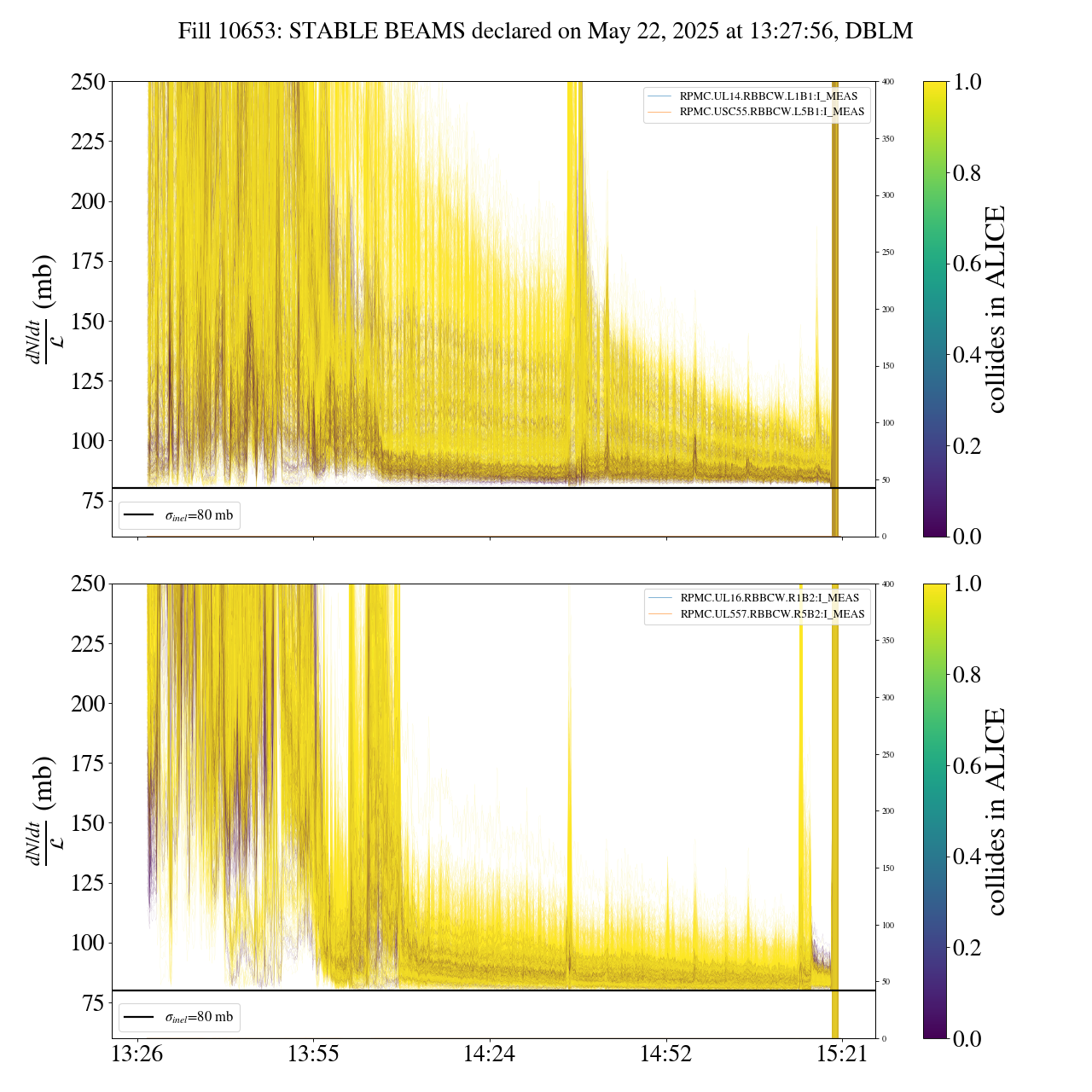

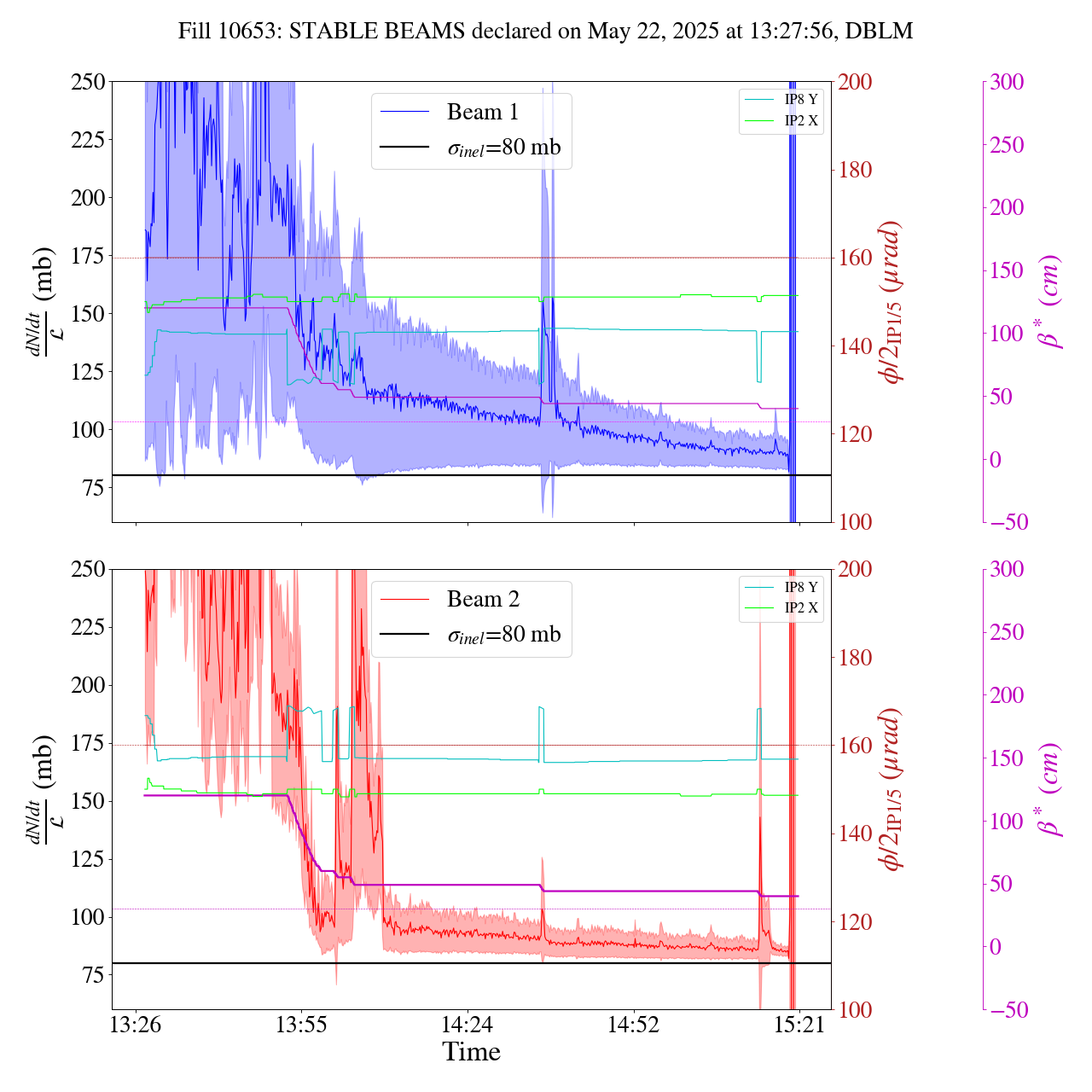

STABLE BEAM

MIM analysis

RAMP B1 H

RAMP B1 V

RAMP B2 H

RAMP B2 V

STABLE BEAM B1 H

STABLE BEAM B1 V

STABLE BEAM B2 H

STABLE BEAM B2 V

q-Gaussian profile analysis

B1 Horizontal

B1 Vertical

B2 Horizontal

B2 Vertical
