FILL 10674

Summary

📓 ✍️ ⬅️ ➡️

start: May 29, 2025 06:46:43 PM UTC

end: May 30, 2025 05:31:42 AM UTC

duration: 0 days 10:44:58.901000

tags:

  • PHYSICS

comments:

  • injection tune trims for B2, abort gap cleaning was switched off

  • B1 blowup at injection

  • chroma at 25 for B1

  • end of ramp losses in TCTPV 4R8

  • reverted BLM threshold increase for start of ramp losses

  • Temperature of MKIs have reached 90% of injection threshold

  • B1V spectrum became flat during ramp, no QFB after this point for B1

  • large drop of lifetime during adjust (< 10 h for B1)

  • dumped due to electrical glitch, lost RB12, 67 and RF

Cycle duration

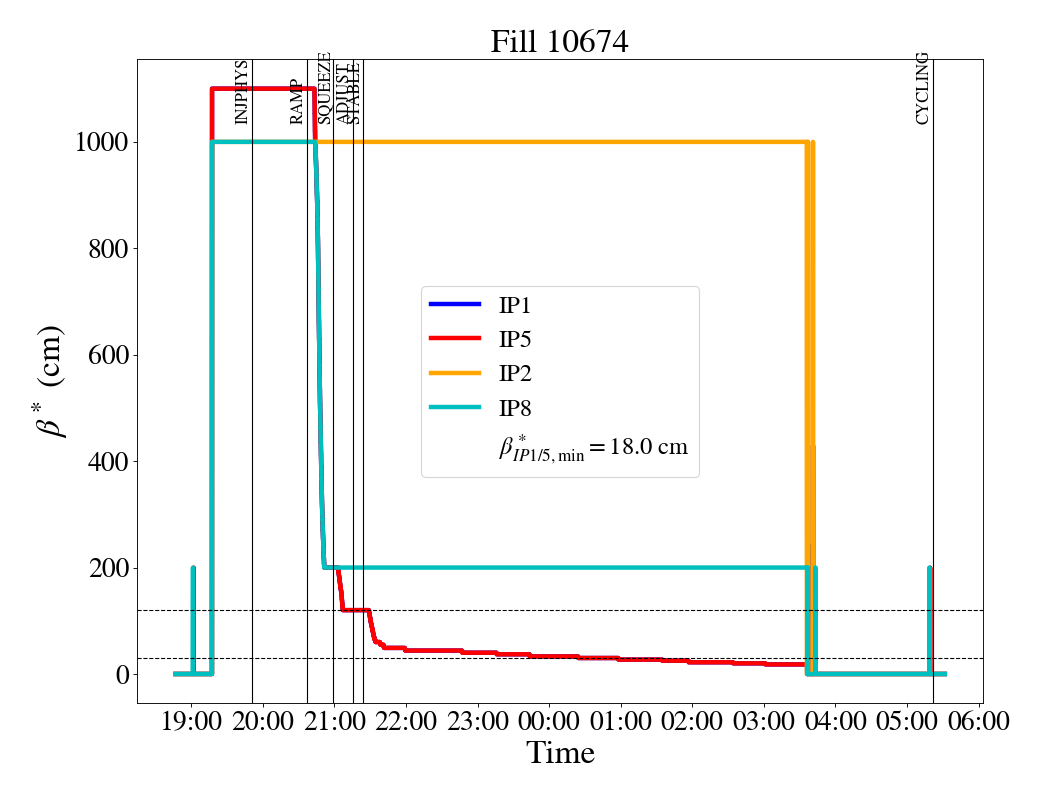

Beta-functions at the IPs

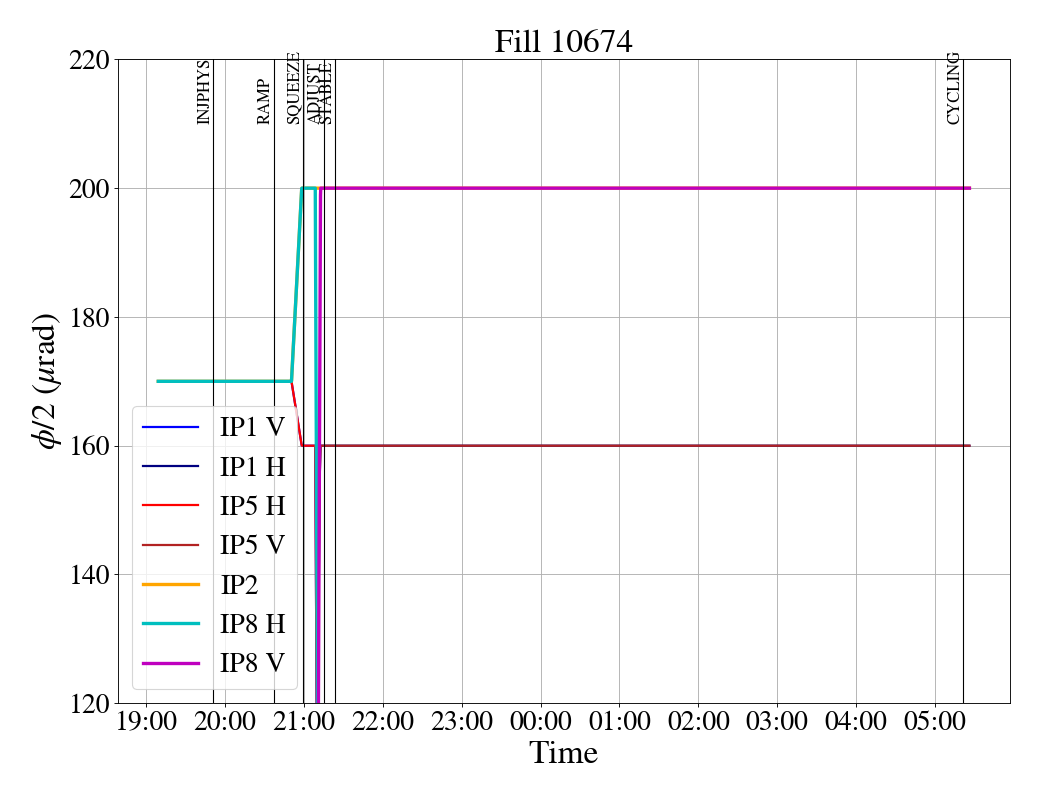

Crossing angles

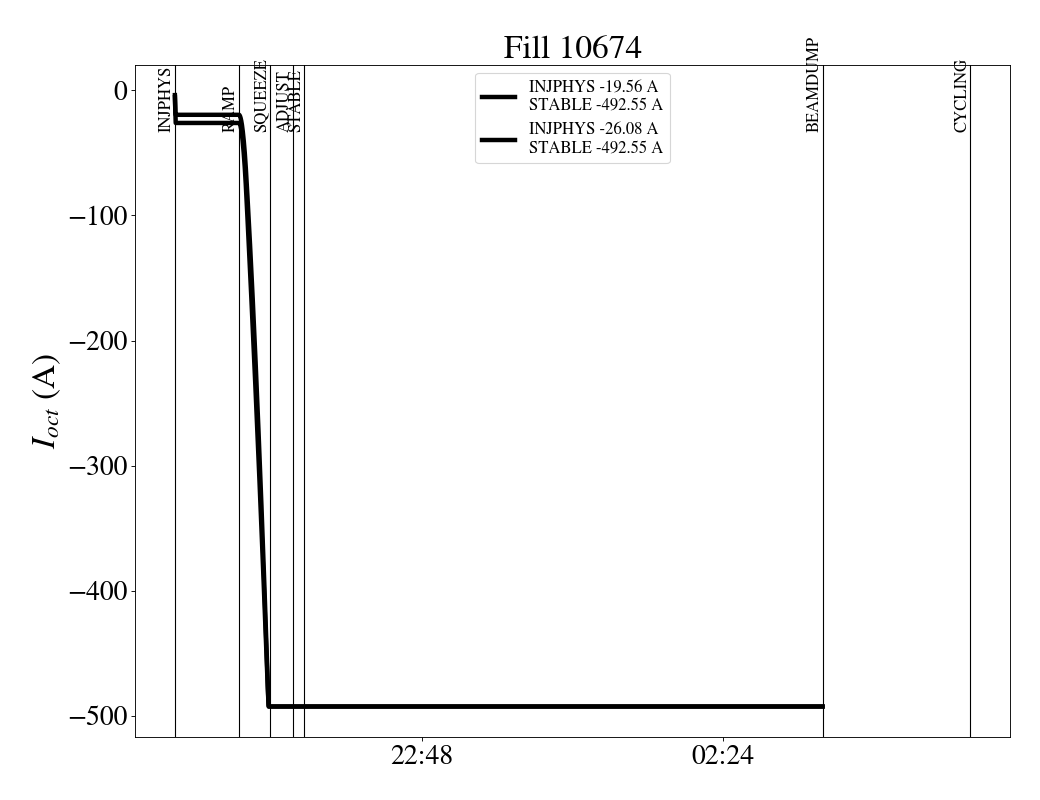

Octupoles

Trims

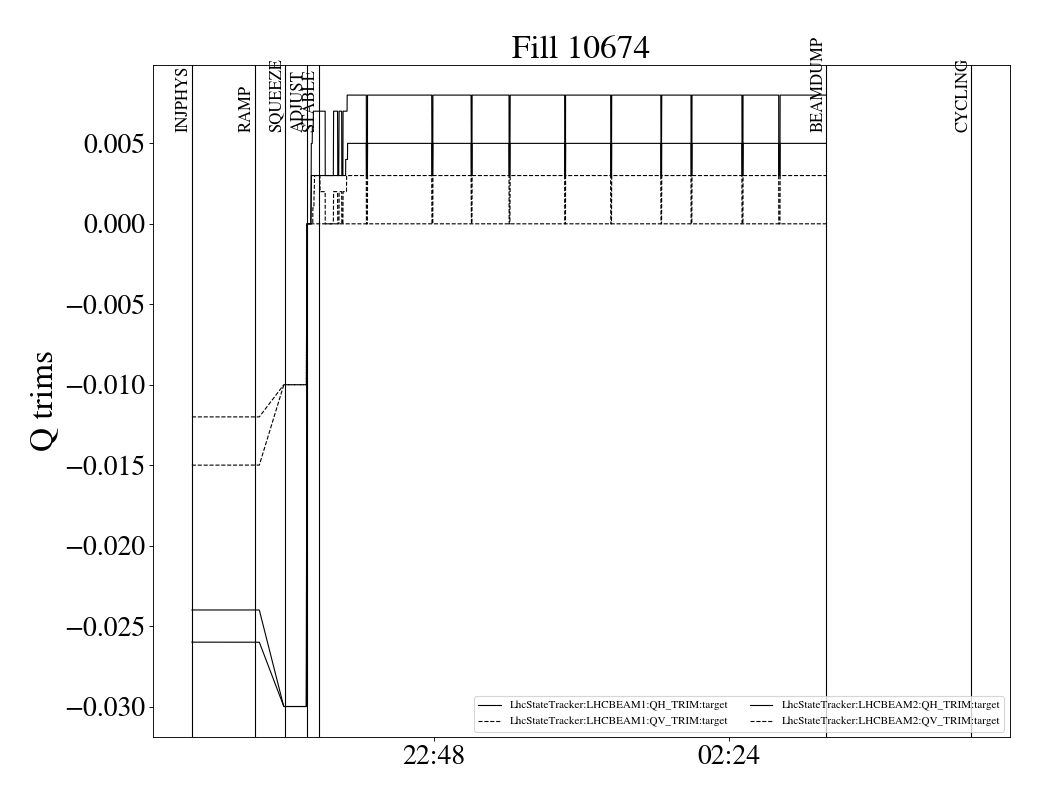

Tune trims

Chromaticity Trims

Intensity

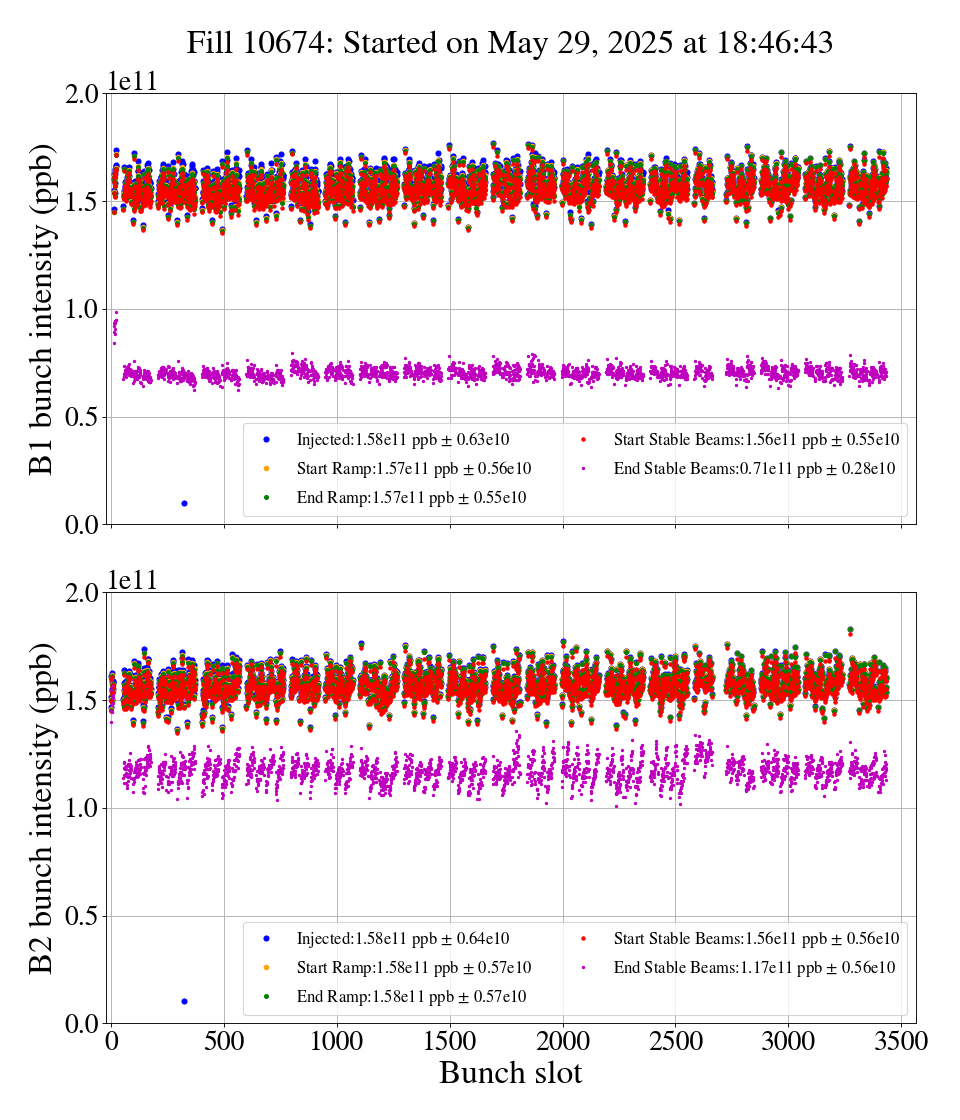

Cycle intensity

BBB SB intensity

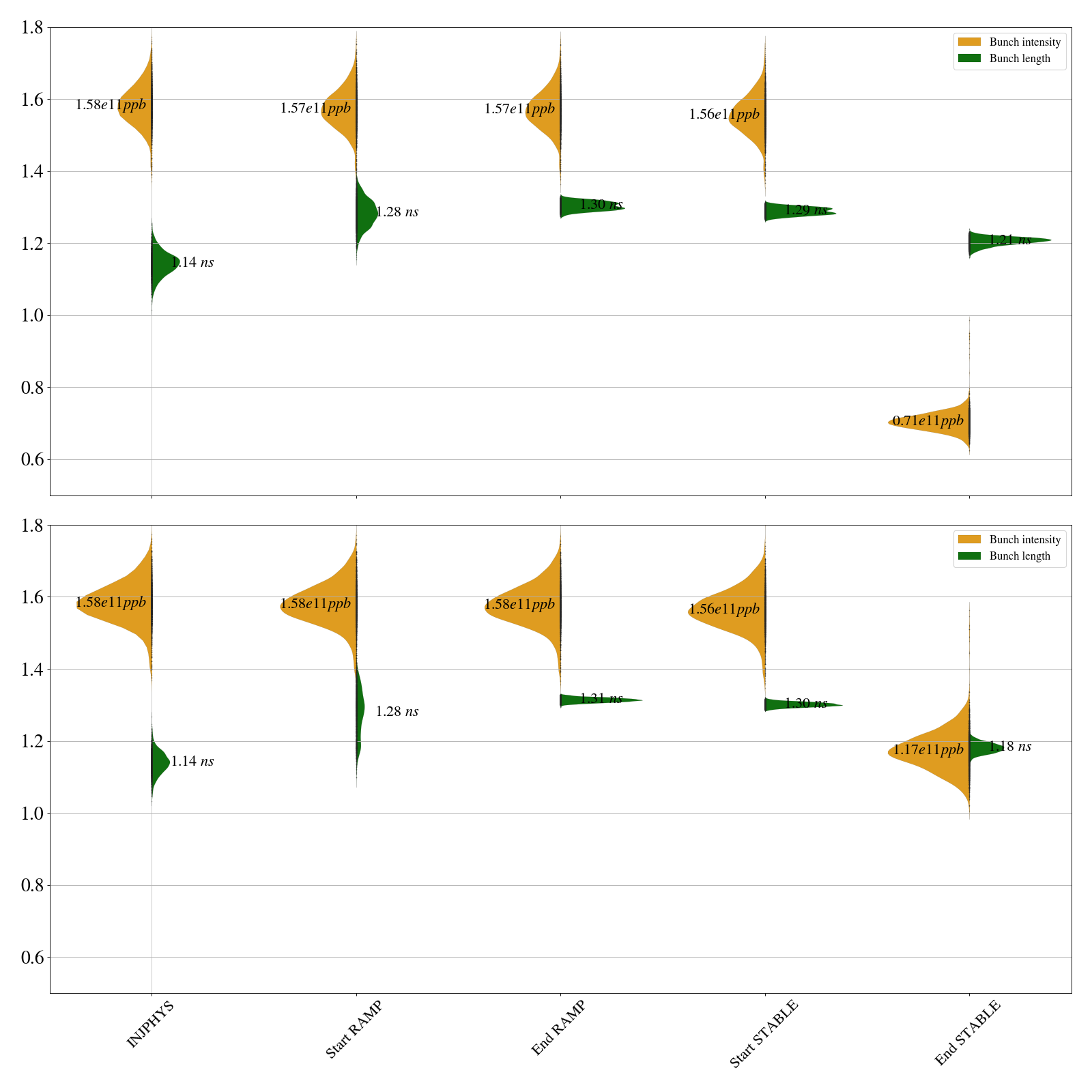

Violin BBB intensity

SB bunch intensity

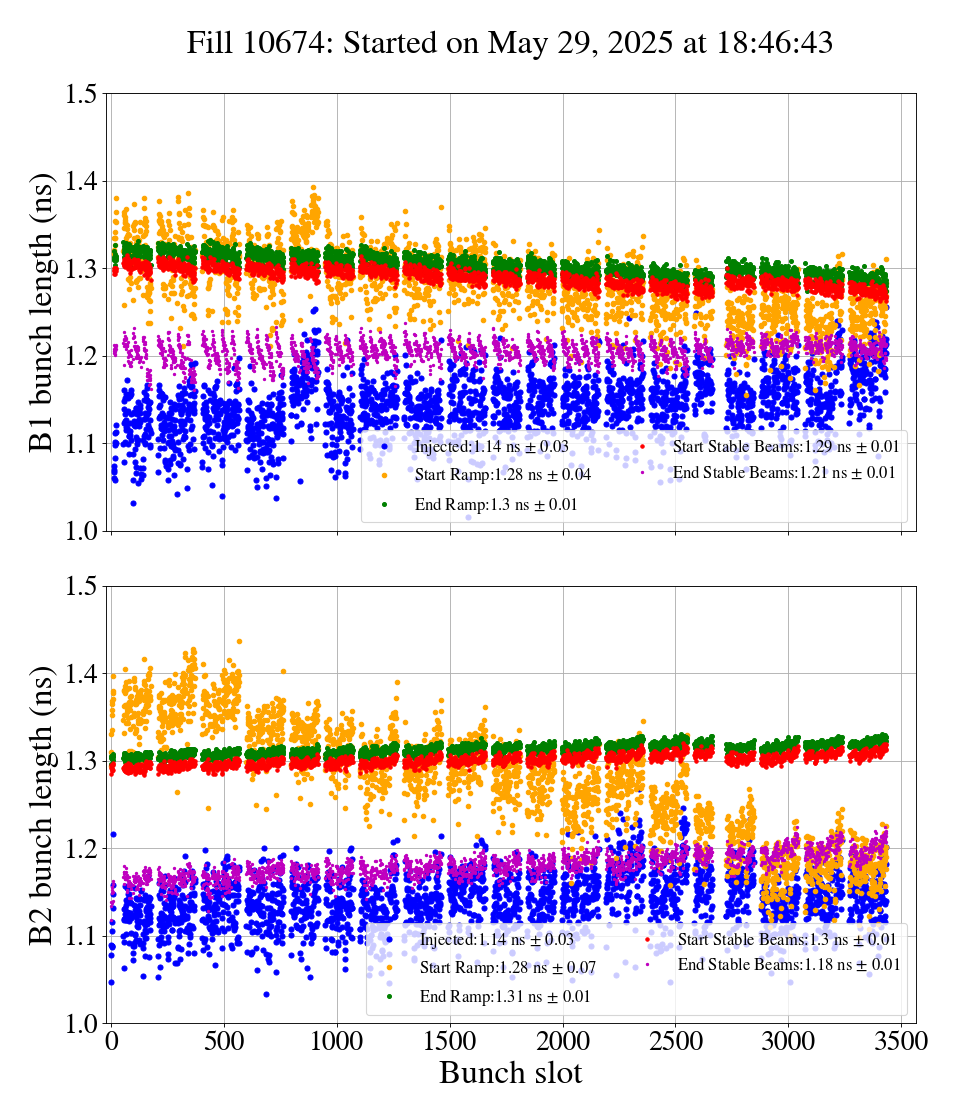

Bunch Length

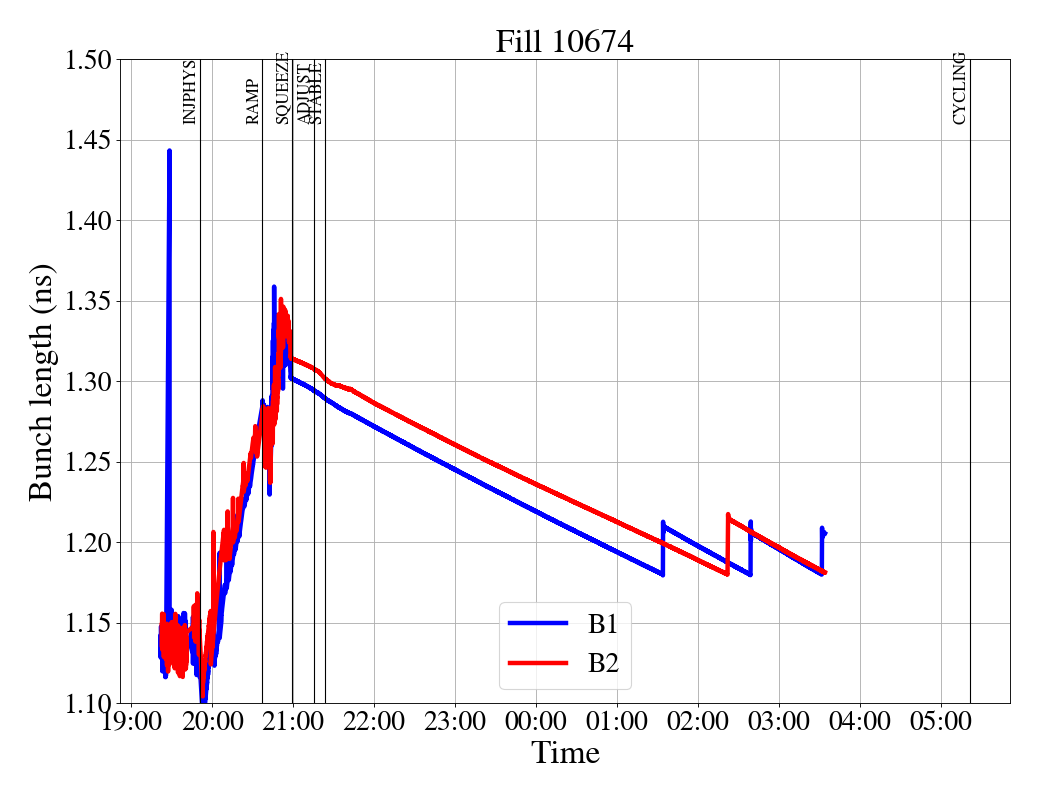

Bunch Length Fill

Emittance

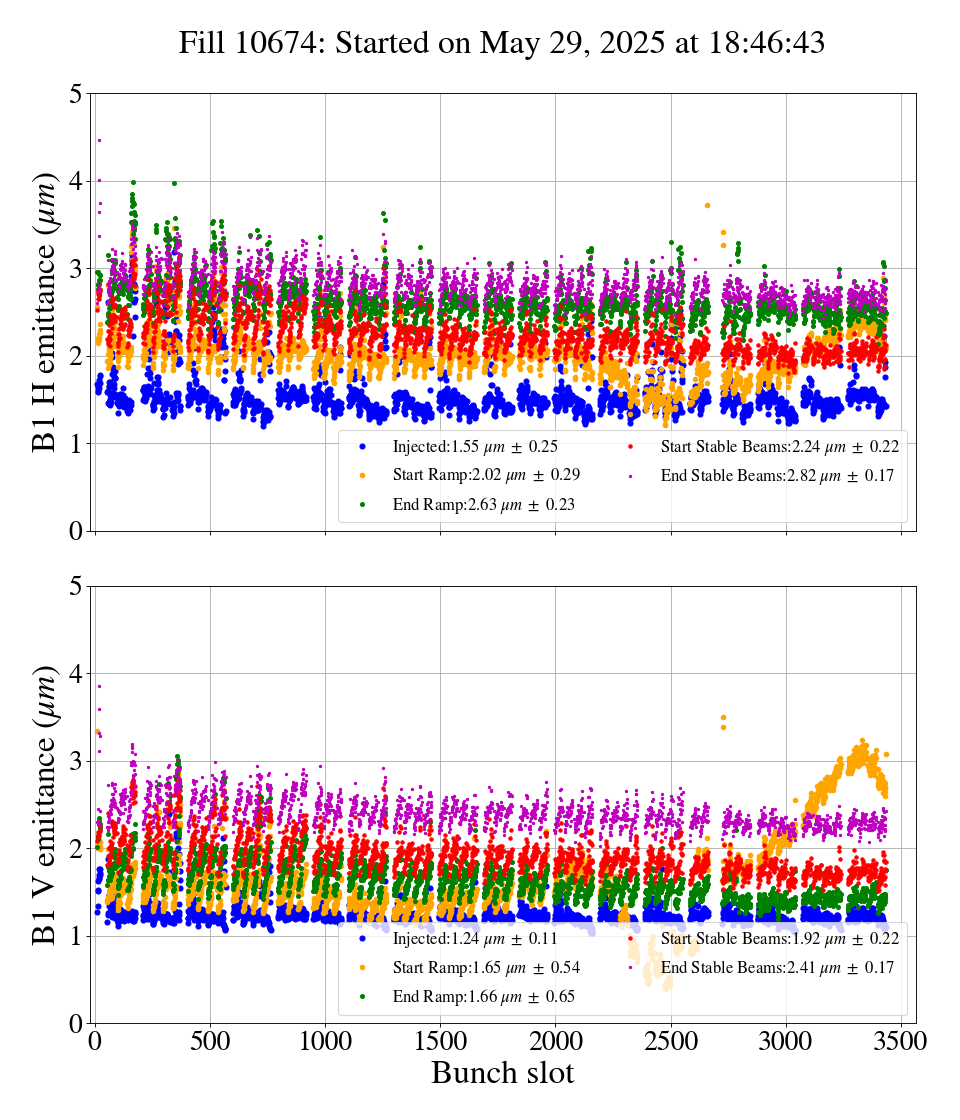

B1 along the cycle

B2 along the cycle

Emittance growth at injection

Summary violin plot

BBB in SB for B1

BBB in SB for B2

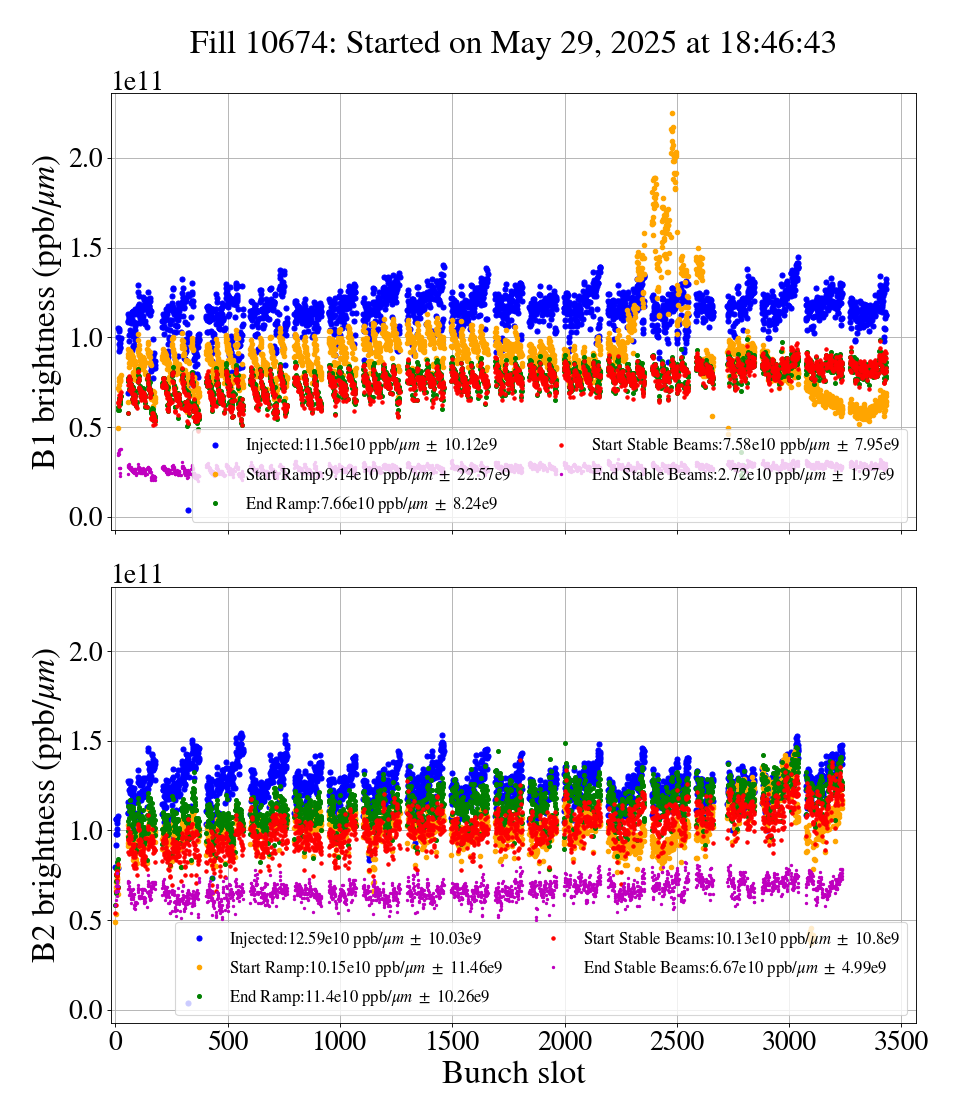

Bunch brightness

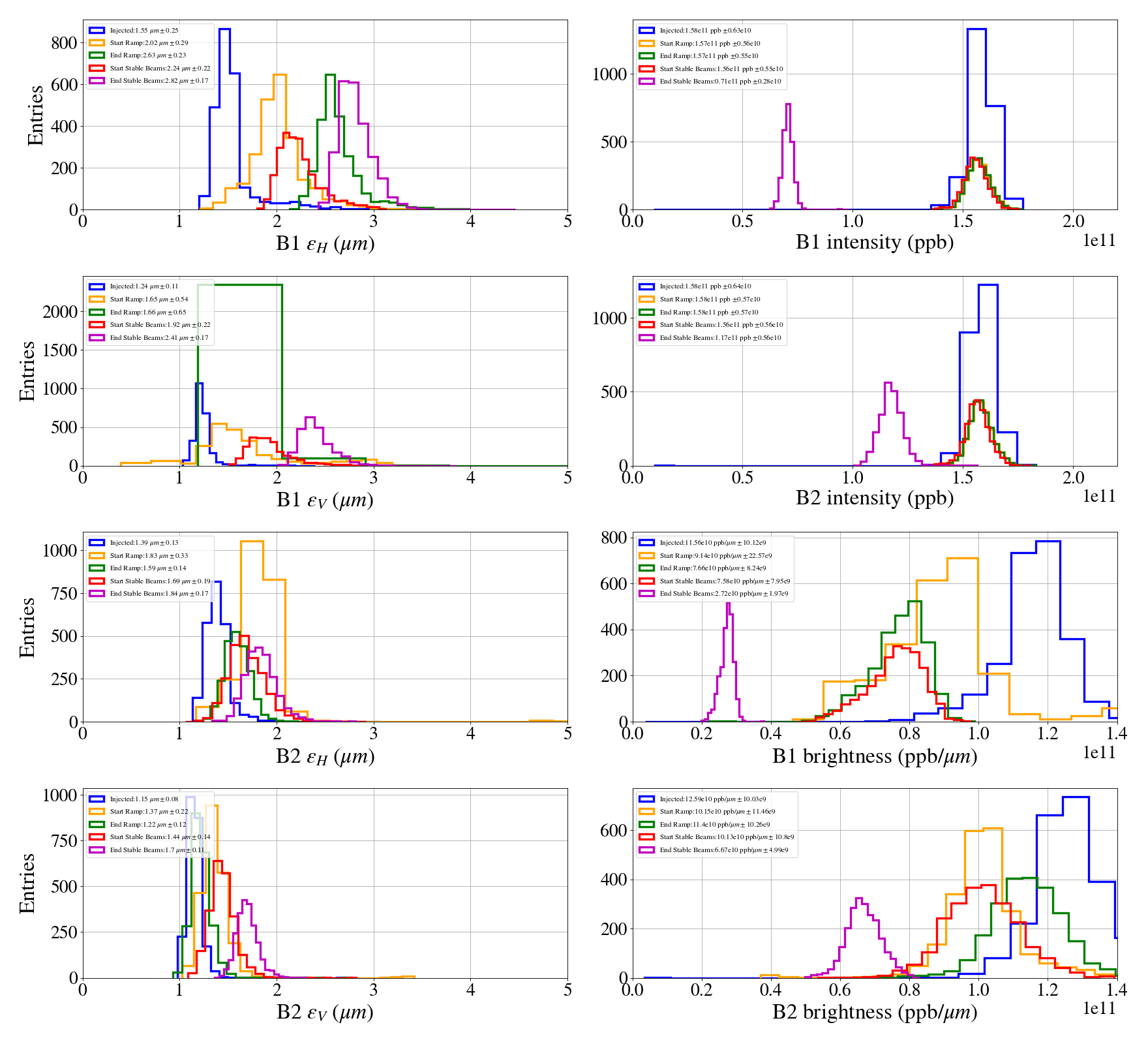

Beam properties summary

Luminosity

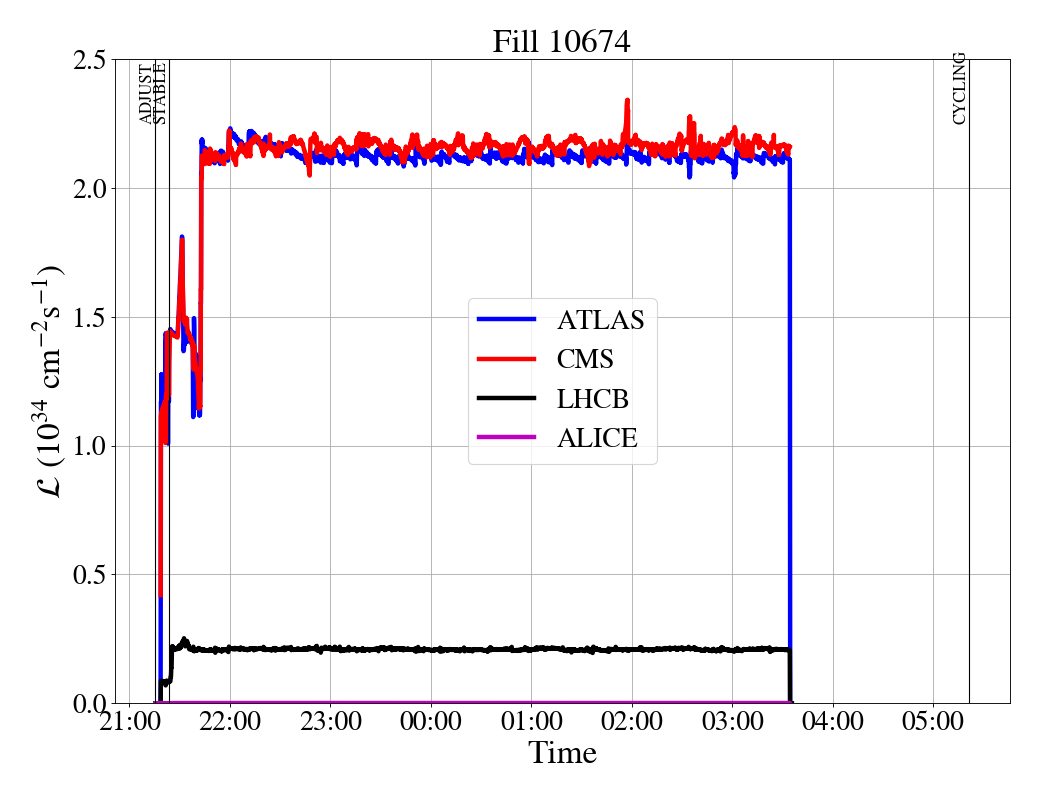

Overview

Luminous Regions

BBB luminosity in SB

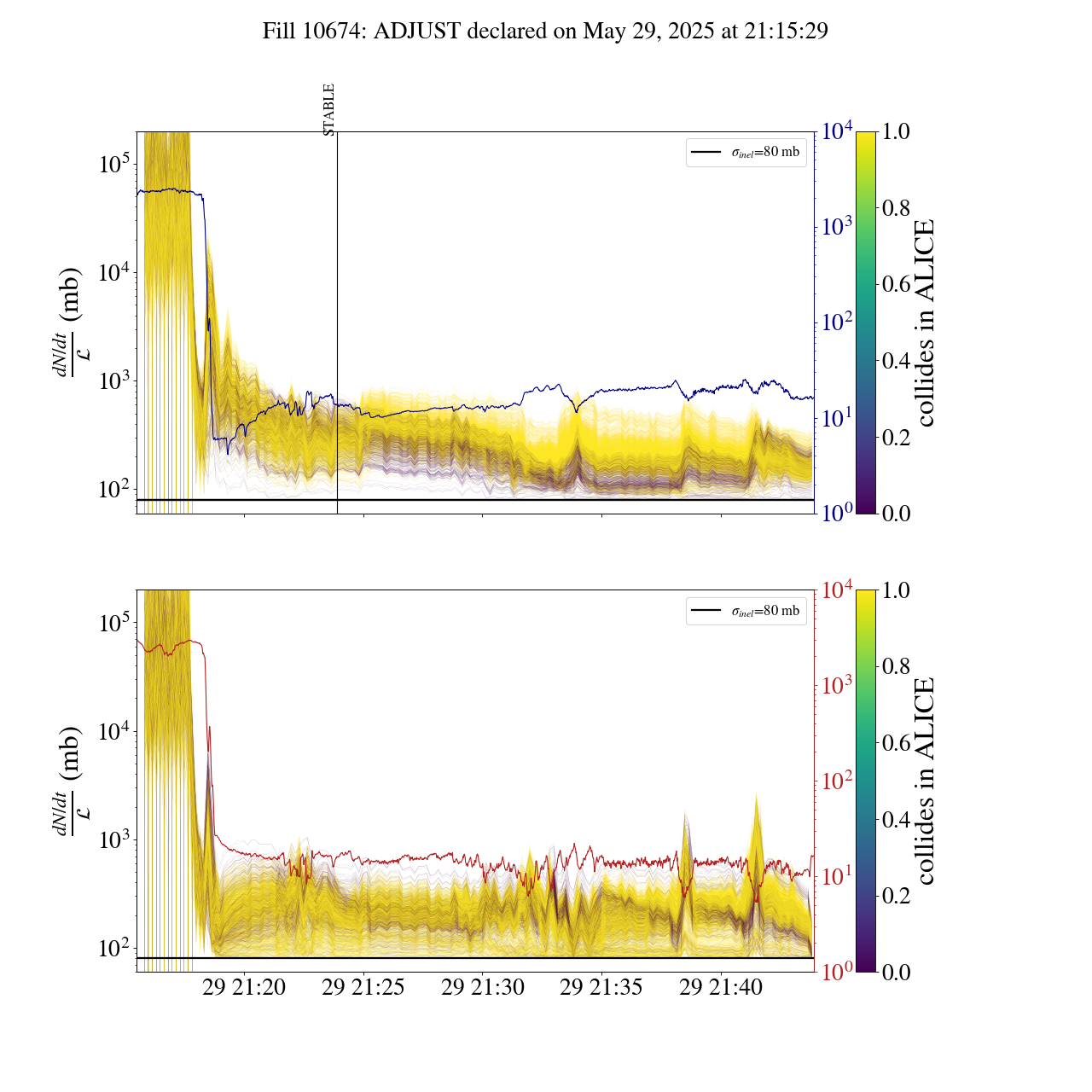

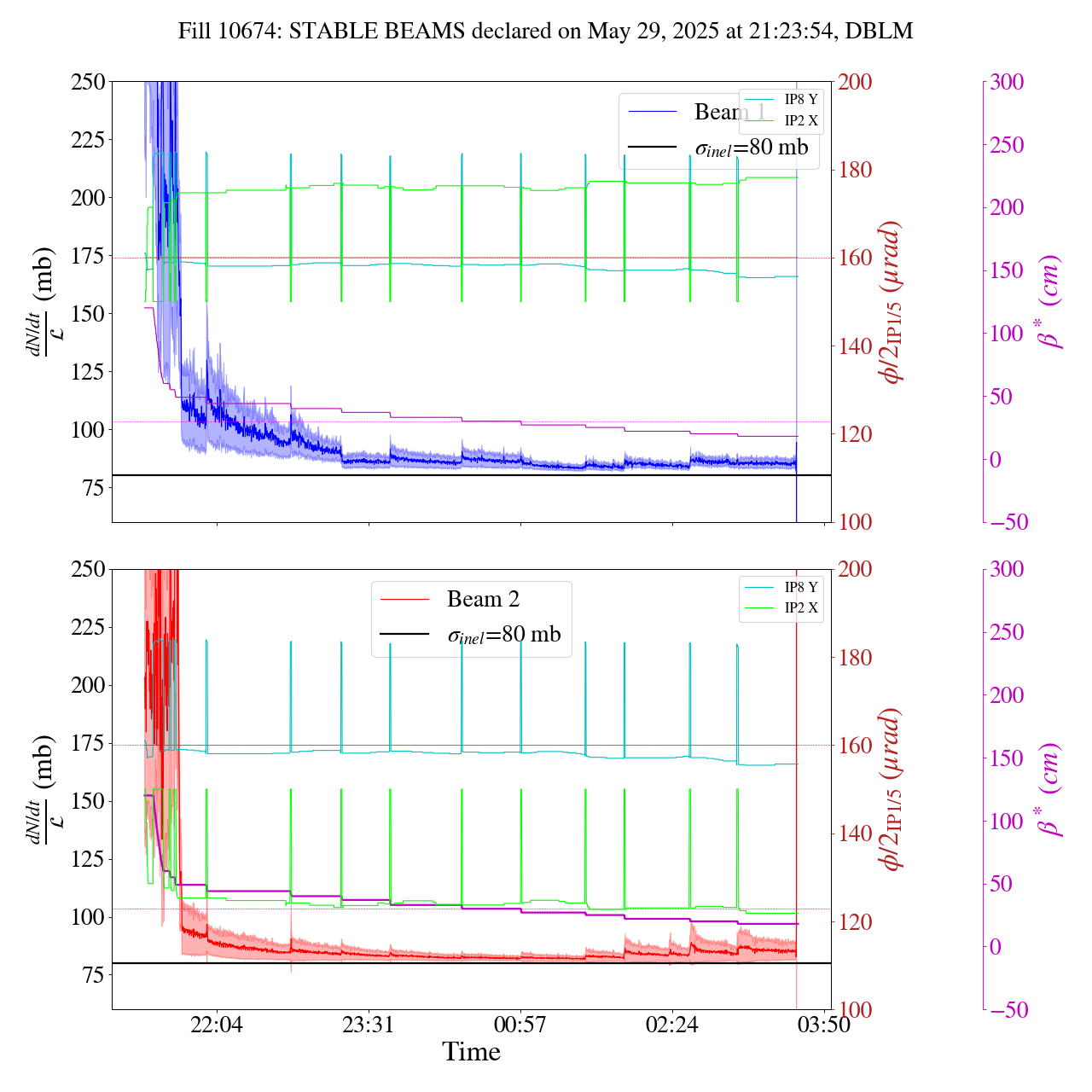

Cross-sections

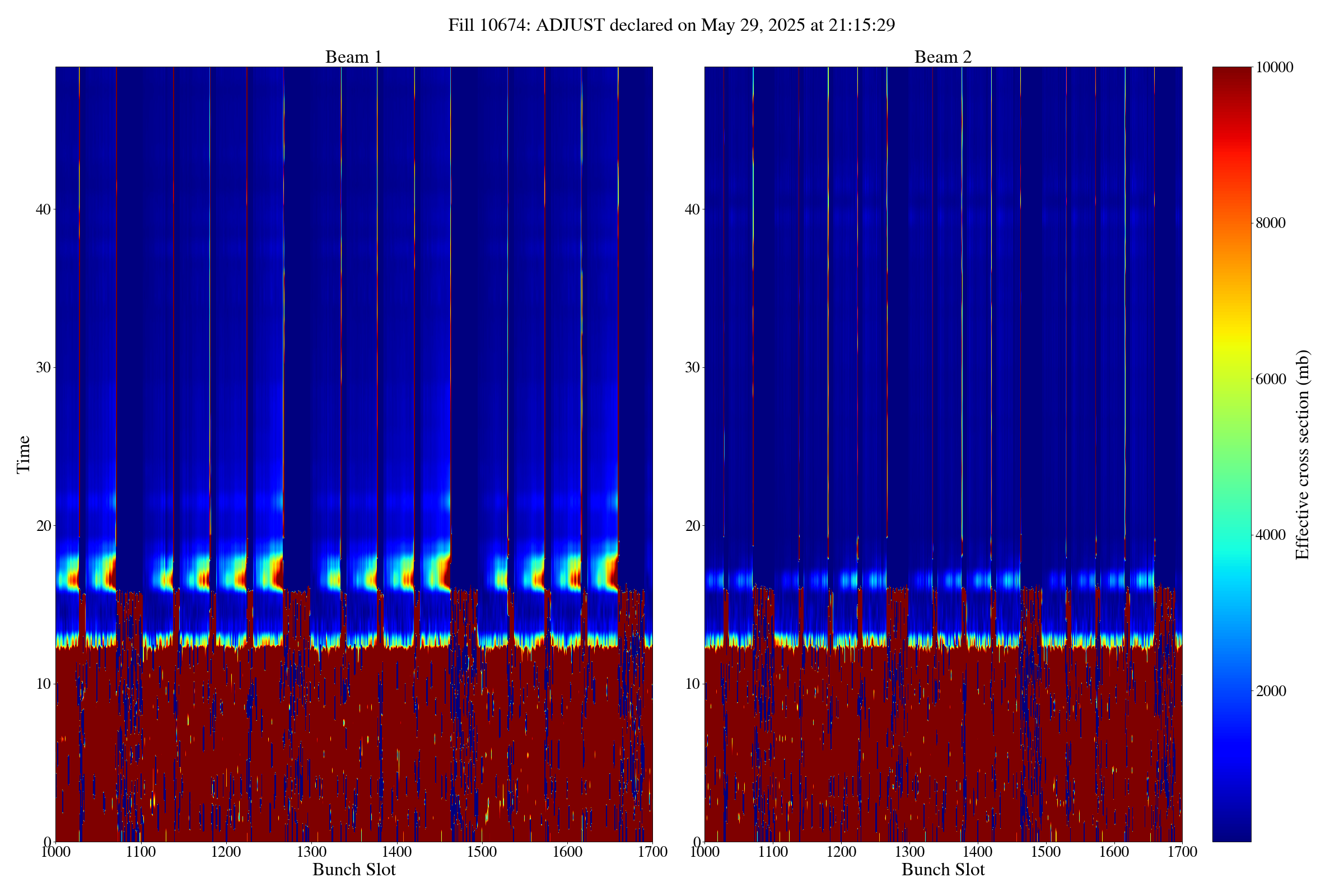

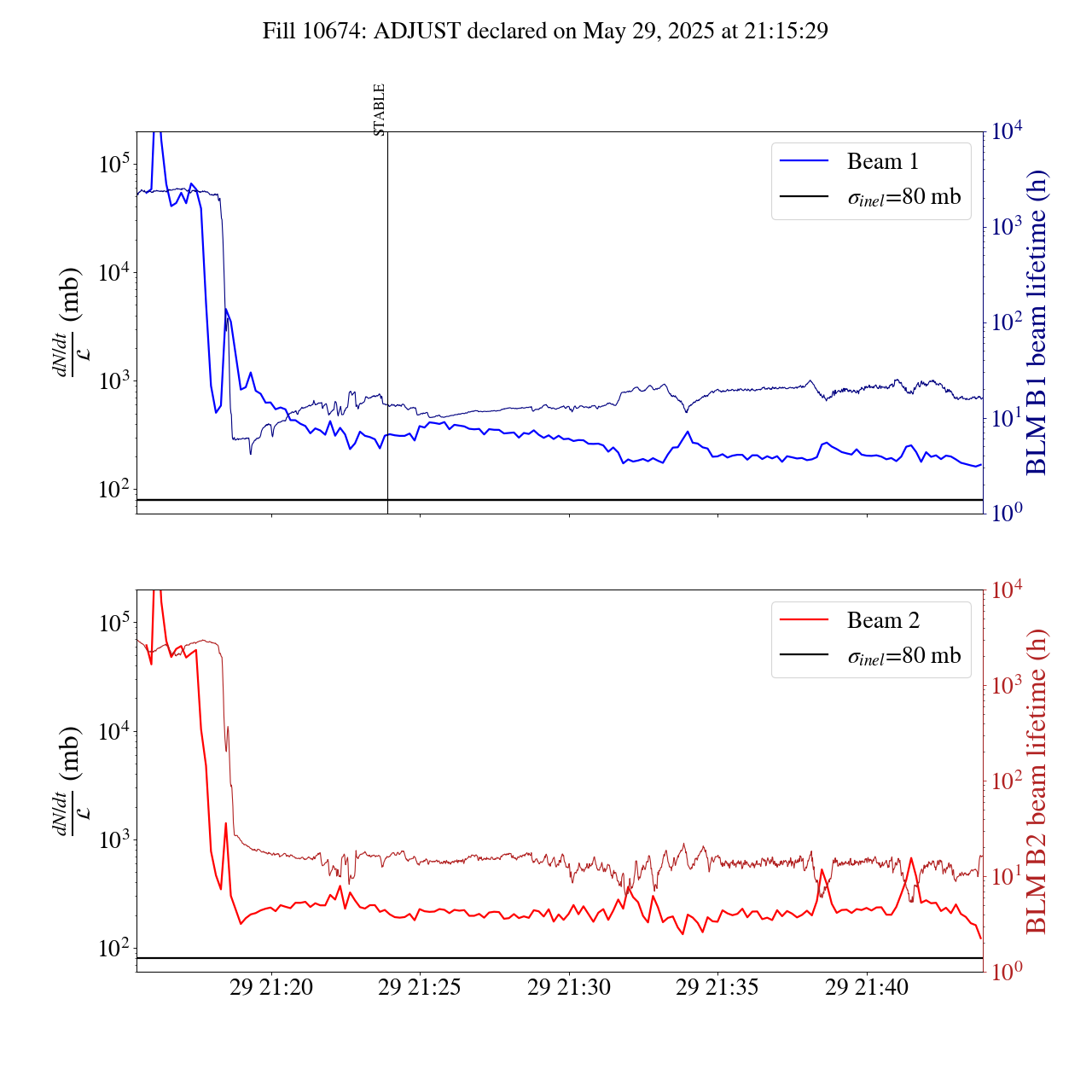

ADJUST

STABLE BEAM
