FILL 10683
Summary
start: June 02, 2025 09:07:04 PM UTC
end: June 03, 2025 03:18:32 PM UTC
duration: 0 days 18:11:28.418125
tags:
-
PHYSICS
-
TO_STUDY
-
OP_DUMP
comments:
-
B1 BSRT strange profiles
-
tests from Daniele for hierarchy during xing leveling
-
Q 20 before emittance scan

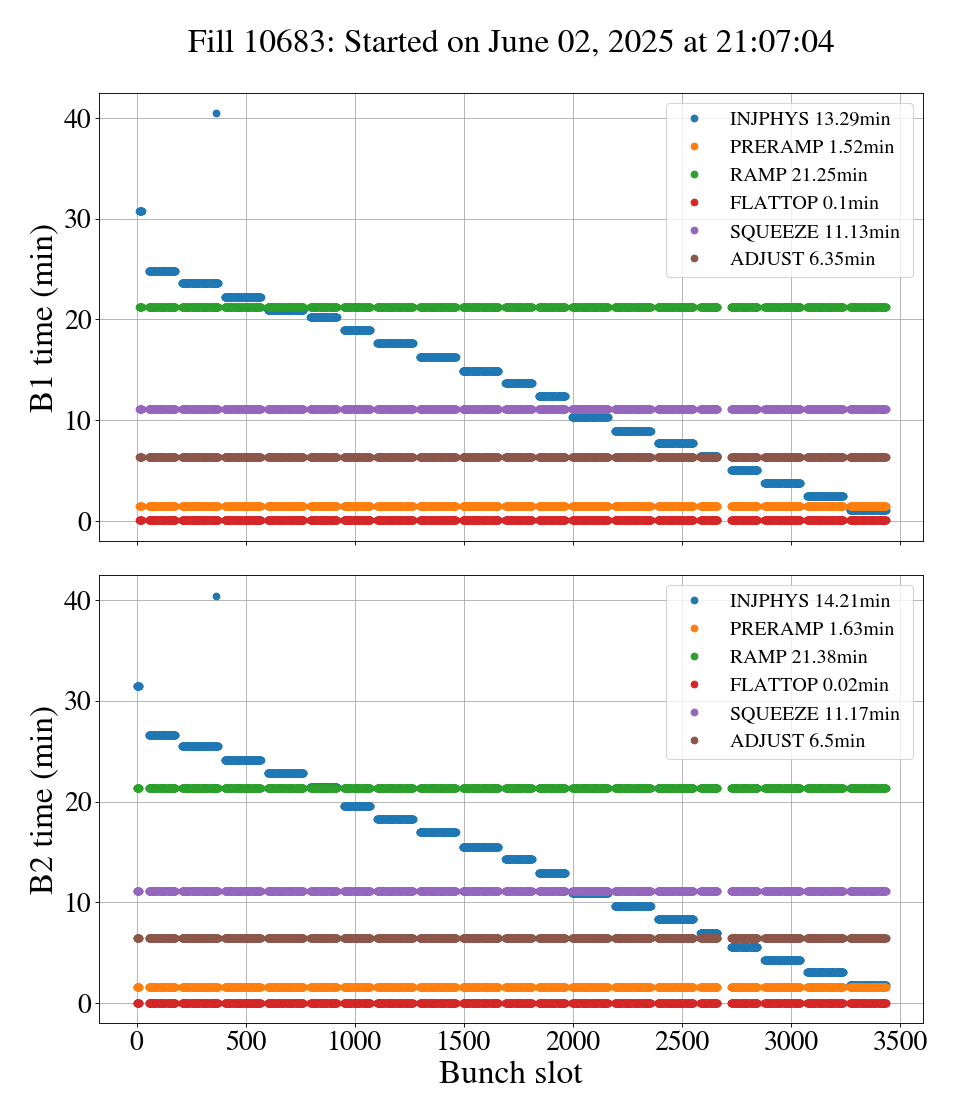

Cycle duration
Beta-functions at the IPs
Crossing angles
Octupoles
Trims

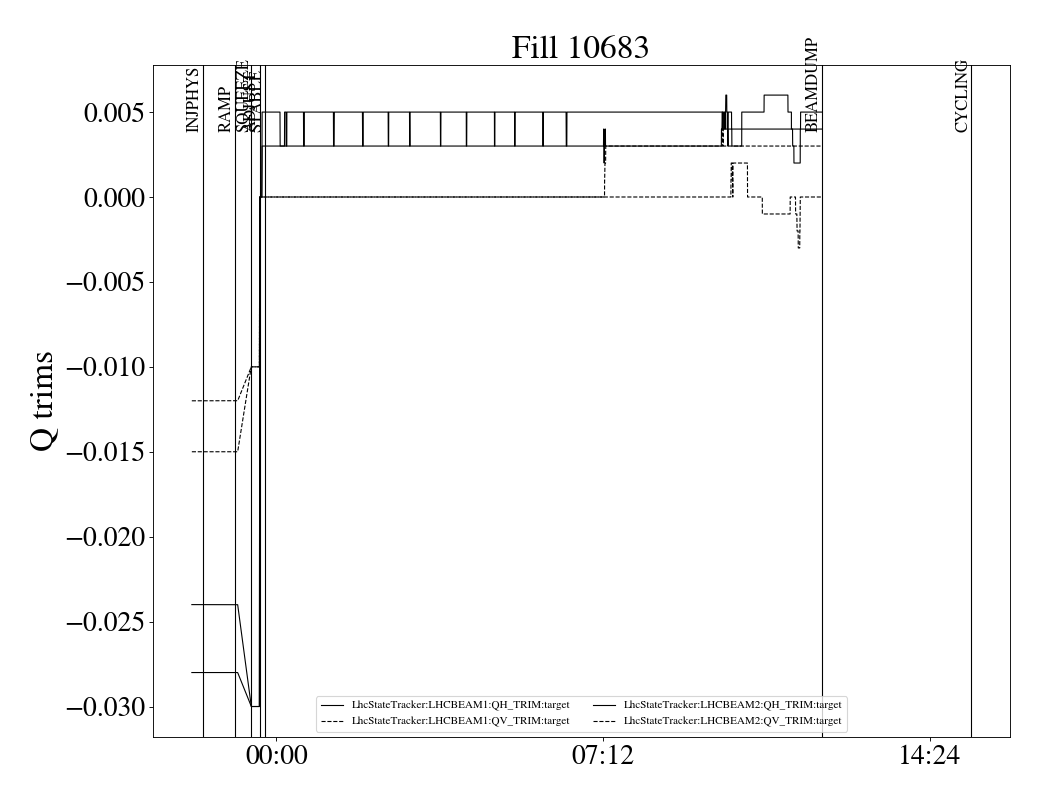

Tune trims
Chromaticity Trims
Intensity
Cycle intensity
BBB SB intensity

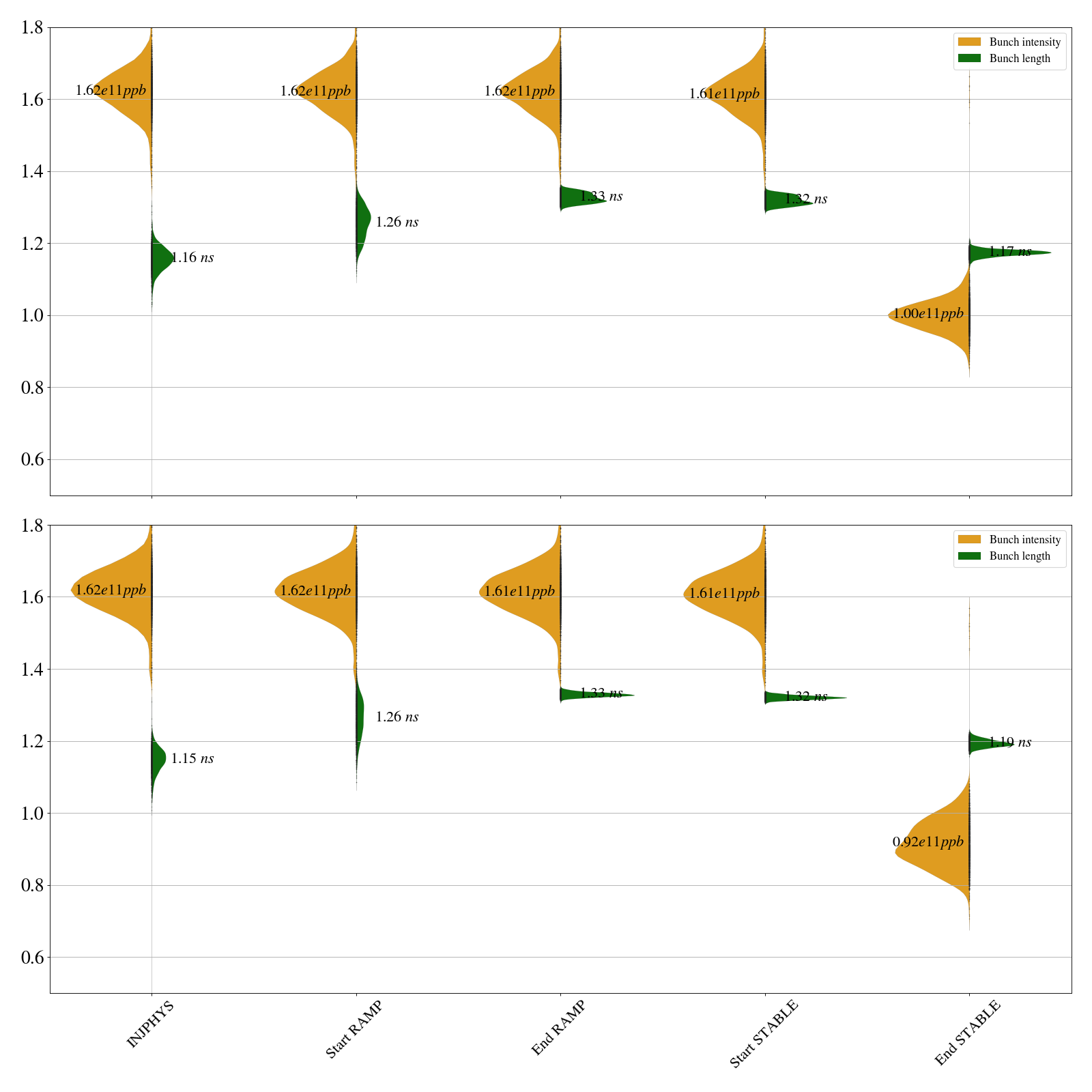

Violin BBB intensity
SB bunch intensity
Bunch Length

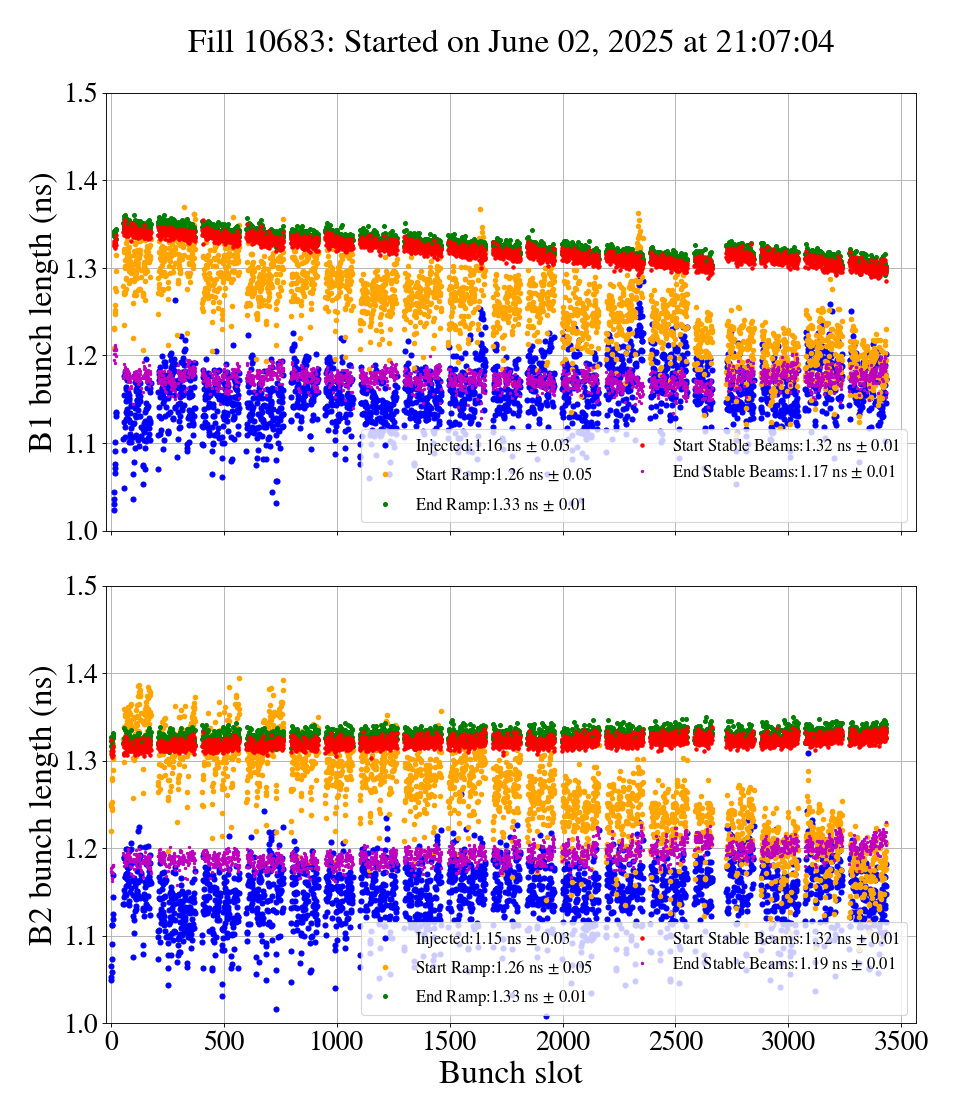

Bunch Length Fill
Emittance
B1 along the cycle
B2 along the cycle

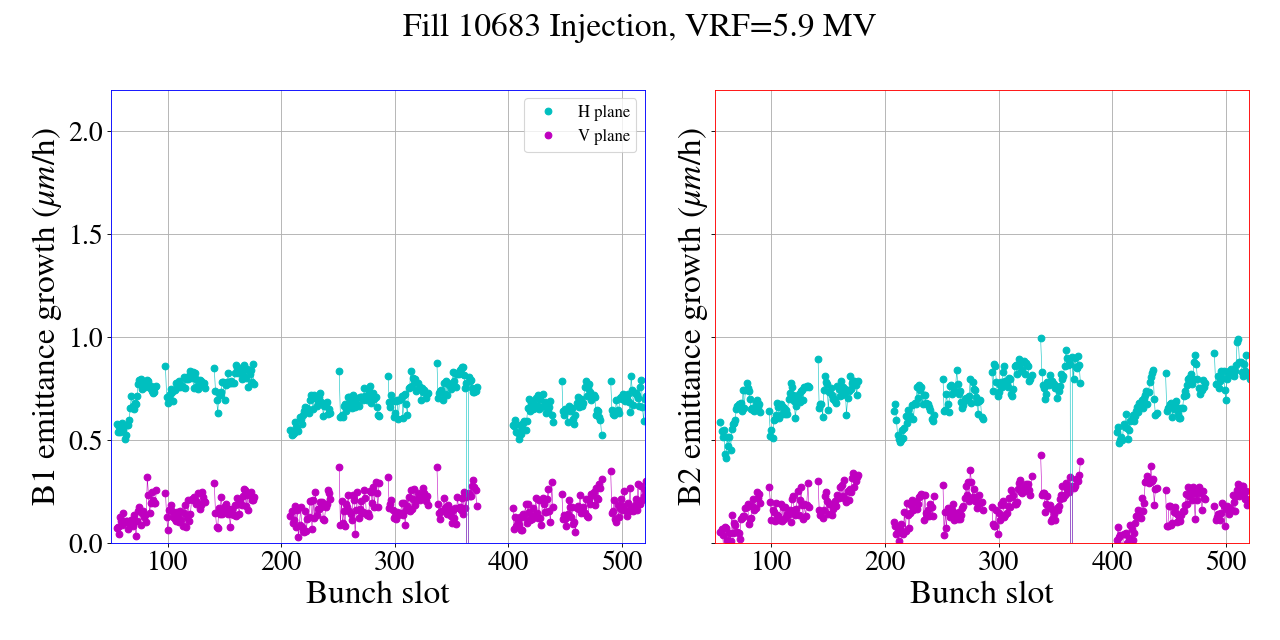

Emittance growth at injection
Summary violin plot
BBB in SB for B1
BBB in SB for B2

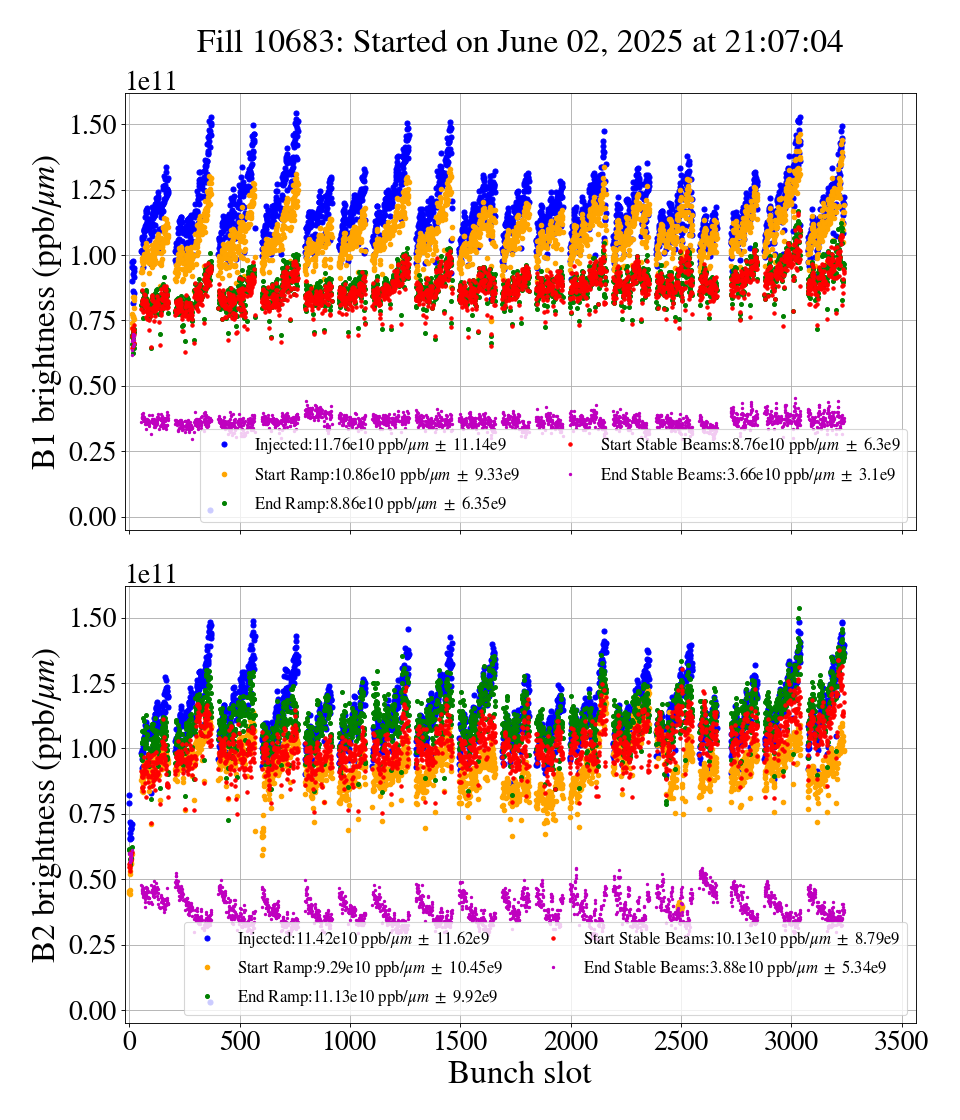

Bunch brightness

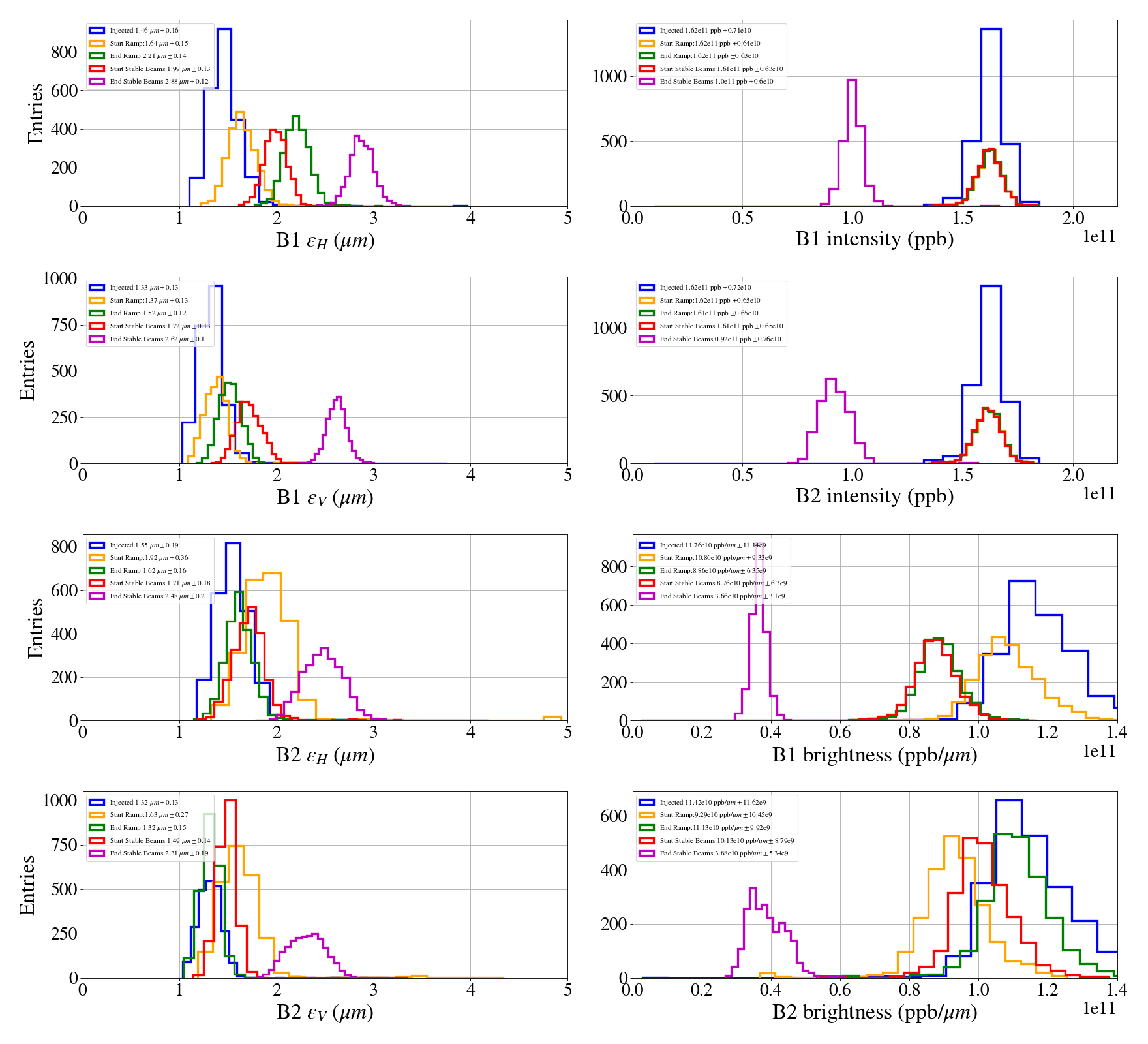

Beam properties summary
Luminosity

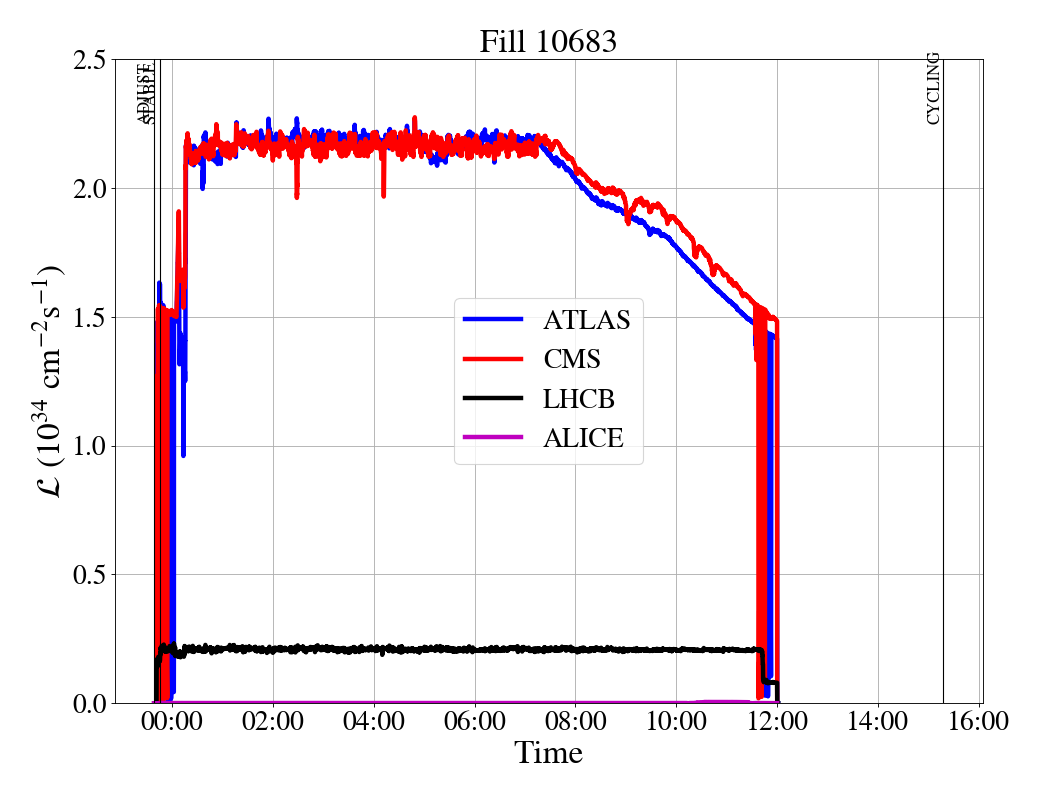

Overview
Luminous Regions
BBB luminosity in SB
