FILL 10850
Summary
start: July 17, 2025 07:17:17 PM UTC
end: July 18, 2025 05:21:53 AM UTC
duration: 0 days 10:04:35.619750
tags:
-
PHYSICS
-
INTENSITY_RAMPUP
comments:
-
Systematic B1 issues: blow-up on 1st two bunches of every 2nd 36b train.
-
Later the 12 non-colliding bunches went unstable; chroma +15 finally stabilized B1.
-
Number of bunches in beam 1 445 vs beam 2 447
-
fake jumps in the lumi of ATLAS (not physical, not observed o BRAN)
-
beta* levelling got interrupted for half an hour as the server got stalled when moving from 30cm to 27 cm beta*

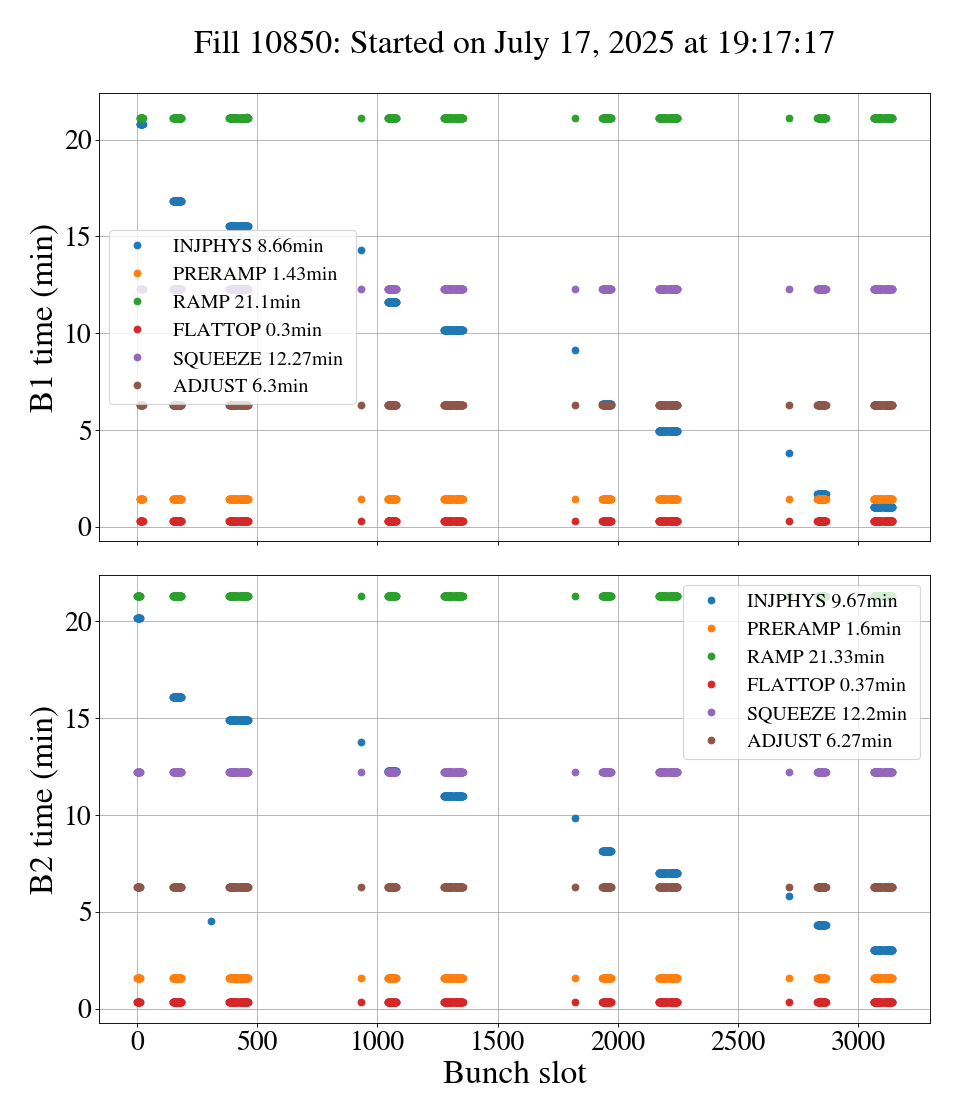

Cycle duration
Beta-functions at the IPs
Crossing angles

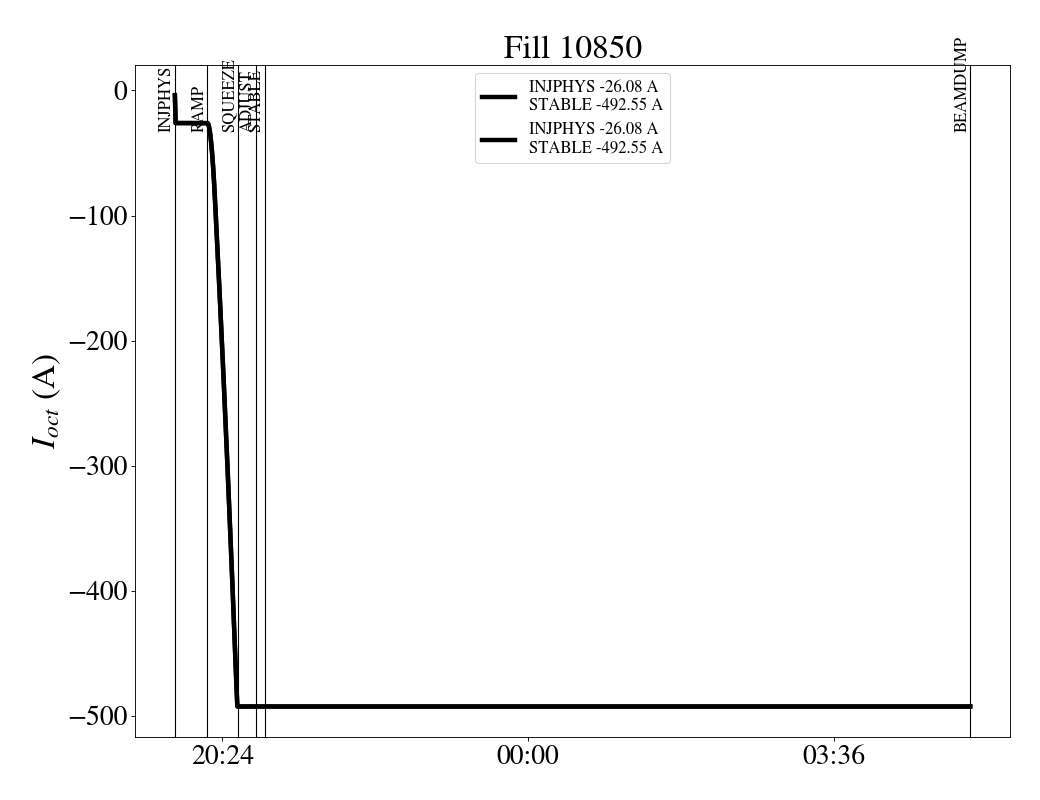

Octupoles
Trims

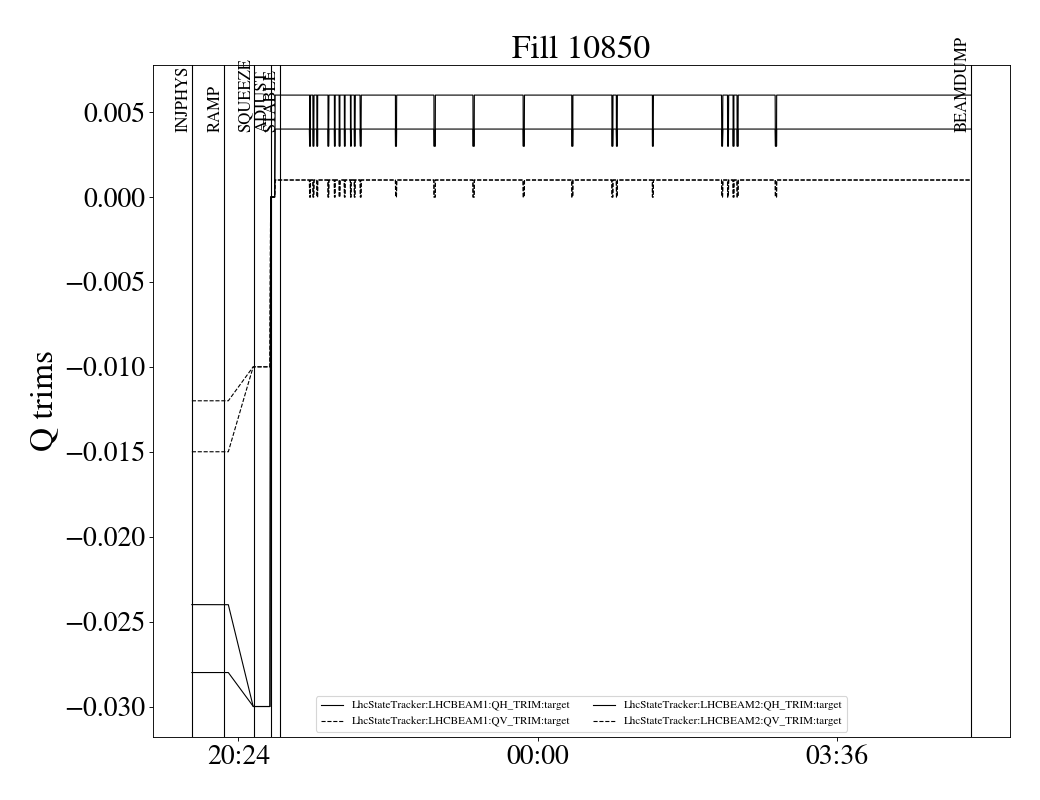

Tune trims
Chromaticity Trims
Intensity
Cycle intensity
BBB SB intensity
Violin BBB intensity
SB bunch intensity
Bunch Length

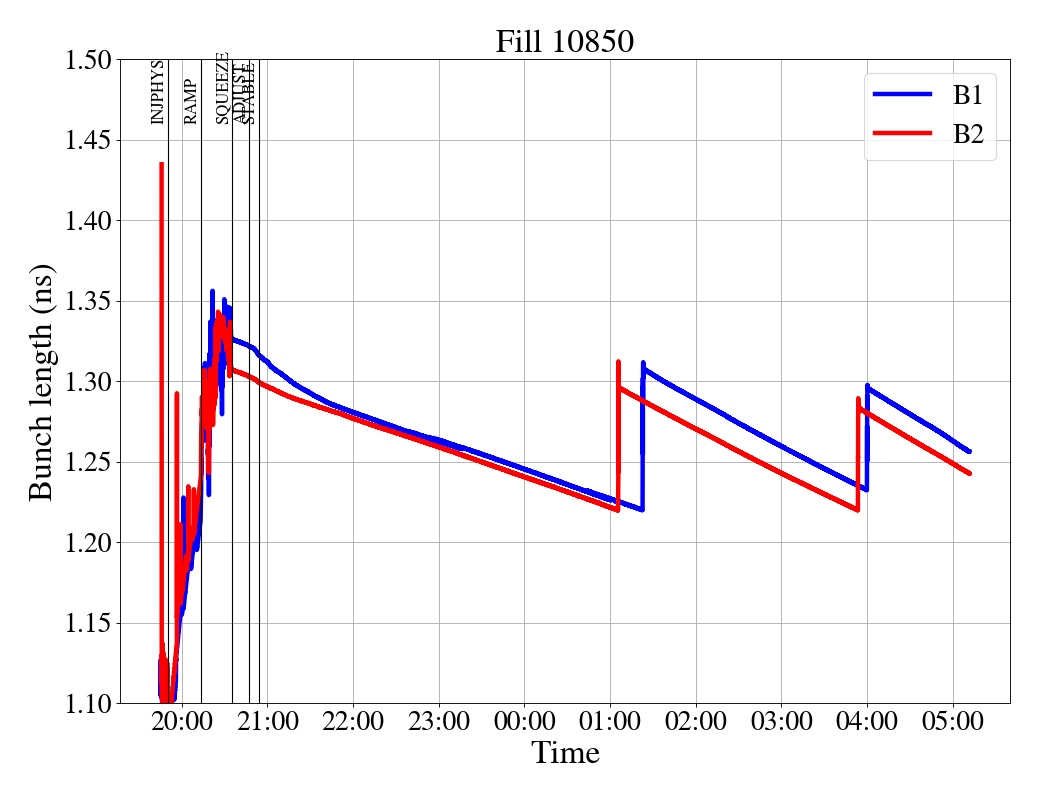

Bunch Length Fill
Emittance

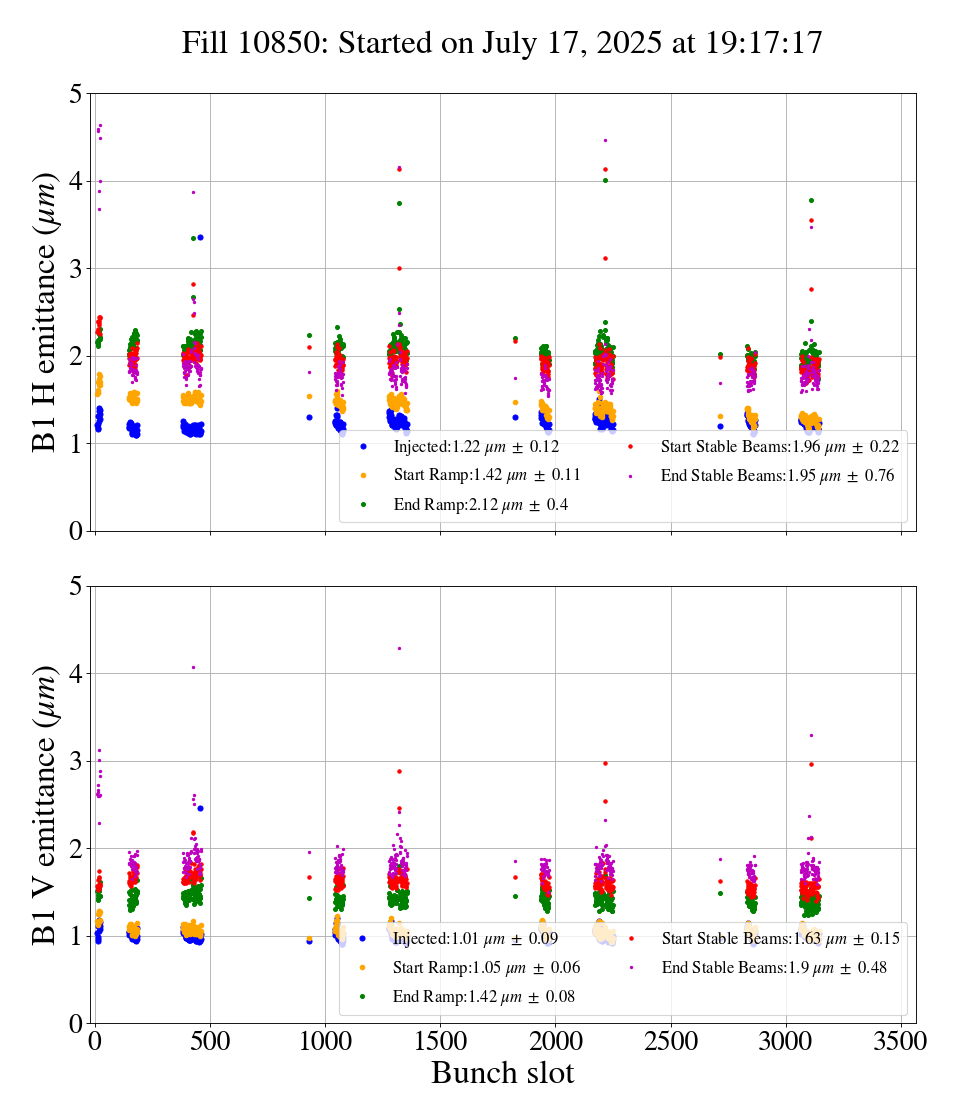

B1 along the cycle

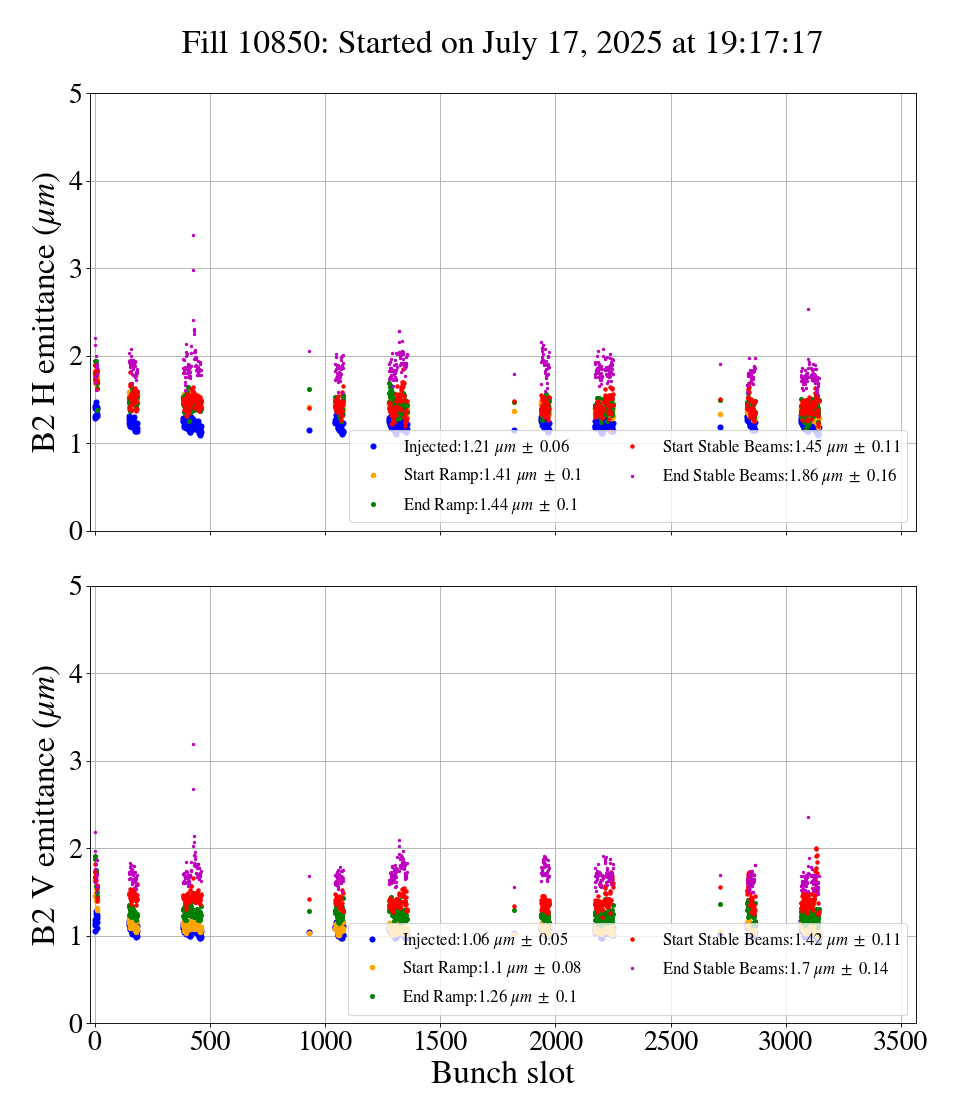

B2 along the cycle

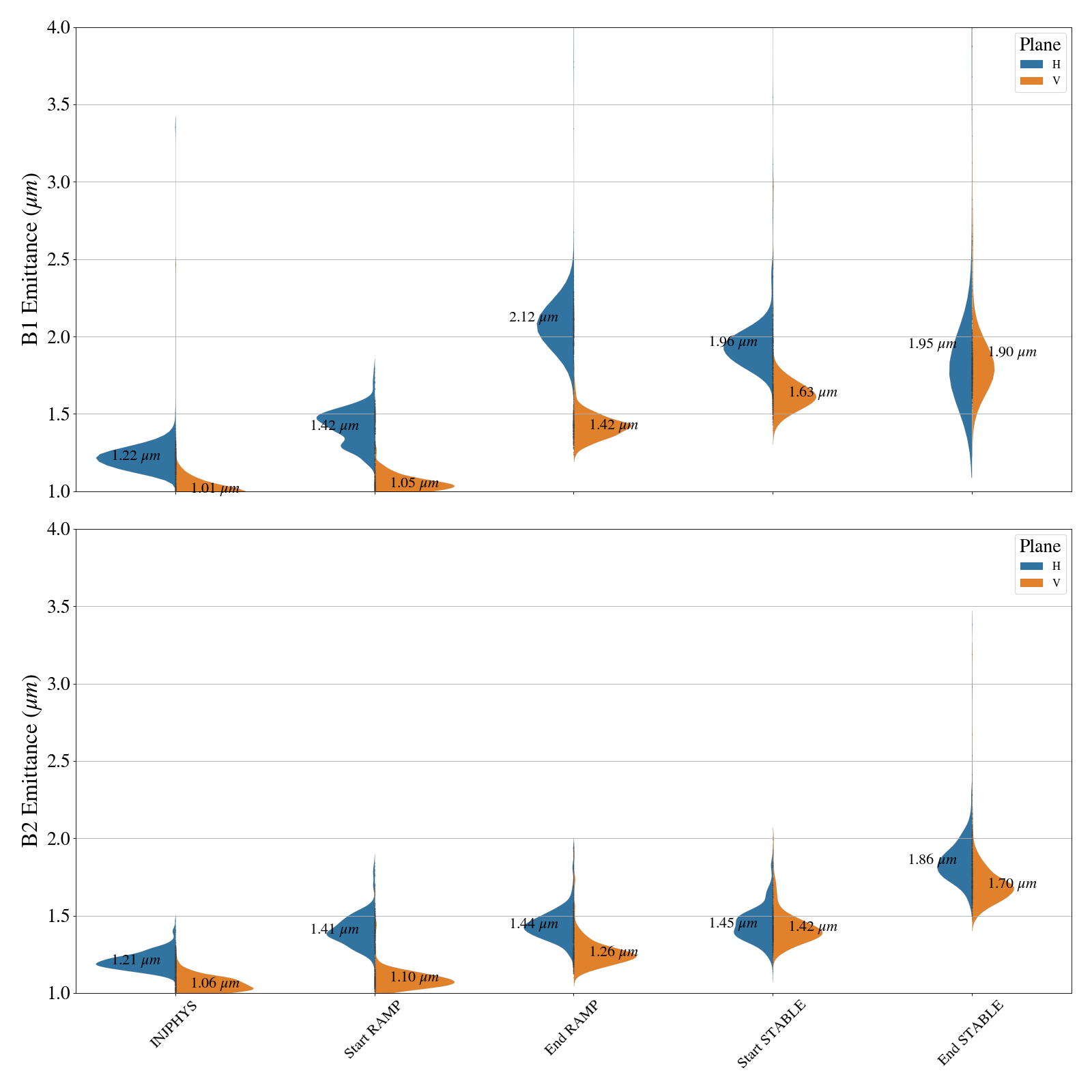

Summary violin plot
BBB in SB for B1

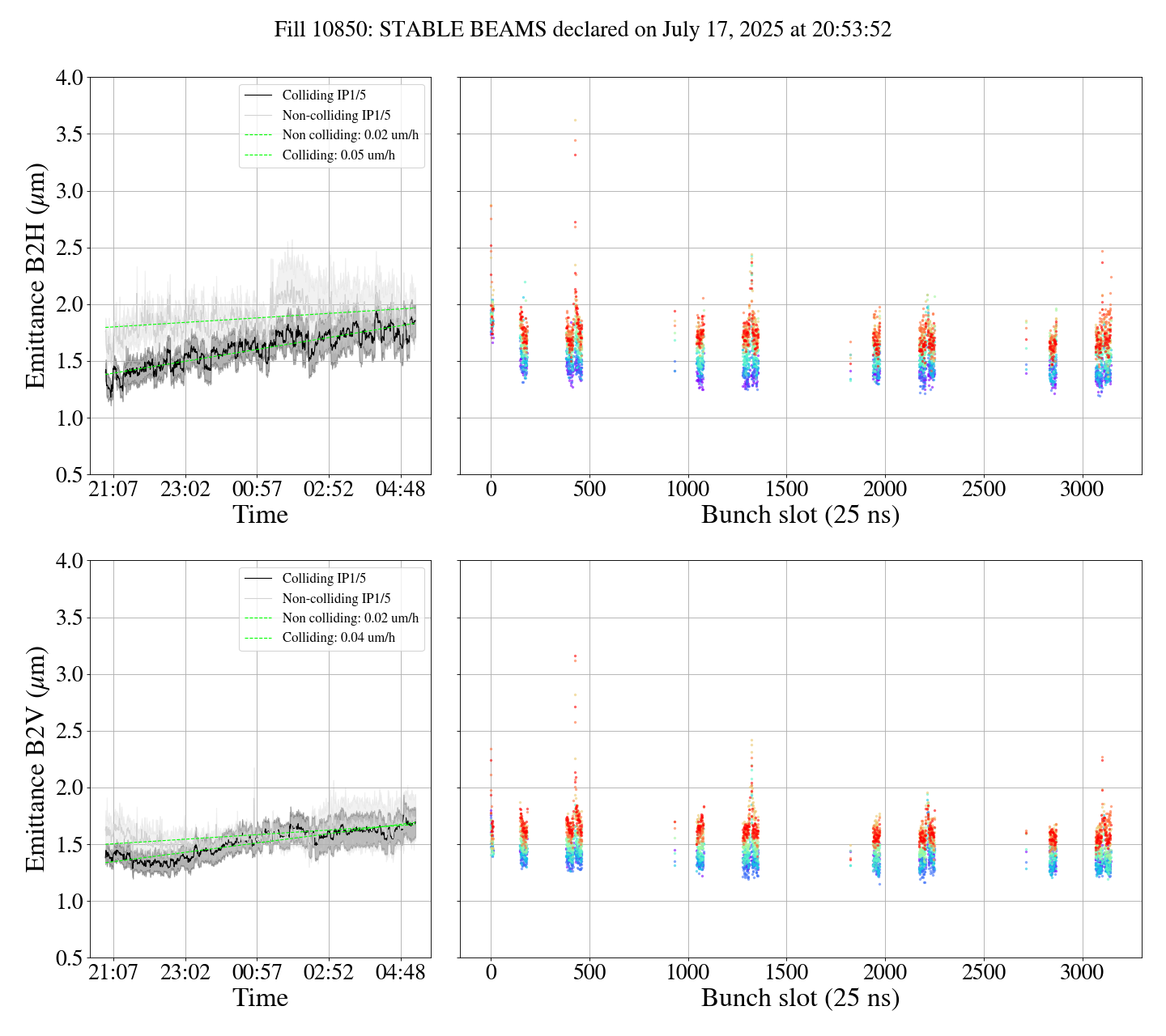

BBB in SB for B2
Bunch brightness

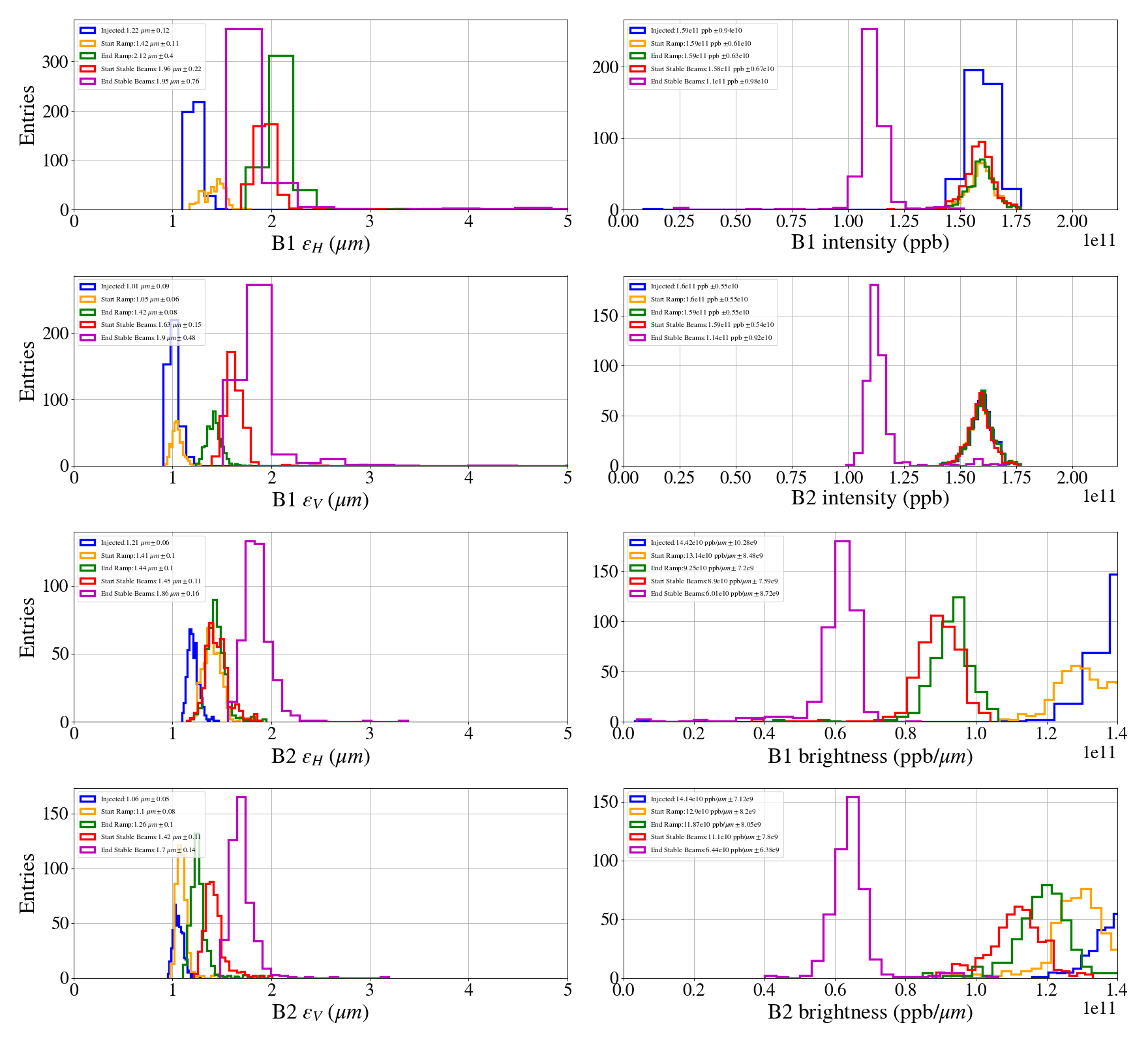

Beam properties summary
Luminosity

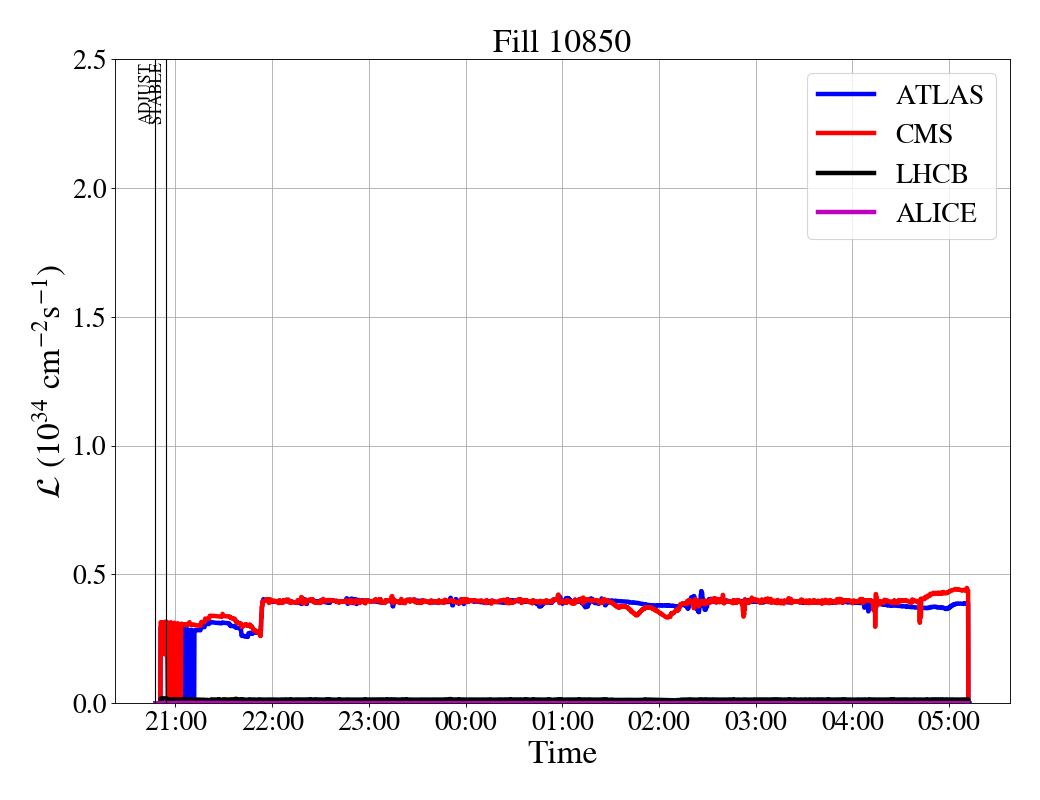

Overview

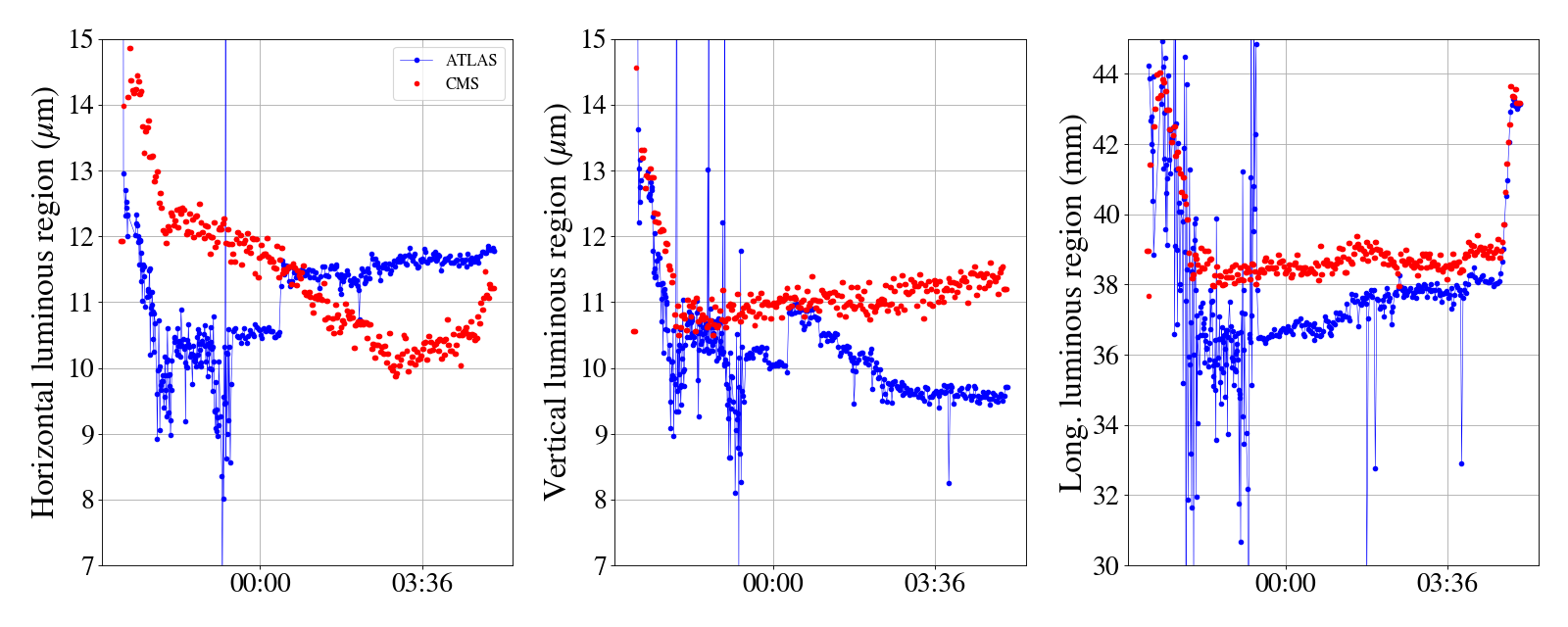

Luminous Regions
BBB luminosity in SB

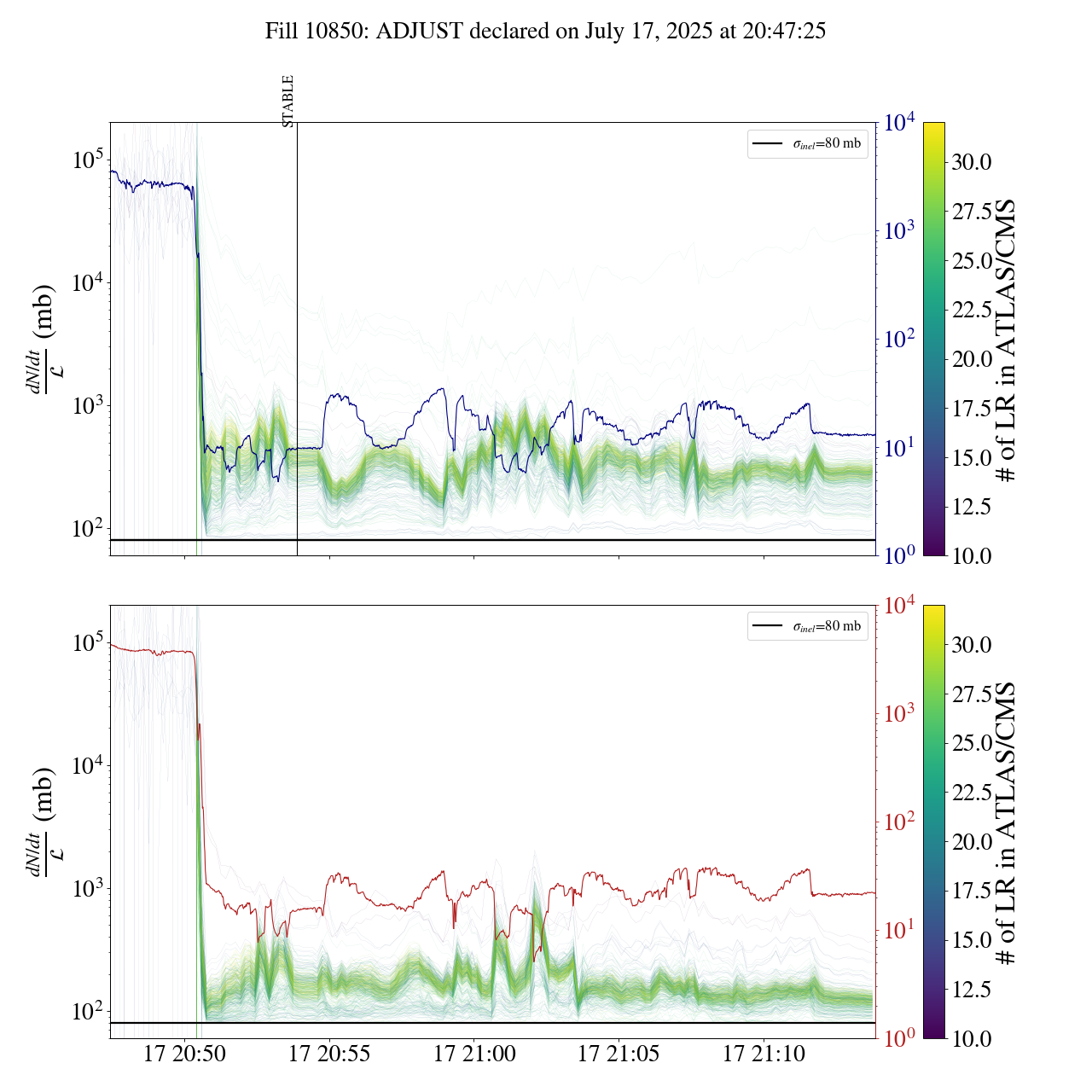

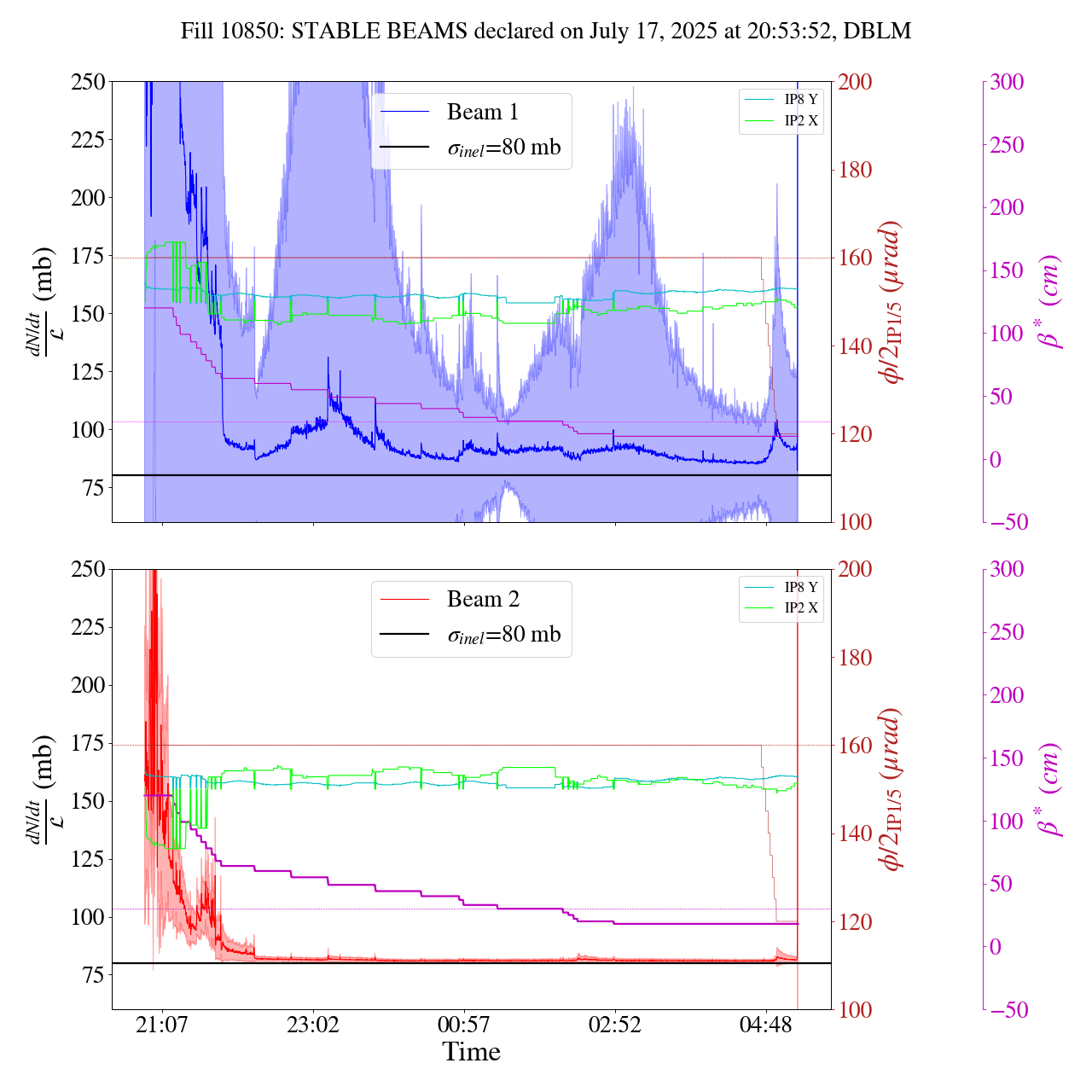

Cross-sections

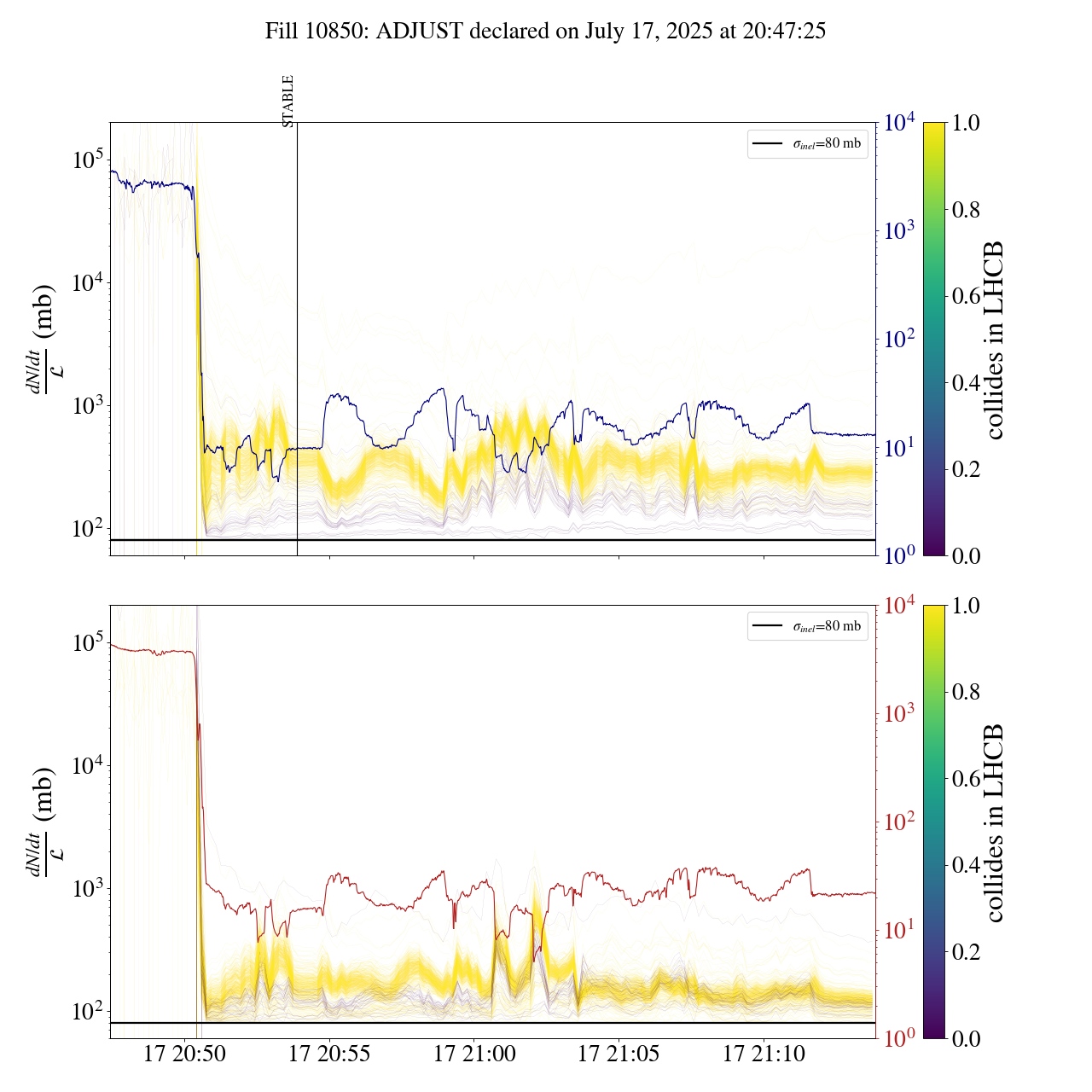

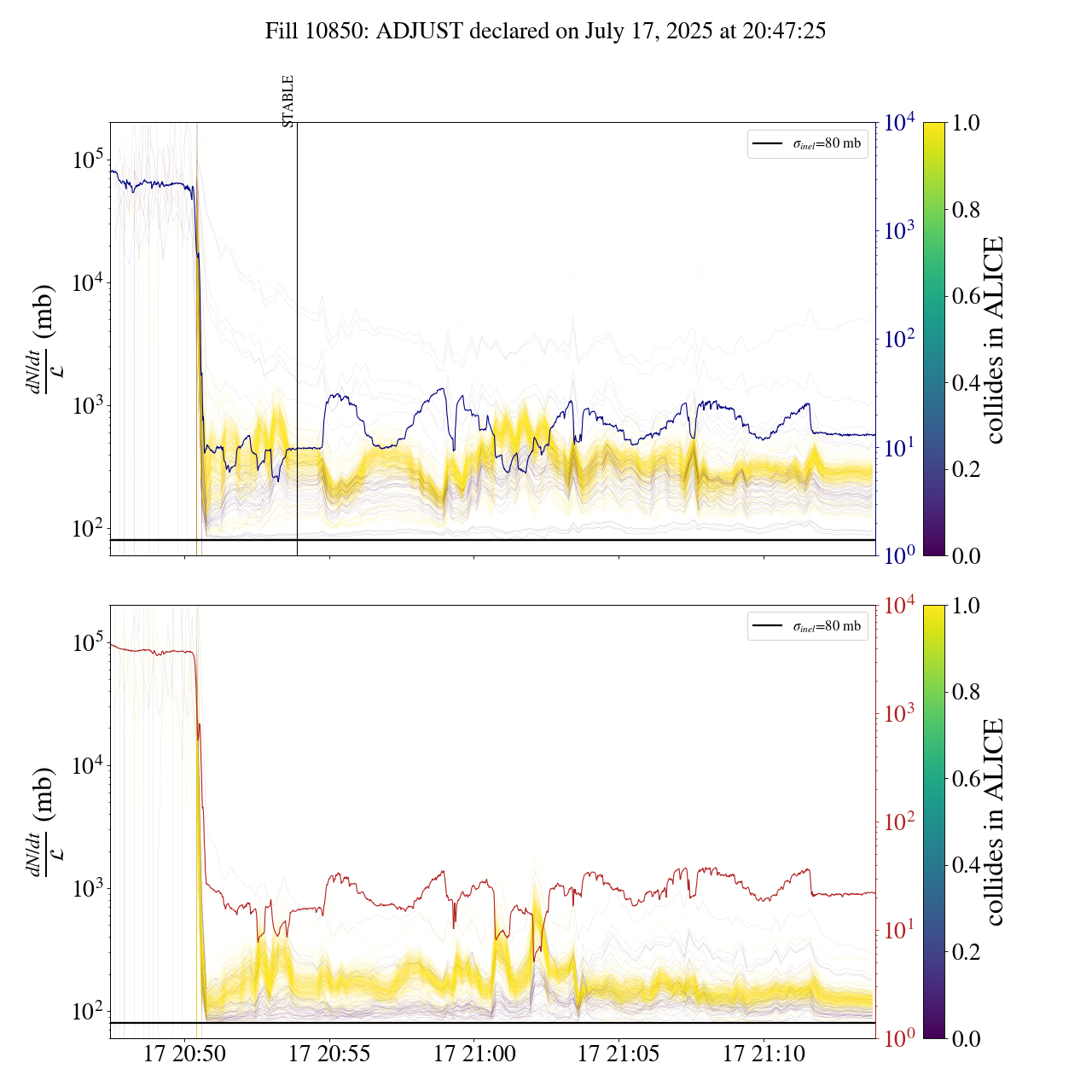

ADJUST

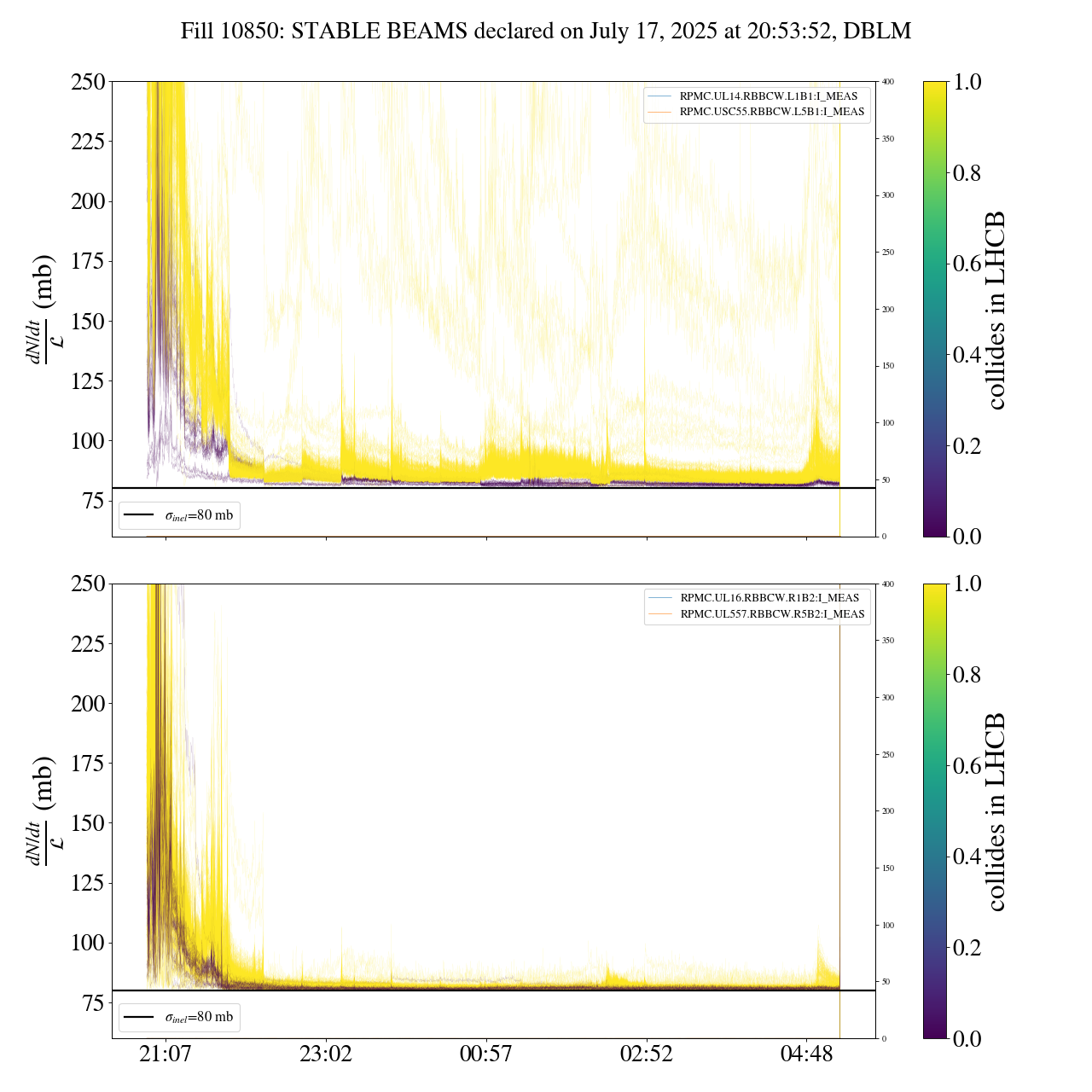

STABLE BEAM
MIM analysis
RAMP B1 H
RAMP B1 V
RAMP B2 H
RAMP B2 V
STABLE BEAM B1 H
STABLE BEAM B1 V
STABLE BEAM B2 H
STABLE BEAM B2 V
q-Gaussian profile analysis
B1 Horizontal
B1 Vertical
B2 Horizontal
B2 Vertical
