FILL 10956

Summary

start: August 18, 2025 02:23:42 AM UTC

end: August 18, 2025 09:50:14 AM UTC

duration: 0 days 07:26:31.905625

tags:

• PHYSICS

comments:

• Hydraulic hammer test during stable beams, the vibrations generated by the drilling did not have any effect on the beams

• Beam dumped, TCTPV.4R2.B2 triggered an interlock

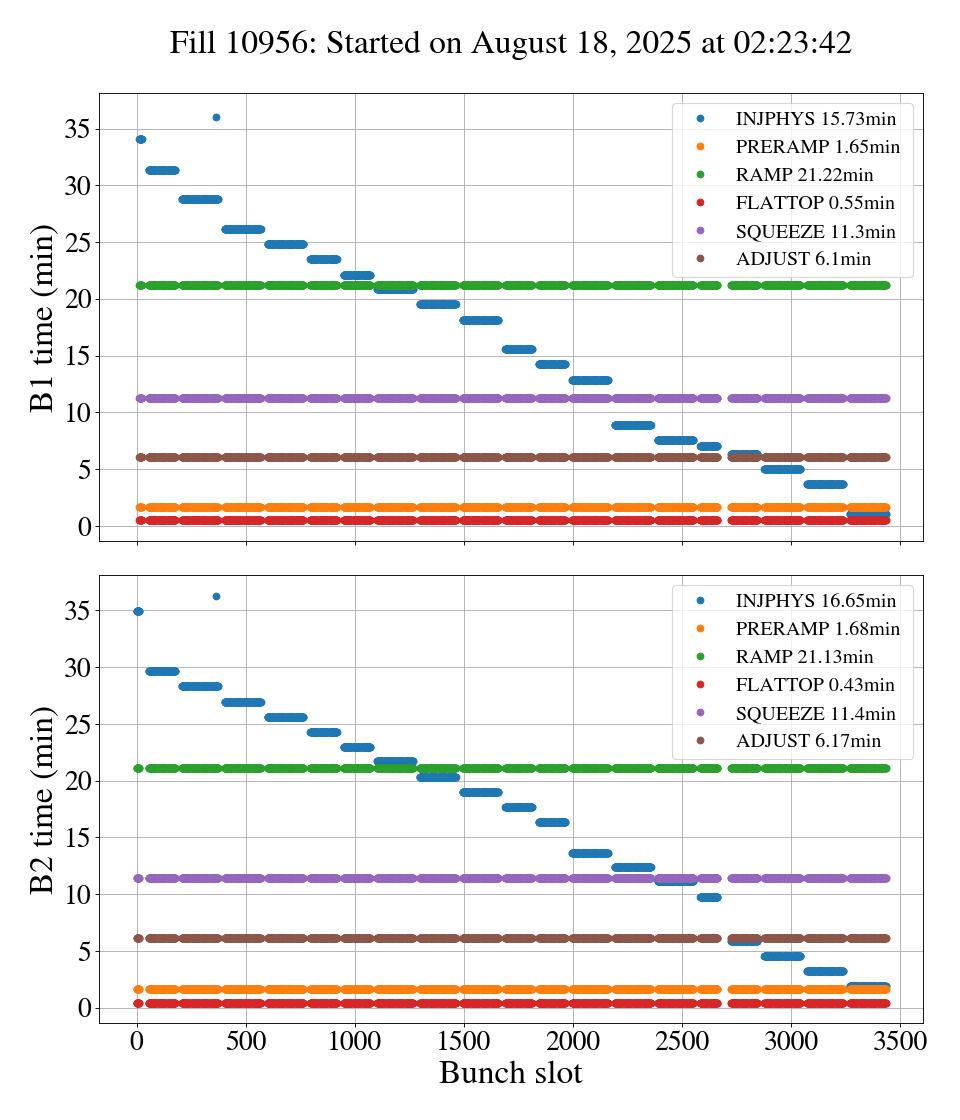

Cycle duration

Beta-functions at the IPs

Crossing angles

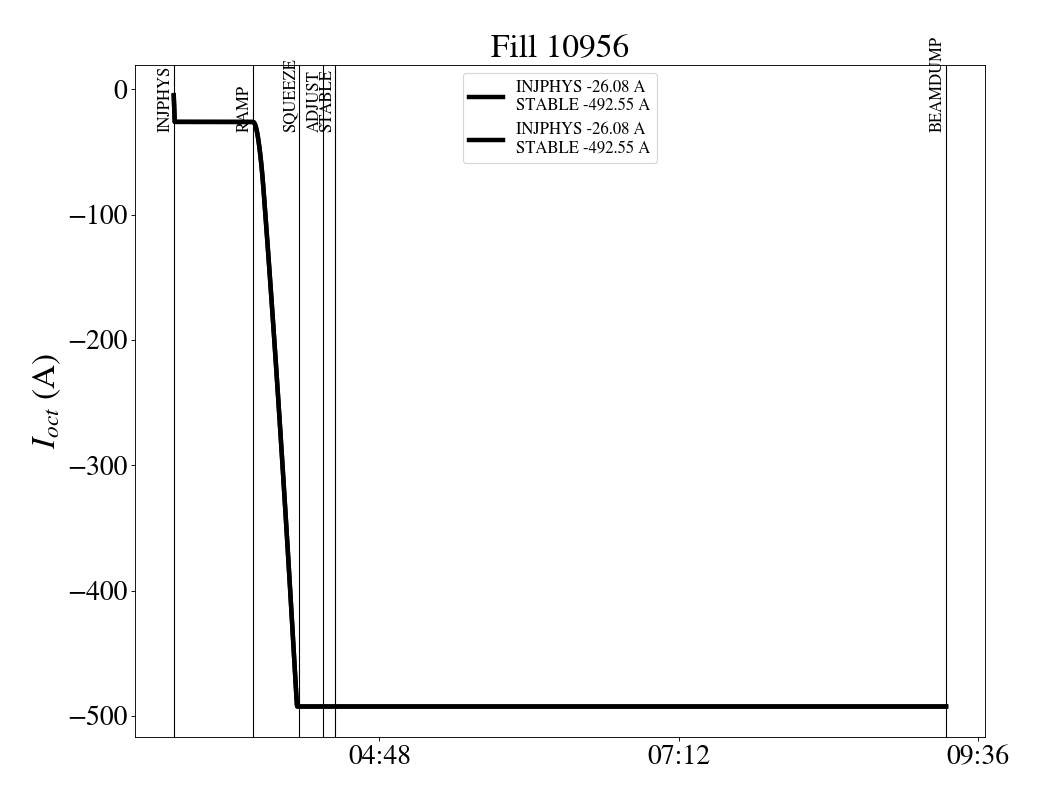

Octupoles

Trims

Tune trims

Chromaticity Trims

Intensity

Cycle intensity

BBB SB intensity

Violin BBB intensity

SB bunch intensity

Bunch Length

Bunch Length Fill

Emittance

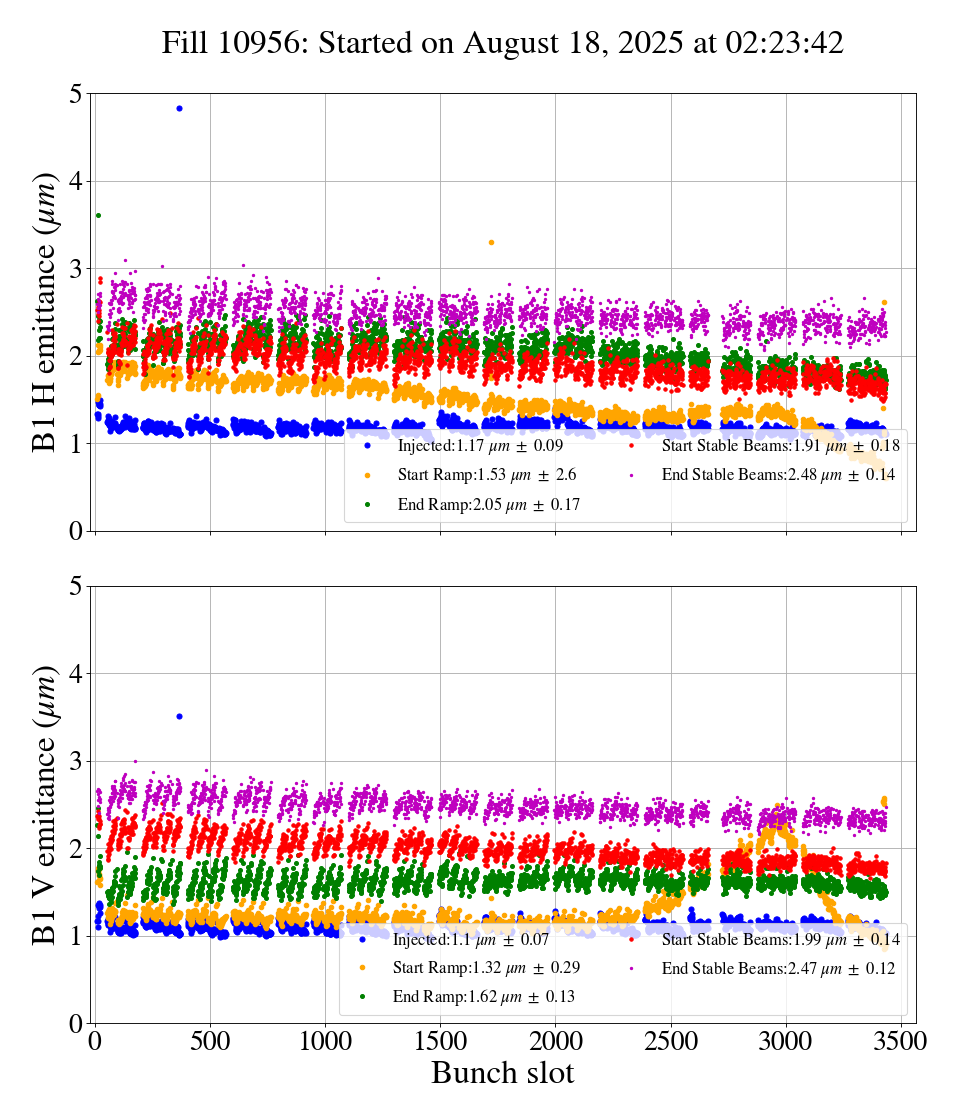

B1 along the cycle

B2 along the cycle

Emittance growth at injection

Summary violin plot

BBB in SB for B1

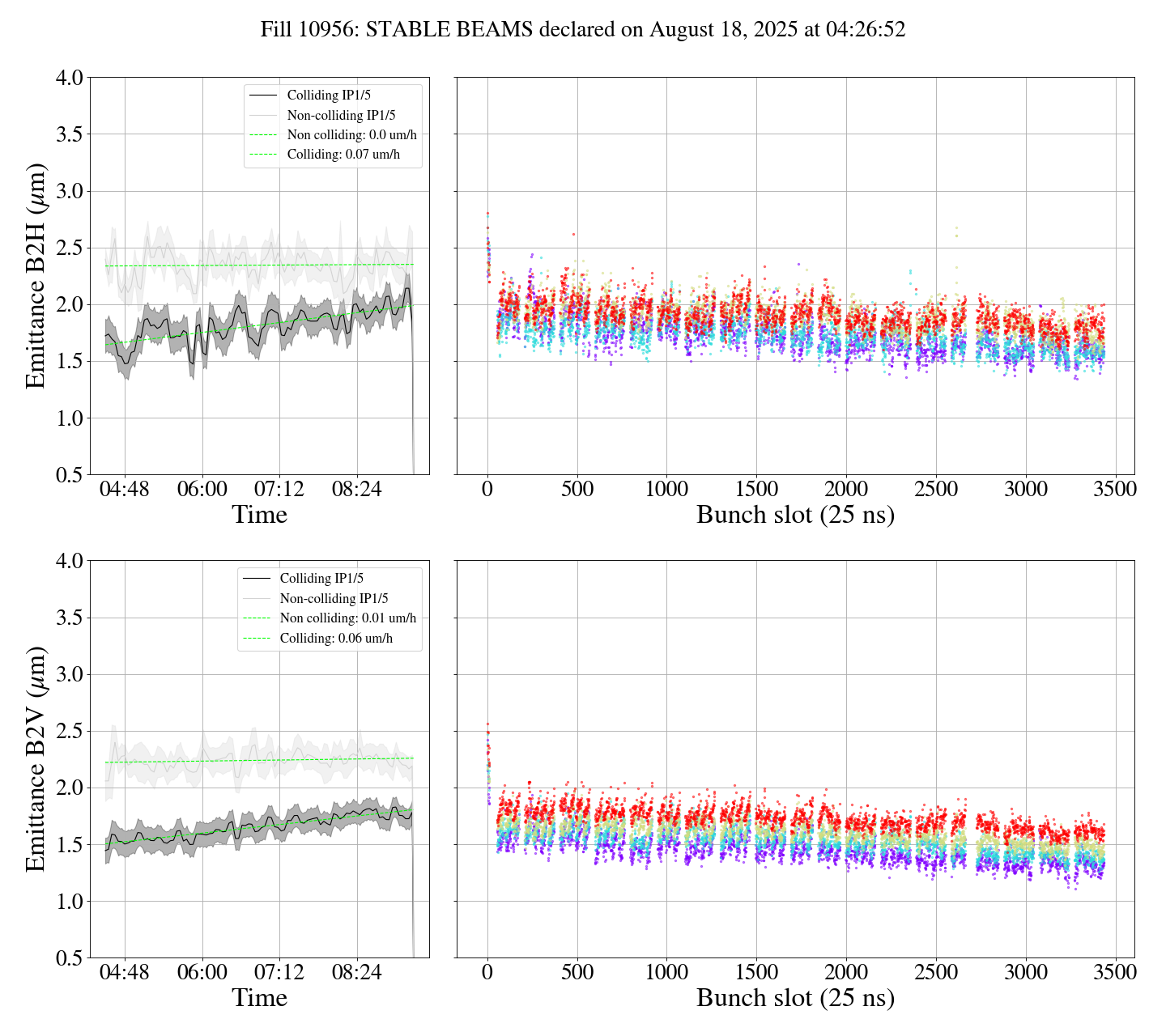

BBB in SB for B2

Bunch brightness

Beam properties summary

Luminosity

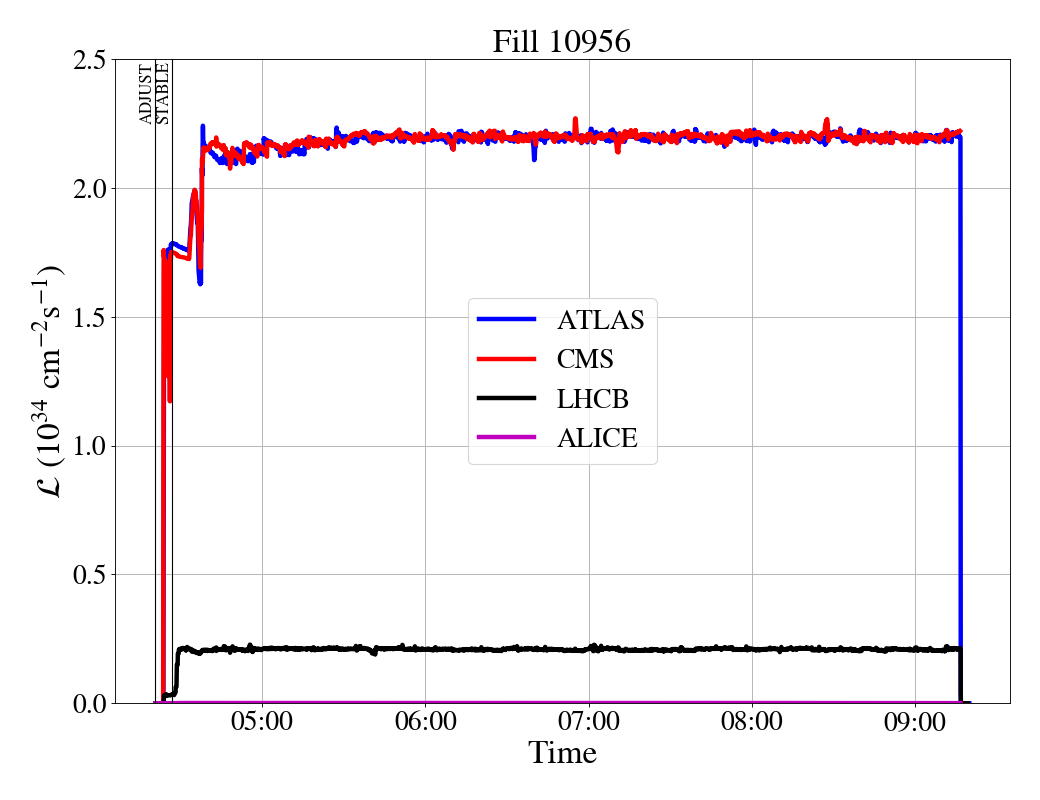

Overview

Luminous Regions

BBB luminosity in SB

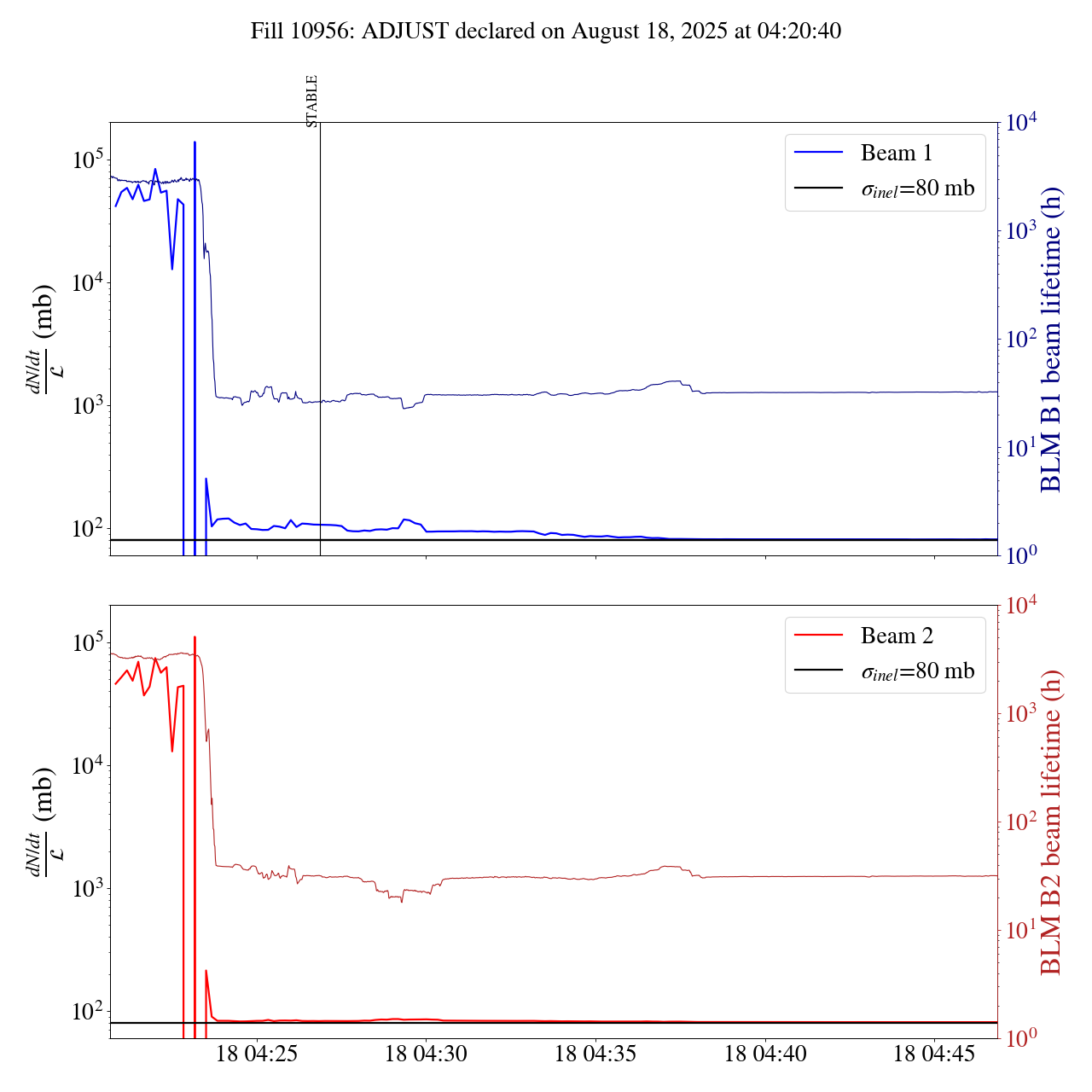

Cross-sections

ADJUST

STABLE BEAM

MIM analysis

RAMP B1 H

RAMP B1 V

RAMP B2 H

RAMP B2 V

STABLE BEAM B1 H

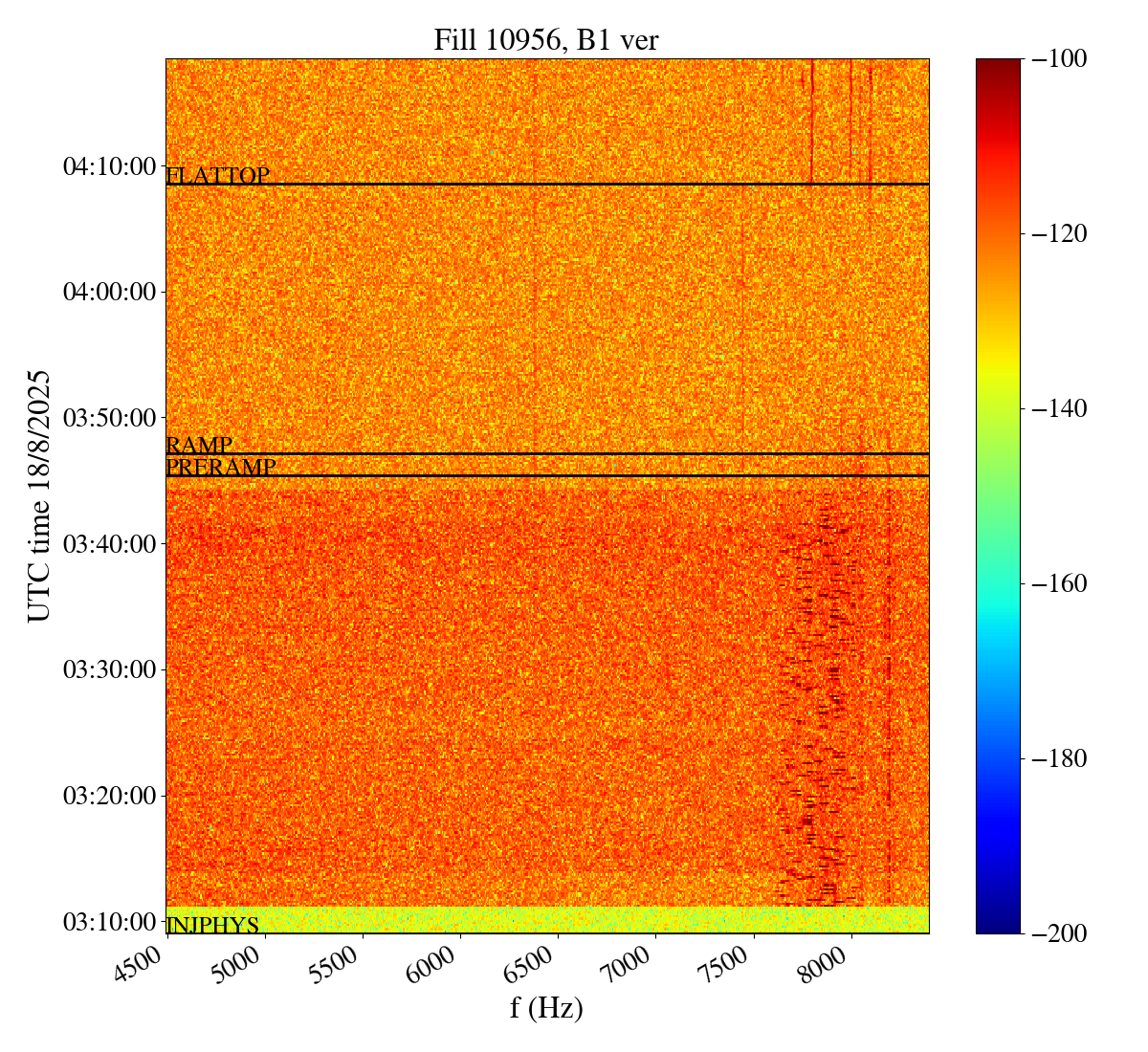

STABLE BEAM B1 V

STABLE BEAM B2 H

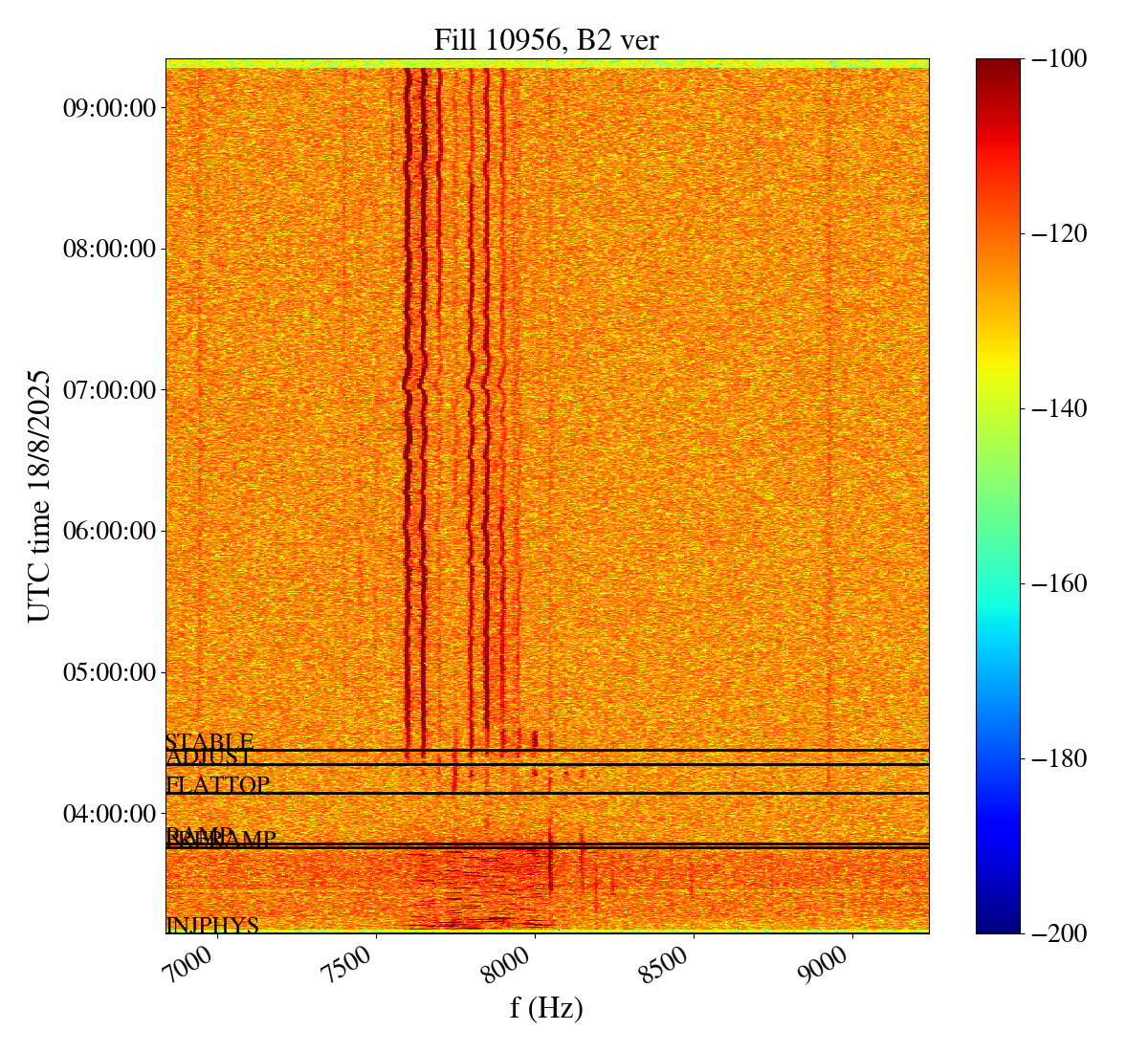

STABLE BEAM B2 V

q-Gaussian profile analysis

B1 Horizontal

B1 Vertical

B2 Horizontal

B2 Vertical
