FILL 11164
Summary
start: October 08, 2025 01:09:25 PM UTC
end: October 08, 2025 03:37:09 PM UTC
duration: 0 days 02:27:44.069625
tags:
- MD
comments:
-
MD16003 Collisions of 8b4e trains with HL bunch intensity
-
SIS bunch length inerlock increased for 8b4e
-
572 bunches, 2x56 8b4e up to collisions
-
RF voltage 8MV, 2% BLM thresholds reached at start of ramp
-
1.6um emittances at start of injection
-
reached pileup of 132 (virtual pileup set to 150)
-
dumped due to vacuum spike in TCLD.11R2

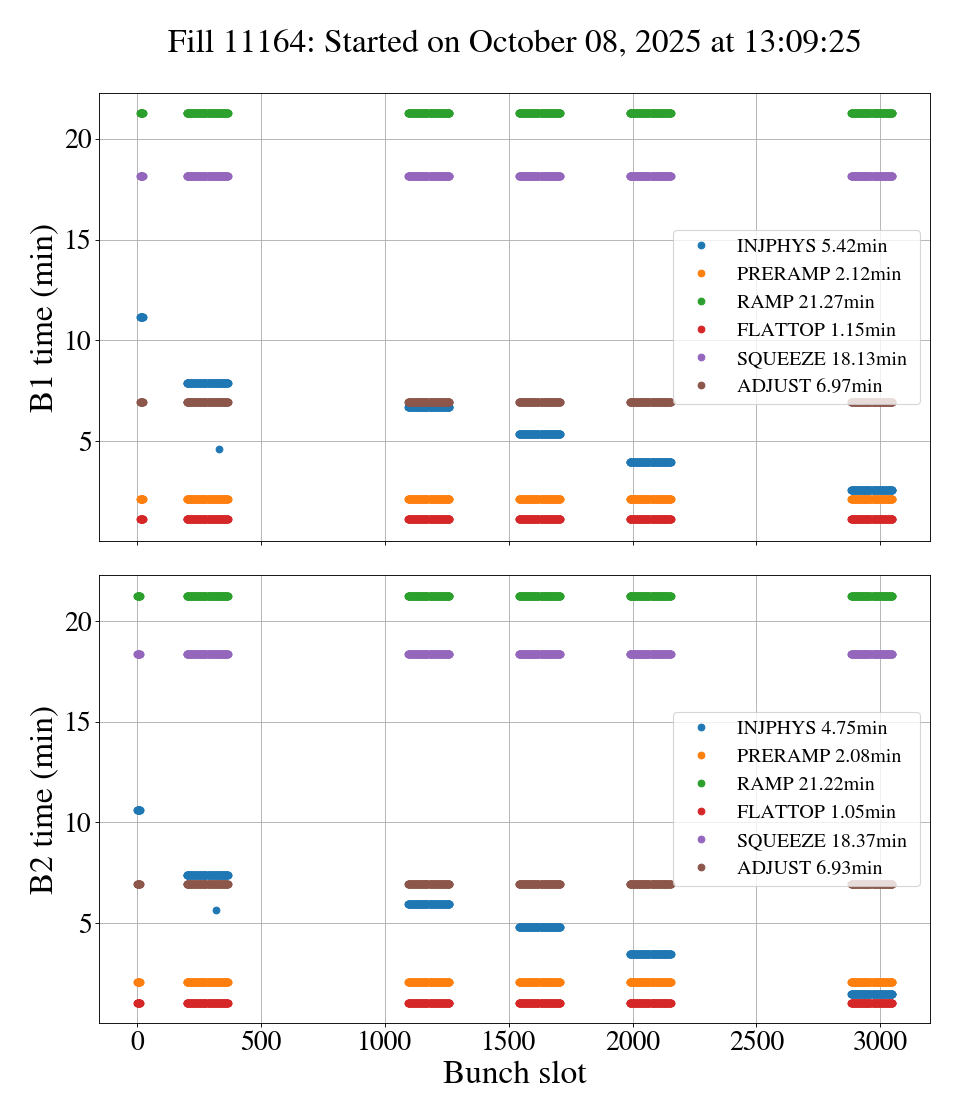

Cycle duration
Beta-functions at the IPs

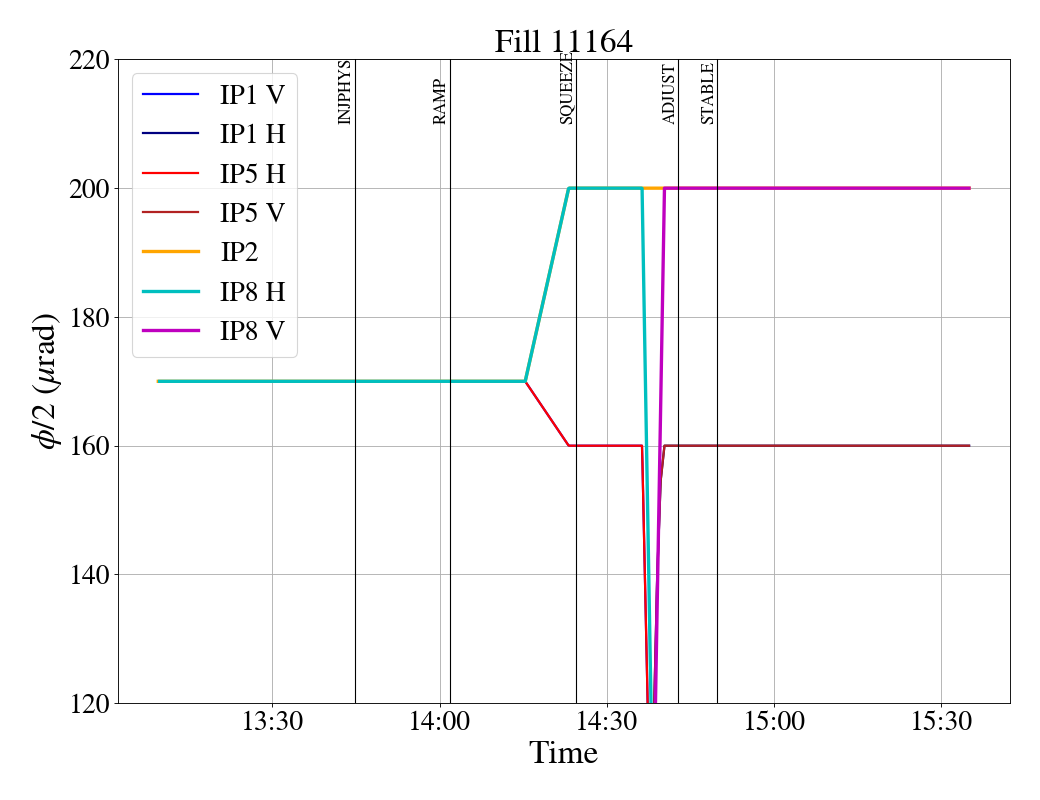

Crossing angles

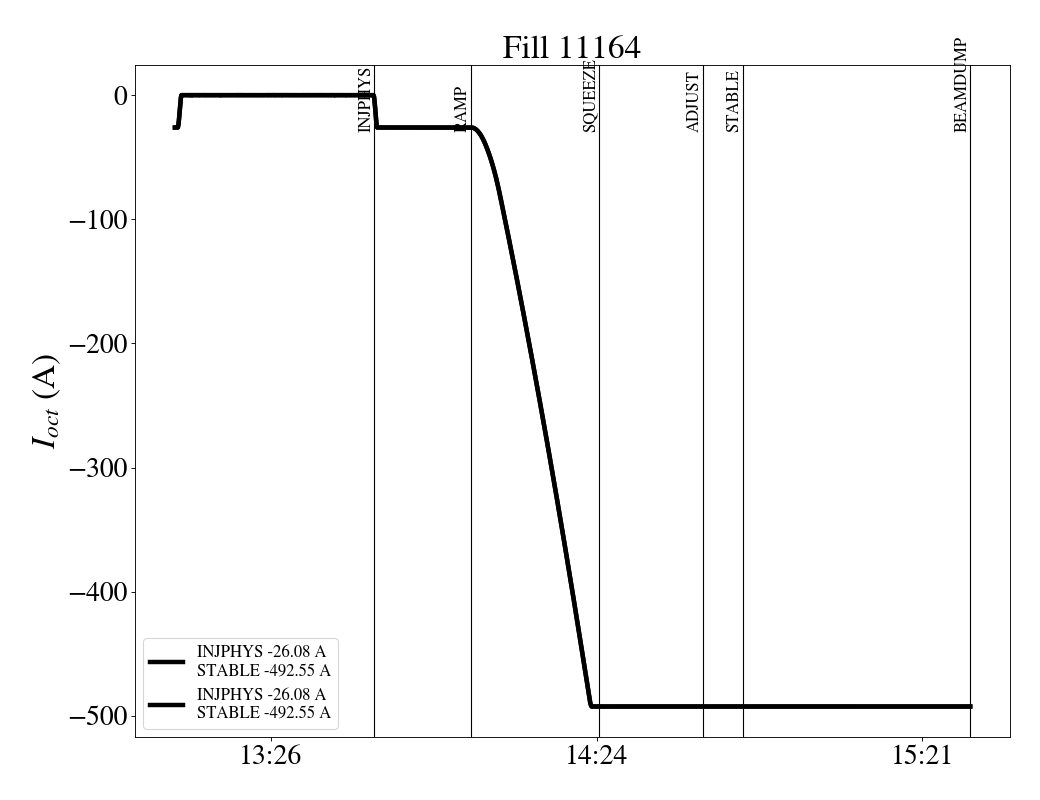

Octupoles
Trims

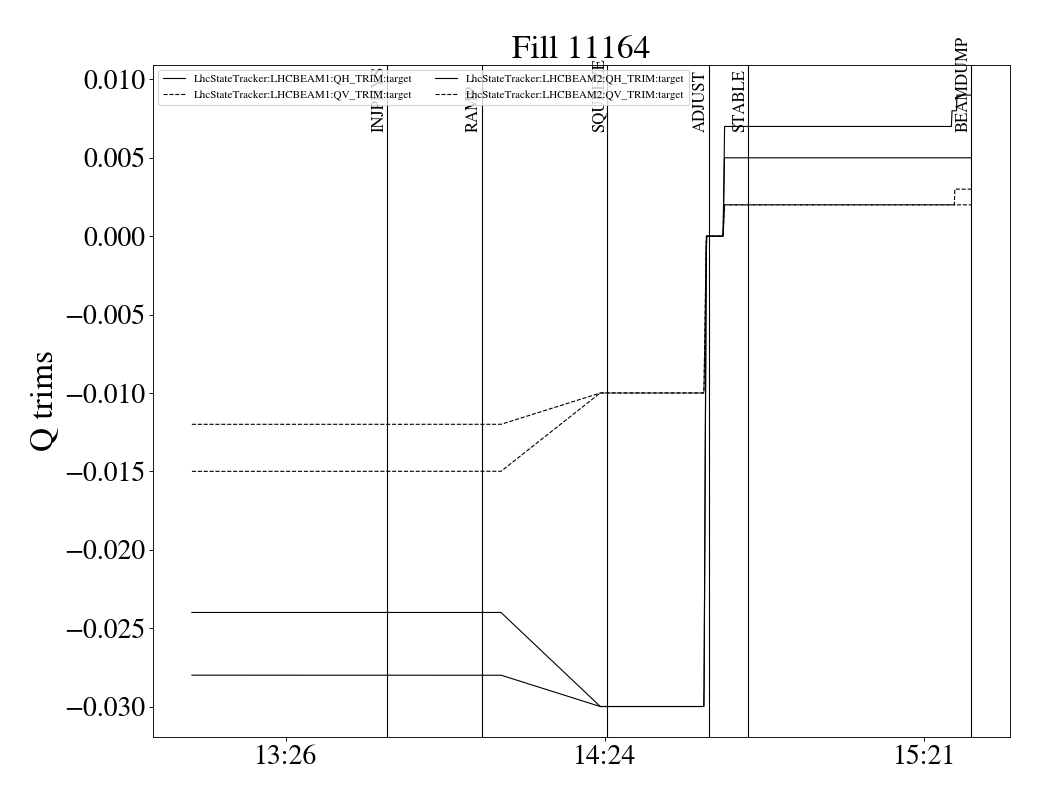

Tune trims

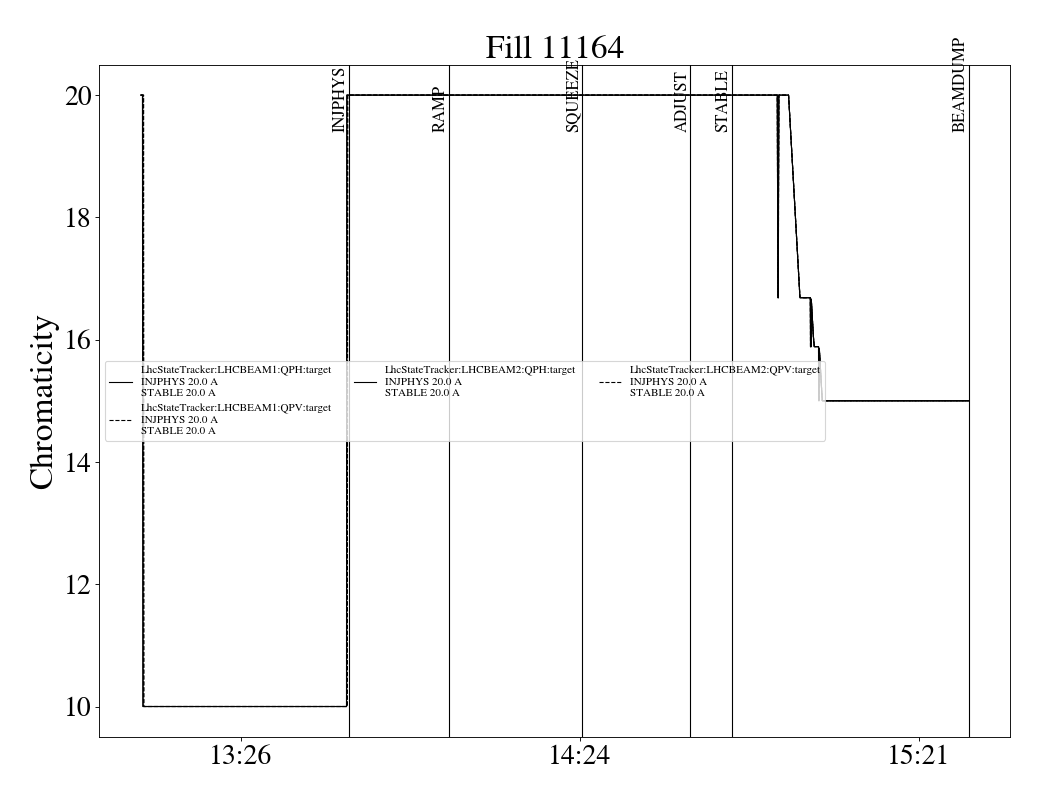

Chromaticity Trims
Intensity

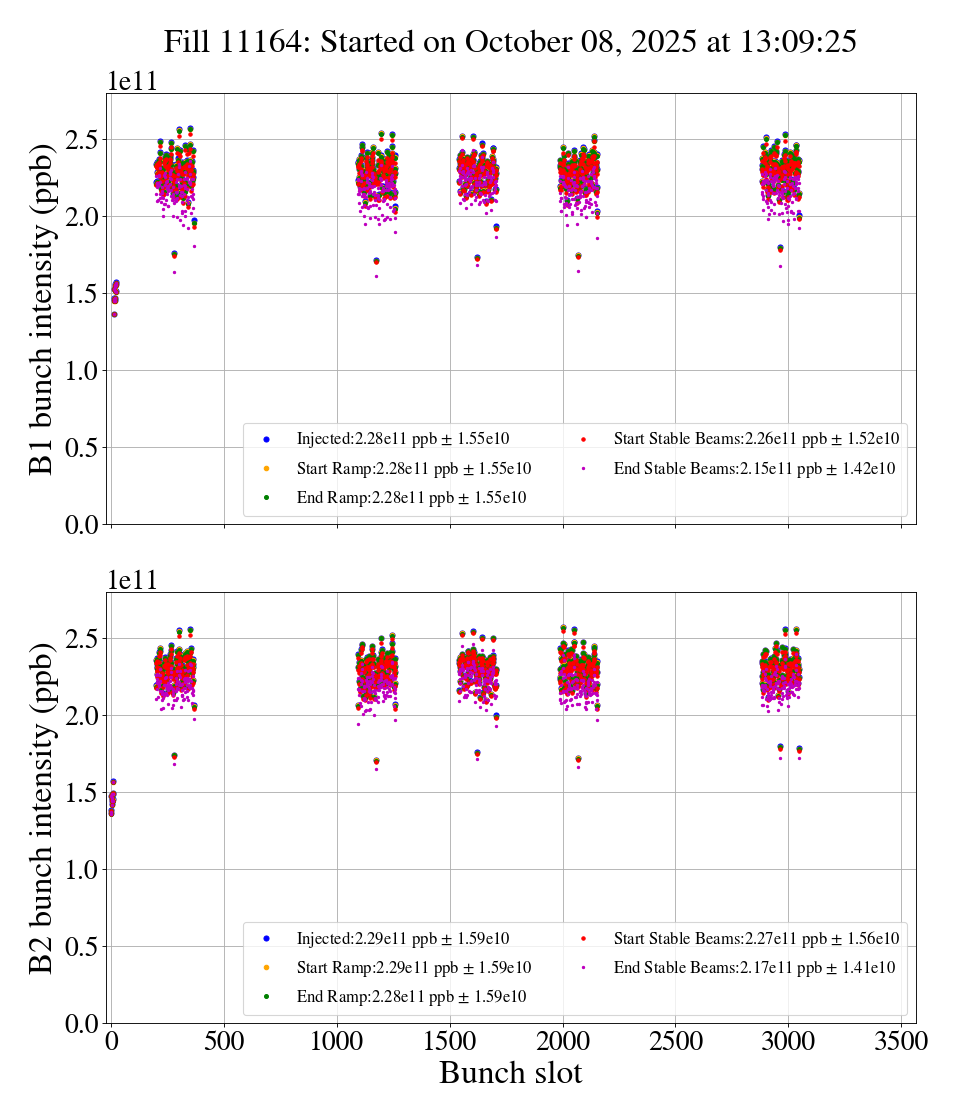

Cycle intensity

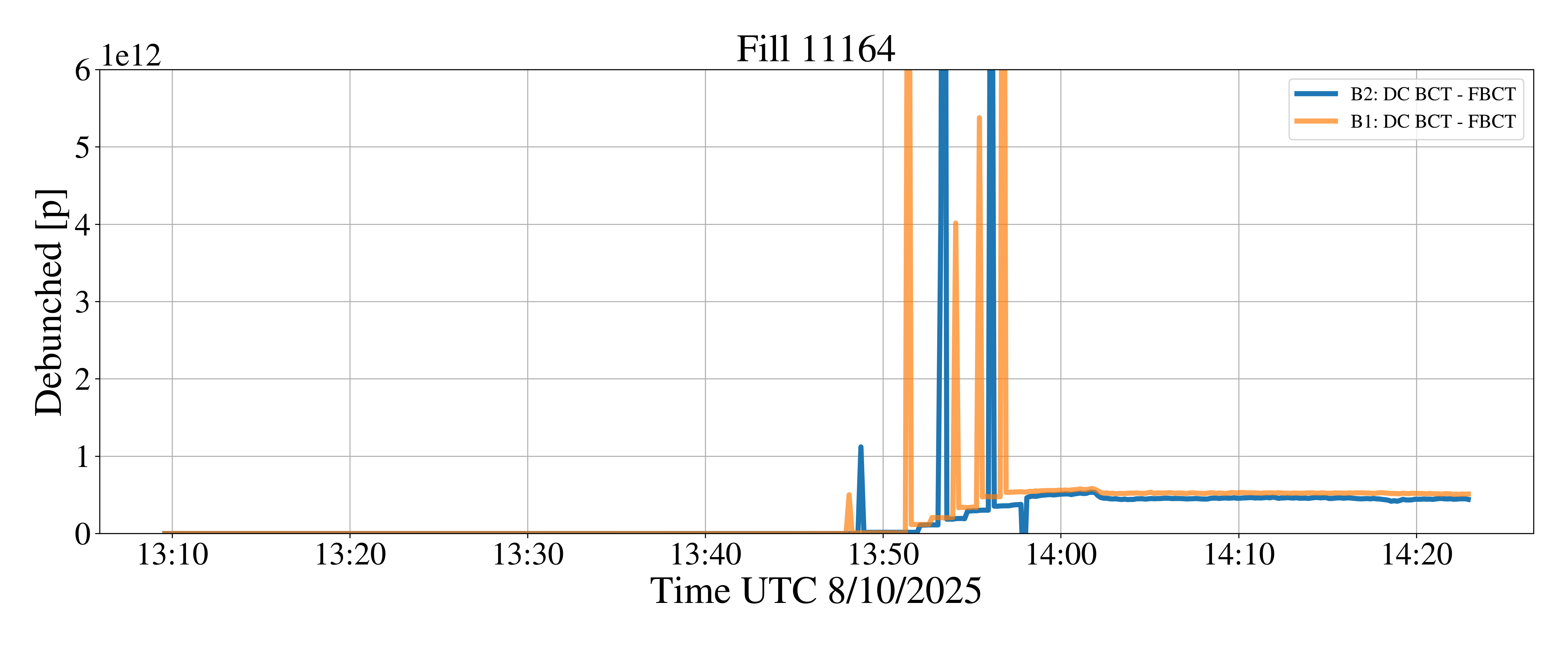

Debunched beam
BBB SB intensity

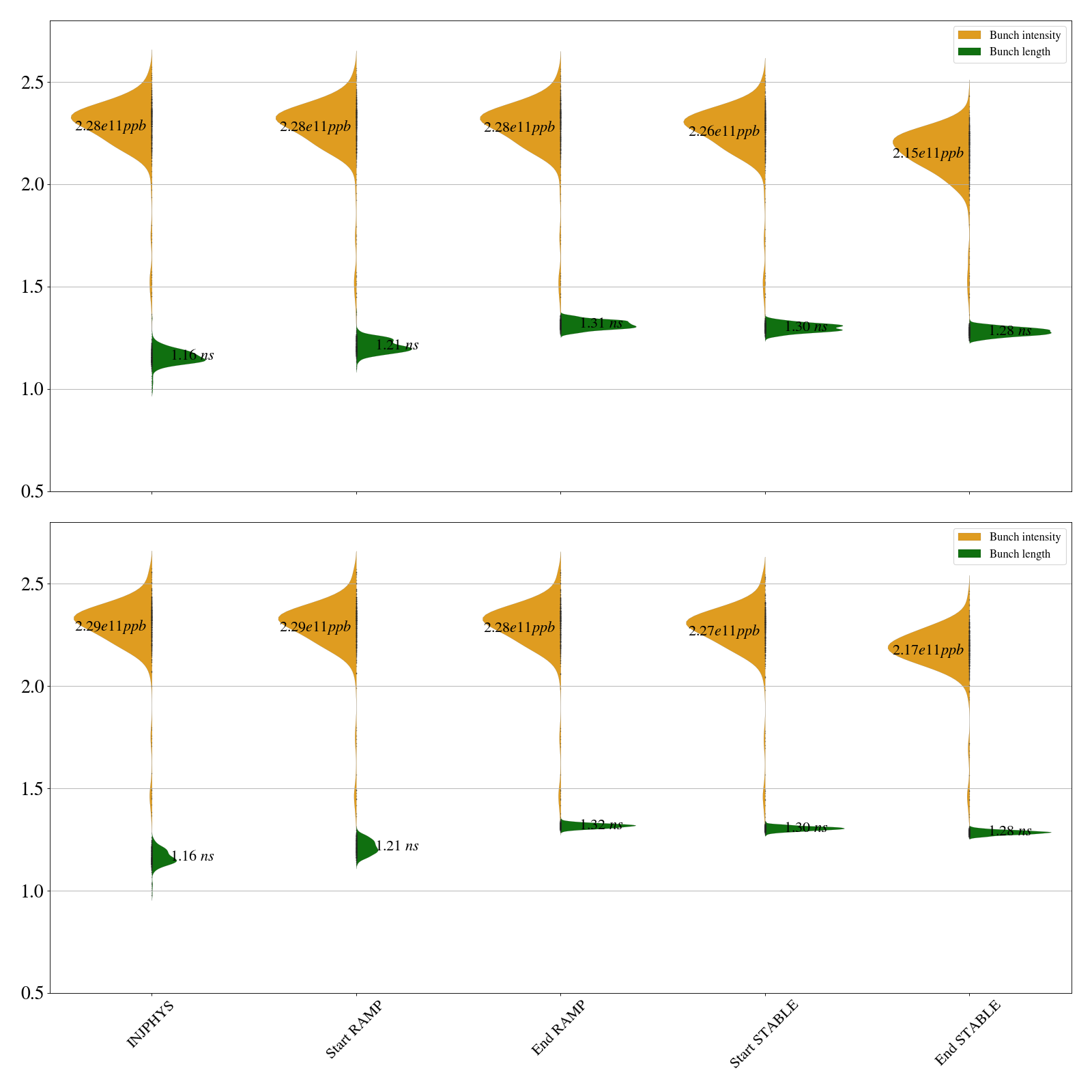

Violin BBB intensity
SB bunch intensity
Bunch Length

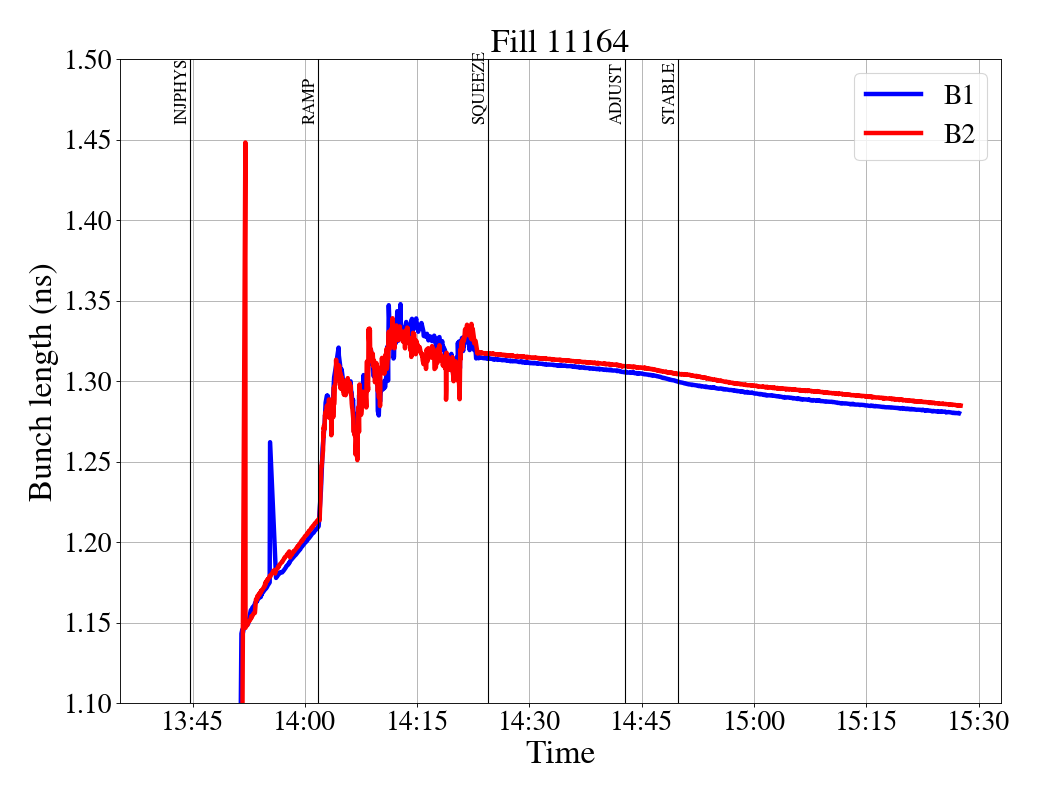

Bunch Length Fill
Emittance

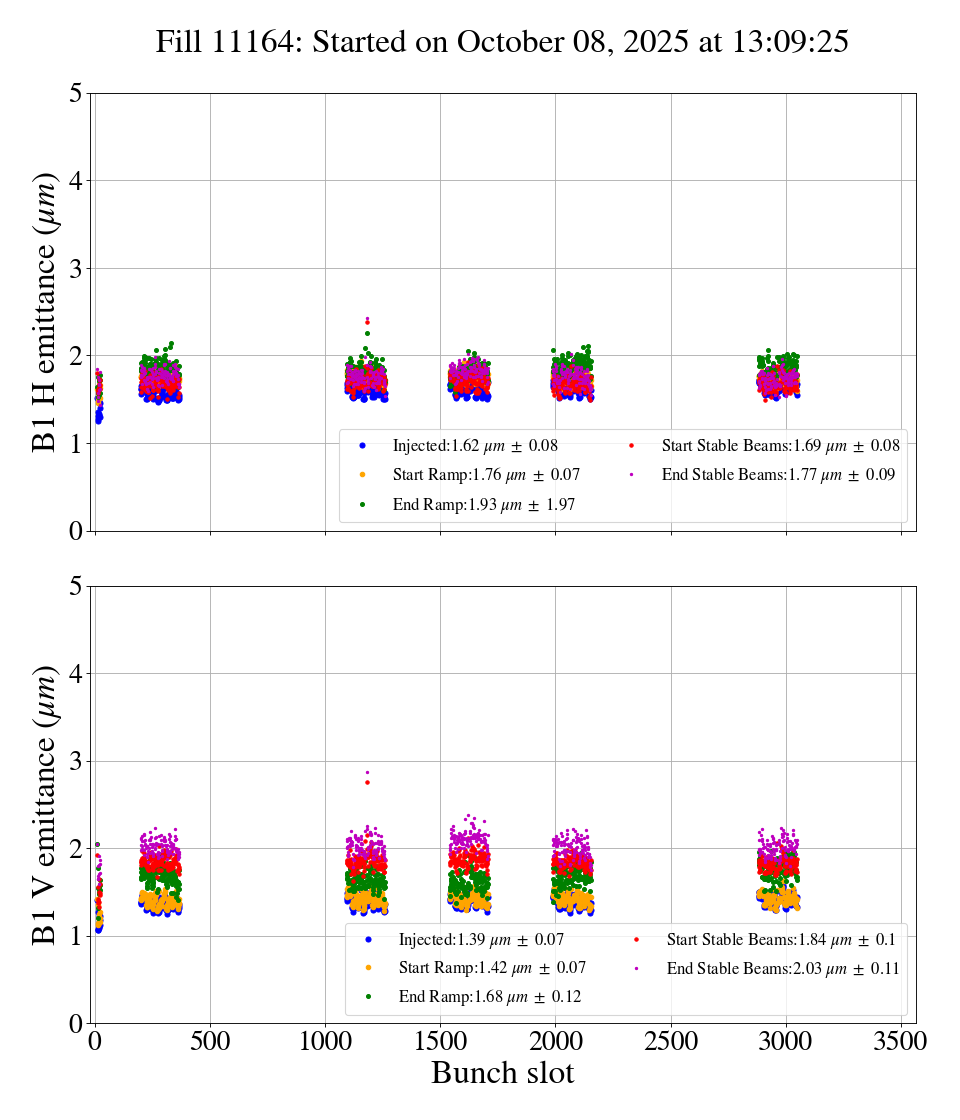

B1 along the cycle

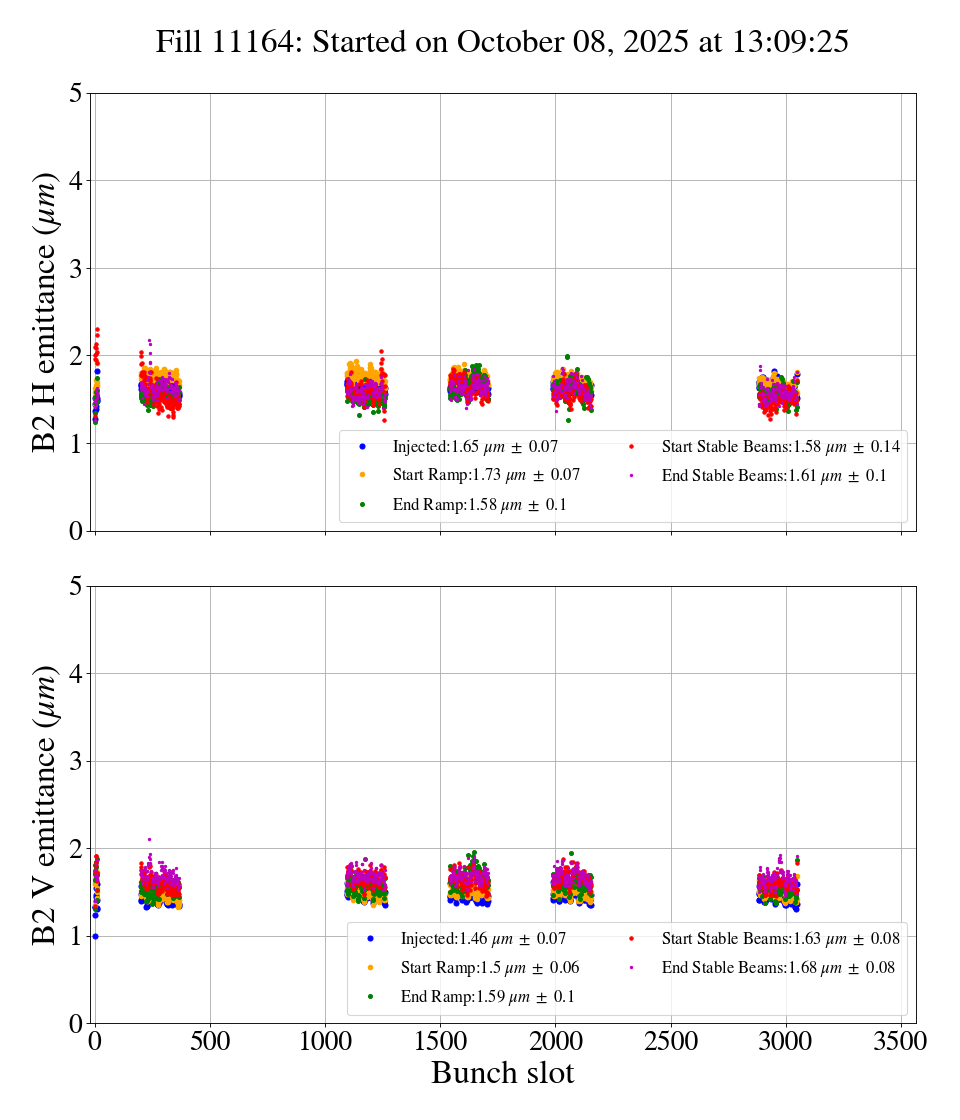

B2 along the cycle
Summary violin plot

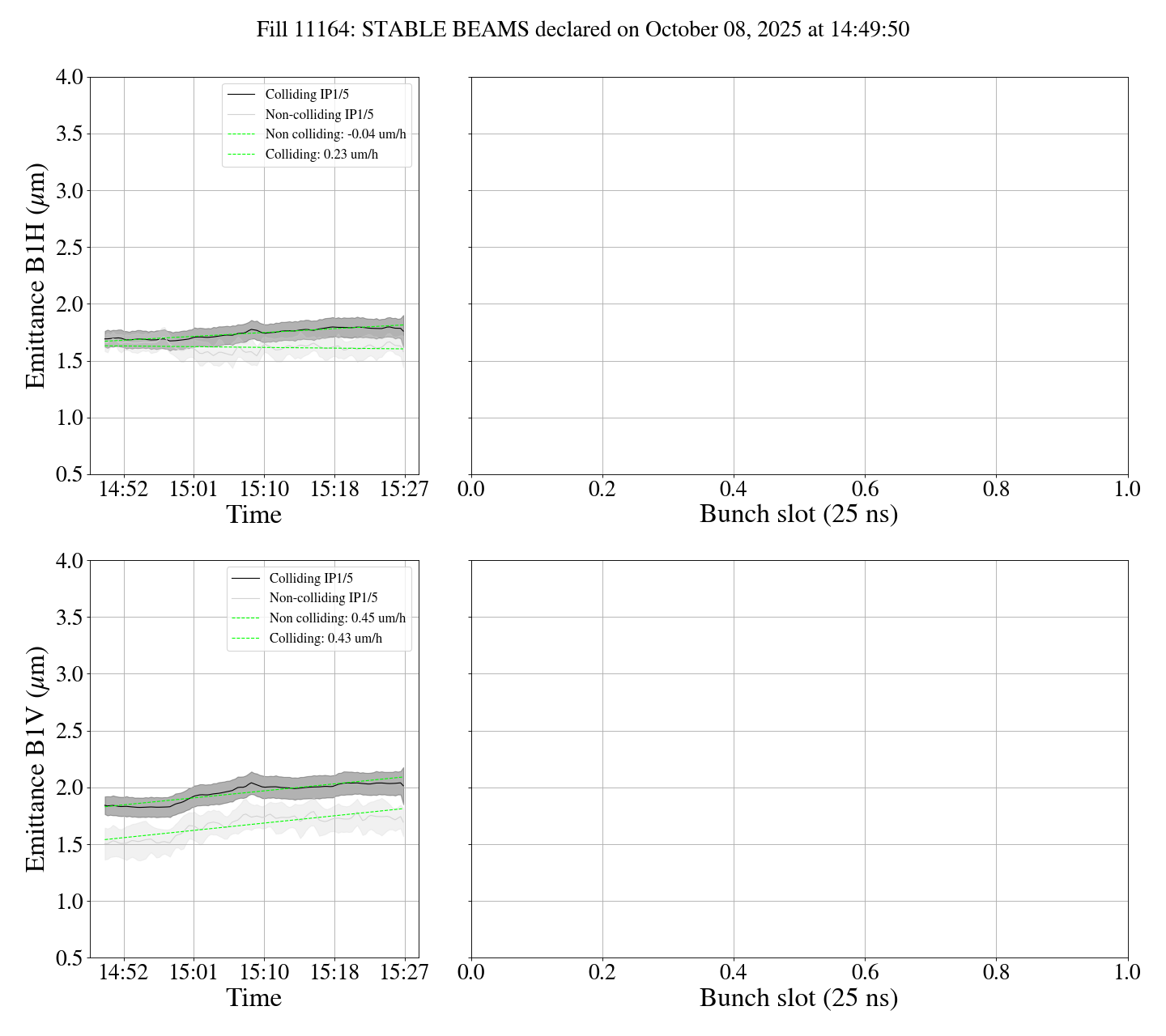

BBB in SB for B1
BBB in SB for B2
Bunch brightness

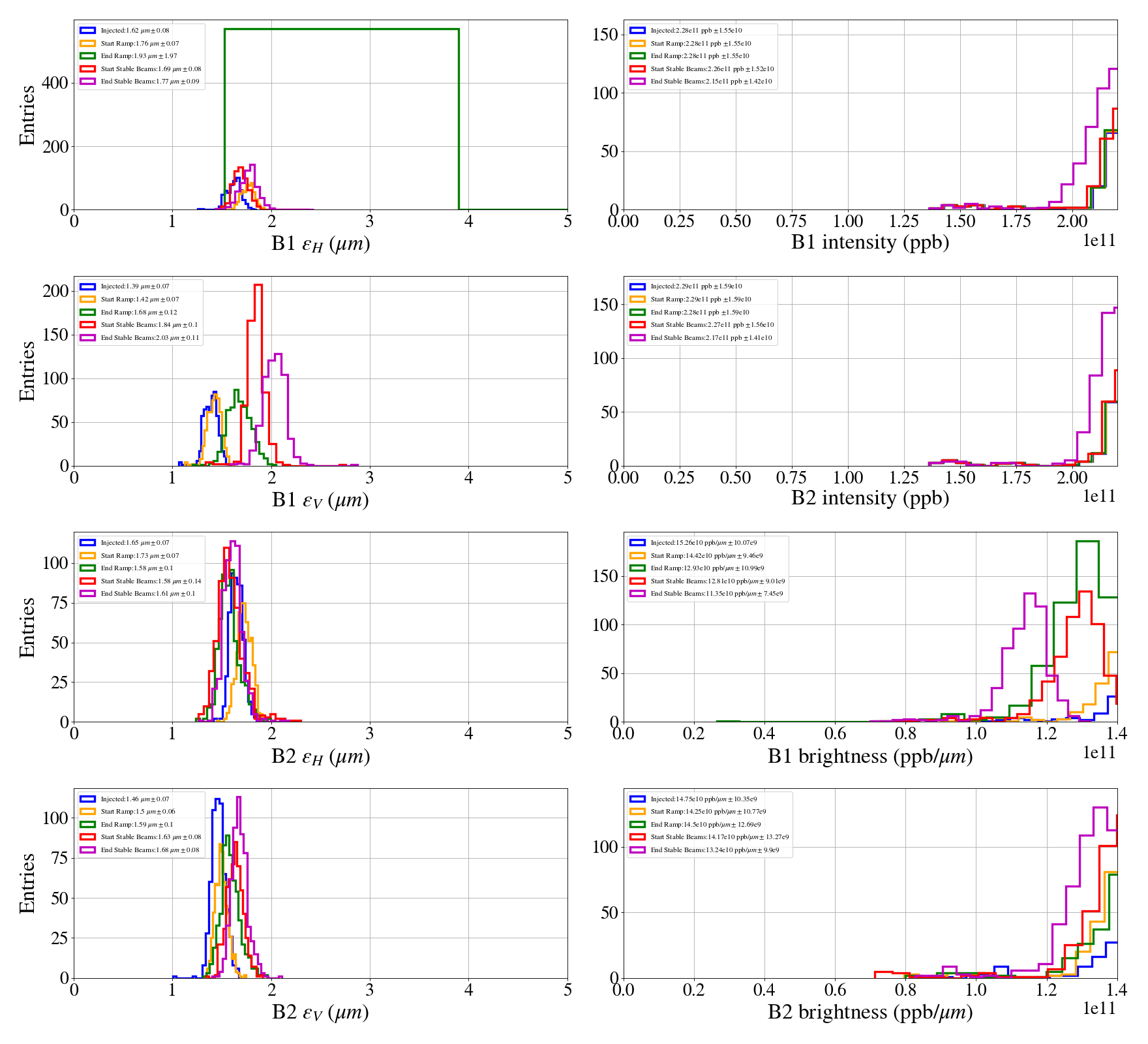

Beam properties summary
Luminosity

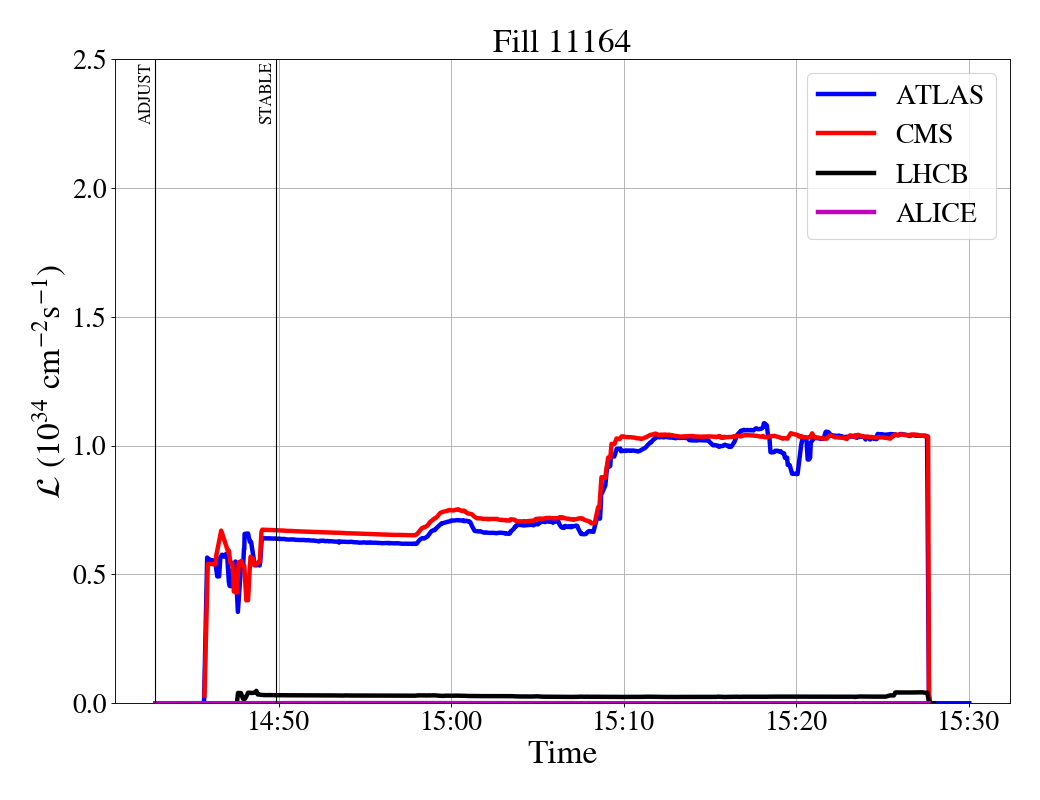

Overview
Luminous Regions

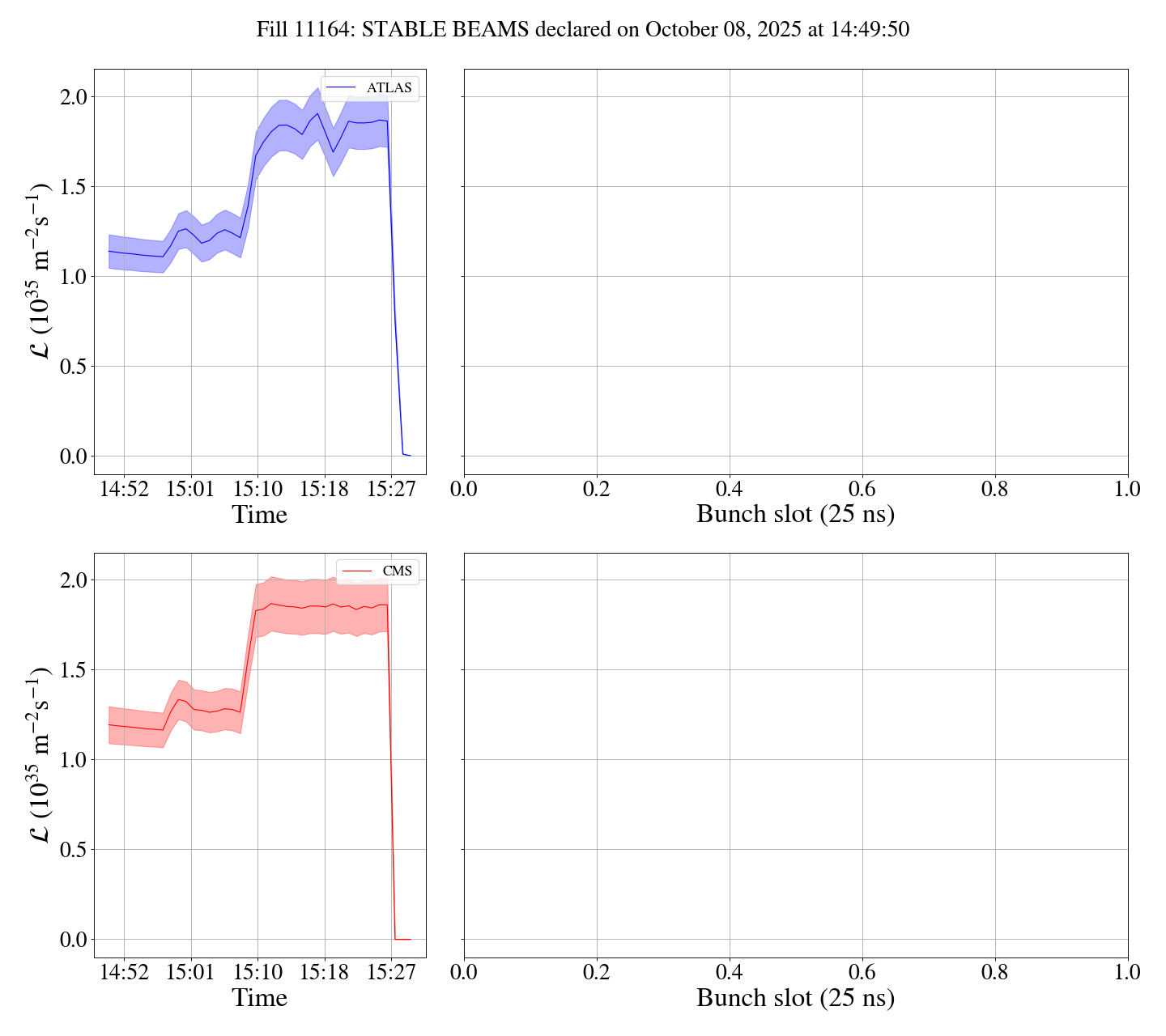

BBB luminosity in SB
Cross-sections

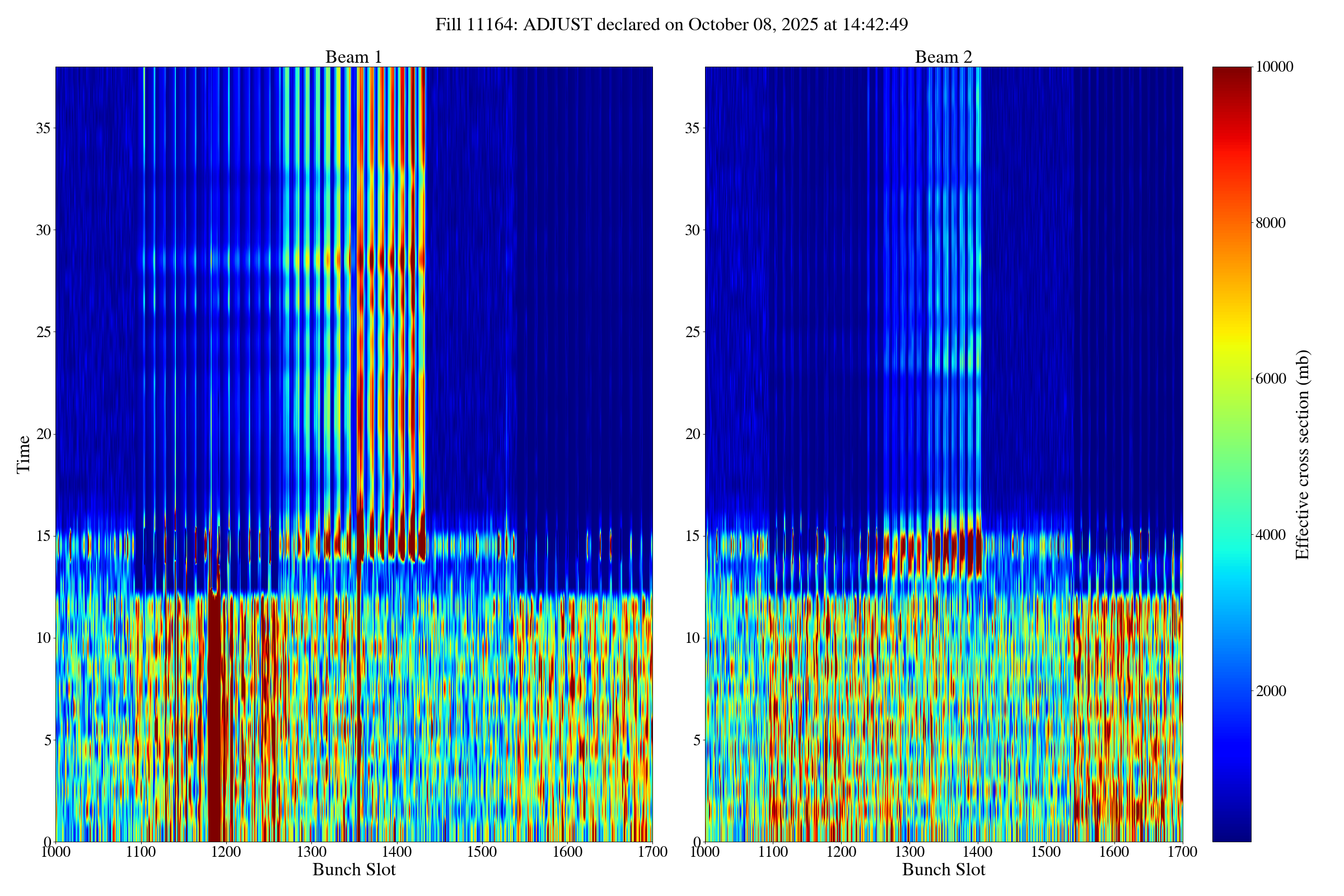

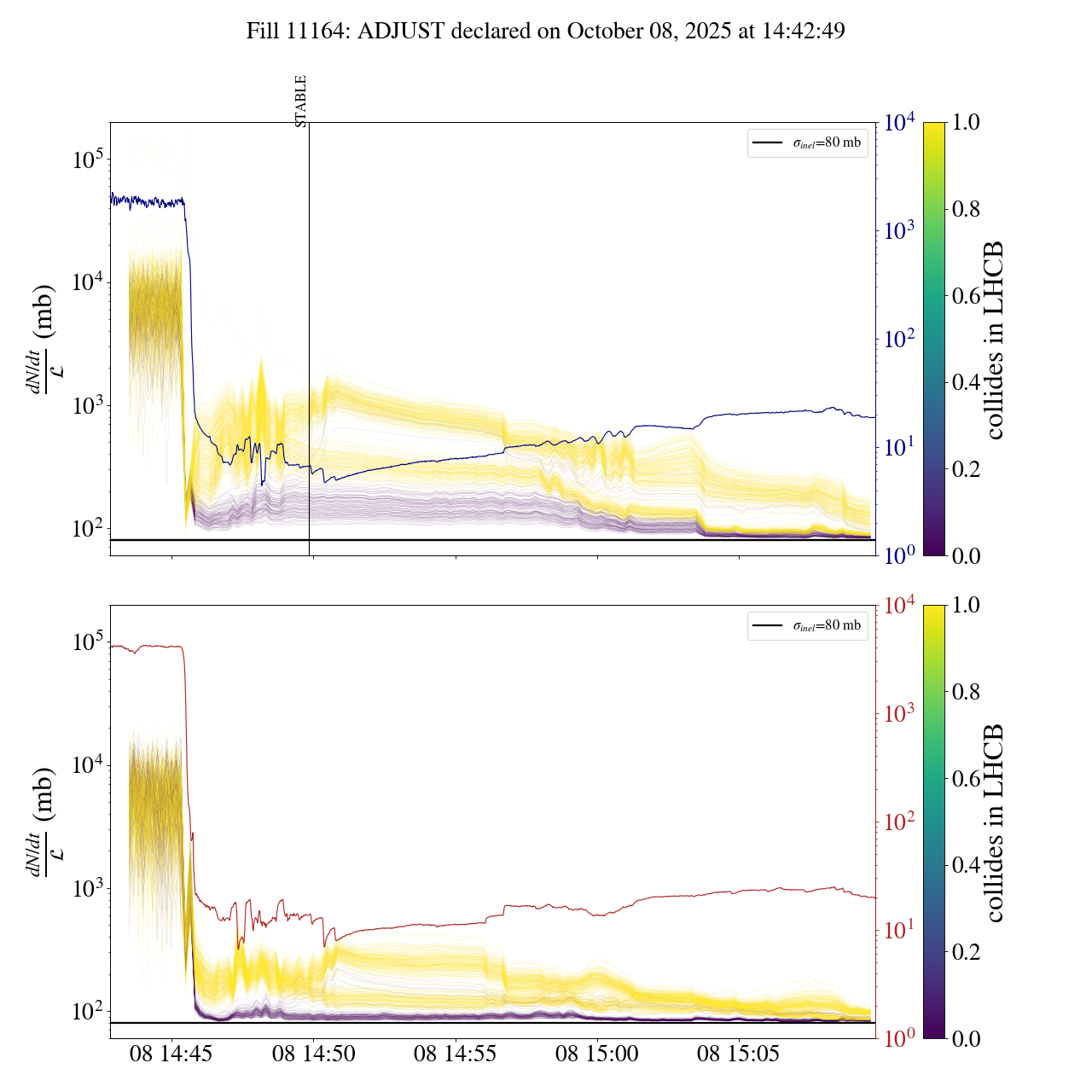

ADJUST

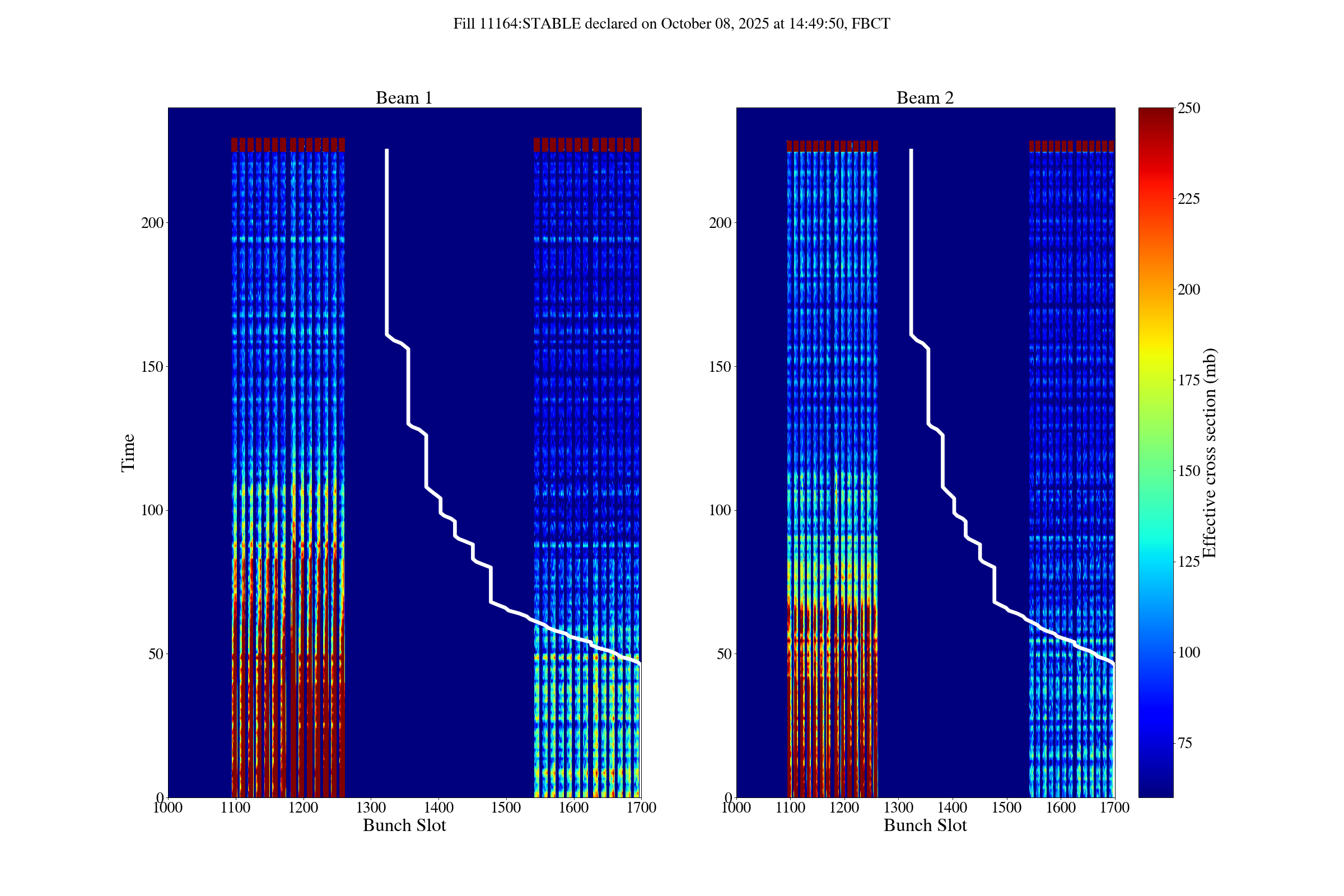

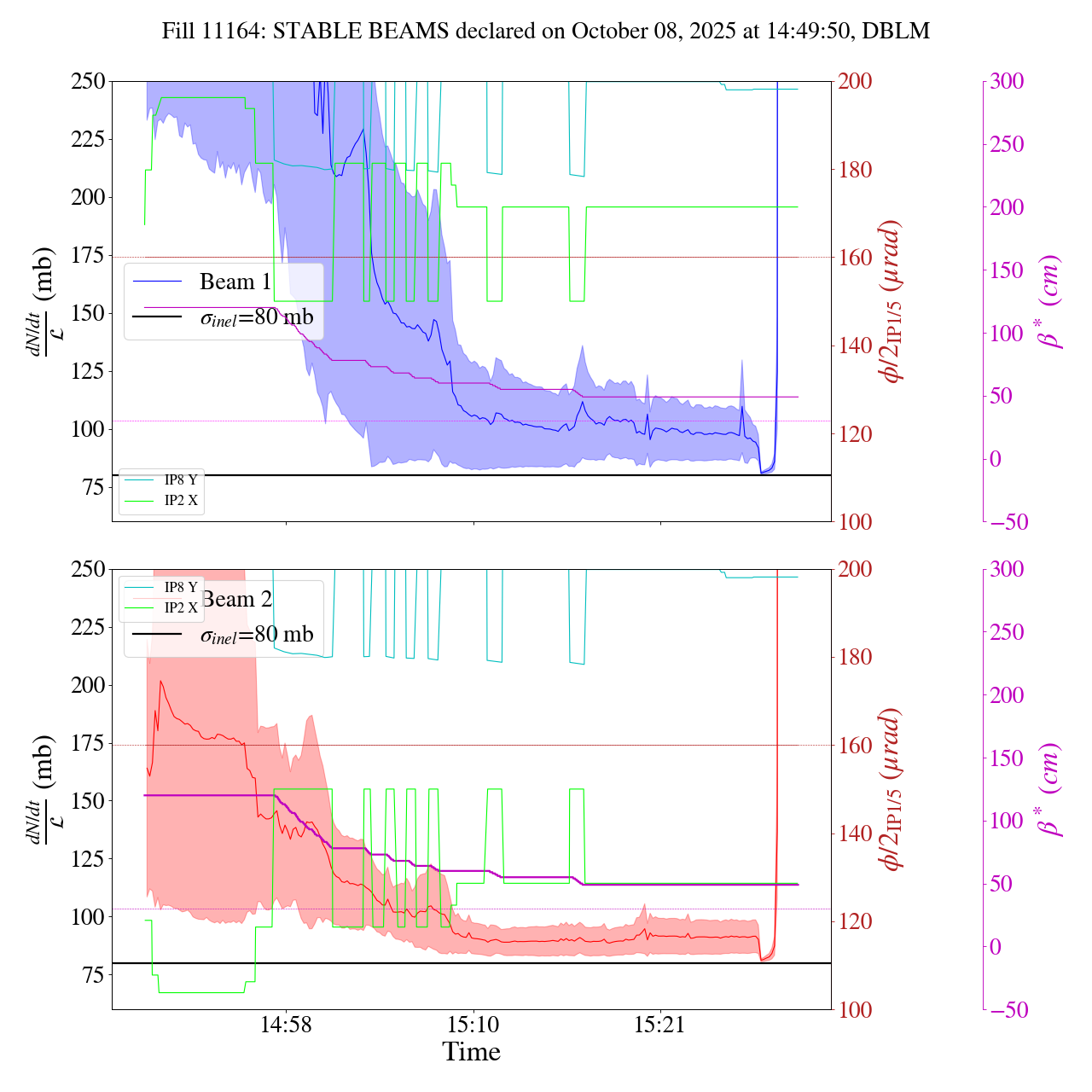

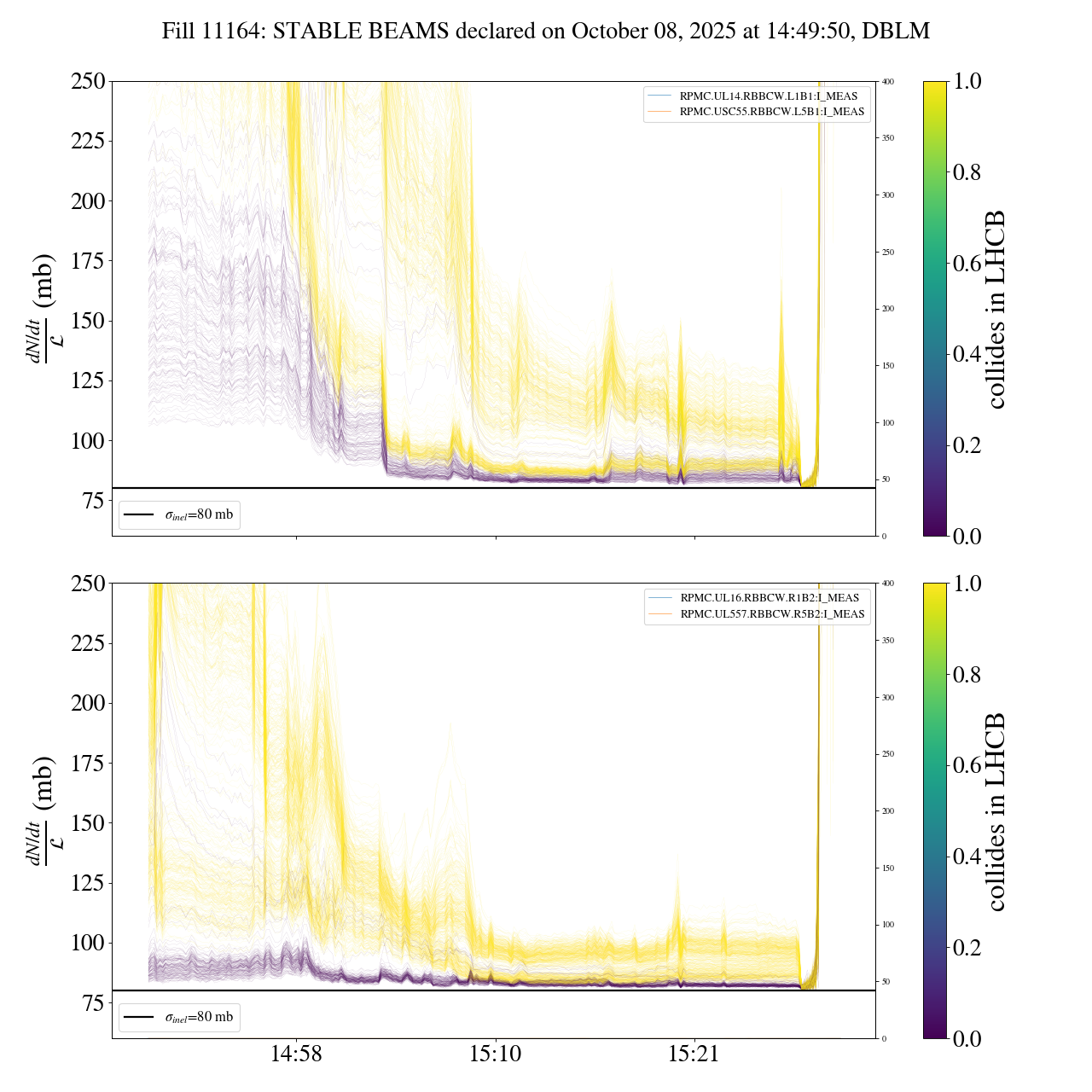

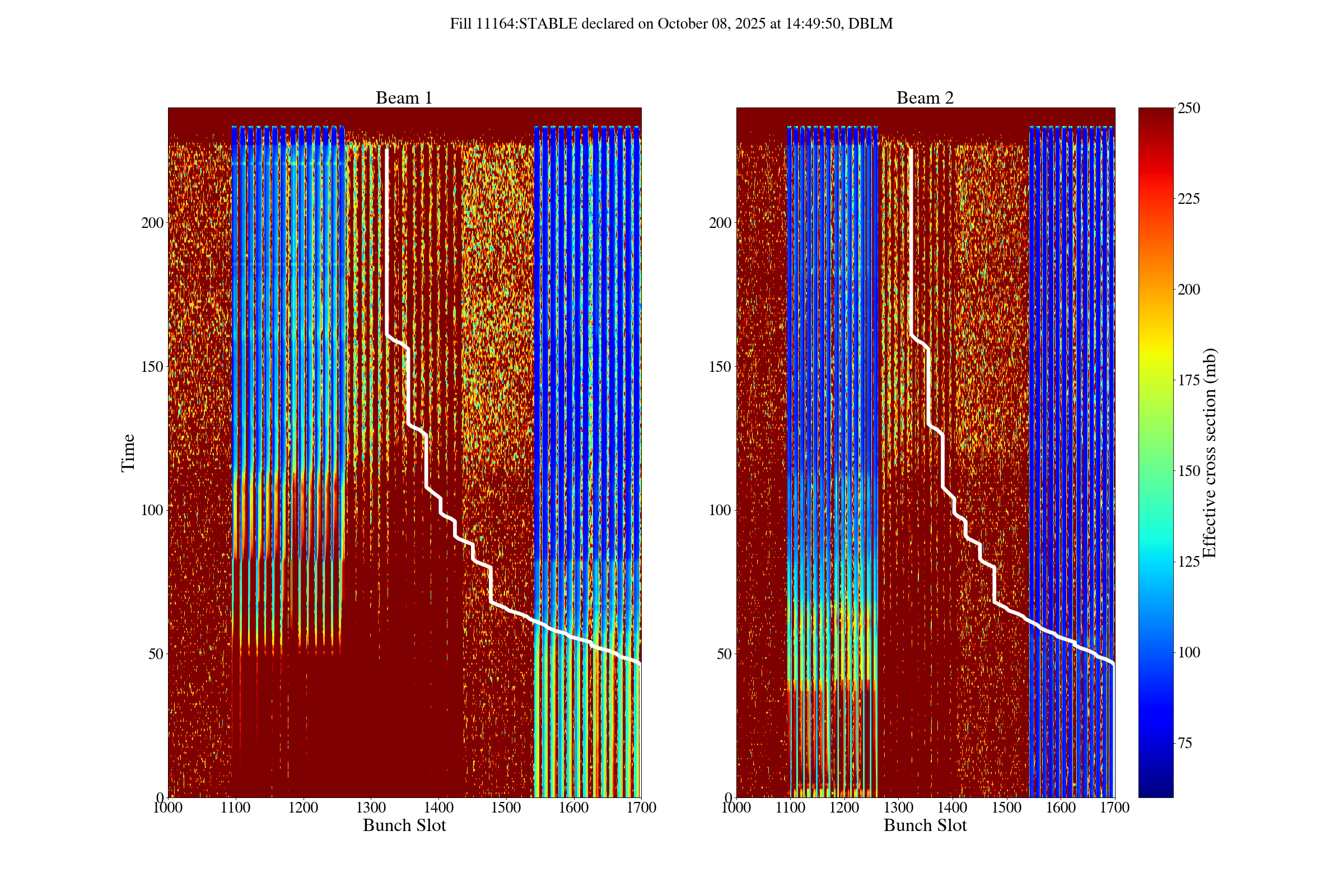

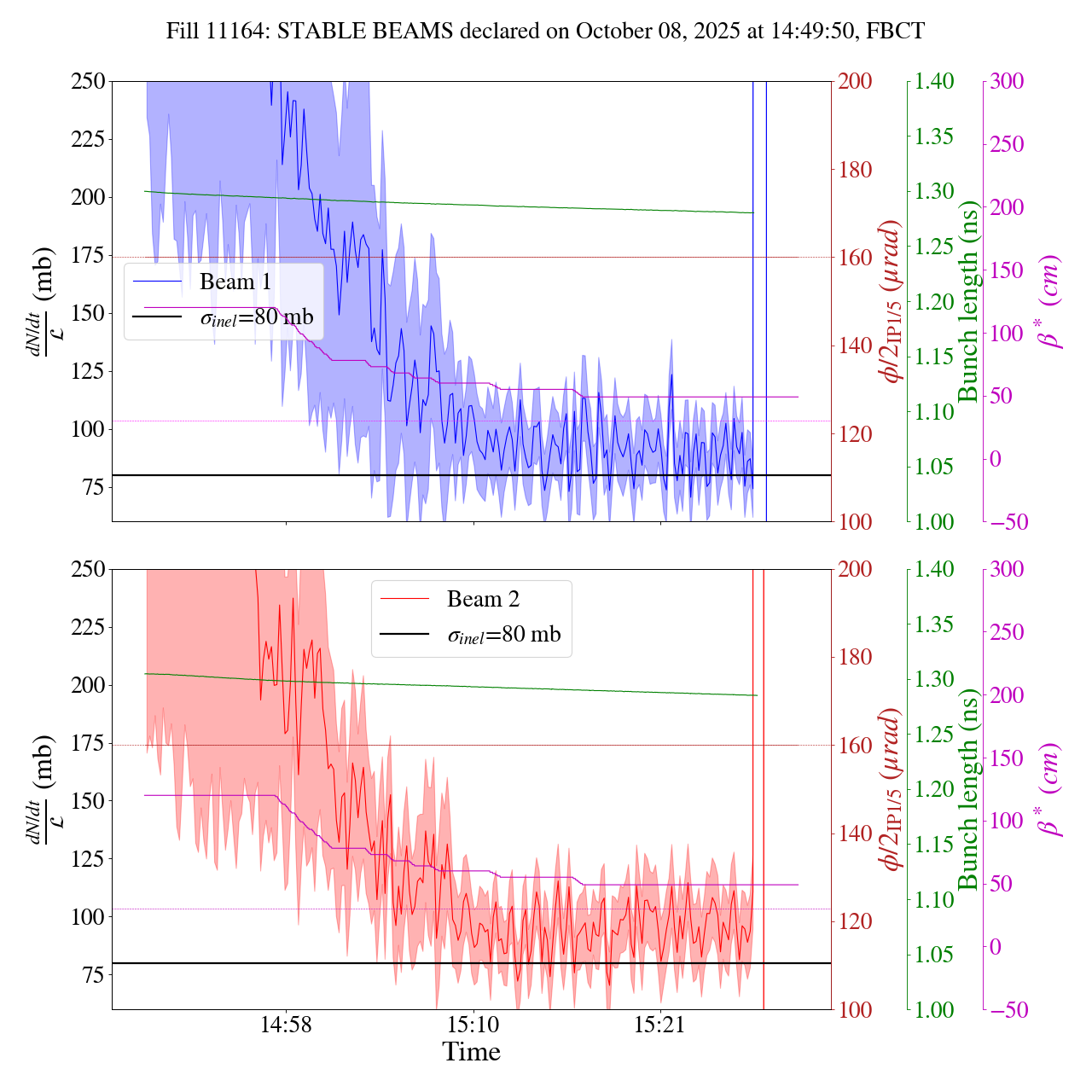

STABLE BEAM
MIM analysis
RAMP B1 H
RAMP B1 V
RAMP B2 H

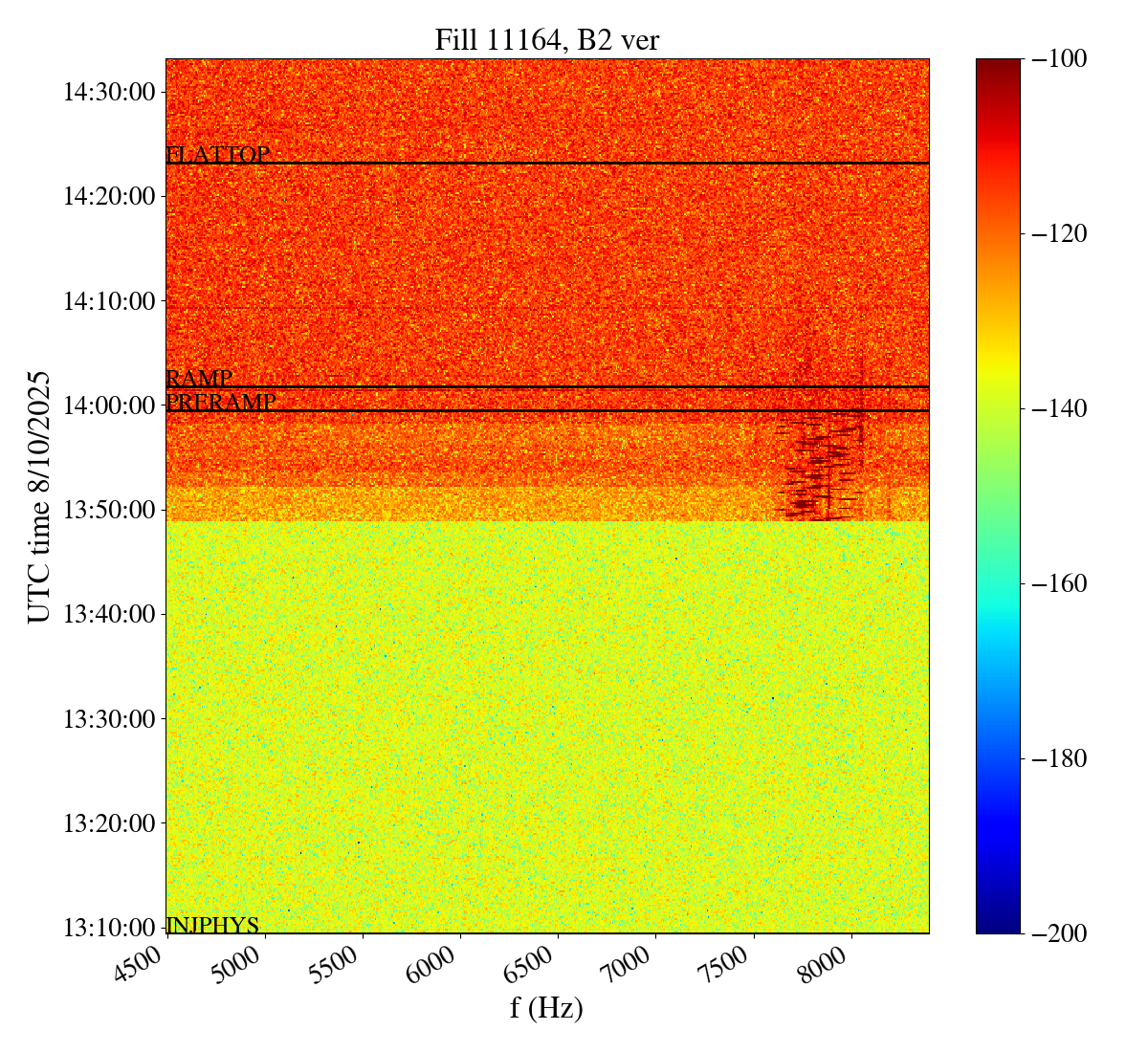

RAMP B2 V
STABLE BEAM B1 H
STABLE BEAM B1 V

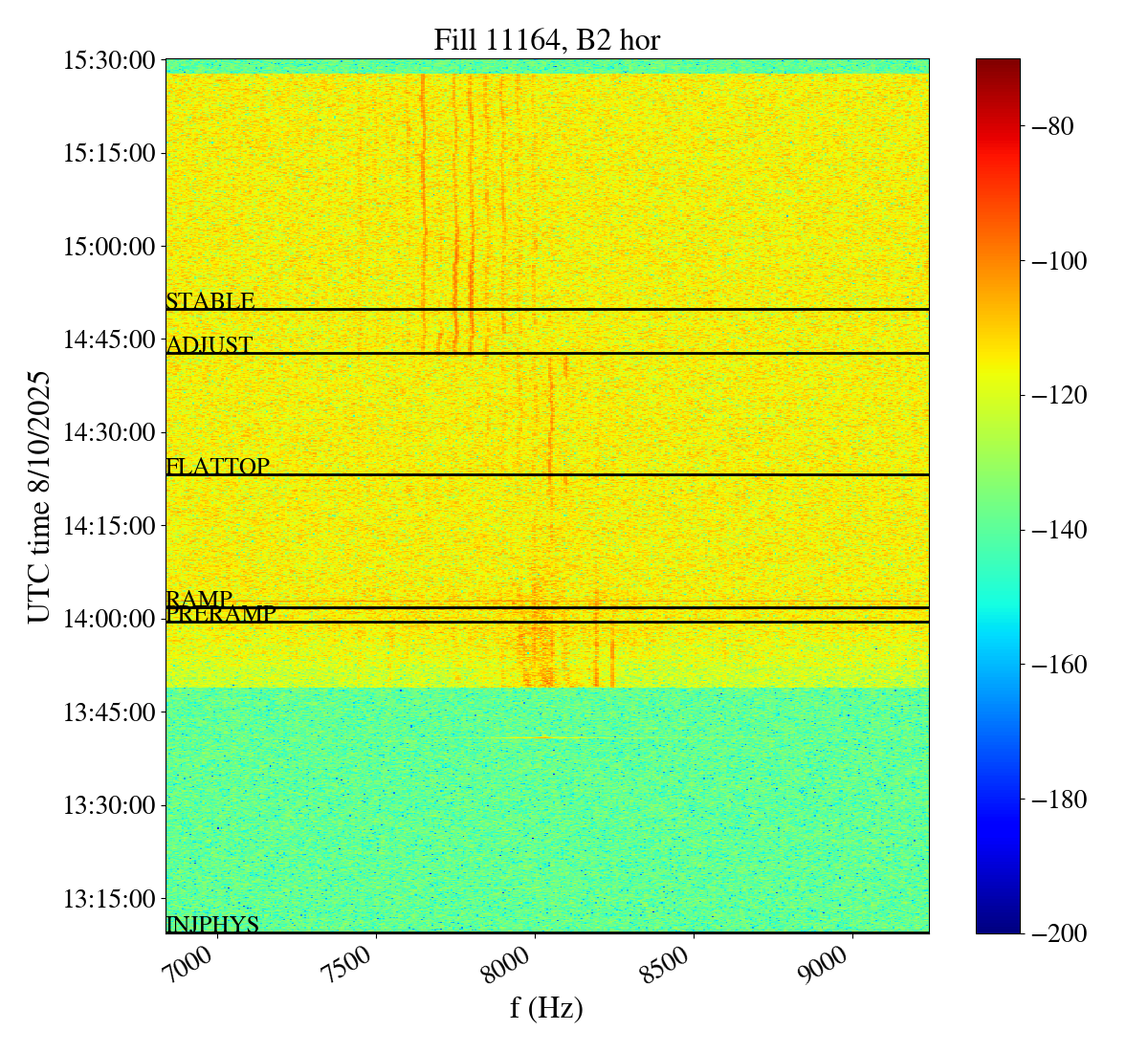

STABLE BEAM B2 H
STABLE BEAM B2 V
q-Gaussian profile analysis
B1 Horizontal
B1 Vertical
B2 Horizontal
B2 Vertical
