FILL 11222

Summary

start: October 25, 2025 11:06:49 PM UTC

end: October 26, 2025 01:56:10 PM UTC

duration: 0 days 14:49:20.394750

tags:

• PHYSICS

• OP_DUMP

comments:

• 1.4e11 B1 and 1.81e11 B2

• B1 0.11 0.12 um/h emittance growth at collisions

• B2 0.04 um/h

• increased losses in collisions B1

• issue with modes and change of local time

• change of frequency for longitudinal blowup and increase of gain to reach similar bunch length blowup between B1 and B2

• BLM warning losses B2 start of ramp 40%

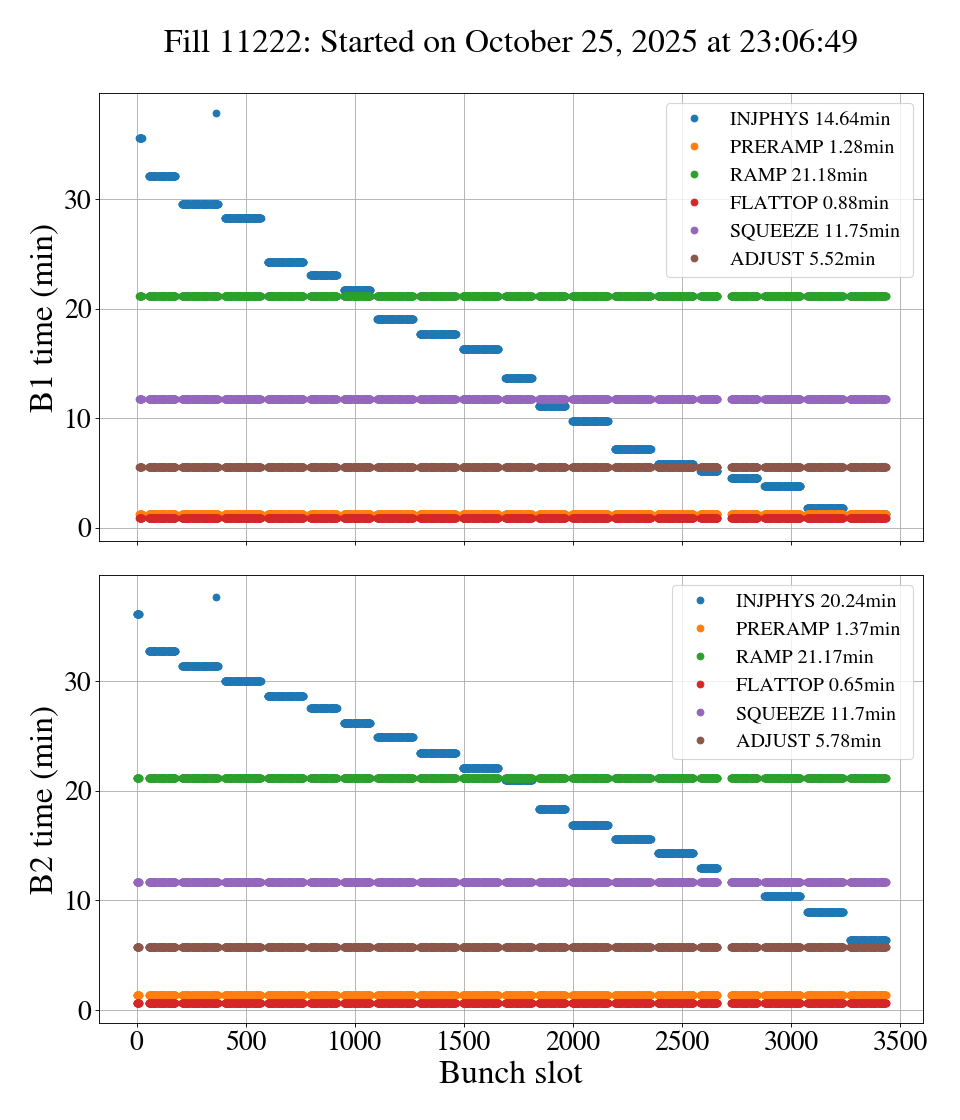

Cycle duration

Beta-functions at the IPs

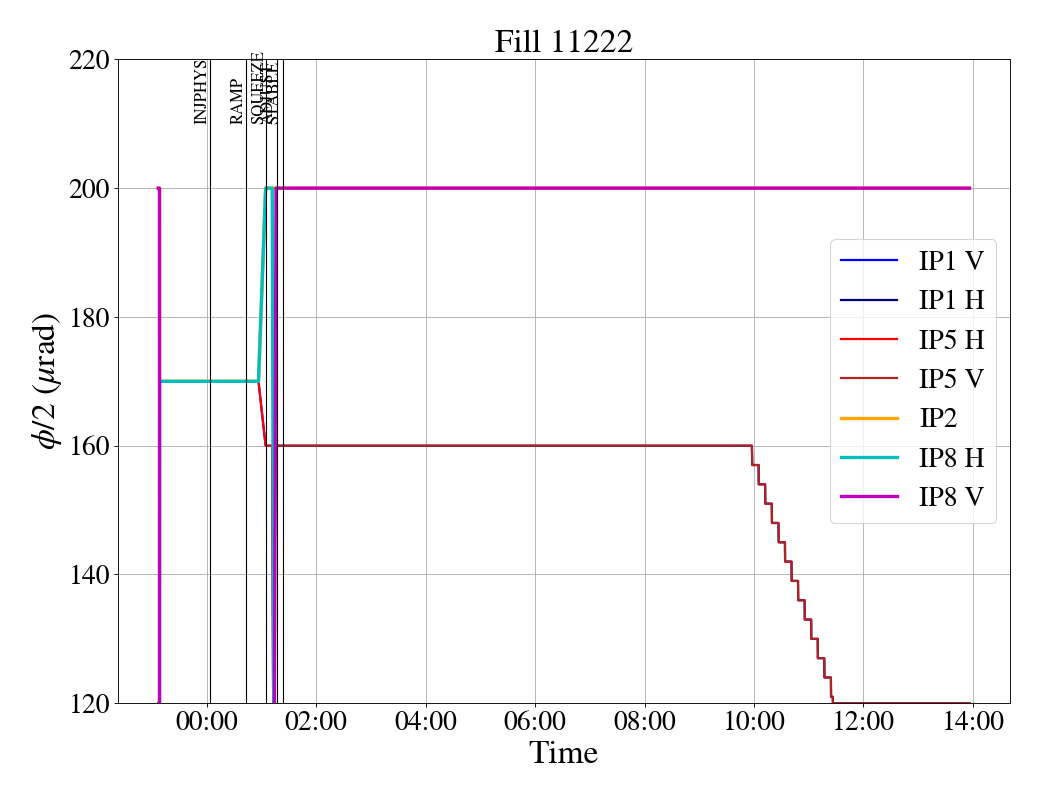

Crossing angles

Octupoles

Trims

Tune trims

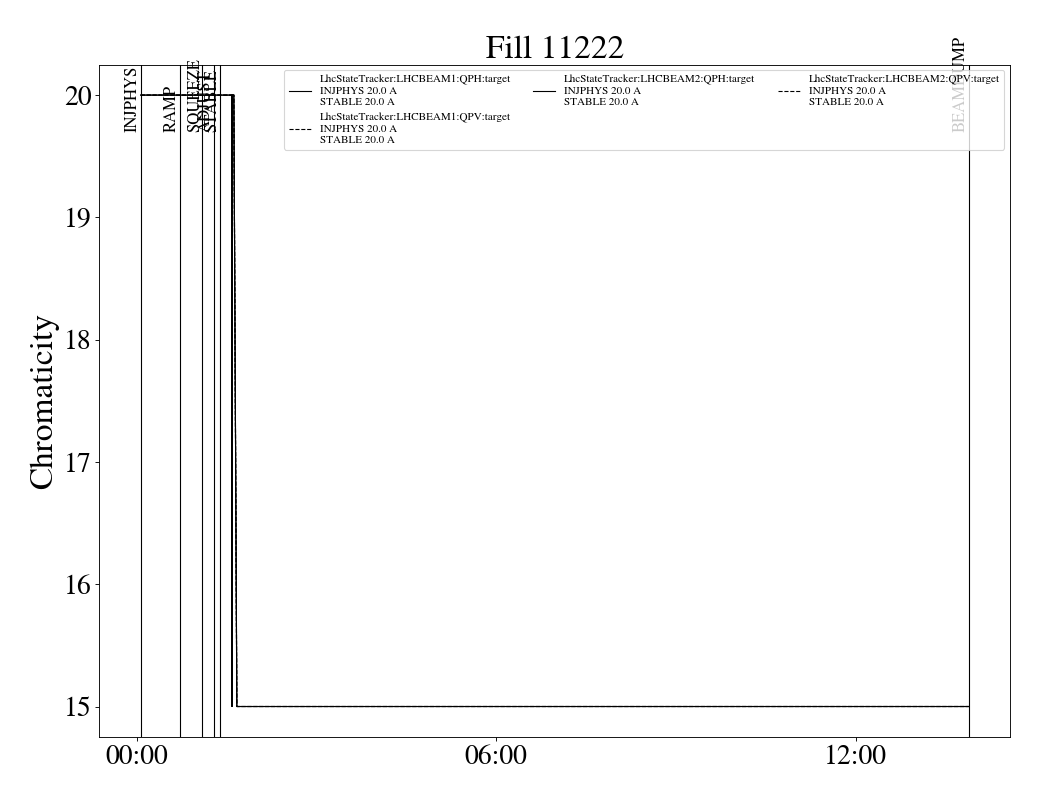

Chromaticity Trims

Intensity

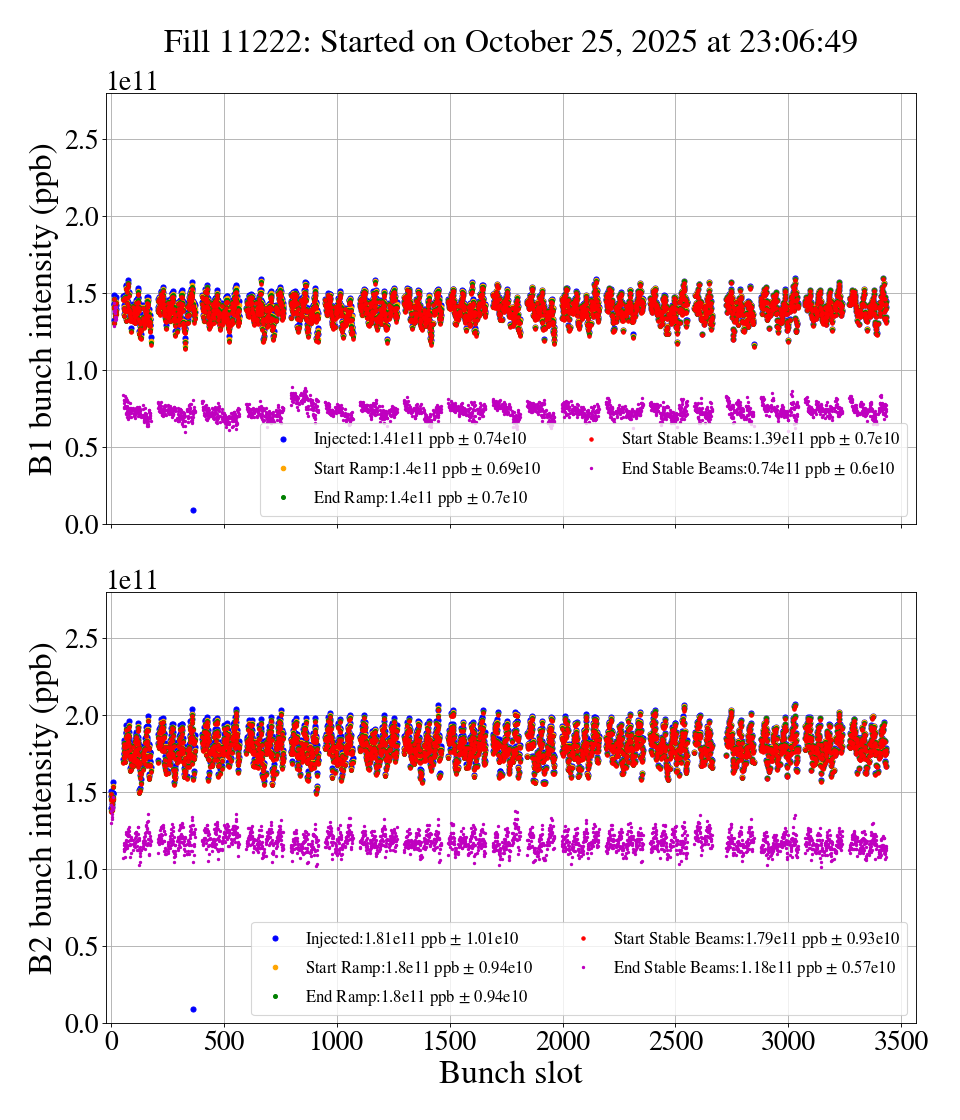

Cycle intensity

Debunched beam

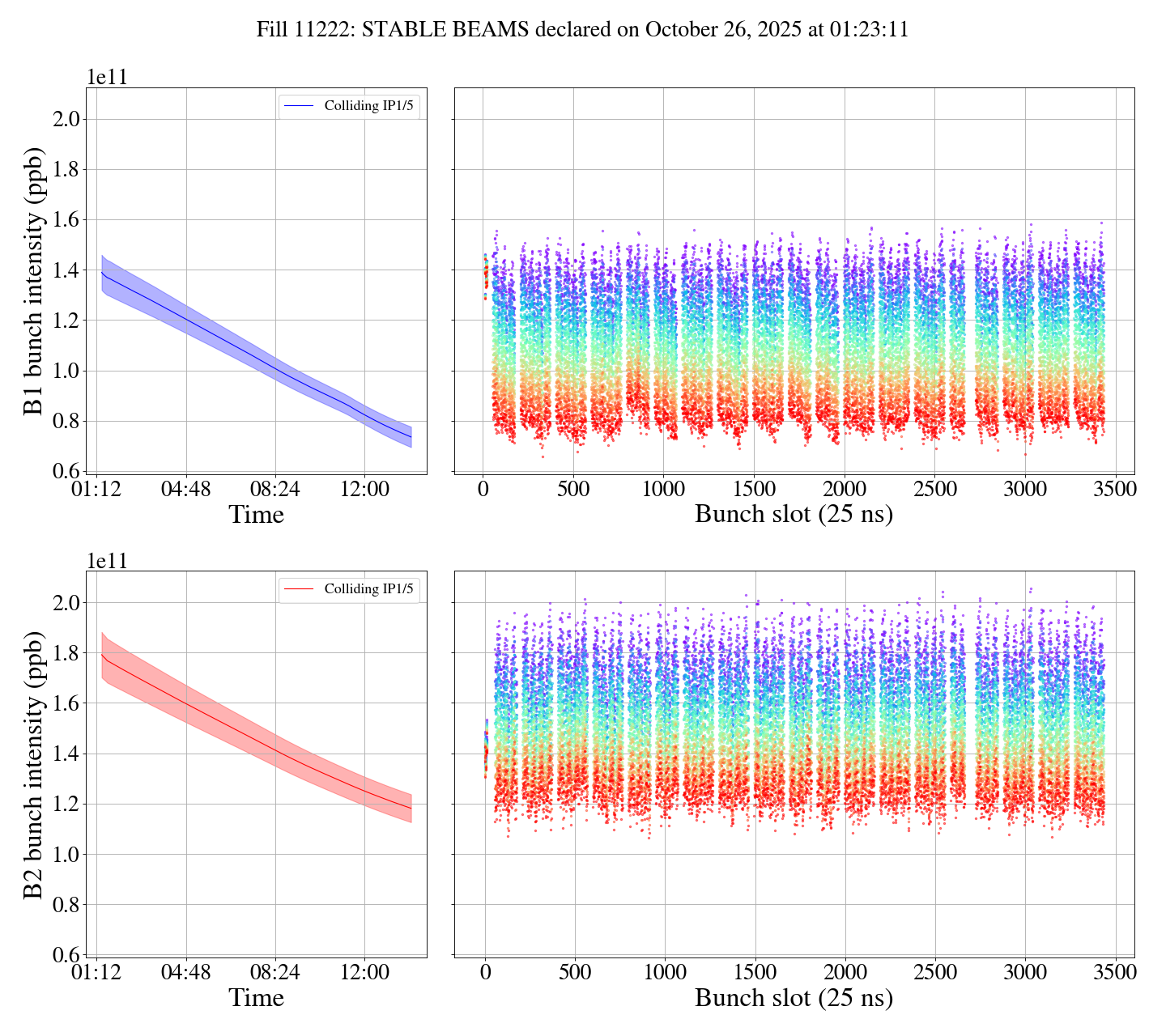

BBB SB intensity

Violin BBB intensity

SB bunch intensity

Bunch Length

Bunch Length Fill

Emittance

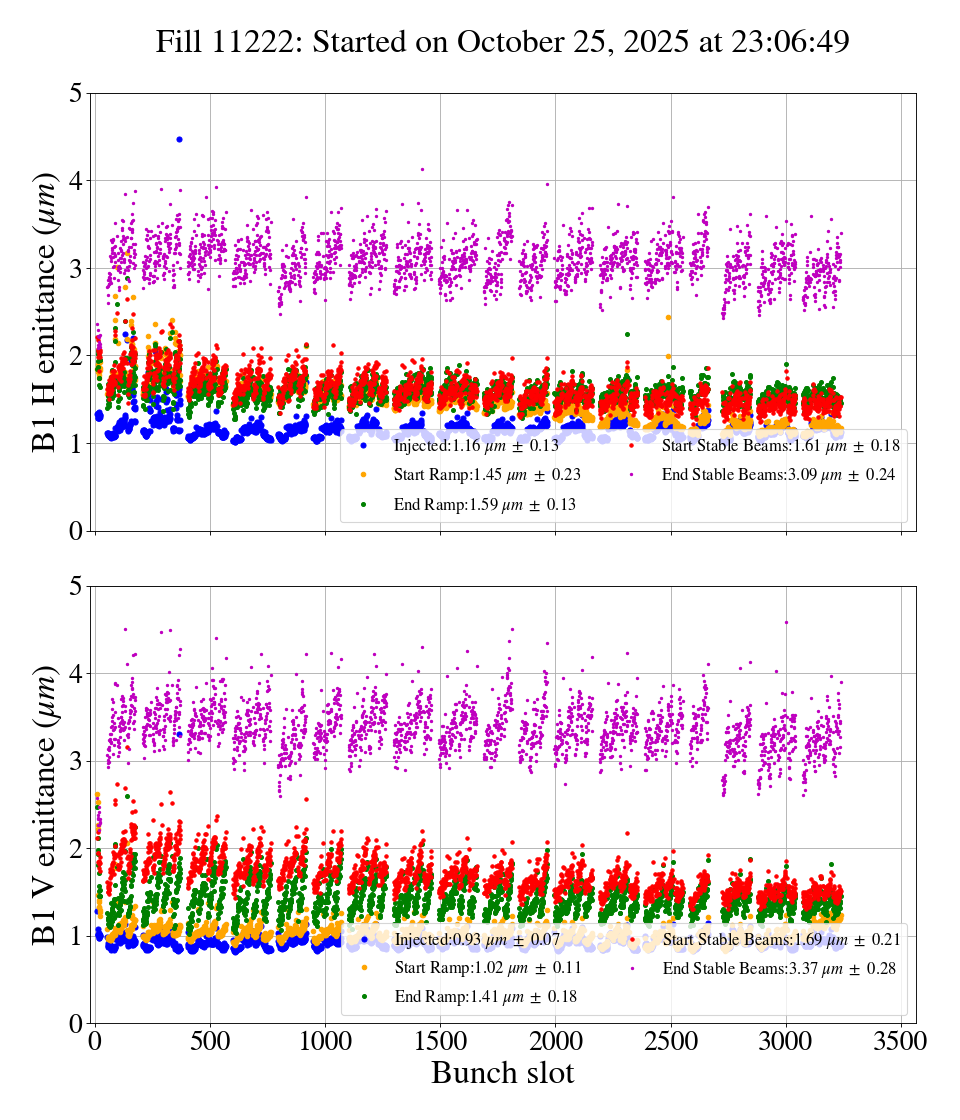

B1 along the cycle

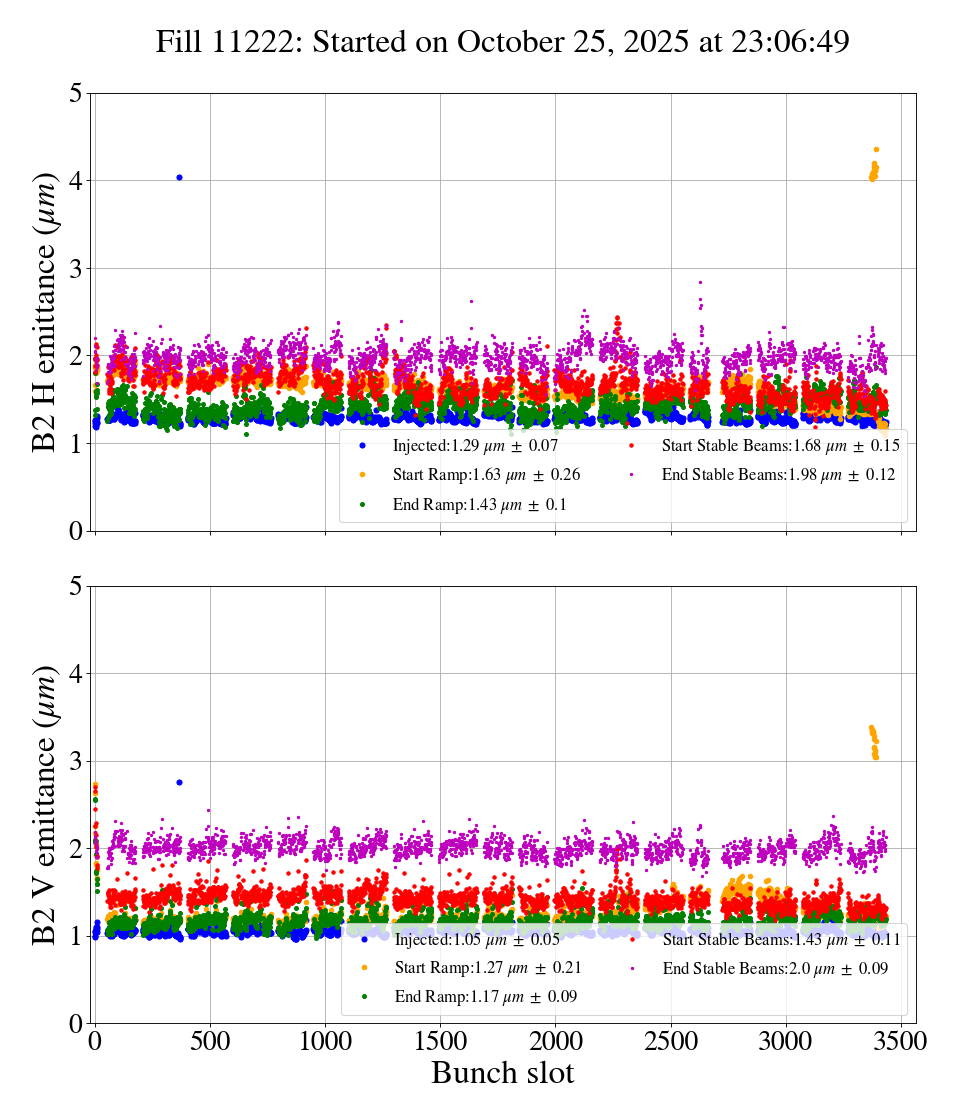

B2 along the cycle

Emittance growth at injection

Summary violin plot

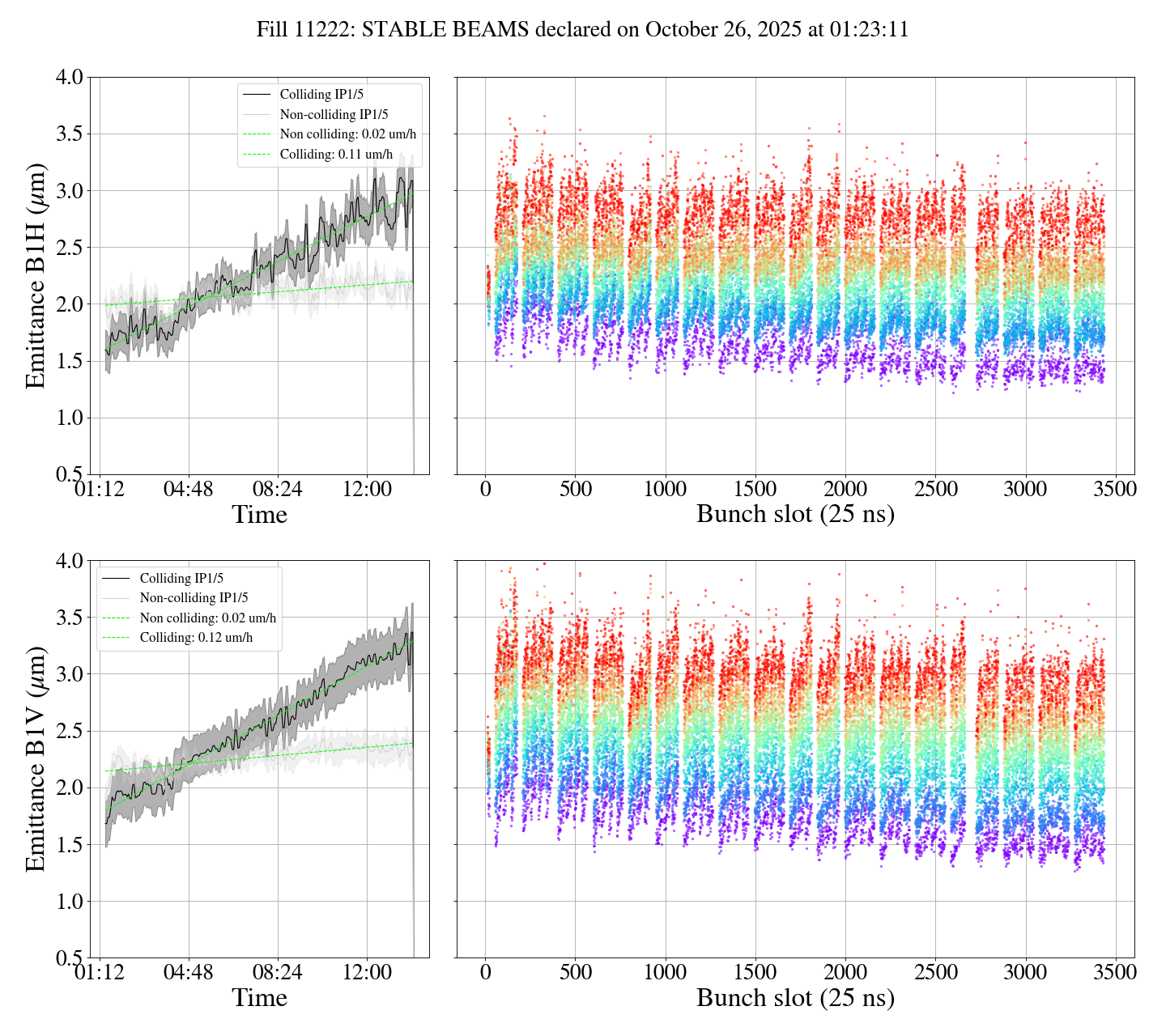

BBB in SB for B1

BBB in SB for B2

Bunch brightness

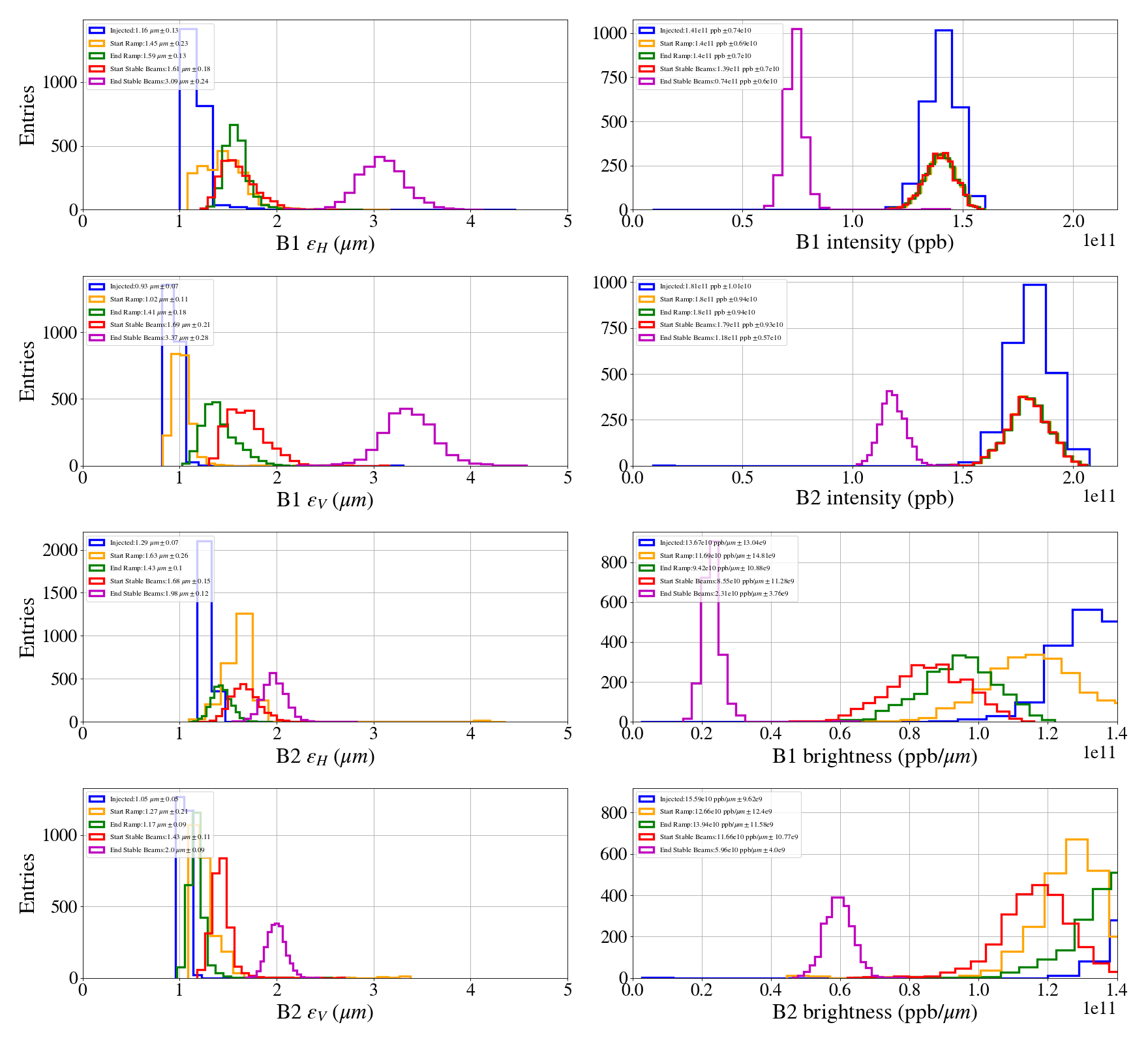

Beam properties summary

Luminosity

Overview

Luminous Regions

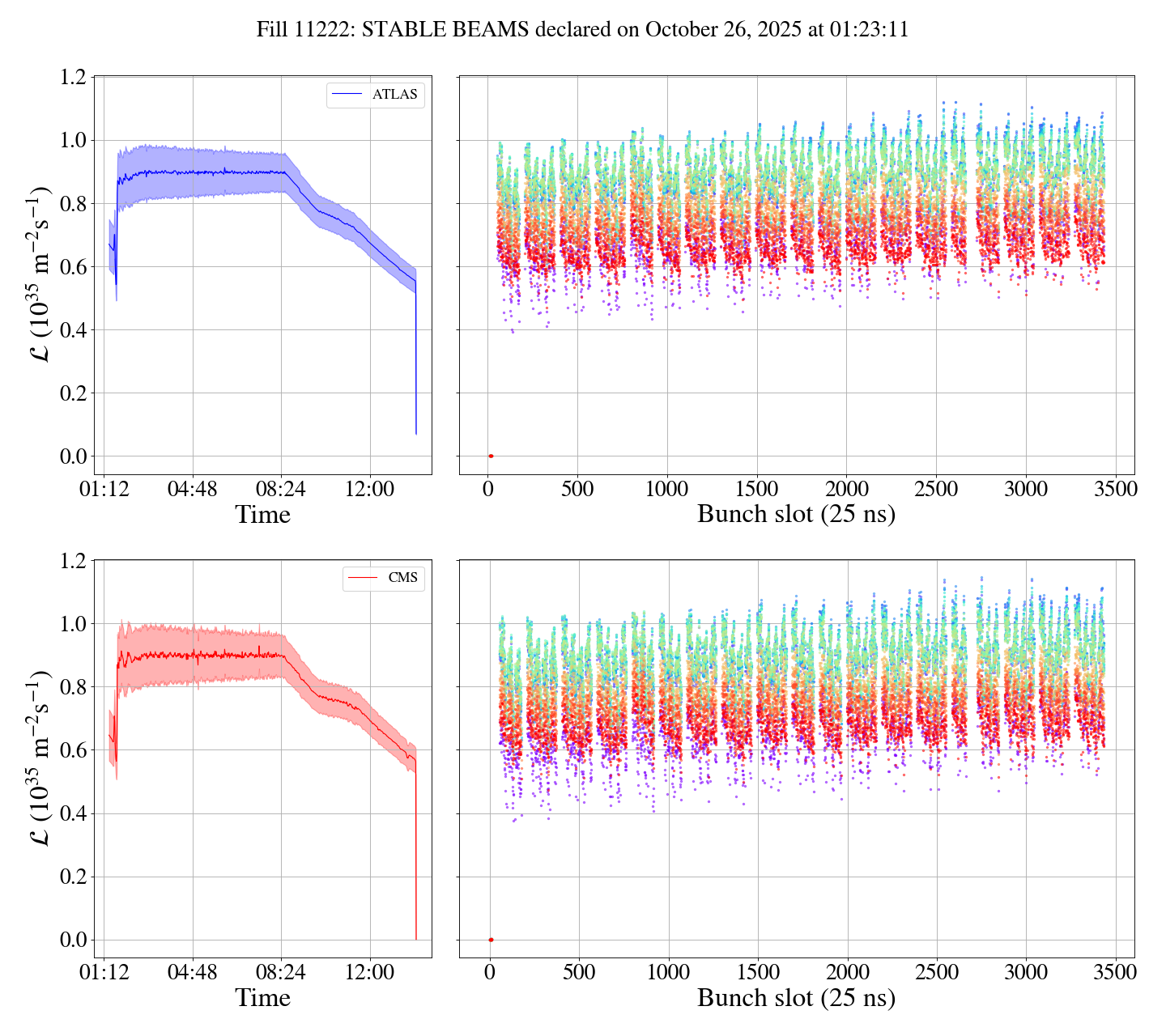

BBB luminosity in SB

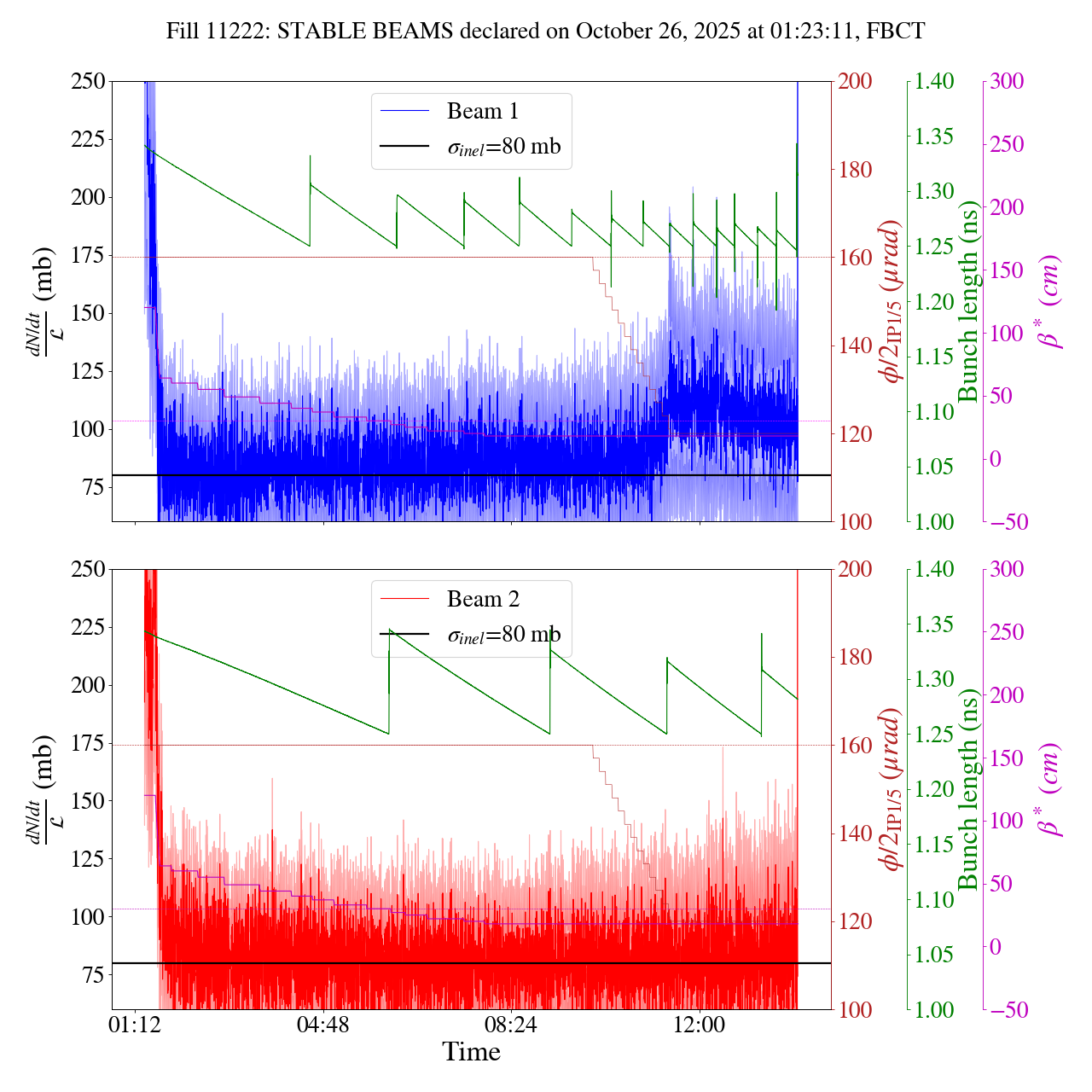

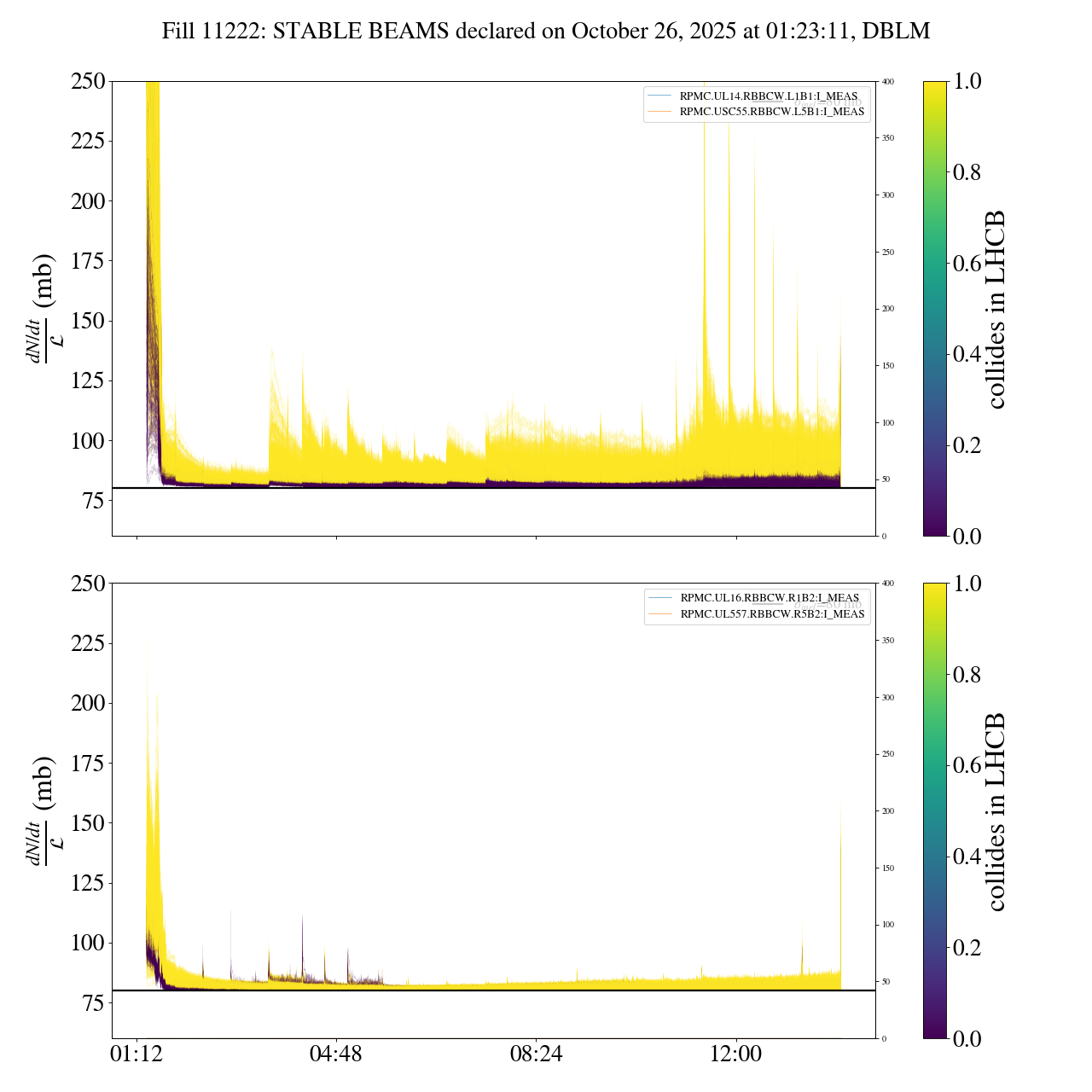

Cross-sections

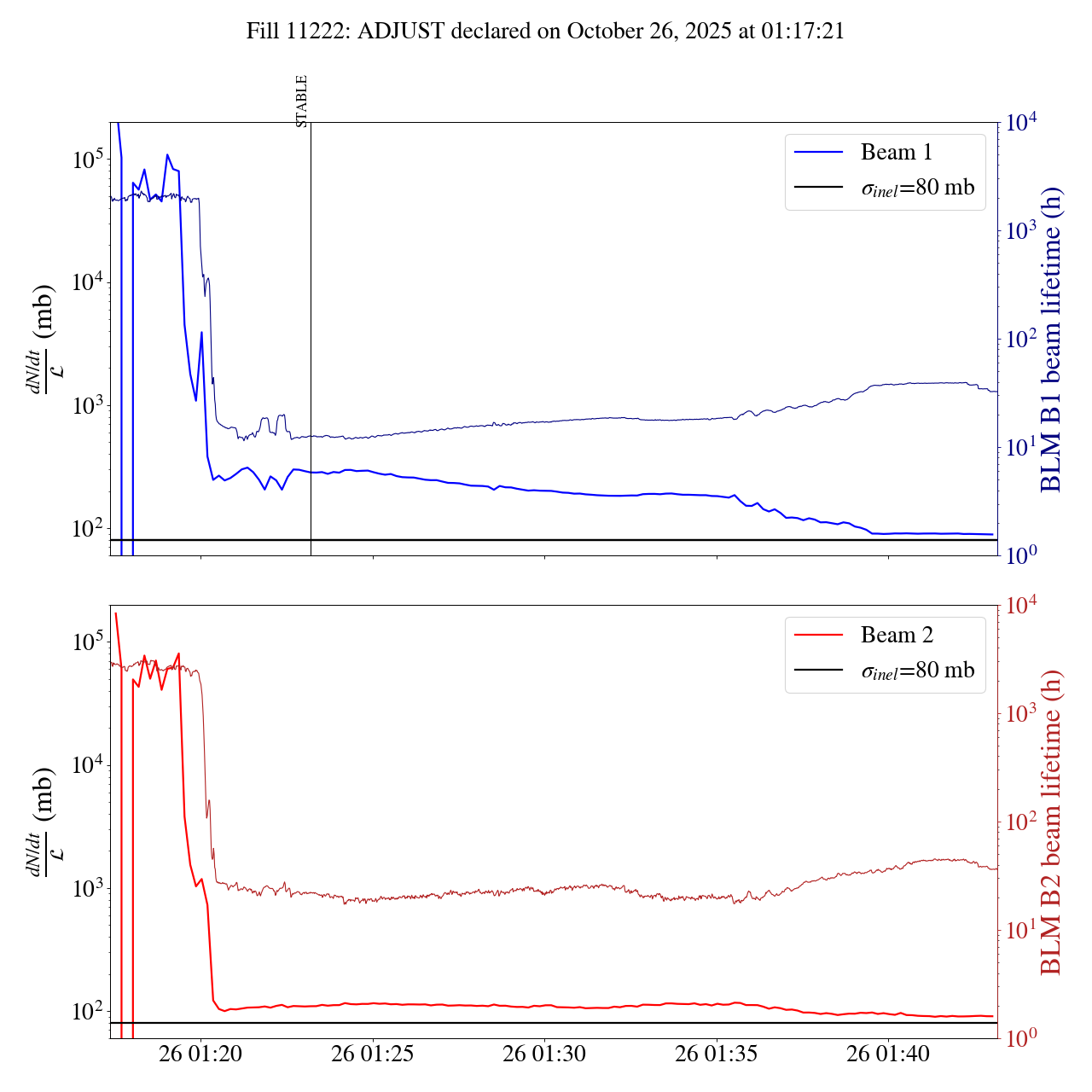

ADJUST

STABLE BEAM

MIM analysis

RAMP B1 H

RAMP B1 V

RAMP B2 H

RAMP B2 V

STABLE BEAM B1 H

STABLE BEAM B1 V

STABLE BEAM B2 H

STABLE BEAM B2 V

q-Gaussian profile analysis

B1 Horizontal

B1 Vertical

B2 Horizontal

B2 Vertical
